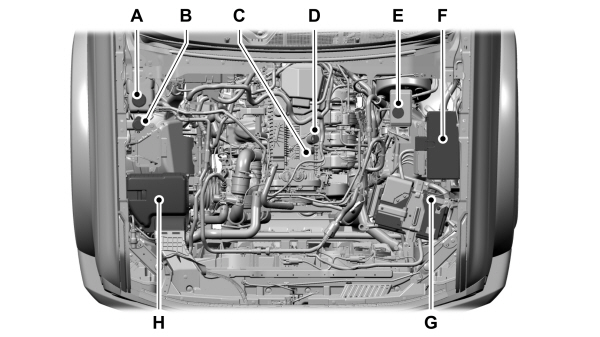

Under Hood Overview - 2.3L EcoBoost™
A Engine coolant reservoir.See Checking the Coolant. B Windshield washer fluid reservoir. See Adding Washer Fluid. C Engine oil dipstick.See Engine Oil Dipstick Overview. D Engine oil filler cap.See Adding Engine Oil. E Brake fluid reservoir.See Locating the Brake Fluid Reservoir - 2.3L EcoBoost™. F Engine compartment fuse box.See Locating the Under Hood Fuse Box. G Battery.See Changing the 12V Battery. H Air filter assembly. See Changing the Engine Air Filter - 2.3L EcoBoost™/2.7L EcoBoost™. |

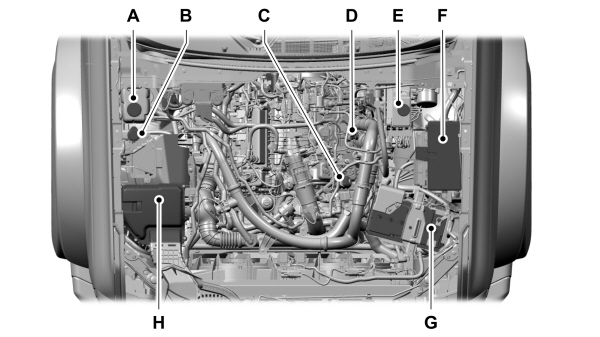

UNDER HOOD OVERVIEW - 2.7L ECOBOOST™
| AEngine coolant reservoir.See Checking the Coolant. B Windshield washer fluid reservoir. See Adding Washer Fluid. C Engine oil filler cap.See Adding Engine Oil. D Engine oil dipstick.See Engine Oil Dipstick Overview. E Brake fluid reservoir.See Locating the Brake Fluid Reservoir - 2.3L EcoBoost™. F Engine compartment fuse box.See Locating the Under Hood Fuse Box. G Battery.See Changing the 12V Battery. H Air filter assembly. See Changing the Engine Air Filter - 2.3L EcoBoost™/2.7L EcoBoost™. |
