2022 Ford Bronco Owners Manual - Removing and Installing the Front Roof Panel - Excluding: Raptor

Removing and Installing the Front Roof Panel - Excluding: Raptor

Remove the driver side front roof panel before removing the passenger side front roof panel.

1. Fold down the sun visor against the windshield.

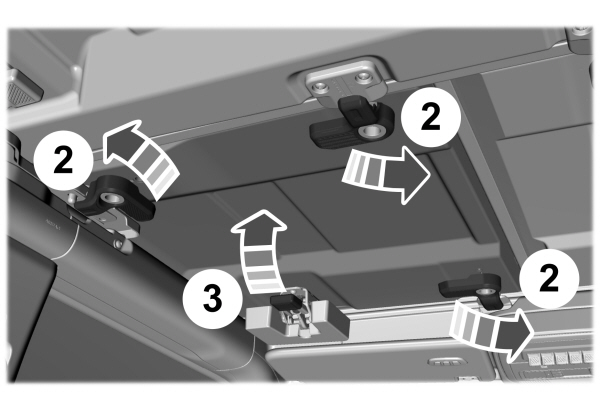

1. Turn the three L-shaped latches on the driver side front roof panel, unlocking them from the roof.

1. Unlatch the driver side header panel latch at the top of the windshield.

1. Remove the driver side front roof panel.

1. Repeat the steps to remove the passenger side panel front roof panel.

1. Store the front roof panels in the storage bag.   See   Storing the Roof Panels - 2-Door.
     See   Storing the Doors and the Roof Panels - 4-Door, Excluding: Raptor.

1. To install, reverse the removal procedure.

REMOVING AND INSTALLING THE FRONT ROOF PANEL - RAPTOR

WARNING:  Do not remove or modify the B-Pillar brace or trim. Doing so could affect safety system performance, including safety canopy and front seat mounted side airbags, during a crash or rollover.

Do not remove or modify the C-pillar brace.

Remove the driver side front roof panel before removing the passenger side front roof panel.

1. Fold down the sun visor against the windshield.

1. Turn the three L-shaped latches on the driver side front roof panel, unlocking them from the roof.

1. Unlatch the driver side header panel latch at the top of the windshield.

1. Remove the driver side front roof panel.

1. Repeat the steps to remove the passenger side panel front roof panel.

1. Store the front roof panels in the storage bag.   See   Storing the Roof Panels - 2-Door.
     See   Storing the Doors and the Roof Panels - 4-Door, Excluding: Raptor.

1. To install, reverse the removal procedure.

REMOVING AND INSTALLING THE CENTER ROOF PANEL - 4-DOOR, EXCLUDING: RAPTOR

Remove both of the front roof panels before removing the center roof panel.

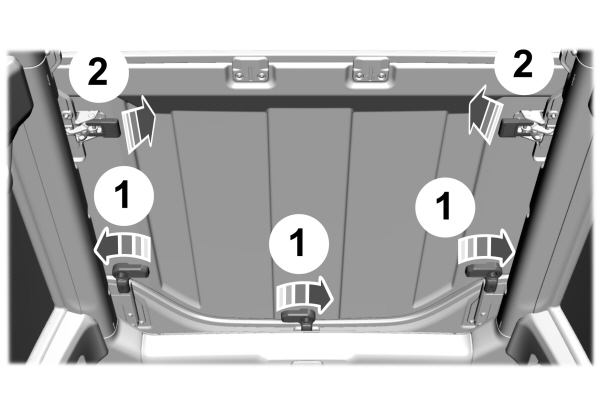

1. Turn the three L-shaped latches on the center roof panel, unlocking them from the rear roof panel.

1. Unlatch the driver side and passenger side latches of the center roof panel.

1. Remove the center roof panel.

1. To install, reverse the removal procedure.

Removing and Installing the Center Roof Panel - Raptor, 4-Door
