Removing a Rear Lamp Assembly

1. Make sure the headlamps are off.

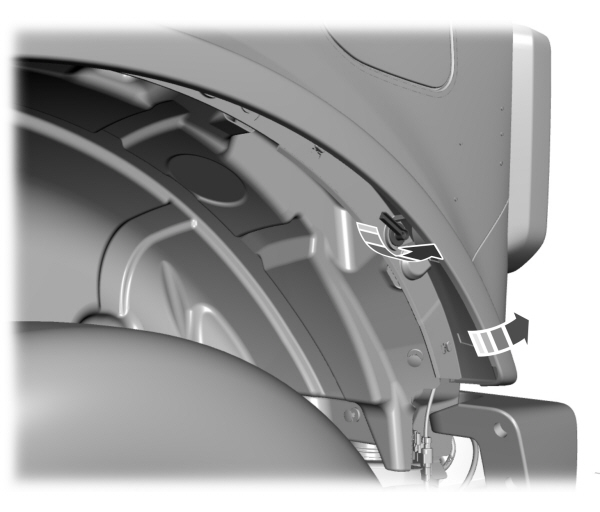

1. Loosen the quarter-turn fastener on the rearmost fender flare.

1. Fully open the tailgate.   See   Opening the Tailgate From Outside Your Vehicle.

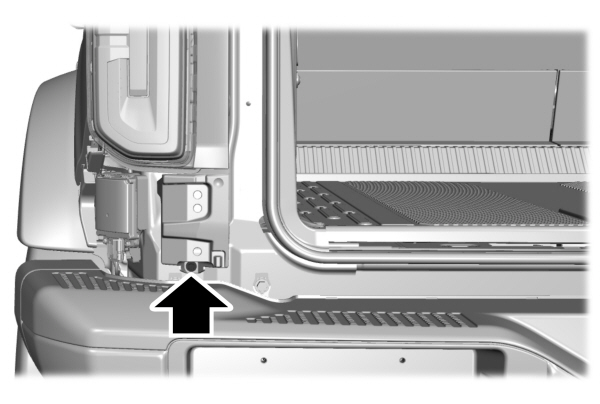

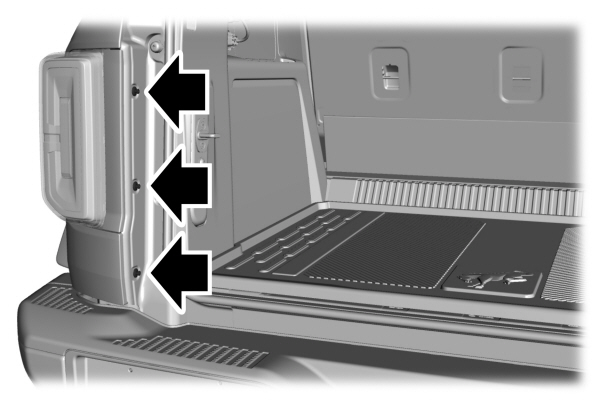

1. Remove the three pushpins from inside the trim panel.

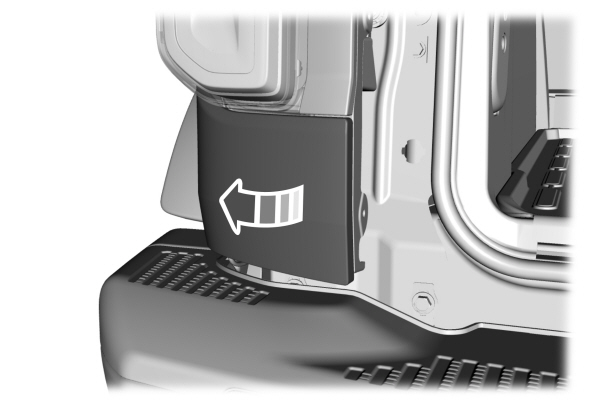

1. Remove the lower trim piece by disengaging the retaining tabs. Pull from the inside edge first, then pull from the outside edge.

1. Remove the lower retaining bolt from the inside trim piece. Pull on the lower part of the trim piece to disengage the upper retaining clips.

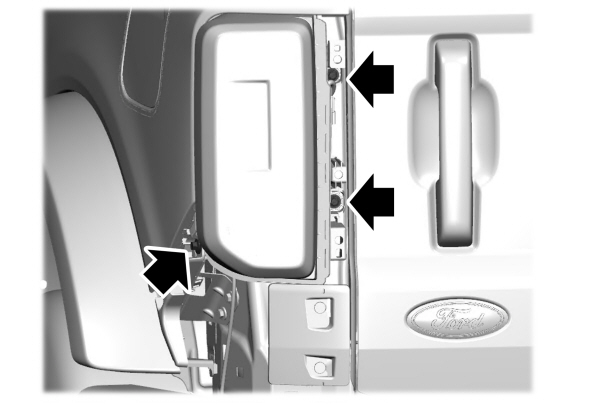

1. Remove the three retaining bolts securing the rear lamp to the body.

Note:   Remove and install the retaining bolt near the wheel well before the retaining bolts near the luggage compartment.

1. Pull the rear lamp away from the vehicle and disconnect the electrical connectors as needed.

1. To install, reverse the removal procedure.

Changing a Rear Lamp Bulb

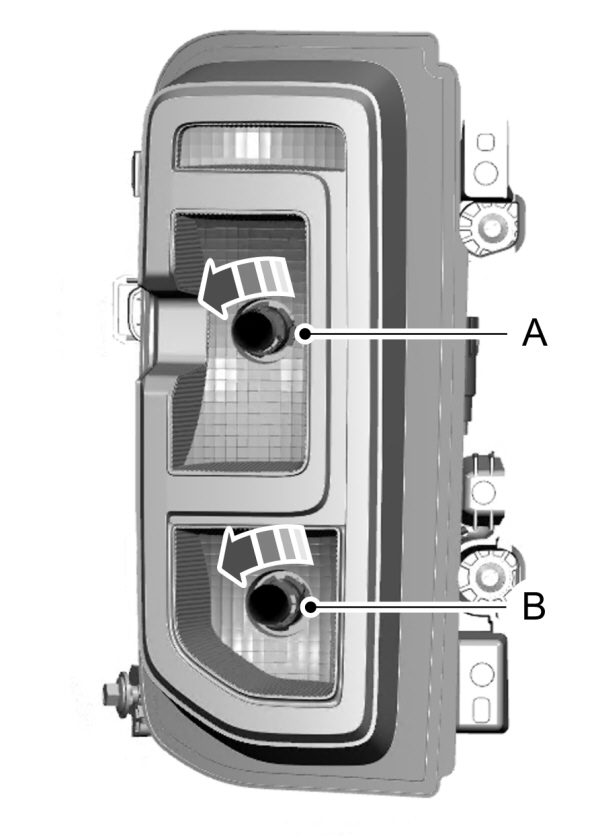

A. Stoplamp, rear and turn signal bulb. B. Reversing lamp bulb.

1. Remove the rear lamp assembly.   See   Removing a Rear Lamp Assembly.

1. Rotate the bulb socket counterclockwise and remove it from the rear lamp assembly.

1. To install, reverse the removal procedure.

Interior Bulb Specification Chart

Your vehicle has LED lamps. These are not serviceable items. See an authorized dealer if they fail.

Drive Belt Routing - 2.3L EcoBoost™

A.Short drive belt is on the second pulley groove farthest from engine. B.Long drive belt is on the first pulley groove closest to engine.
