Removing and Installing the Soft Top
 WARNING: When opening, closing, removing or installing the removable vehicle components, take care not to get your fingers or hands caught in the mechanism. Failure to follow this instruction could result in personal injury. |
- Fully open the soft top. See Opening and Closing the Soft Top.

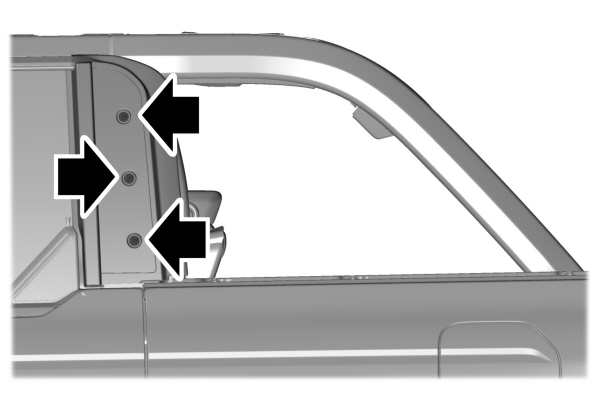

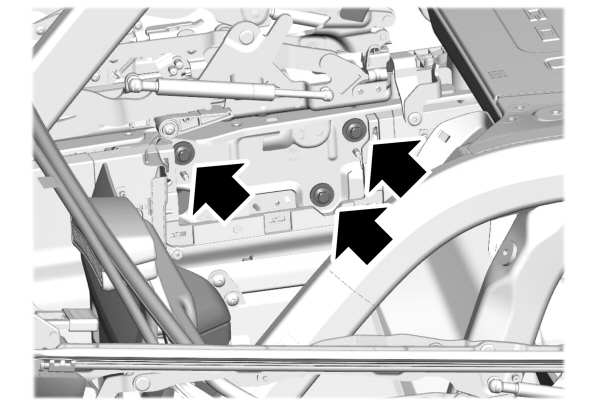

- Remove the three fasteners on each side in the rear cargo area using the provided head driver and ratchet.
- Remove the soft top.
Note: Safely store the soft top when it is off your vehicle.
- To install, reverse the removal procedure.Torque the fasteners that secure the soft top to your vehicle to 20 ± 3 Nm (15 ± 2 lb.ft).
Note: Make sure the soft top is set flush on the locating pins.
Note: Do not overtighten the fasteners. You can strip the fasteners if you overtighten them.
Installing the Soft Top Trim Piece (If Equipped)
Make sure to install the soft top trim pieces before installing the soft top.
Secure the three fasteners to the soft top trim piece on each side of your vehicle using the provided head driver and ratchet.
Removable Fender Precautions
| WARNING: Do not drive your vehicle on public roads with fenders removed as you will lose the protection they provide in a crash. Failure to follow this instruction could result in personal injury or death. |
