2022 Ford Bronco Owners Manual - Instrument Cluster Overview



Instrument Cluster Overview

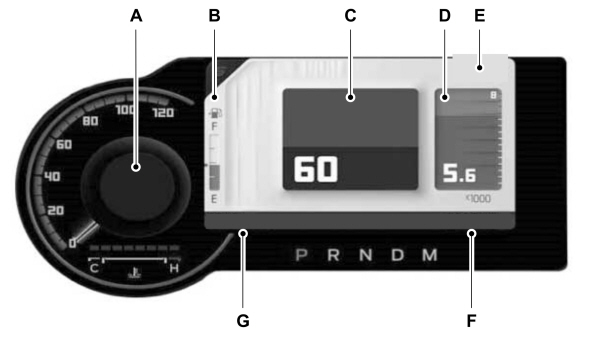

Image Shown Without Description

ASpeedometer.
BFuel gauge.
CDigital speedometer.
DTachometer.
ECompass and ambient temperature.
FOdometer.
GDistance to empty.

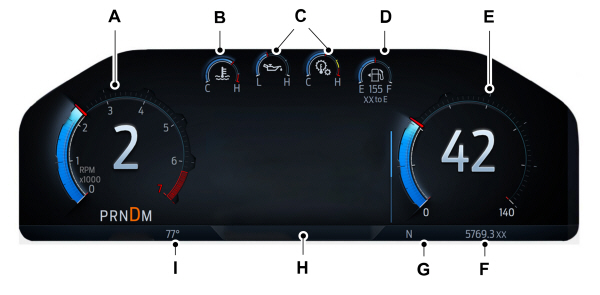

INSTRUMENT CLUSTER OVERVIEW - RAPTOR, VEHICLES WITH: 12 INCH SCREEN

Image Shown Without Description

ATachometer.
BEngine coolant temperature gauge.
CConfigurable gauges.
DFuel gauge.
ESpeedometer.
FOdometer.
GCompass.
HInformation bar.
IAmbient temperature.

Tachometer

Indicates the engine speed.

Speedometer

Indicates the vehicle speed.
