2022 Ford Bronco Owners Manual - Storing the Roof Panels - 2-Door (If Equipped)

Storing the Roof Panels - 2-Door (If Equipped)

WARNING:  Do not store removed doors or roof panels in vehicle without using the Ford onboard storage kit, and verifying they have been secured per instructions. Failure to follow this instruction could result in personal injury or death.

Note:   The two-door vehicle is not capable of on board storage of the doors. Store the doors in a secure area to avoid damage.

Note:   Clean the roof panels prior to storing in the bags to prevent dirt from damaging the finish.

1. Remove the front roof panels.  See   Removing and Installing the Front Roof Panel - Excluding: Raptor.

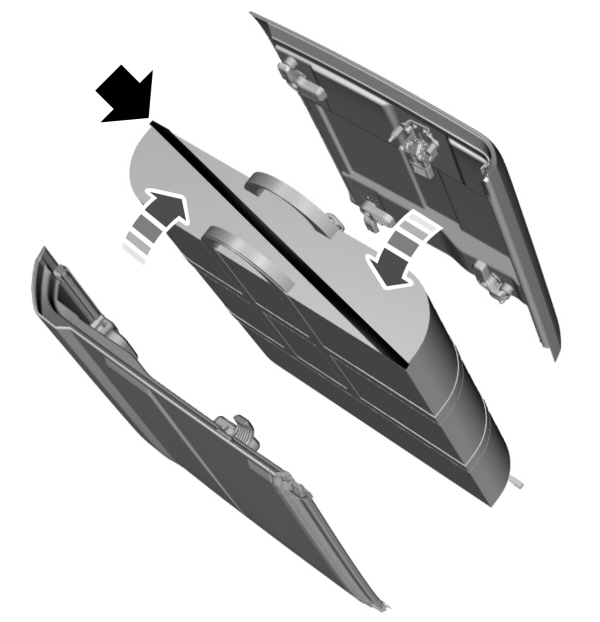

1. Open the bag and pull out the divider. Place the first panel into the bag. Replace the divider before placing the second panel into the bag.

1. Zip the bag closed.

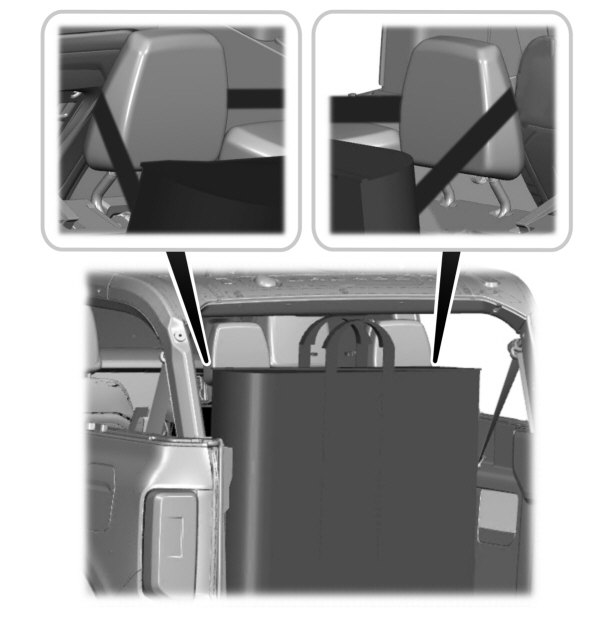

1. Gently slide the roof panel bag into the cargo area in the vertical position.

1. Secure the upper roof bag strap around the rear seat headrests. Adjust the tension on the straps until it is snug.

Note:   Do not overtighten the strap. This may cause damage to the headrest.

1. Secure the lower bag hooks to the forward cargo rings.
