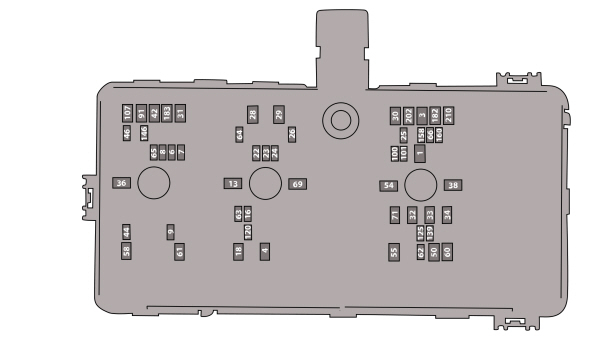

Identifying the Fuses in the Under Hood Fuse Box
| Item | Rating | Protected Component |
|---|---|---|
| 1 | 30 A | Body control module - battery power in feed 1. |
| 3 | 30 A | Body control module - battery power in feed 2. |
| 4 | 30 A | Fuel pump. |
| 6 | 25 A | Powertrain control module power. |
| 7 | 30 A | Powertrain components. |
| 8 | 20 A | Powertrain components. |
| 9 | 20 A | Ignition coils. |
| 13 | 40 A | Blower motor. |
| 16 | 10 A | Windshield washer. |
| 18 | 30 A | Starter motor. |
| 22 | 10 A | 360 degree camera module. |
| 23 | 10 A | Anti-lock brake system run-start feed. |
| 24 | 10 A | Powertrain control module. Power steering module. |
| 25 | 10 A | Blind spot information system. Rear view camera. Adaptive cruise control. Driveline control module. |
| 26 | 15 A | Transmission control module. |
| 28 | 60 A | Anti-lock brake system valves. |
| 29 | 60 A | Anti-lock brake system pump. |
| 30 | 30 A | Driver power seat. |
| 31 | 30 A | Passenger power seat. |
| 32 | 20 A | Auxiliary power point. |
| 33 | 20 A | Auxiliary power point. |
| 34 | 20 A | Auxiliary power point. |
| 36 | 40 A | 150 watt DC/AC inverter. |
| 38 | 30 A | Heated seat module. |
| 42 | 30 A | Trailer brake control module. |
| 44 | 10 A | Brake on-off switch. |
| 46 | 20 A | SYNC module. |
| 50 | 40 A | Heated rear windshield. |
| 54 | 40 A | Driveline control module. |
| 55 | 30 A | Trailer tow park lamp relay. |
| 58 | 20 A | Trailer tow backup lamps. |
| 60 | 30 A | Upfitter switch #1. |
| 61 | 15 A | Upfitter switch #2. |
| 62 | 10 A | Upfitter switch #3. |
| 63 | 10 A | Upfitter switch #4. |
| 64 | 10 A | Upfitter switch #5. |
| 65 | 10 A | Upfitter switch #6. |
| 66 | 10 A | Stability bar disconnect module. |
| 69 | 30 A | Front windshield wiper. |
| 71 | 30 A | Rear windshield wiper. |
| 91 | 40 A | Trailer tow light module. |
| 100 | 20 A | Left-hand headlamps. |
| 101 | 20 A | Right-hand headlamps. |
| 107 | 30 A | Trailer tow battery charge. |
| 120 | 10 A | Fuel injectors (2.7L). |
| 125 | 10 A | USB smart charger 1. |
| 139 | 5 A | Not used (spare). |
| 146 | 20 A | Amplifier. |
| 158 | 10 A | Stability bar disconnect module run/start. |
| 160 | 10 A | Smart data link control. |
| 182 | 60 A | Driver door module. |
| 183 | 60 A | Passenger door module. |
| 202 | 60 A | Body control module B+. |
| 210 | 30 A | Body control module start stop. |
