Adjusting the Luggage Compartment Load Floor

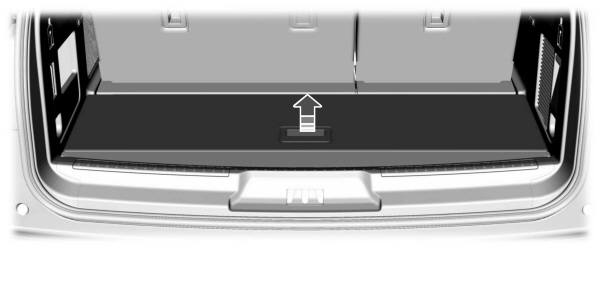

Short Wheelbase Load Floor
Lift up on the handle to open the cover.
Note: The board operates with friction hinges. This allows you to put it in any position between a 0 ° and a 90 ° angle.
To close, lower the cover.
Long Wheelbase Load Floor

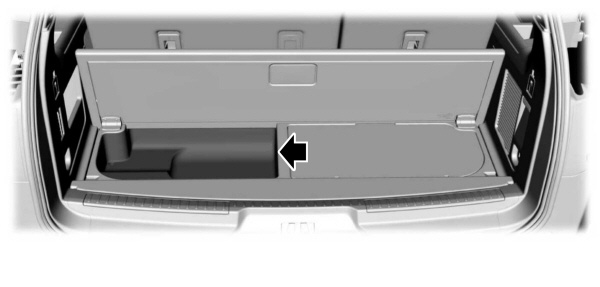

The bi-folding load floor provides access to two separate storage compartments.

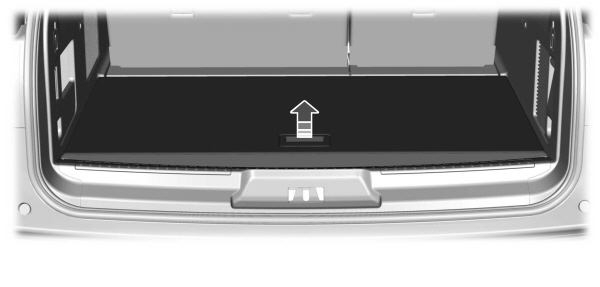

Lift up on the handle and fold it back to open the cover.
Note: The board operates with friction hinges. This allows you to put it in any position between a 0 ° and a 90 ° angle.

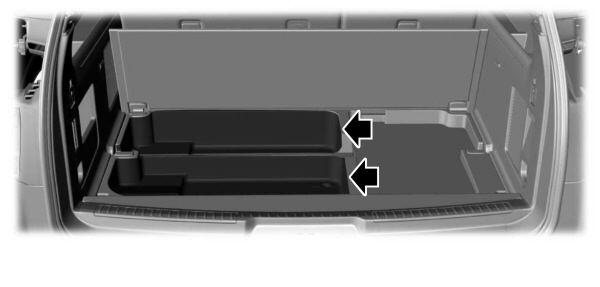

To access the second storage compartment, fold the cover back a second time.
To close, lower the cover.
