Adjusting the Luggage Compartment Divider
Advanced Luggage Compartment Divider (If Equipped)
 WARNING: Do not load any objects on the shelf that may obstruct your vision or strike occupants of the vehicle in the case of a sudden stop or collision. WARNING: Do not place people or pets on or under the parcel shelf. |

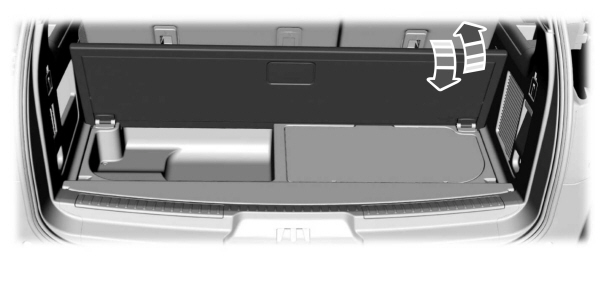

Forward Divider
To move the board into the divider position, lift up on the handle and position the board vertically at a 90 ° angle.
Note: The board operates with friction hinges. This allows you to put it in any position between a 0 ° and a 90 ° angle.

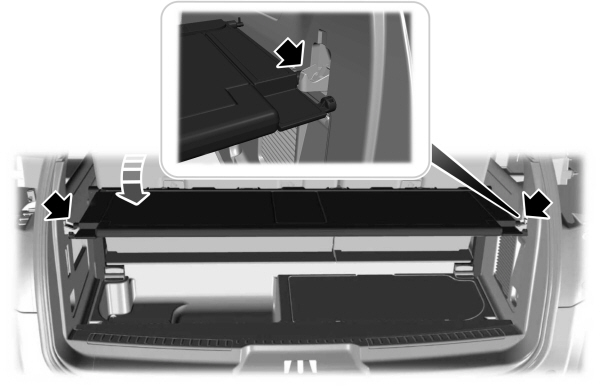

Cargo Shelf
To move the board into the shelf position, lift the board and move it to the horizontal position. Once the board is horizontal, insert the forward-facing nubs into the hooks on either side.
For the short wheelbase, it is necessary to raise up the second panel toward the front of the vehicle when you have the seats folded down.
For the long wheelbase, it is necessary to raise up the second panel toward the front of the vehicle.
Note: Before moving the board into the shelf position, you may need to flip down the hooks.
Note: Do not put more than 50 lb (22 kg) on the shelf.
Rear Barrier (Bulkhead Position)
To move the board into the rear barrier or bulkhead position, lift the board and move it to the vertical position. Once the board is vertical, insert the rearward facing nubs into the hooks on either side.
Note: Before moving the board into the rear barrier or bulkhead position, you may need to flip down the hooks.
