Sunshade
Sun visors

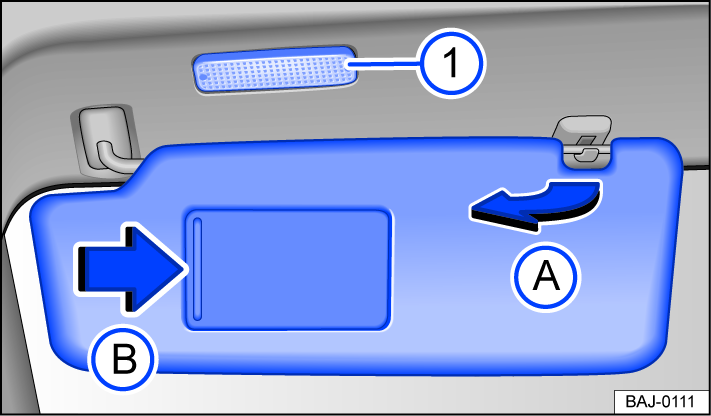

Fig. 81 In the front of the headliner: sun visor.
Adjustment options for the sun visors
-
Fold toward the windshield.
-
Remove from the holder and tilt toward the door fig. 81
.
Adjustment options for the sun visor
In some vehicle models, the sun visor can be moved farther toward the rear when it is tilted toward the door.
Illuminated vanity mirror
When the sun visor is folded down, there is a vanity mirror located behind a cover. The lights fig. 81
turn on when the cover fig. 81
slides open.
The lighting for the vanity mirror switches off in the following situations:
-
The cover is closed.
-
The sun visor is swung upwards or fully forwards.
-
The sun visor is pushed in a longitudinal direction or not fully pushed in.
WARNING
Visibility may be reduced when sun visors are folded down and the sunshades are extended.
-
Always guide sun visors and sunshades back into their holders when they are no longer needed.
Under certain conditions, the light above the sun visor will turn off automatically after several minutes. This reduces the risk of the 12 V vehicle battery being drained.
