Identification label

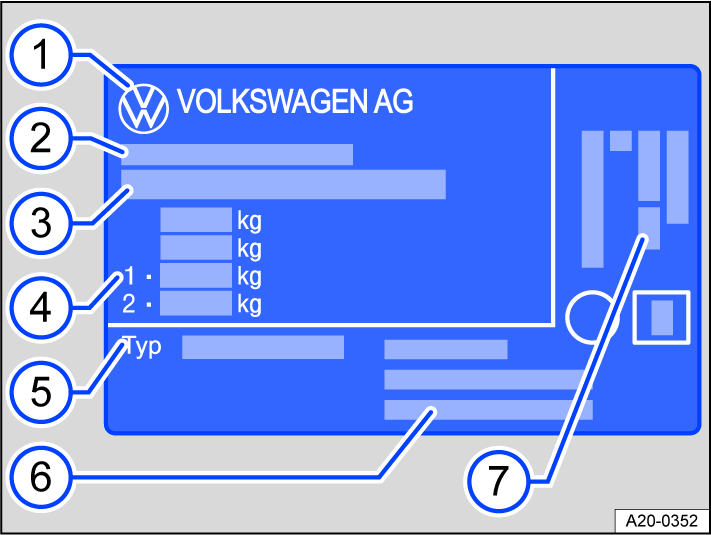

Fig. 165 Identification label (general example): version 1.

Depending on the country, the type approval number, such as the EU operating license, may be specified.

1. Manufacturer code.
2. Type approval.
3. Vehicle Identification number.
4. Gross Vehicle Weight Rating.

   Gross combination weight rating (towing vehicle and trailer).

   Front Gross Axle Weight Rating.

   Rear Gross Axle Weight Rating.

5. Vehicle model
6. Manufacturer's address.
7. Engine code.

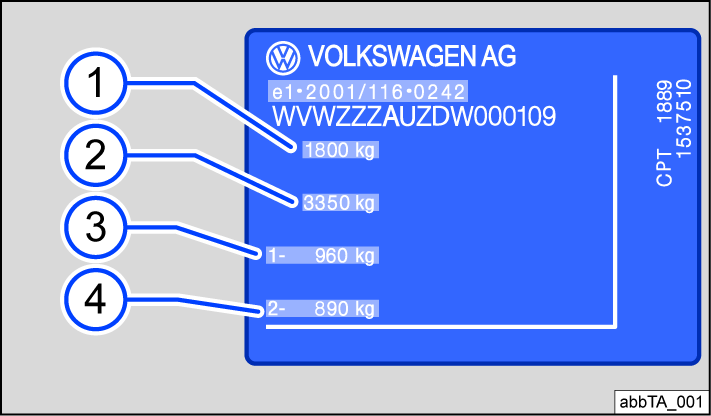

Fig. 166 Identification label (general example): version 2.

Depending on the country, the type approval number, such as the EU operating license, may be specified.

1. Gross Vehicle Weight Rating.
2. Gross combination weight rating (towing vehicle and trailer).
3. Front Gross Axle Weight Rating.
4. Rear Gross Axle Weight Rating.

Depending on the country and model, the model plate may be visible in the lower section of the door pillar when the driver’s for front passenger door is open. Vehicles exported to some countries do not have a model plate.
