2022 Volkswagen Passat Owners Manual - Replacing fuses



Owner’s Manuals 2022 Replacing fuses

Replacing fuses

Bilt Introduction

Due to the constant development of the vehicle, equipment-dependent fuse allocations, and the combined protection of multiple electrical equipment items using one fuse, a complete overview of the fuse layout is not available at the time of print. Detailed information about fuse allocations can be obtained from suitably qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

Generally, multiple electrical equipment items can be protected together through by fuse. On the other hand, some equipment items may use multiple fuses.

Only replace fuses if the cause for the malfunction has been fixed. If a new fuse blows again after a short time, the electrical system must be checked by suitably qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.

WARNING

High voltage in the electrical system can cause electric shocks, serious burns, and fatal injuries.

  • Never touch the electrical wires in the ignition system.

  • Avoid short circuits in the electrical system.

WARNING

Using unsuitable fuses, repairing fuses, and bridging a power circuit without fuses can causes fires and serious injuries.

  • Never install fuses that have a higher amp rating.

  • Replace fuses only with fuses of same rating and size. Make sure that the color and label are identical to the faulty fuse.

  • Never repair fuses.

  • Never use metal strips, paper clips or similar objects as substitutes for fuses.

NOTICE

To prevent the risk of damaging the electrical system in the vehicle, the ignition, the lights, and all electrical equipment must be switched off before a fuse can be replaced.

  • Make sure that the ignition cannot be switched on while a fuse is being replaced.

NOTICE

If a fuse is replaced by another fuse with a higher amp rating, this could also damage the electrical system in another location.

NOTICE

Dirt and moisture in the fuse boxes can damage the electrical system.

  • Protect open fuse boxes from dirt and moisture.

NOTICE

To reduce the risk of vehicle damage:

  • Carefully remove and correctly re-mount the covers of the fuse boxes.

There are more fuses in the vehicle than are specified in this chapter. These should only be replaced by an authorized Volkswagen dealer or authorized Volkswagen Service Facility qualified in this respect.

Fuses in the engine compartment

 Please read the introductory information and heed the Warnings and Notice ⇒ andIntroduction.Fig. 129 In the engine compartment: cover of the fuse box.

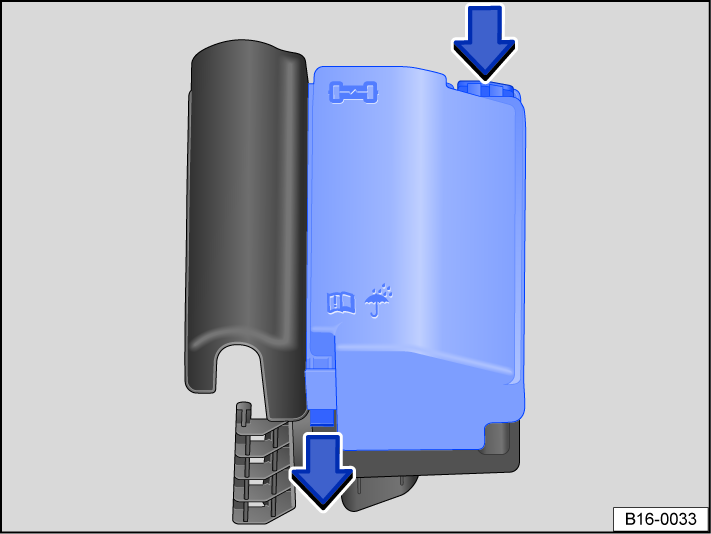

Fig. 129 In the engine compartment: cover of the fuse box.

Opening and closing the fuse box in the engine compartment

Removing

  1. Open the hood ⇒ Safety precautions for working in the engine compartment.

  2. Press the lock buttons in the direction of the arrow to release the fuse box cover  fig. 129.

  3. Remove the cover upward.

Installing

  1. Press the cover onto the fuse box. The catch buttons must audibly engage.

Fuses in the instrument panel

 Please read the introductory information and heed the Warnings and Notice ⇒ andIntroduction.Fig. 130 On the driver side in the instrument panel: fuse box cover.

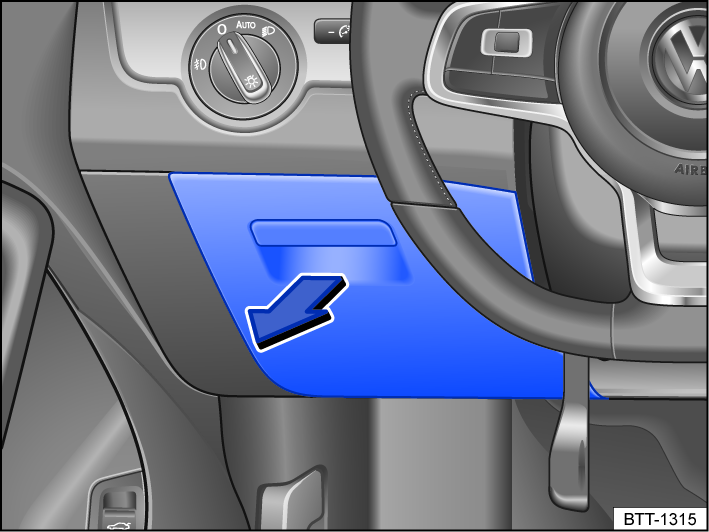

Fig. 130 On the driver side in the instrument panel: fuse box cover.

Open and close the fuse box in the instrument panel

Plastic pliers for pulling out fuses can be found on the inside of the cover.

Removing

  1. Open the storage compartment on the driver's side in the direction of the arrow  fig. 130.

  2. Use some force to pull the storage compartment back and out of the mounts.

Installing

  1. Push the storage compartment back into the mounts in the instrument panel until you hear the catch engage.

  2. Close the storage compartment on the driver's side in the opposite direction to the arrow  fig. 130.

Replacing blown fuses

 Please read the introductory information and heed the Warnings and Notice ⇒ andIntroduction.

Preparations

  1. Switch off the ignition, lights, and all other electrical equipment.

Detecting blown fuses

Fig. 131 Blown fuse (general example).

Fig. 131 Blown fuse (general example).

  • A blown flat connector fuse (ATO®, MINI®)  has metal strips that have burned through, which you can see through the transparent housing from above and from the side  fig. 131 .

  • A blown block fuse (JCASE®)  is recognizable by the melted metal strip seen through the transparent housing from above  fig. 131 .

Fuse versions

  • Standard flat connector fuse (ATO®).

  • Small flat connector fuse (MINI®).

  • Block fuse (JCASE®).

Fuse color codes

Fuses (ATO® - MINI®).

Color
Current rating
Black
1 A
Purple
3 A
Orange
5 A
Brown
7.5 A
Red
10 A
Blue
15 A
Yellow
20 A
White or clear
25 A
Green
30 A
Light green
40 A

Fuses (JCASE®)

Blue
20 A
Pink
30 A
Green
40 A
Red
50 A
Yellow
60 A
Replacing fuses

Fig. 132 Remove or install a fuse with the plastic pliers (general example).

Fig. 132 Remove or install a fuse with the plastic pliers (general example).

  1. Remove plastic tongs from either the fuse box or the cover of the fuse box  fig. 132 .

  2. Depending on the design of the fuse, slide the appropriately sized clamp on the plastic pliers onto the fuse from above or from the side  fig. 132.

  3. Remove the fuse.

  4. If a fuse is blown, replace with a fuse with the same rating (same color and same label) and the same size ⇒ .

  5. After inserting the new fuse, place the plastic pliers back in the cover, if necessary.

  6. Reinstall the cover or close the fuse box cover.

NOTICE

If a fuse is replaced by a fuse with a higher current rating, this could damage the electrical system in another location.
