Dimensions

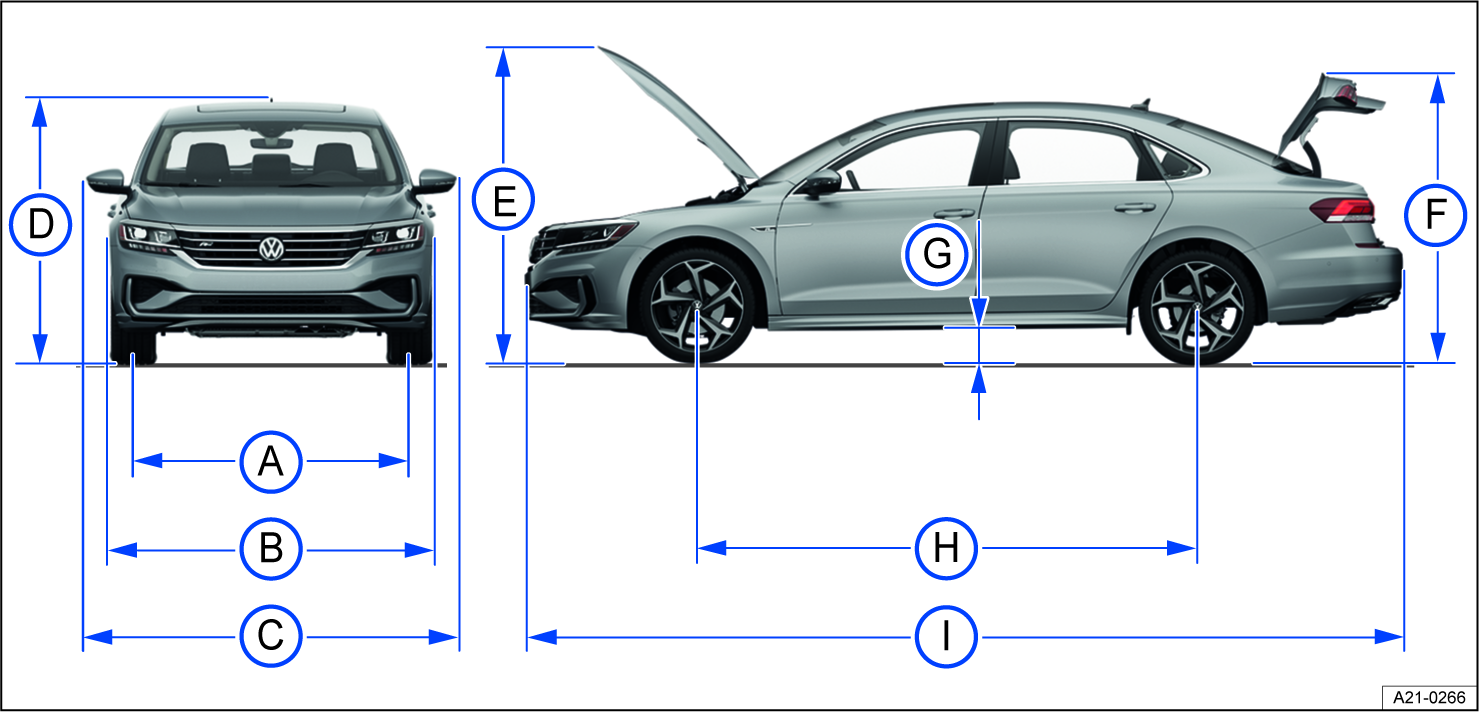

Fig. 169 Vehicle dimensions.
The information in the table applies for the standard model with standard equipment.
For other wheel rims, tire sizes, options, differing model designs and retrofitted accessories, as well as special vehicles and vehicles in other countries, these values can differ.
Curb weight is without driver and without payload.
Where the vehicle dimensions are not given, the values were not available at the time of printing.
|
Key for fig. 169: |
||
|---|---|---|
|
|
Front track |
1578 mm (62.1 in) |
|
Rear track |
1553 mm (61.1 in) |
|
|
|
Width |
1835 mm (72.2 in) |
|
|
Width from outside mirror to outside mirror (outside mirrors folded in) |
1854 mm (73.0 in) |
|
|
Height at curb weight |
1491 mm (58.7 in) |
|
|
Height with open hood and curb weight |
– mm |
|
|
Height with open trunk lid and curb weight |
– mm |
|
|
Ground clearance at curb weight between the axles |
– mm |
|
|
Wheelbase with curb weight |
2804 mm (110.4 in) |
|
– |
Minimum turning circle diameter |
11.9 m (39 ft) |
|
|
Length from bumper to bumper |
4875 mm (191.9 in) |
