Seat functions
Center armrest
Front center armrest

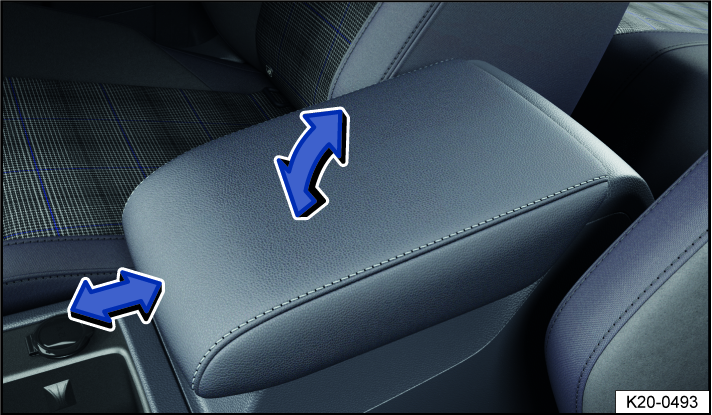

Fig. 70 Front center armrest (general example).
-
To lift : Pull the center armrest up to the detents in the direction of the arrow fig. 70.
-
To lower: Pull the center armrest up fully. Then press the center armrest down.
-
Fore-and-aft adjustment : slide the center armrest in the direction of the arrow fig. 70 all the way forwards or rearwards.
WARNING
If the front center armrest is opened all the way or not completely closed, it can limit the driver’s ability to move his or her arms, which can cause accidents and serious injuries.
-
Always keep the storage compartments closed while driving.
-
Never allow an adult or child to ride on the center armrest. This incorrect seating position can cause serious injuries.
Rear center armrest

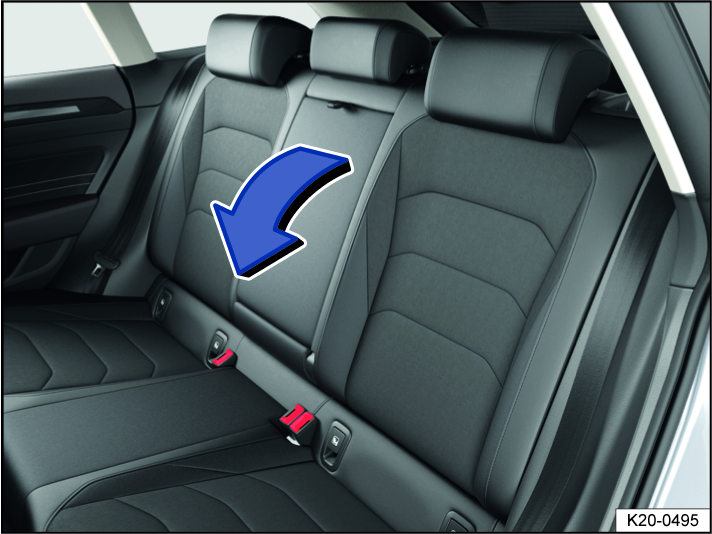

Fig. 71 Folding center armrest in the rear.
There may be a folding armrest in the backrest of the rear center seat.
-
To fold out : pull the loop in the direction of the arrow fig. 71.
-
To fold back : fold the center armrest upward in the opposite direction of the arrow fig. 71 and press it all the way toward the seat backrest.
Passengers must not sit in the center rear seat when the center armrest is folded down.
WARNING
To reduce the risk of injuries while driving, the rear center armrest must always be folded up.
-
If the center armrest is folded down, the center rear bench seat must never be used by either adults or children. Doing so would create an incorrect seating position that could result in serious injuries.
