2022 Lexus RX 350 Owners Manual - OTHER INTERIOR FEATURES

OTHER INTERIOR FEATURES

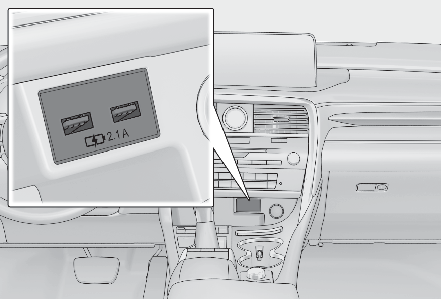

USB CHARGING PORTSThe USB charging ports are used to supply 2.1 A of electricity at 5 V to external devices.The USB charging ports are for charging only. They are not designed for data transfer or other purposes.Depending on the external device, it may not charge properly. Refer to the manual included with the device before using a USB charging port.USING THE USB CHARGING PORTSOn the instrument panel

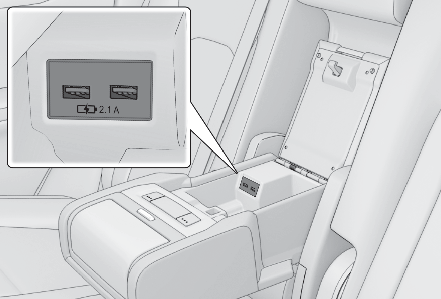

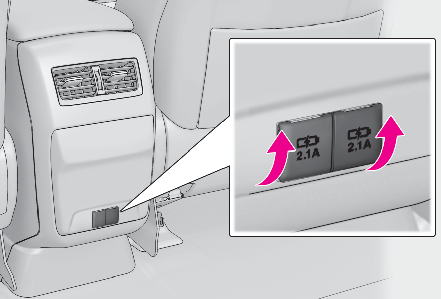

On the rear consoleOpen the lid.

Armrest (RX350L with bench-type second-row seats)

Note:The USB charging ports can be used whenThe engine switch is in ACCESSORY or IGNITION ON mode.Situations in which the USB charging ports may not operate correctlyIf a device which consumes more than 2.1 A at 5 V is connectedIf a device designed to communicate with a personal computer, such as a USB memory device, is connectedIf the connected external device is turned off (depending on device)If the temperature inside the vehicle is high, such as after the vehicle has been parked in the sunAbout connected external devicesDepending on the connected external device, charging may occasionally be suspended and then start again. This is not a malfunction.NOTICE:To prevent damage to the USB charging portsDo not insert foreign objects into the ports.Do not spill water or other liquids into the ports.Rear console: When the USB charging ports are not in use, close the lids. If a foreign object or liquid enters a port may cause a short circuit.Do not apply excessive force to or impact the USB charging ports.Do not disassemble or modify the USB charging ports.To prevent damage to external devicesDo not leave external devices in the vehicle. The temperature inside the vehicle may become high, resulting in damage to an external device.Do not push down on or apply unnecessary force to an external device or the cable of an external device while it is connected.To prevent battery dischargeDo not use the USB charging ports for a long period of time with the engine stopped.WIRELESS CHARGER (IF EQUIPPED)A portable device, such as a smartphone or mobile battery, can be charged by just placing it on the charging area, provided the device is compatible with the Qi wireless charging standard created by the Wireless Power Consortium.The wireless charger cannot be used with a portable device that is larger than the charging area. Additionally, depending on the portable device, the wireless charger may not operate properly. Refer to the operation manual of the portable device.THE “ QI” SYMBOLThe “ Qi” symbol is a trademark of the Wireless Power Consortium.

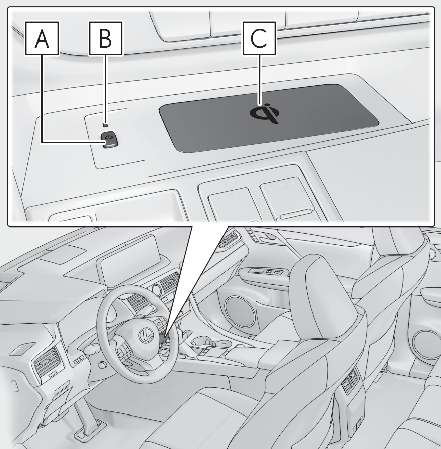

NAME FOR ALL PARTS

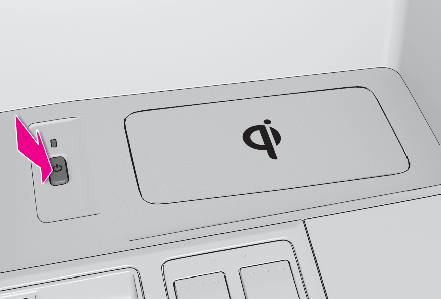

Power supply switchOperation indicator lightCharge areaUSING THE WIRELESS CHARGERPress the power supply switch of the wireless charger.Pressing the switch again turns the wireless charger off.When turned on, the operation indicator light (green) comes on.When the engine switch is turned off, the on/off state of the wireless charger will be memorized.

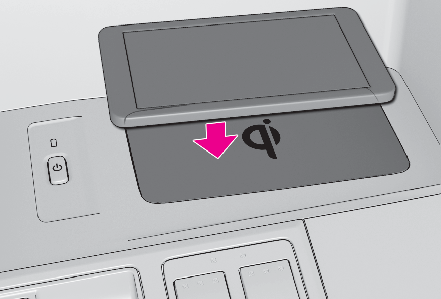

Place a portable device on the charging area with its charging surface facing down.While charging, the operation indicator light (orange) will be illuminated.If charging does not begin, move the portable device as close to the center of the charging area as possible.When charging is complete, the operation indicator light (green) will illuminate.

RECHARGING FUNCTIONIf a certain amount of time has elapsed since charging completed and the portable device has not been moved, the wireless charger will restart charging.If the portable device is moved within the charging area, charging will stop temporarily then restart.OPERATION INDICATOR LIGHT STATUS

^*Depending on the portable device, the operation indicator light may stay illuminated (orange) after charging has completed.IF THE OPERATION INDICATOR LIGHT BLINKSIf an error is detected, the operation indicator light will blink (orange). Take the appropriate measures according to the table below.Blinks (orange) at a one second interval continuously

Blinks (orange) 3 times repeatedly

Blinks (orange) 4 times repeatedly

Note:The wireless charger can be operated whenThe engine switch is in ACCESSORY or IGNITION ON mode.Portable devices that can be chargedPortable devices compatible with the Qi wireless charging standard can be charged by the wireless charger. However, compatibility with all devices which meet the Qi wireless charging standard is not guaranteed.The wireless charger is designed to supply low power electricity (5 W or less) to a cellular phone, smartphone, or other portable device.If a cover or accessory is attached to the portable deviceDo not charge a portable device if a cover or accessory which is not Qi compatible is attached. Depending on the type of cover and/or accessory attached, it may not be possible to charge the portable device. If the portable device is placed on the charging area and does not charge, remove the cover and/or accessories.If interference is heard in AM radio broadcasts while chargingTurn off the wireless charger and check if the noise is reduced. If noise is reduced, press and hold the power supply switch of the wireless charger for 2 seconds. The frequency of the wireless charger is changed and noise may be reduced. When the frequency is changed, the operation indicator light will blink (orange) 2 times.Charging precautionsIf the electronic key cannot be detected in the cabin, charging cannot be performed. When a door is opened and closed, charging may be temporarily suspended.While charging, the wireless charger and the portable device will become warm. This is not a malfunction. If a portable device becomes warm while charging and charging stops due to the protection function of the portable device, wait until the portable device cools down and charge it again.Sound generated during operationWhen the power supply switch is turned on or while a portable device is being identified, operation sounds may be heard. This is not a malfunction.Cleaning the wireless chargerCleaning and protecting the vehicle interiorCertification for the wireless charger





WARNING:Caution while drivingWhen charging a portable device while driving, for safety reasons, the driver should not operate the portable device.Caution regarding interference with electronic devicesPeople with implantable cardiac pacemakers, cardiac resynchronization therapy pacemakers or implantable cardioverter defibrillators, as well as any other electrical medical device, should consult their physician about the usage of the wireless charger.Operations of the wireless charger may have an affect on medical devices.To prevent damage or burnsObserve the following precautions.Failure to do so may result in the possibility of fire, equipment failure or damage, or burns due to heat.Do not put any metallic objects between the charging area and the portable device while charging.Do not attach metallic objects, such as aluminum stickers, to the charging area.Do not cover the wireless charger with a cloth or other object while charging.Do not attempt to charge portable devices which are not compatible with the Qi wireless charging standard.Do not disassemble, modify or remove the wireless charger.Do not apply force or impact to the wireless charger.NOTICE:Conditions in which the wireless charger may not operate correctlyIn the following situations, the wireless charger may not operate correctly:When a portable device is fully chargedWhen there is a foreign object between the charging area and portable deviceWhen a portable device becomes hot while chargingWhen a portable device is placed on the wireless area with its charging surface facing upWhen a portable device is not centered on the charging areaWhen the vehicle is near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noiseWhen the portable device is in contact with, or is covered by any of the following metallic objects:Cards to which aluminum foil is attachedCigarette boxes that have aluminum foil insideMetallic wallets or bagsCoinsMetal hand warmersMedia such as CDs and DVDsWhen wireless keys (that emit radio waves) other than those of your vehicle are being used nearby.If in situations other than above the wireless charger does not operate properly or the operation indicator light is blinking, the wireless charger may be malfunctioning. Contact your Lexus dealer.To prevent failure or damage to dataDo not bring magnetic cards, such as a credit card, or magnetic recording media, close to the wireless charger while charging. Otherwise, data may be erased due to the influence of magnetism. Additionally, do not bring precision instruments such as wrist watches, close to the wireless charger, as such objects may malfunction.Do not leave portable devices in the cabin. The temperature inside the cabin may become high when parked in the sun, and cause damage to the device.To prevent battery dischargeDo not use the wireless charger for a long period of time with the engine is stopped.ARMRESTRX350/RX350L with bench-type second-row seatsPull the armrest down for use.

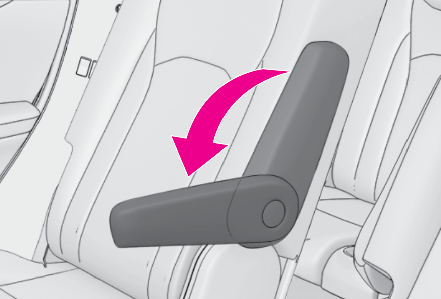

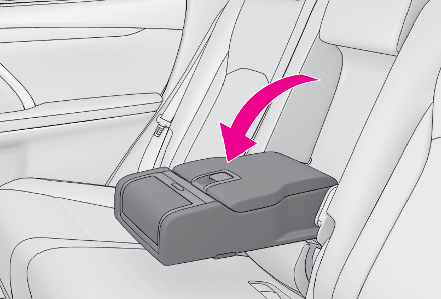

RX350L with separate-type second-row seatsTo adjust the armrest angle, raise the armrest to the highest position and then lower the armrest to the lowest position.Raise the armrest again to the desired position and the armrest will be locked at that position.When the armrest is locked, the armrest cannot be lowered.To lower the armrest, raise the armrest to the highest position again.

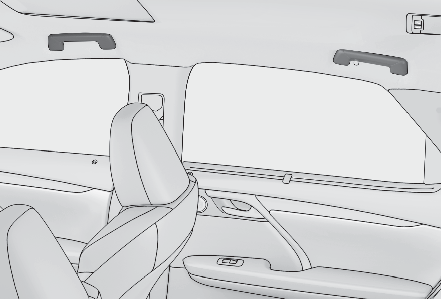

NOTICE:To prevent damage to the armrestDo not apply too much load on the armrest.ASSIST GRIPSAn assist grip installed on the ceiling can be used to support your body while sitting on the seat.

WARNING:Assist gripDo not use the assist grip when getting in or out of the vehicle or rising from your seat.NOTICE:To prevent damage to the assist gripDo not hang any heavy object or put a heavy load on the assist grip.COAT HOOKSThe coat hooks are provided with the rear assist grips.

WARNING:Items that must not be hung on the hookDo not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.CLOCKThe GPS clock's time is automatically adjusted by utilizing GPS time information.For details, refer to “ NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

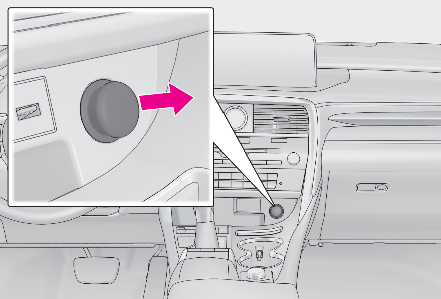

POWER OUTLETSPlease use as a power supply for electronic goods that use less than 12 VDC/10 A (power consumption of 120 W).Observe the following when using electronic goods:Make sure that the power consumption of all the connected power outlets on the instrument panel and in the luggage compartment is less than 120 W.Make sure that the power consumption of all the connected power outlets inside the console box is less than 120 W.On the instrument panelRemove the cap.

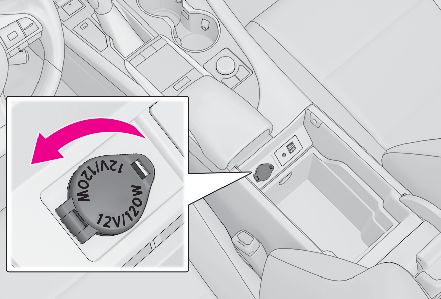

Inside the console boxOpen the lid.

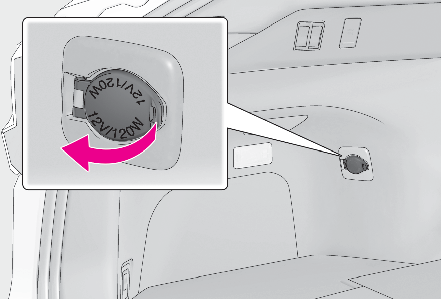

In the luggage compartment (RX350)Open the lid.

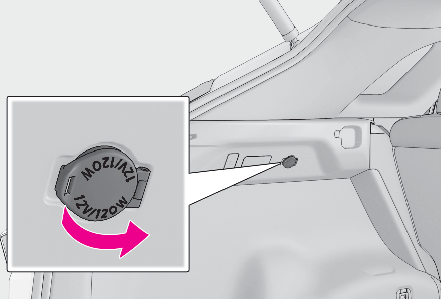

In the luggage compartment (RX350L)Open the lid.

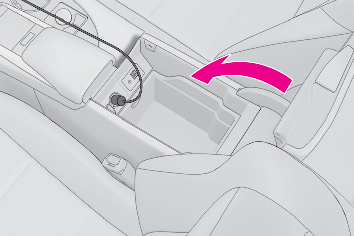

Note:The power outlet can be used whenThe engine switch is in ACCESSORY or IGNITION ON mode.Using the power outletThe shape of the console box rim allows power cables to be passed through when the console box lid is closed.

When turning the engine switch offDisconnect electrical devices with charging functions, such as mobile battery packs.If such devices are left connected, the engine switch may not be turned off normally.NOTICE:To avoid damaging the power outletInstall the cap or close the lid when the power outlets is not in use.Foreign objects or liquids that enter the power outlet may cause a short circuit.To prevent the battery from being dischargedDo not use the power outlet longer than necessary when the engine is not running.SUN VISORS

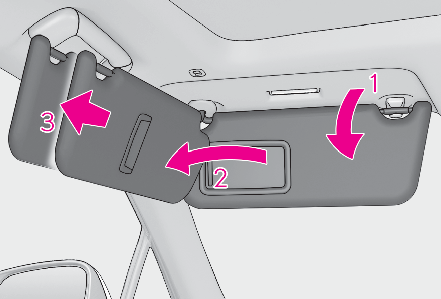

To set the visor in the forward position, flip it down.To set the visor in the side position, flip down, unhook, and swing it to the side.To use the side extender, place the visor in the side position, then slide it backward.VANITY MIRRORSSlide the cover to open.The light turns on when the cover is opened.

Note:To prevent battery dischargeIf the vanity lights remain on when the engine switch is turned off, the lights will go off automatically after 20 minutes.NOTICE:To prevent the battery from being dischargedDo not leave the vanity lights on for extended periods while the engine is off.FRONT PASSENGER FOOTWELL HOOKSUse the front passenger footwell hooks to help support and prevent objects placed on the floor, such as a grocery bag, from overturning.

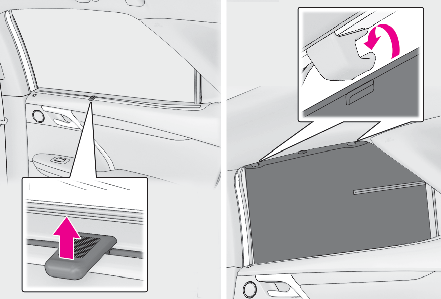

NOTICE:To prevent damage to the hooksDo not hang anything from a hook or apply excessive force to it.REAR DOOR SUNSHADES (IF EQUIPPED)Pull the sunshade up using the tab and hook the sunshade on to the anchors.To lower the sunshade, pull it up slightly using the tab, unhook it from the anchors, and lower it slowly.

WARNING:Closing the rear door sunshadeWhen a rear door sunshade is in use, do not put fingers, etc. on the anchors or in the groove of the rear door sunshade. Otherwise, a finger, etc. may get caught, possibly causing an injury.NOTICE:To ensure normal operation of the sunshadeDo not put anything in an area where it may interfere with the operation of a rear door sunshade.To prevent damage to the rear door sunshades, do not apply excessive load or attach items to the rear door sunshades.
