MAINTENANCE DATA (FUEL, OIL LEVEL, ETC.)
DIMENSIONS AND WEIGHT
| Overall length | 192.5 in. (4890 mm)*1196.9 in. (5000 mm)*2 | |
| Overall width | 74.6 in. (1895 mm) | |
| Overall height*3 | 67.7 in. (1720 mm) | |
| Wheelbase | 109.8 in. (2790 mm) | |
| Tread | Front | 64.4 in. (1635 mm)*164.5 in. (1640 mm)*2 |
| Rear | 64.0 in. (1625 mm)*164.1 in. (1630 mm)*2 | |
| Vehicle capacity weight(Occupants + luggage) | 1050 lb. (480 kg)*1, 4920 lb. (420 kg)*1, 51140 lb. (520 kg)*2, 61235 lb. (560 kg)*2, 7 | |
| Trailer Weight Rating*8(Trailer weight + cargo weight) | 3500 lb. (1585 kg) |
*1RX350*2RX350L*3Unladen vehicle*4For GGL25L-BWZGBA models*9*5Except for GGL25L-BWZGBA models*9*6Vehicles with separate-type second-row seats*7Vehicles with bench-type second-row seats*8Vehicles with towing package*9The model code is indicated on the Certification Label. (Vehicle identification)SEATING CAPACITY
| Seating capacity | 5 (Front 2, Rear 3)*16 (Front 2, Rear 4)*2, 37 (Front 2, Rear 5)*2, 4 |

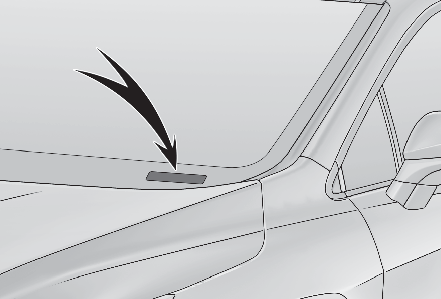

*1RX350*2RX350L*3Vehicles with separate-type second-row seats*4Vehicles with bench-type second-row seatsVEHICLE IDENTIFICATIONVehicle identification numberThe vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle.This number is stamped on the top left of the instrument panel.

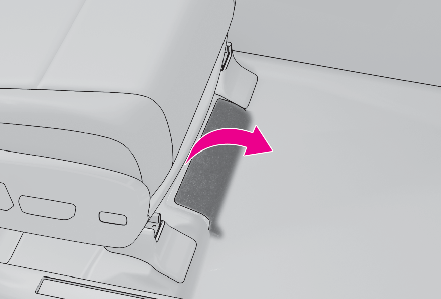

On some models, this number is also stamped under the right-hand front seat.

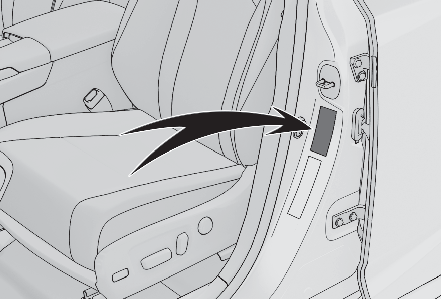

This number is also on the Certification Label.

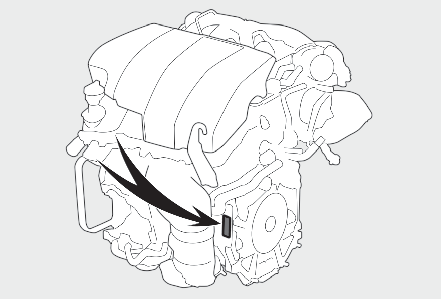

Engine numberThe engine number is stamped on the engine block as shown.
ENGINE
| Model | 3.5 L 6-cylinder (2GR-FKS) |
| Type | 6-cylinder V type, 4-cycle, gasoline |
| Bore and stroke | 3.70 3.27 in. (94.0 83.0 mm) |
| Displacement | 210.9 cu. in. (3456 cm3) |
| Valve clearance (engine cold) | Automatic adjustment |
| Drive belt tension | Automatic adjustment |
FUEL
| Fuel type | Unleaded gasoline only |
| Octane Rating | 87 (Research Octane Number 91) or higher |
| Fuel tank capacity(Reference) | 19.2 gal. (72.5 L, 15.9 Imp. gal.) |
LUBRICATION SYSTEMOil capacity (Drain and refillreference*)
| With filter | Vehicles with towing package5.8 qt. (5.5 L, 4.8 Imp. qt.)Vehicles without towing package5.7 qt. (5.4 L, 4.8 Imp. qt.) |
| Without filter | 5.6 qt. (5.3 L, 4.7 Imp. qt.) |
*The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the dipstick.Engine oil selection“ Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “ Toyota Genuine Motor Oil” or equivalent to satisfy the following grade and viscosity.Oil grade: ILSAC GF-6A multigrade engine oilRecommended viscosity: SAE 0W-20SAE 0W-20 is the best choice for good fuel economy and good starting in cold weather.If SAE 0W-20 is not available, SAE 5W-20 oil may be used. However, it must be replaced with SAE 0W-20 at the next oil change.

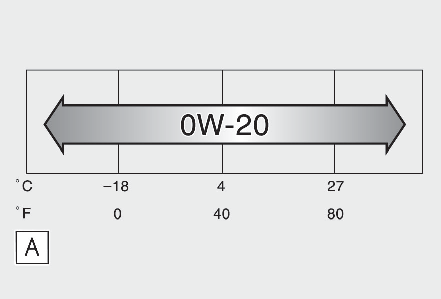

Outside temperatureOil viscosity (0W-20 is explained here as an example):The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather.The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher value) may be better suited if the vehicle is operated at high speeds, or under extreme load conditions.How to read oil container label:The International Lubricant Specification Advisory Committee (ILSAC) Certification Mark is added to some oil containers to help you select the oil you should use.
COOLING SYSTEM
| Capacity* | RX350 (Vehicles without towing package)9.5 qt. (9.0 L, 7.9 Imp. qt.)RX350 (Vehicles with towing package)10.5 qt. (9.9 L, 8.7 Imp. qt.)RX350L13.1 qt. (12.4 L, 11 Imp. qt.) |
| Coolant type | Use either of the following:“ Toyota Super Long Life Coolant”Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technologyDo not use plain water alone. |
*The coolant capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.IGNITION SYSTEM (SPARK PLUG)
| Make | DENSO FK20HBR8 |
| Gap | 0.03 in. (0.8 mm) |
NOTICE:Iridium-tipped spark plugsUse only iridium-tipped spark plugs. Do not adjust the spark plug gap.ELECTRICAL SYSTEM (BATTERY)
| Open voltage at 68°F (20°C): | 12.6 V or higher: Fully charged12.2 12.4 V: Half charged12.0 V or lower: Discharged(Turn the engine switch off and turn on the headlights for 20 to 30 seconds.) |
| Charging rates | 5 A max. |
AUTOMATIC TRANSMISSION
| Fluid capacity* | 7.2 qt. (6.8 L, 6.0 Imp. qt.) |
| Fluid type | Toyota Genuine ATF WS |
*The fluid capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.NOTICE:Transmission fluid typeUsing transmission fluid other than the above type may cause abnormal noise or vibration, or damage the transmission of your vehicle.TRANSFER (AWD MODELS)
| Oil capacity | 0.8 qt. (0.8 L, 0.7 Imp. qt.) |
| Oil type and viscosity | Toyota Genuine Differential gear oil LT 75W-85 GL-5, Toyota Genuine Differential gear oil LX 75W-85 GL-5 or equivalent |
Your Lexus vehicle is filled with “ Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “ Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification. Please contact your Lexus dealer for further details.REAR DIFFERENTIAL (AWD MODELS)
| Oil capacity | 0.5 qt. (0.5 L, 0.4 Imp. qt.) |
| Oil type and viscosity | Toyota Genuine Differential gear oil LT 75W-85 GL-5, Toyota Genuine Differential gear oil LX 75W-85 GL-5 or equivalent |
Your Lexus vehicle is filled with “ Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “ Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification. Please contact your Lexus dealer for further details.BRAKES
| Pedal clearance* | 3.4 in. (86 mm) Min. |
| Pedal free play | 0.04 0.24 in. (1.0 6.0 mm) |
| Brake pad wear limit | 0.04 in. (1.0 mm) |
| Fluid type | FMVSS No. 116 DOT 3 or SAE J1703FMVSS No. 116 DOT 4 or SAE J1704 |
*Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running.STEERING
| Free play | Less than 1.2 in. (30 mm) |
TIRES AND WHEELSType A
| Tire size | 235/65R18 106V, T165/90D18 107M (spare) |
| Tire inflation pressure(Recommended cold tire inflation pressure) | Front tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)Rear tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)Spare tire60 psi (420 kPa, 4.2 kgf/cm2 or bar)Driving at high speeds (above 100 mph [160 km/h]) (in countries where such speeds are permitted by law)Add 5 psi (30 kPa, 0.3 kgf/cm2 or bar) to the front and rear tires. Never exceed the maximum cold tire inflation pressure indicated on the tire sidewall. |
| Wheel size | 18 8J, 18 4T (spare) |
| Wheel nut torque | 76 ft•lbf (103 N•m, 10.5 kgf•m) |
Type B
| Tire size | 235/55R20 102V, T165/90D18 107M (spare) |
| Tire inflation pressure(Recommended cold tire inflation pressure) | Front tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)Rear tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)Spare tire60 psi (420 kPa, 4.2 kgf/cm2 or bar)Driving at high speeds (above 100 mph [160 km/h]) (in countries where such speeds are permitted by law)Add 11 psi (70 kPa, 0.7 kgf/cm2 or bar) to the front and rear tires. Never exceed the maximum cold tire inflation pressure indicated on the tire sidewall. |
| Wheel size | 20 8J, 18 4T (spare) |
| Wheel nut torque | 76 ft•lbf (103 N•m, 10.5 kgf•m) |
LIGHT BULBS
| Light bulbs | Bulb No. | W | Type | |
|---|---|---|---|---|
| Exterior | Front side marker lights*1 | W5W | 5 | B |
| Front turn signal lights*1 | 7444NA | 28/8 | A | |
| Rear turn signal lights*1 | WY21W | 21 | A | |
| Back-up lights*1 | 921 | 16 | B | |
| Interior | Door courtesy lights*2 | 5 | B | |
| Vanity lights | 8 | B |
A: Wedge base bulbs (amber)B: Wedge base bulbs (clear)*1Vehicles with single-beam headlights*2Vehicles without door trim ornament lights
