LIGHT BULBS
You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Lexus dealer.For more information about replacing other light bulbs, contact your Lexus dealer.PREPARING FOR LIGHT BULB REPLACEMENTCheck the wattage of the light bulb to be replaced. (Light bulbs)CANCELING THE POWER BACK DOOR SYSTEMCanceling the power back door systemBULB LOCATIONSFront

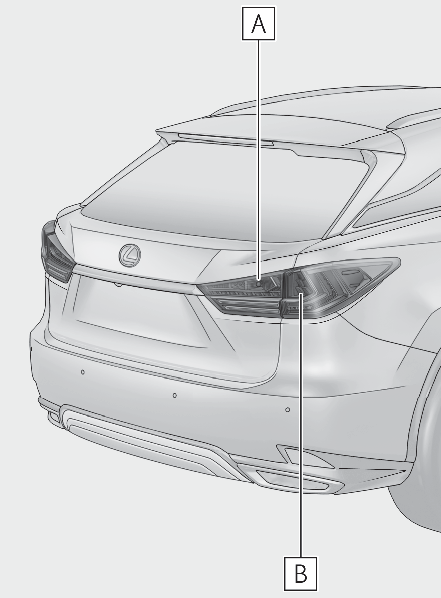

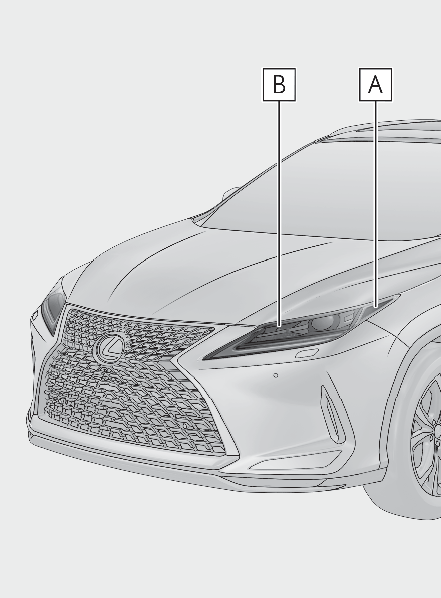

Front side marker light (vehicles with single-beam headlights)Front turn signal light (vehicles with single-beam headlights)Rear
Back-up light (bulb type)Rear turn signal light (bulb type)Replacing the following bulbsIf any of the lights listed below has burnt out, have it replaced by your Lexus dealer.HeadlightParking lights and daytime running lightsFront turn signal lights (vehicles without single-beam headlights)Front side marker lights (vehicles without single-beam headlights)Front fog lights (if equipped)Cornering lights (if equipped)Side turn signal lightsStop/tail lightsBack-up lights (LED type)Rear turn signal light (LED type)Rear side marker lightsHigh mounted stoplightLicense plate lightsOuter foot lightsNote:LED LightsThe lights other than the front turn signal lights (vehicles with single-beam headlights), front side marker lights (vehicles with single-beam headlights), rear turn signal lights (bulb type) and back-up lights (bulb type) each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to have the light replaced.Condensation build-up on the inside of the lensTemporary condensation build-up on the inside of the headlight lens does not indicate a malfunction. Contact your Lexus dealer for more information in the following situations:Large drops of water have built up on the inside of the lens.Water has built up inside the headlight.When replacing light bulbsWhen replacing light bulbsREPLACING LIGHT BULBSFront side marker lights (vehicles with single-beam headlights)To ensure enough space to perform work, turn the steering wheel to rotate the front wheel away from the bulb to be replaced.Remove the 3 fender liner clips.Turn the steering wheel to the left when replacing the right side light bulb, and turn the steering wheel to the right when replacing the left side light bulb.When removing a fender liner clip, use a flathead screwdriver to pry the center portion out and then remove the whole clip.

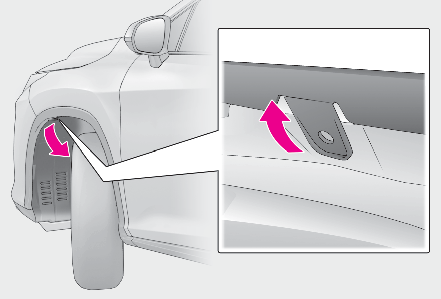

Pull back the fender liner until the connector is visible.

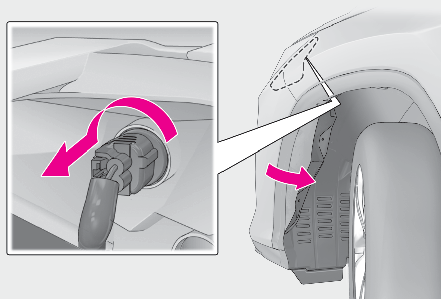

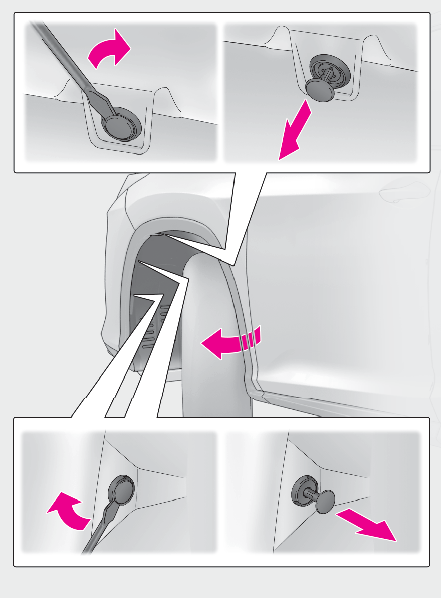

Partially remove the fender liner and turn the bulb base counterclockwise and remove it.

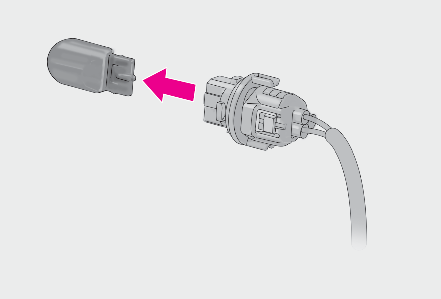

Remove the light bulb.
Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.After installing the bulb base, wiggle it lightly to make sure it is securely installed and turn the lights on to visually check that there is no light leaking from between the bulb base and light unit.

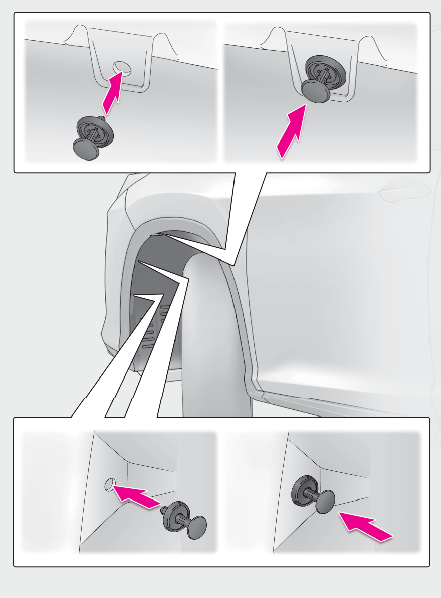

Reinstall the fender liner and install the 3 fender liner clips.

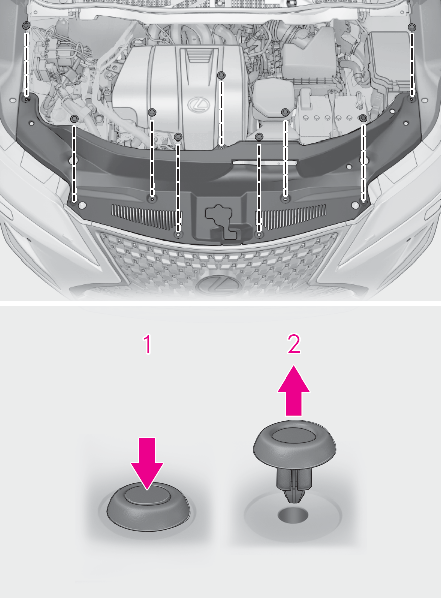

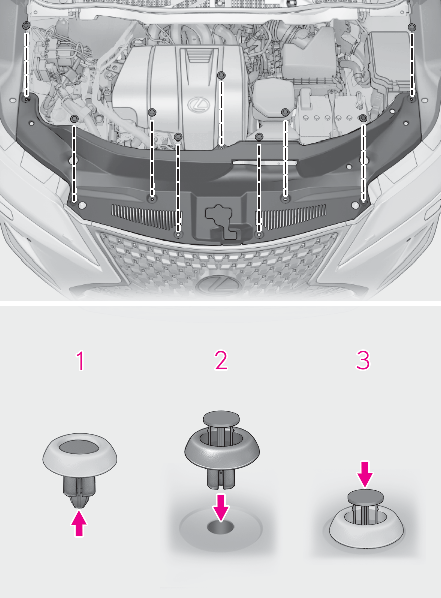

Front turn signal lights (vehicles with single-beam headlights)Removing the engine compartment cover.

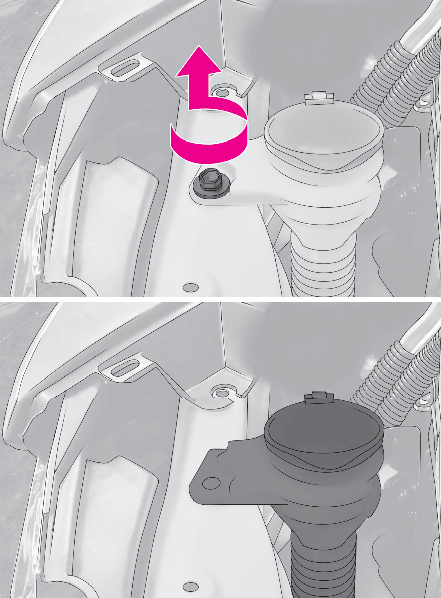

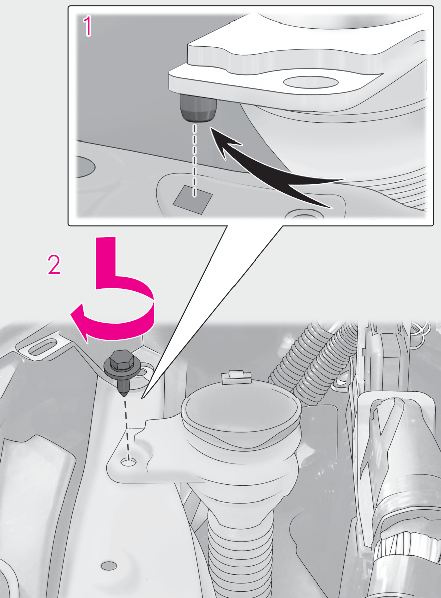

Push the center of the clip.Remove the clip.For the right side only: Remove the bolt, and move the washer fluid inlet.

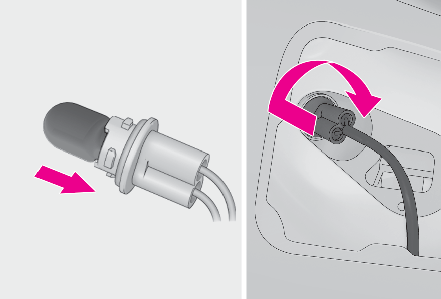

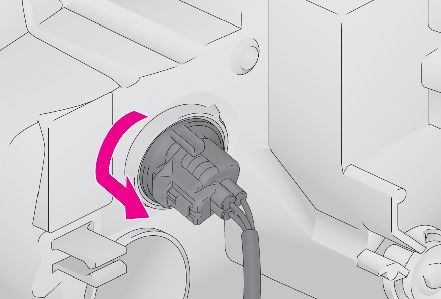

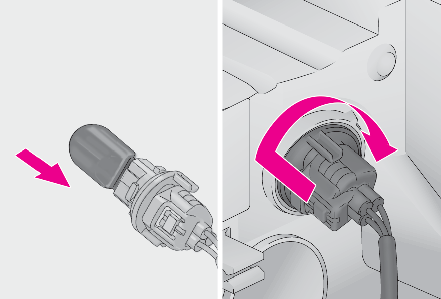

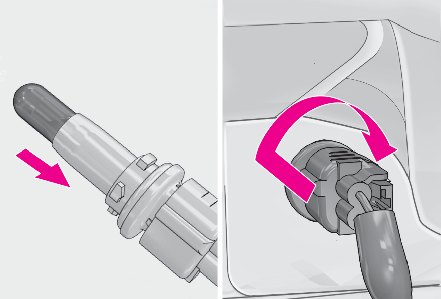

Turn the bulb base counterclockwise and remove it.

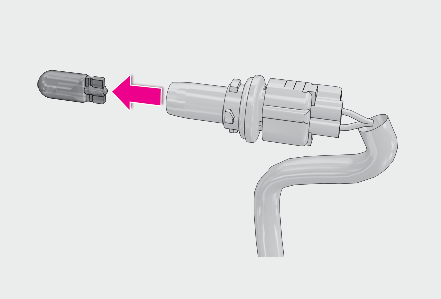

Remove the light bulb.
Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.After installing the bulb base, wiggle it lightly to make sure it is securely installed and turn the lights on to visually check that there is no light leaking from between the bulb base and light unit.
For the right side only: Fix the washer fluid inlet.
Align the tab position and install washer fluid inlet.Fasten the bolt.Install the engine compartment cover.

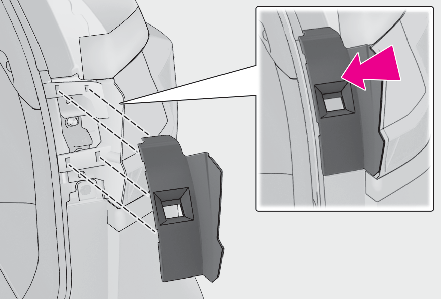

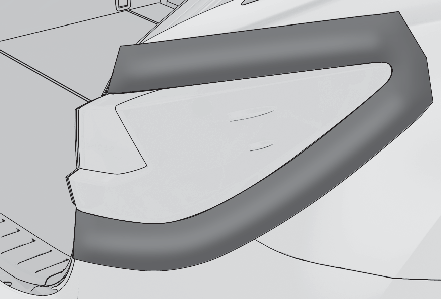

Push up center portionInsertPressRear turn signal lights (bulb type)Open the back door and apply protective tape to the vehicle body around the taillight.Use masking tape, etc. Do not use duct tape, as it may leave residue or damage the paint when removed.

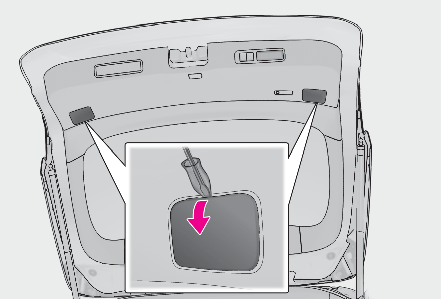

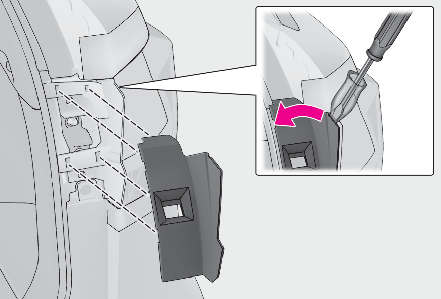

Using a flathead screwdriver, remove the cover.To prevent scratching the vehicle, wrap the tip of the flathead screwdriver with a cloth, etc.

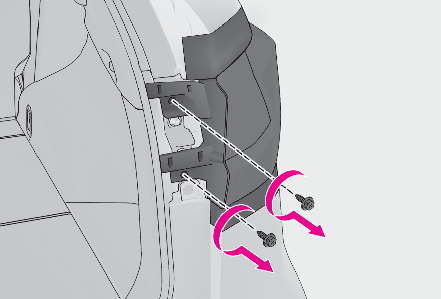

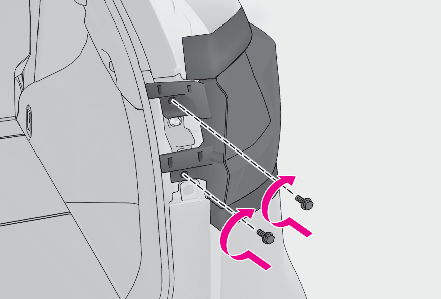

Remove the 2 screws.

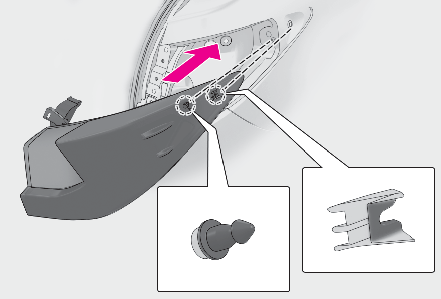

Remove the taillight unit.

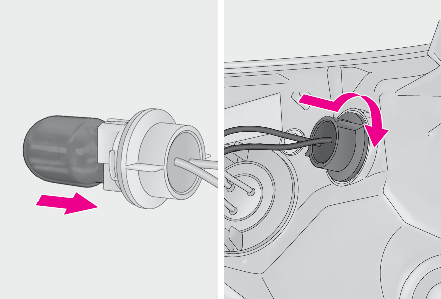

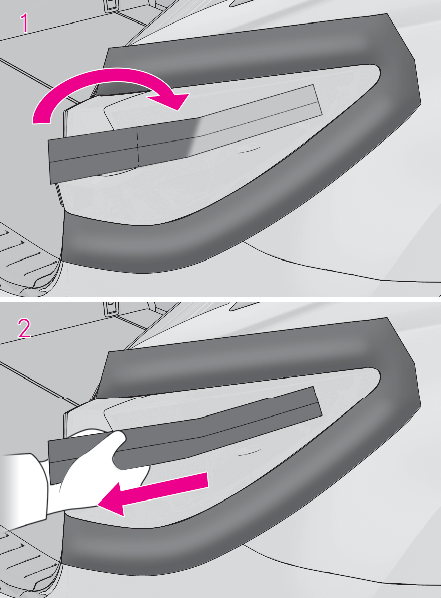

Attach 2 long pieces of masking tape to the taillight unit and fold the excess in half.Hold the folded portion and pull it toward the rear of the vehicle to remove the light unit.Turn the bulb base counterclockwise and remove it.

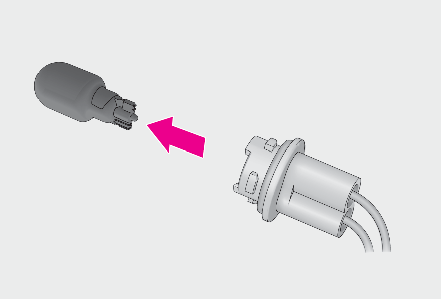

Remove the light bulb.
Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.After installing the bulb base, wiggle it lightly to make sure it is securely installed and turn on the rear turn signal lights to visually check that there is no light leaking from between the bulb base and light unit.
Install the light unit.Align the tabs and push the light unittoward the front of the vehicle to install it.
Install the 2 screws.
Install the cover.

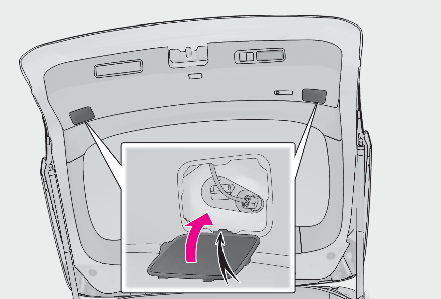

Remove the protective tape.Back-up lights (bulb type)Open the back door and remove the cover.Using a flathead screwdriver, remove the cover.To prevent scratching to the vehicle, wrap the tip of the flathead screwdriver with a cloth, etc.

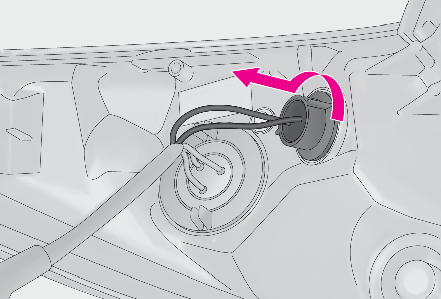

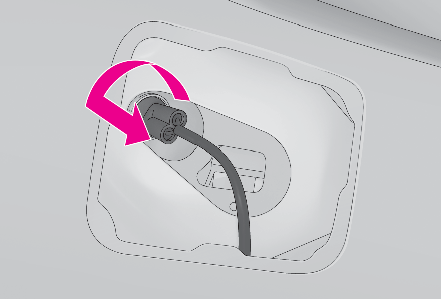

Turn the bulb base counterclockwise and remove it.

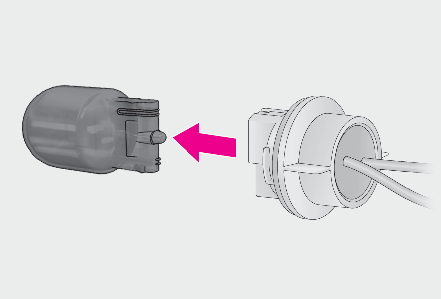

Remove the light bulb.
Install a new light bulb and then install the bulb base to the light unit by inserting it and turning it clockwise.After installing the bulb base, wiggle it lightly to make sure it is securely installed and turn on the back-up lights to visually check that there is no light leaking from between the bulb base and light unit.
Install the cover.Align the tabs of the cover with the grooves and install the cover.
WARNING:To prevent injuryBefore performing any light bulb replacement procedure, be sure to turn the engine switch off. Failure to do so may result in burns from hot components or a part of your body may get caught on an operating component, possibly causing serious injury.Replacing light bulbsTurn off the lights. Do not attempt to replace the bulb immediately after turning off the lights.The bulbs become very hot and may cause burns.Do not touch the glass portion of the light bulb with bare hands. When it is unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid getting moisture and oils on the bulb.Also, if the bulb is scratched or dropped, it may blow out or crack.Fully install light bulbs and any parts used to secure them. Failure to do so may result in heat damage, fire, or water entering the headlight unit. This may damage the headlights or cause condensation to build up on the lens.Do not attempt to repair or disassemble the light bulbs, connectors, electric circuits or component parts.Doing so may result in death or serious injury due to electric shock.To prevent damage or fireMake sure bulbs are fully seated and locked.Check the wattage of the bulb before installing to prevent heat damage.
