MULTI-INFORMATION DISPLAY

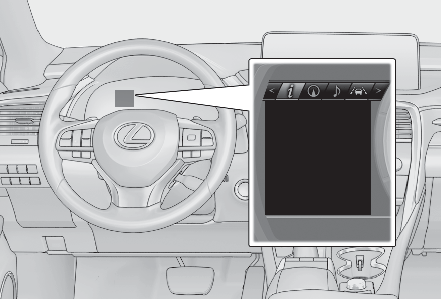

DISPLAY AND MENU ICONSDisplayExcept F SPORT modelsBy selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi-information display can also be used to change display settings and other vehicle settings.Warning or suggestion/advice pop-up displays are also displayed in certain situations.

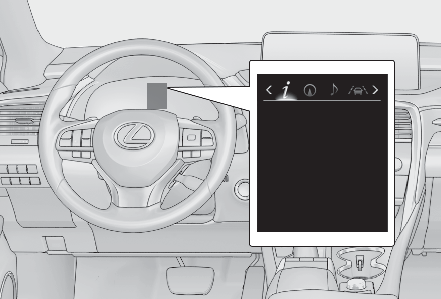

F SPORT modelsBy selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi-information display can also be used to change display settings and other vehicle settings.Warning or suggestion/advice pop-up displays are also displayed in certain situations.
Menu iconsSelect a menu icon to display its content.
 |
Driving information (Drive information) |
 |
Navigation system-linked display (if equipped) (Navigation system-linked display (if equipped)) |
 |
Audio system-linked display (Audio system-linked display) |
 |
Driving assist system information (Driving assist system information) |
 |
Warning message display (If a warning message is displayed) |
 |
Settings display (Settings display) |

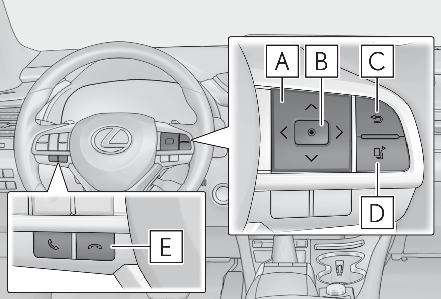

Note:Liquid crystal displayLiquid crystal displayWARNING:Caution for use while drivingWhen operating the multi-information display while driving, pay extra attention to the safety of the area around the vehicle.Do not look continuously at the multi-information display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of the vehicle.The information display at low temperaturesThe information display at low temperaturesCHANGING THE METER DISPLAYThe multi-information display is operated using the meter control switches.
: Select menu icons : Change displayed content, scroll up/down the screen and move the cursorPress: Enter/SetPress and hold: ResetReturn to the previous screenPressing and holding the switch will display the first screen of the selected menu icon.Press: Display the top screenPress and hold: Register current screen as the top screenCall sending/receiving and history displayLinked with the hands-free system, sending or receiving call is displayed. For details regarding the hands-free system, refer to the “ NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.REGISTERING A TOP SCREENThe displayed top screen can be changed to a registered screen of your choice. To register a screen as the top screen, display the desired screen and press and hold .A message asking to confirm if registration is desired will be displayed. If the selected screen cannot be registered, a registration failure message will be displayed.When no screen has been registered, the drive information screen will be displayed.DRIVE INFORMATIONContent displayed as drive informationDisplays drive information such as the following:Drive information 1Current fuel consumptionAverage fuel economy (after reset)Drive information 2Distance (driving range)Average vehicle speed (after reset)Drive information 3Average fuel economy (after refuel)Elapsed time (after start)Displayed items (listed below) can be changed on . (Meter display settings that can be changed)Current fuel consumptionDisplays instantaneous current fuel consumptionAverage fuel economyAfter reset: Displays average fuel consumption since the display was reset*1, 2After start: Displays average fuel consumption since engine start*2After refuel: Displays average fuel consumption since refuel*2, 3Average vehicle speedAfter reset: Displays average vehicle speed since the display was reset*1After start: Displays average vehicle speed since engine startElapsed timeAfter reset: Displays elapsed time since the display was reset*1After start: Displays elapsed time since engine startDistanceDriving range: Displays driving range with remaining fuel*3, 4After start: Displays drive distance since vehicle startOtherBlank: No item*1To reset, display the desired item and press and hold of the meter control switch.If both of the displayed items are resettable, a message will be displayed asking which item(s) to reset.*2Use the displayed fuel consumption as a reference.*3When only a small amount of fuel is added to the tank, the display may not be updated.When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.*4This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.Eco Driving Indicator

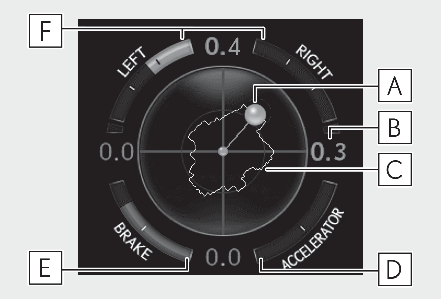

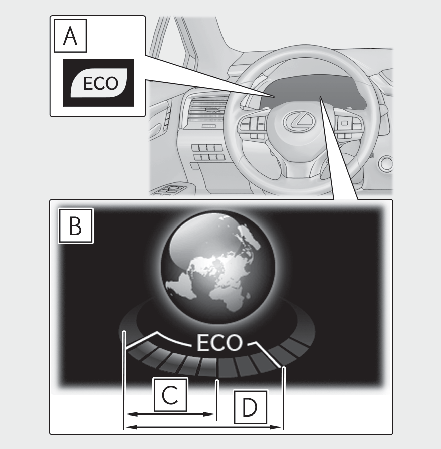

Eco Driving Indicator LightDuring Eco-friendly acceleration (Eco driving), the Eco Driving Indicator Light will turn on. When the acceleration exceeds the Zone of Eco driving, or when the vehicle is stopped, the light turns off.Eco Driving Indicator Zone DisplaySuggests the Zone of Eco driving with current Eco driving ratio based on acceleration.Eco driving ratio based on accelerationIf the acceleration exceeds the Zone of Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate.Zone of Eco drivingAWD Control (if equipped)Displays the driving force applied to each wheel using segments.The greater the number of segments displayed, the greater the driving force applied.G-force (if equipped)Displays lateral G-forces on the vehicle. Also displays, around the periphery of the G-force display, the left and right steering amount, accelerator pedal input, and brake fluid pressure.
Acceleration G-force on the vehicleCurrent G-force value (analyzed value of front/rear and left/right G-forces)Record of the maximum G-forcesAccelerator pedal inputBrake fluid pressureSteering amountThis display is intended for use as a guideline. Depending on factors such as the road surface condition, temperature and vehicle speed, the display may not show the actual condition of the vehicle.Resetting the record of maximum G-forcesPress and hold of the meter control switch to reset the record.Peak hold functionIf lateral G-forces of 0.5 G or greater are generated, the G-force value display will turn amber and be held for 2 seconds.Tire pressureTire pressure warning systemUnits (if equipped)The units of measure used can be changed while driving.Unlike the units setting performed on the settings display, the units setting performed on the drive information display can be changed while driving.Blank (No items)Displays no drive information contents.Note:Eco Driving IndicatorEco Driving Indicator will not operate under the following conditions:The shift lever is in any position other than D.A paddle shift switch is operated.Sport mode is selected.The driving mode is set to customized mode and the powertrain control is set to power (Driving mode select switch)The vehicle speed is approximately 80 mph (130 km/h) or higher.G-force display (if equipped)The G-force values may not be zero even when the vehicle is parked, such as when it is parked on an incline.Depending on the vehicle usage conditions, the brake fluid pressure display may not reach its maximum reading even though the brake pedal is fully depressed.If a battery terminal is disconnected and reconnected, the steering amount display may be disabled temporarily. After driving the vehicle for a while, the display will be enabled.Tire pressureIt may take a few minutes to display the tire inflation pressure after the engine switch is turned to IGNITION ON mode. It may also take a few minutes to display the tire inflation pressure after inflation pressure has been adjusted.“ ---” may be displayed if the tire position information cannot be determined due to unfavorable radio wave conditions.Tire inflation pressure changes with temperature. The displayed values may also be different from the values measured using a tire pressure gauge.NAVIGATION SYSTEM-LINKED DISPLAY (IF EQUIPPED)Select to display the following navigation system-linked information.Route guidanceCompass display (heading-up display)AUDIO SYSTEM-LINKED DISPLAYSelect to enable selection of an audio source or track on the meter using the meter control switches.DRIVING ASSIST SYSTEM INFORMATIONSelect to display the operational status of the following systems:LTA (Lane Tracing Assist) (LTA (Lane Tracing Assist))RSA (Road Sign Assist) (if equipped) (RSA (Road Sign Assist)*)Dynamic radar cruise control with full-speed range (Dynamic radar cruise control with full-speed range)SETTINGS DISPLAYMeter display settings that can be changedClockSelect to switch between 12-hour display and 24-hour display.LanguageSelect to change the language displayed.UnitsSelect to change the units of measure displayed. Eco Driving Indicator Light (Eco Driving Indicator)Select to enable/disable the Eco Driving Indicator Light. Switch settingsSelect to display how to change the top screen.Drive information 1/Drive information 2/Drive information 3Select to select up to 2 items (Drive information) that will be displayed on each Drive information screen (Drive information 1 screen, Drive information 2 screen, and Drive information 3 screen) respectively.Pop-up displaySelect to enable/disable the pop-up display.Intersection guidance (if equipped)Incoming callsBrightness adjustmentColor (except F SPORT models)Select to set the color of the cursor on the multi-information display.Needle (F SPORT models)Select to set the tachometer needle color.Rev indicator (F SPORT models) (Rev indicator (F SPORT models))Select to enable/disable the Rev indicator.Select to set the desired engine speed at which the Rev indicator will begin to be displayed.Selectable engine speed range:2000 rpm to 6500 rpmRev peak (F SPORT models) (Rev peak (F SPORT models))Select to enable/disable the Rev peak.Default settingSelect to reset the meter display settings to the default setting.Vehicle functions and settings that can be changedCustomizable featuresNote:Background color of the indicator/shift position display area (except F SPORT models)The background color of the indicator/shift position display area is changed according to the driving mode as follows (Driving mode select switch):Eco drive mode: BlueSport mode: RedSuspension of the settings displaySome settings cannot be changed while driving. When changing settings, park the vehicle in a safe place.If a warning message is displayed, operation of the settings display will be suspended.WARNING:Cautions during setting up the displayAs the engine needs to be running during setting up the display, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.NOTICE:While setting up the displayTo prevent battery discharge, ensure that the engine is running while setting up the display features.SUGGESTION FUNCTIONDisplays suggestions to the driver in the following situations. To select a response to a displayed suggestion, use the meter control switches.SUGGESTION TO ENABLE THE POWER BACK DOORIf the power back door system is disabled (setting on set to off) and the power back door switch on the instrument panel is operated, a suggestion message will be displayed asking if you wish to enable the power back door system.To enable the power back door system, select “ Yes”.After enabling the power back door system, press the power back door switch again to open or close the power back door.SUGGESTION TO TURN OFF THE HEADLIGHTSIf the headlights are left on for a certain amount of time after the engine switch has been turned off, a suggestion message will be displayed asking if you wish to turn the headlights off.To turn the headlights off, select “ Yes”.If a front door is opened after the engine switch is turned off, this suggestion message will not be displayed.Note:CustomizationSome functions can be customized. (Customizable features)
