AIR CONDITIONING FILTER

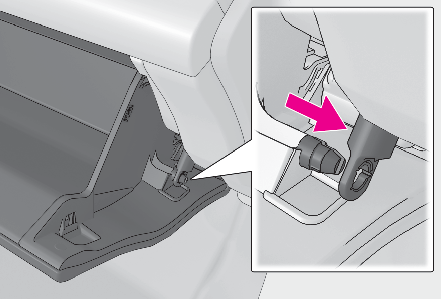

The air conditioning filter must be changed regularly to maintain air conditioning efficiency.REMOVING THE AIR CONDITIONING FILTERTurn the engine switch off.Open the glove box. Slide off the damper.

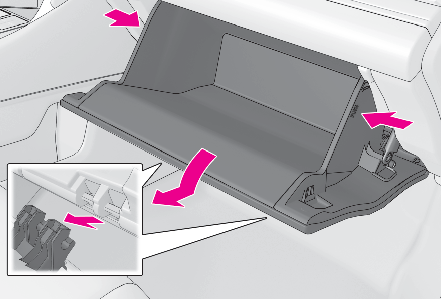

Push in the glove box on the vehicle’s outer side to disconnect the claws. Then pull out the glove box and disconnect the lower claws.

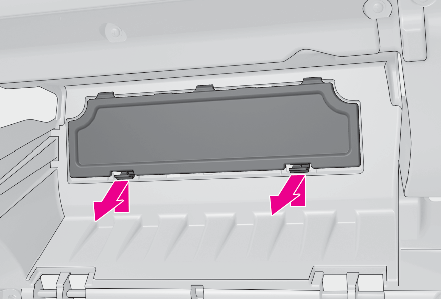

Remove the cover.

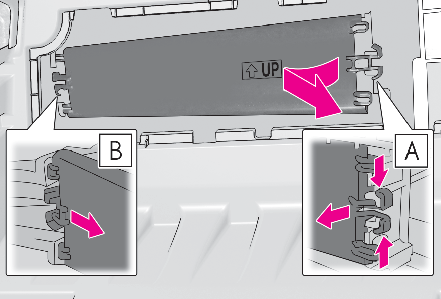

Unlock the filter cover ( ), pull the filter cover out of the claws ( ), and remove the filter cover.

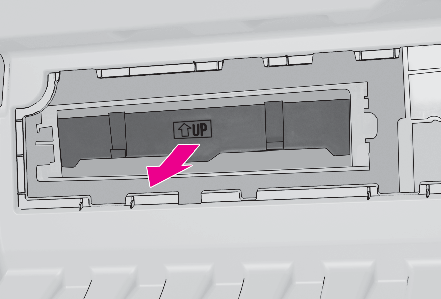

Remove the filter case.There may be foreign objects on top of the air conditioning filter.

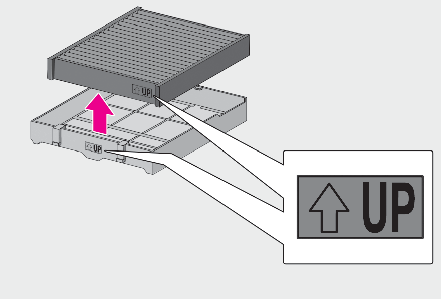

Remove the air conditioning filter from the filter case and replace it with a new one.The “ UP” marks shown on the filter and the filter case should be pointing up.

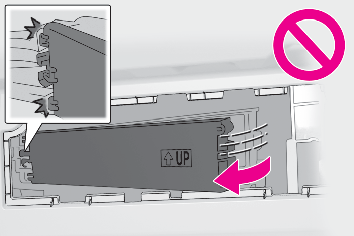

Note:Checking intervalInspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled maintenance information, please refer to the “ Owner’s Manual Supplement” or “ Scheduled Maintenance”.)If air flow from the vents decreases dramaticallyThe filter may be clogged. Check the filter and replace if necessary.Air conditioning filter with deodorizing functionWhen fragrances are placed in your vehicle, the deodorizing effect may become significantly weakened in a short period.When an air conditioning odor comes out continuously, replace the air conditioning filter.NOTICE:When using the air conditioning systemMake sure that a filter is always installed.Using the air conditioning system without a filter may cause damage to the system.To prevent damage to the filter coverWhen moving the filter cover in the direction of arrow to release the fitting, pay attention not to apply excessive force to the claws. Otherwise, the claws may be damaged.
