ENGINE COMPARTMENT
COMPONENTS

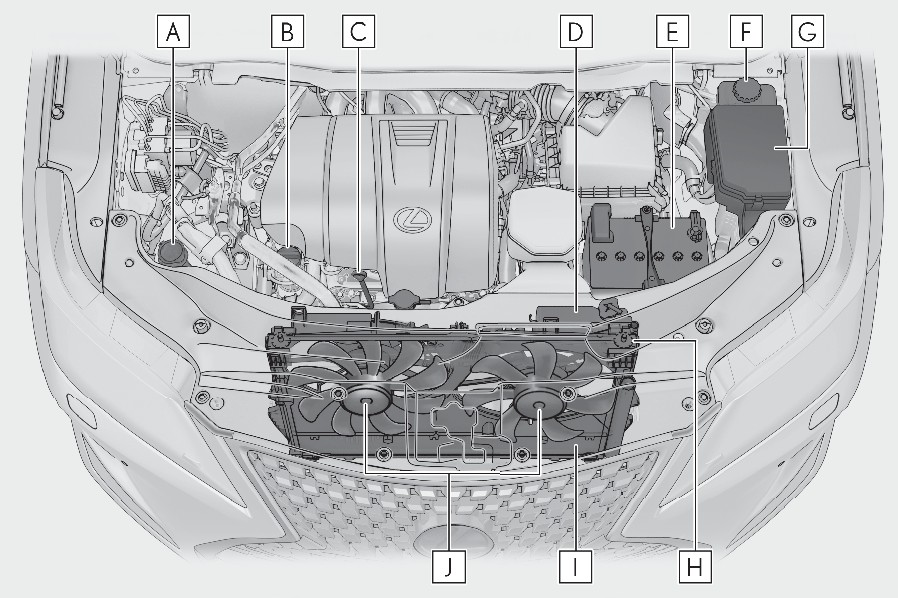

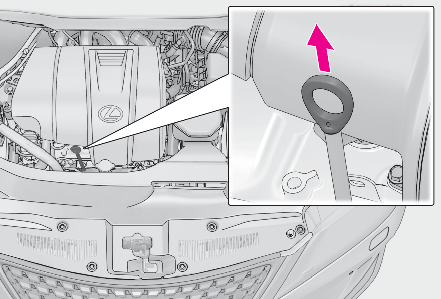

Washer fluid tank (Washer fluid)Engine oil filler cap (Adding engine oil)Engine oil level dipstick (Checking the engine oil)Engine coolant reservoir (Checking the coolant)Battery (Battery)Brake fluid reservoir (Checking and adding the brake fluid)Fuse box (Checking and replacing fuses)Radiator (Checking the radiator and condenser)Condenser (Checking the radiator and condenser)Electric cooling fansCHECKING AND ADDING THE ENGINE OILWith the engine at operating temperature and turned off, check the oil level on the dipstick.Checking the engine oilPark the vehicle on level ground. After warming up the engine and turning off the engine, wait more than 5 minutes for the oil to drain back into the bottom of the engine.Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.Reinsert the dipstick fully.Holding a rag under the end, pull the dipstick out and check the oil level.

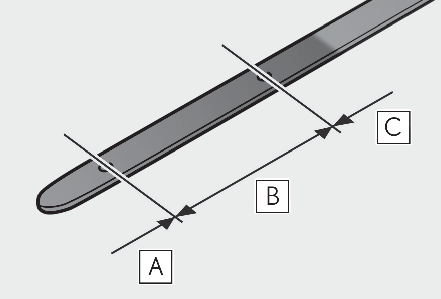

LowNormalExcessiveThe shape of the dipstick may differ depending on the type of vehicle or engine.Wipe the dipstick and reinsert it fully.Checking the oil type and preparing the item neededMake sure to check the oil type and prepare the items needed before adding oil.Engine oil selectionEngine oil selectionOil quantity (Low Full)1.9 qt. (1.8 L, 1.6 Imp. qt.)ItemClean funnelAdding engine oilIf the oil level is below or near the low level mark, add engine oil of the same type as that already in the engine.

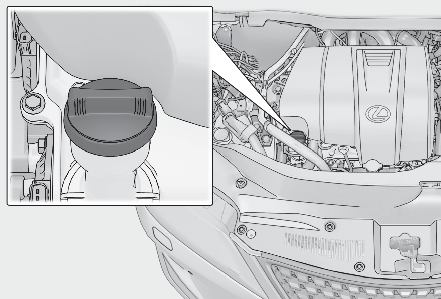

Remove the oil filler cap by turning it counterclockwise.Add engine oil slowly, checking the dipstick.Install the oil filler cap by turning it clockwise.Note:Engine oil consumptionA certain amount of engine oil will be consumed while driving. In the following situations, oil consumption may increase, and engine oil may need to be refilled in between oil maintenance intervals.When the engine is new, for example directly after purchasing the vehicle or after replacing the engineIf low quality oil or oil of an inappropriate viscosity is usedWhen driving at high engine speeds or with a heavy load, when towing, or when driving while accelerating or decelerating frequentlyWhen leaving the engine idling for a long time, or when driving frequently through heavy trafficAfter changing the engine oilThe engine oil maintenance data should be reset. Perform the following procedures:Press or of the meter control switch to select on the multi-information display.Press or of the meter control switch, select the “ Vehicle Settings” then “ Oil Maintenance”. (To confirm setting, press .)Select the “ Yes” and press .A message is displayed on the multi-information display.WARNING:Used engine oilUsed engine oil contains potentially harmful contaminants which may cause skin disorders such as inflammation and skin cancer, so care should be taken to avoid prolonged and repeated contact. To remove used engine oil from your skin, wash thoroughly with soap and water.Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of used oil and filters in household trash, in sewers or onto the ground.Call your Lexus dealer, service station or auto parts store for information concerning recycling or disposal.Do not leave used engine oil within the reach of children.NOTICE:To prevent serious engine damageCheck the oil level on a regular basis.When replacing the engine oilBe careful not to spill engine oil on the vehicle components.Avoid overfilling, or the engine could be damaged.Check the oil level on the dipstick every time you refill the vehicle.Be sure the engine oil filler cap is properly tightened.CHECKING THE COOLANTThe coolant level is satisfactory if it is between the “ FULL” and “ LOW” lines on the reservoir when the engine is cold.

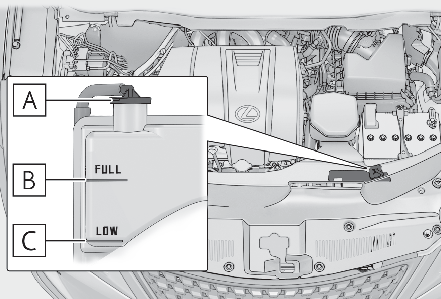

Reservoir cap“ FULL” line“ LOW” lineIf the level is on or below the “ LOW” line, add coolant up to the “ FULL” line. (If your vehicle overheats)Note:Coolant selectionOnly use “ Toyota Super Long Life Coolant” or a similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology.U.S.A.:“ Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Minimum temperature: -31°F [-35°C])Canada:“ Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Minimum temperature: -44°F [-42°C])For more details about coolant, contact your Lexus dealer.If the coolant level drops within a short time of replenishingVisually check the radiator, hoses, engine coolant reservoir cap, drain cock and water pump.If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in the cooling system.WARNING:When the engine is hotDo not remove the engine coolant reservoir cap and radiator cap.The cooling system may be under pressure and may spray hot coolant if the cap is removed, causing serious injuries, such as burns.NOTICE:When adding coolantCoolant is neither plain water nor straight antifreeze. The correct mixture of water and antifreeze must be used to provide proper lubrication, corrosion protection and cooling. Be sure to read the antifreeze or coolant label.If you spill coolantBe sure to wash it off with water to prevent it from damaging parts or paint.CHECKING THE RADIATOR AND CONDENSERCheck the radiator and condenser and clear away any foreign objects.If either of the above parts is extremely dirty or you are not sure of their condition, have your vehicle inspected by your Lexus dealer.WARNING:When the engine is hotDo not touch the radiator or condenser as they may be hot and cause serious injuries, such as burns.CHECKING AND ADDING THE BRAKE FLUIDChecking fluid levelThe brake fluid level should be between the “ MAX” and “ MIN” lines on the tank.

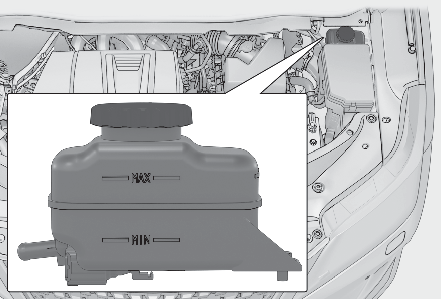

Adding fluidMake sure to check the fluid type and prepare the necessary item.Fluid typeFMVSS No.116 DOT 3 or SAE J1703 brake fluidItemClean funnelNote:Brake fluid can absorb moisture from the airExcess moisture in the brake fluid can cause a dangerous loss of braking efficiency. Use only newly opened brake fluid.WARNING:When filling the reservoirTake care as brake fluid can harm your hands and eyes and damage painted surfaces.If fluid gets on your hands or in your eyes, flush the affected area with clean water immediately.If you still experience discomfort, see a doctor.NOTICE:If the fluid level is low or highIt is normal for the brake fluid level to go down slightly as the brake pads wear out or when the fluid level in the accumulator is high.If the reservoir needs frequent refilling, there may be a serious problem.BATTERYCheck the battery as follows.Battery exteriorMake sure that the battery terminals are not corroded and that there are no loose connections, cracks, or loose clamps.

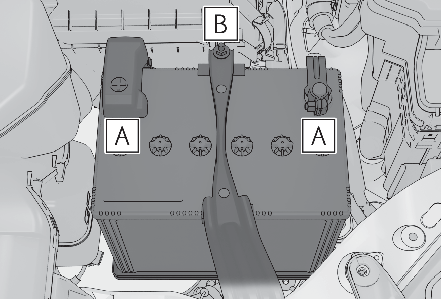

TerminalsHold-down clampNote:Before rechargingWhen recharging, the battery produces hydrogen gas which is flammable and explosive. Therefore, observe the following precautions before recharging:If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable.Make sure the power switch on the charger is off when connecting and disconnecting the charger cables to the battery.After recharging/reconnecting the batteryThe engine may not start. Follow the procedure below to initialize the system.Shift the shift lever to P.Open and close any of the doors.Restart the engine.Unlocking the doors using the smart access system with push-button start may not be possible immediately after reconnecting the battery. If this happens, use the wireless remote control or the mechanical key to lock/unlock the doors.Start the engine with the engine switch in ACCESSORY mode. The engine may not start with the engine switch turned off. However, the engine will operate normally from the second attempt.The engine switch mode is recorded by the vehicle. If the battery is reconnected, the vehicle will return the engine switch mode to the status it was in before the battery was disconnected. Make sure to turn off the power before disconnect the battery. Take extra care when connecting the battery if the engine switch mode prior to discharge is unknown.If the system will not start even after multiple attempts at all the methods above, contact your Lexus dealer.WARNING:Chemicals in the batteryBatteries contain poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near the battery:Do not cause sparks by touching the battery terminals with tools.Do not smoke or light a match near the battery.Avoid contact with eyes, skin and clothes.Never inhale or swallow electrolyte.Wear protective safety glasses when working near the battery.Keep children away from the battery.Where to safely charge the batteryAlways charge the battery in an open area. Do not charge the battery in a garage or closed room where there is insufficient ventilation.How to recharge the batteryOnly perform a slow charge (5 A or less). The battery may explode if charged at a quicker rate.Emergency measures regarding electrolyteIf electrolyte gets in your eyesFlush your eyes with clean water for at least 15 minutes and get immediate medical attention. If possible, continue to apply water with a sponge or cloth while traveling to the nearest medical facility.If electrolyte gets on your skinWash the affected area thoroughly. If you feel pain or burning, get medical attention immediately.If electrolyte gets on your clothesIt can soak through clothing on to your skin. Immediately take off the clothing and follow the procedure above if necessary.If you accidentally swallow electrolyteDrink a large quantity of water or milk. Get emergency medical attention immediately.When there is insufficient battery fluidDo not use if there is insufficient fluid in the battery. There is a possible danger that the battery may explode.NOTICE:When recharging the batteryNever recharge the battery while the engine is running. Also, be sure all accessories are turned off.When adding distilled waterAvoid overfilling. Water spilled during battery recharging may cause corrosion.WASHER FLUIDIf any washer does not work or the warning message appears on the multi-information display, the washer tank may be empty. Add washer fluid.

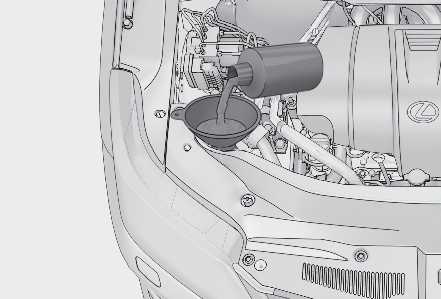

WARNING:When adding washer fluidDo not add washer fluid when the engine is hot or running as washer fluid contains alcohol and may catch fire if spilled on the engine, etc.NOTICE:Do not use any fluid other than washer fluidDo not use soapy water or engine antifreeze instead of washer fluid.Doing so may cause streaking on the vehicle’s painted surfaces, as well as damaging the pump leading to problems of the washer fluid not spraying.Diluting washer fluidDilute washer fluid with water as necessary.Refer to the freezing temperatures listed on the label of the washer fluid bottle.
