GAUGES AND METERS

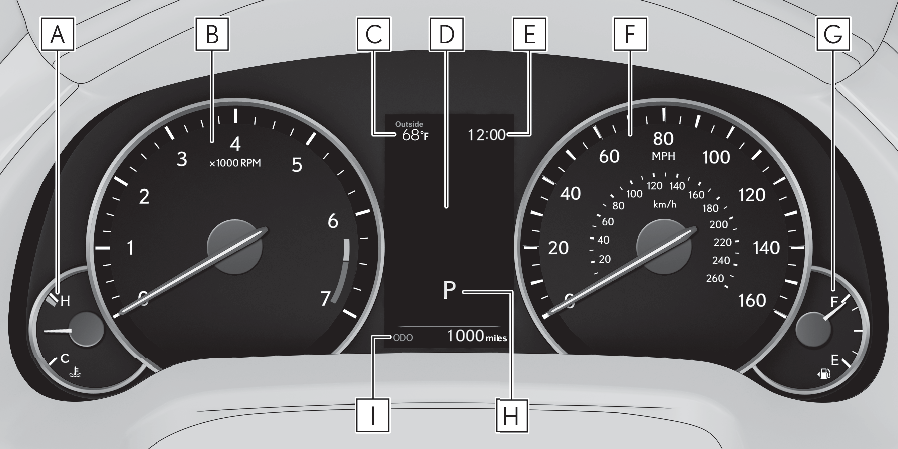

METER DISPLAYLocations of gauges and metersExcept F SPORT models
The units used on the meters may differ depending on the target region.Engine coolant temperature gaugeDisplays the engine coolant temperatureTachometerDisplays the engine speed in revolutions per minuteOutside temperatureDisplays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or lower.Multi-information displayPresents the driver with a variety of vehicle data (Multi-information display)Displays warning messages in case of a malfunction (If a warning message is displayed)ClockTime displayed is linked to the analog clock on the instrument panel. (Clock)SpeedometerFuel gaugeDisplays the quantity of fuel remaining in the tankShift position display (Automatic transmission)Odometer and trip meter display (Odometer and trip meter display)F SPORT models

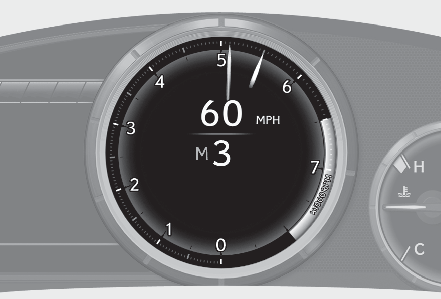

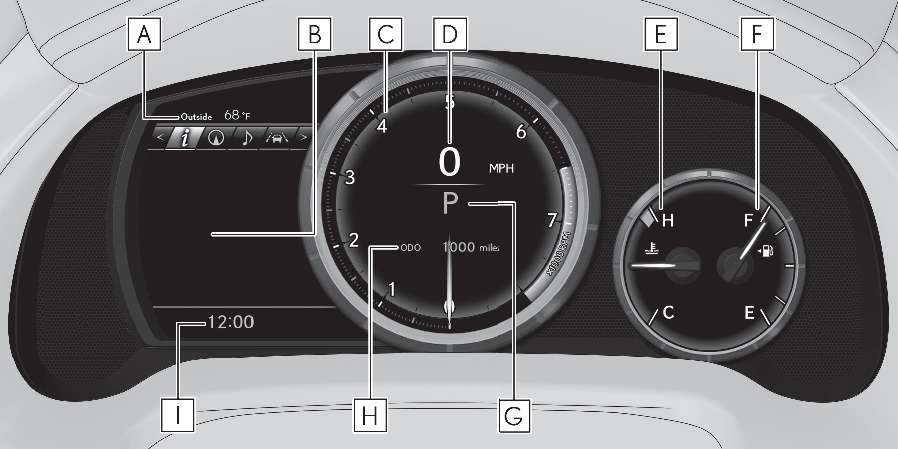

The units used on the meters may differ depending on the target region.Outside temperatureDisplays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or lower.Multi-information displayPresents the driver with a variety of vehicle data (Multi-information display)Displays warning messages in case of a malfunction (If a warning message is displayed)TachometerDisplays the engine speed in revolutions per minuteWhen sport mode is selected for the driving mode, the periphery of the tachometer will change color and the scale of the tachometer will be emphasized.SpeedometerEngine coolant temperature gaugeDisplays the engine coolant temperatureFuel gaugeDisplays the quantity of fuel remaining in the tankShift position display (Automatic transmission)Odometer and trip meter display (Odometer and trip meter display)ClockTime displayed is linked to the analog clock on the instrument panel. (Clock)Rev indicator (F SPORT models)When the engine speed reaches a set speed, a ring-shaped indicator will be displayed on the tachometer.The desired engine speed at which the Rev indicator will begin to be displayed can be set on of the multi-information display. (Multi-information display)

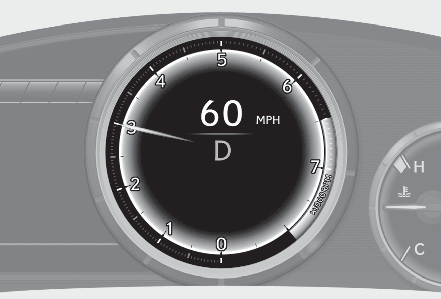

Rev peak (F SPORT models)The engine speed reaches or exceeds 5000 rpm, an afterimage of the tachometer will be displayed at the highest engine speed for approximately 1 second.
Note:The meters and display illuminate whenThe engine switch is in IGNITION ON mode.Outside temperature displayIn the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change:When stopped, or driving at low speeds (less than 12 mph [20 km/h])When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)When “ --” or “ E” is displayed, the system may be malfunctioning. Take your vehicle to your Lexus dealer.Liquid crystal displaySmall spots or light spots may appear on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display.CustomizationThe gauges and meters can be customized on of the multi-information display. (Meter display settings that can be changed)WARNING:The information display at low temperaturesAllow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed.For example, there is a lag between the driver’s shifting and the new gear number appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and possibly an accident resulting in death or injury.NOTICE:To prevent damage to the engine and its componentsDo not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely. (If your vehicle overheats)ODOMETER AND TRIP METER DISPLAYDisplay itemsOdometerDisplays the total distance the vehicle has been driven.Trip meter A/trip meter BDisplays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.Distance until next engine oil changeDisplays the distance the vehicle can be driven until an oil change is necessary.CHANGING THE DISPLAYEach time the “ ODO TRIP” switch is pressed, the displayed item will be changed. When the trip meter is displayed, pressing and holding the switch will reset the trip meter.

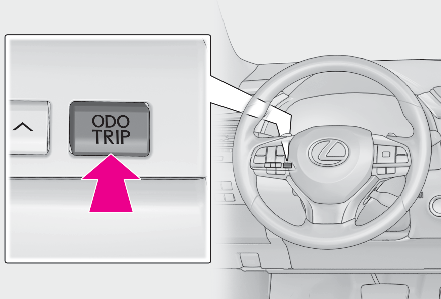

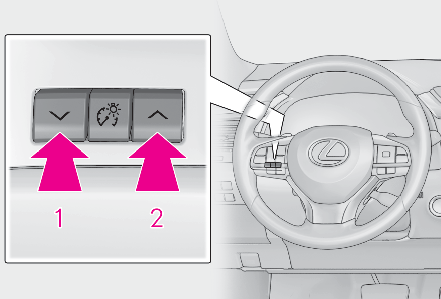

Pop-up displayDistance until next engine oil changeDisplays the distance until the next engine oil change. This display will be displayed in the following situations:When the engine switch is turned to IGNITION ON mode.When a warning message indicating that oil maintenance should be performed soon or is required is displayed.CHANGING THE INSTRUMENT PANEL LIGHT BRIGHTNESSThe brightness of the instrument panel lights can be adjusted.If the brightness is adjusted when the surroundings are bright and the tail lights are on (day mode brightness adjustment), the brightness level of night mode will be adjusted at the same time.
DarkerBrighterNote:Brightness of the meters (day mode and night mode)The brightness of the meters is changed between day mode and night mode.Day mode: When the tail lights are off or when the tail lights are on but the surrounding area is brightNight mode: When the tail lights are on and the surrounding area is dark
