HEATED STEERING WHEEL*/SEAT HEATERS*/SEAT VENTILATORS*

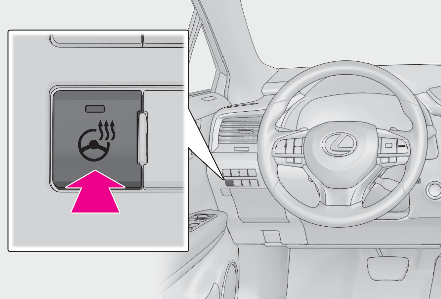

*If equippedHeated steering wheelWarms up the grip of the steering wheelSeat heatersWarm up the seat upholsterySeat ventilatorsMaintain good ventilation using a fan built into the seatWARNING:To prevent minor burn injuriesCare should be taken if anyone in the following categories comes in contact with the steering wheel or seats when the heater is on:Babies, small children, the elderly, the sick and the physically challengedPersons with sensitive skinPersons who are fatiguedPersons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)NOTICE:To prevent damage to the seat heatersDo not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.To prevent battery dischargeDo not use the functions when the engine is off.HEATED STEERING WHEELTurns the heated steering wheel on/offThe indicator light comes on when the heated steering wheel is operating.

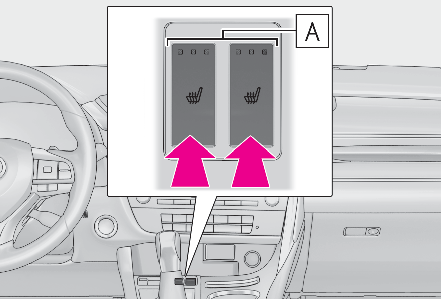

Note:Operation conditionThe engine switch is in IGNITION ON mode.Timer functionThe heated steering wheel will automatically turn off after about 30 minutes.SEAT HEATERSfront seatsVehicles without seat ventilatorsEach time the switch is pressed, the operation condition changes as follows.Hi (3 segments lit)Mid (2 segments lit)Lo (1 segment lit)OffThe level indicator (amber) lights up during operation.

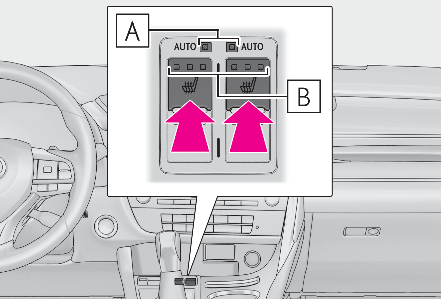

Vehicles with seat ventilatorsWhen any switch is pressed, the system is set to automatic mode and the “ AUTO” indicator (green) lights up.Each time the switch is pressed, the operation condition changes as follows.Hi (3 segments lit)Mid (2 segments lit)Lo (1 segment lit)OffThe level indicator (amber) lights up during operation.

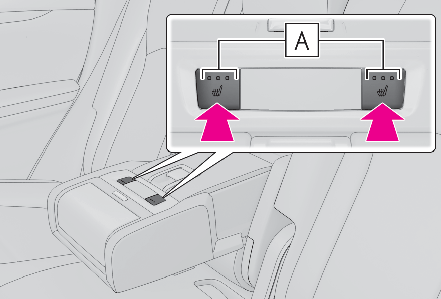

SECOND-ROW SEATSEach time the switch is pressed, the operation condition changes as follows.Hi (3 segments lit)Mid (2 segments lit)Lo (1 segment lit)OffThe level indicator (amber) lights up during operation.Type A
Type B

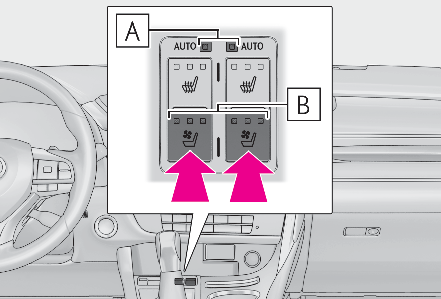

Note:Operation conditionThe engine switch is in IGNITION ON mode.When the air conditioning system is operating in front seat concentrated airflow mode (S-FLOW)If a passenger is not detected in the front passenger seat, the seat heater of the front passenger’s seat will be turned off if on. (Front seat concentrated airflow mode (S-FLOW))CustomizationSome functions can be customized. (Customizable features)WARNING:To prevent overheating and minor burn injuriesObserve the following precautions when using the seat heaters.Do not cover the seat with a blanket or cushion when using the seat heater.Do not use seat heater more than necessary.SEAT VENTILATORS (FRONT SEATS)When any switch is pressed, the system is set to automatic mode and the “ AUTO” indicator (green) lights up.Each time the switch is pressed, the operation condition changes as follows.Hi (3 segments lit)Mid (2 segments lit)Lo (1 segment lit)OffThe level indicator (green) lights up during operation.
Note:Operation conditionThe engine switch is in IGNITION ON mode.When the air conditioning system is operating in front seat concentrated airflow mode (S-FLOW)If a passenger is not detected in the front passenger seat, the seat ventilator of the front passenger’s seat will be turned off if on. (Front seat concentrated airflow mode (S-FLOW))CustomizationSome functions can be customized. (Customizable features)
