LUGGAGE COMPARTMENT FEATURES

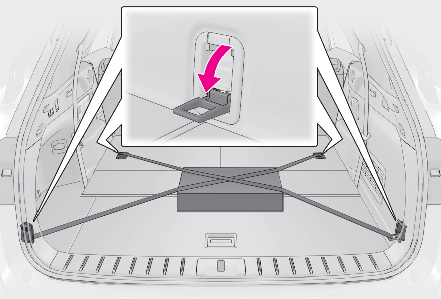

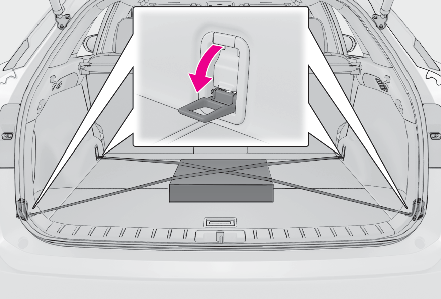

CARGO HOOKSPull down the hook to use.The cargo hooks are provided for securing loose items.RX350
RX350L

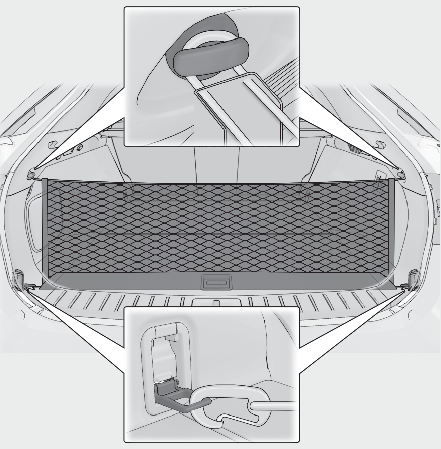

WARNING:When cargo hooks are not in useTo avoid injury, always return the hooks to their stowed positions when not in use.CARGO NET HOOKSTo hang the cargo net, use the cargo net hooks and rear cargo hooks.

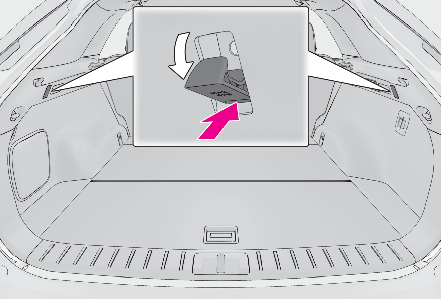

WARNING:When the cargo net is not in useTo avoid injury, always return the hooks to their stowed positions when not in use.GROCERY BAG HOOKSTo use the grocery bag hook, push it in.RX350

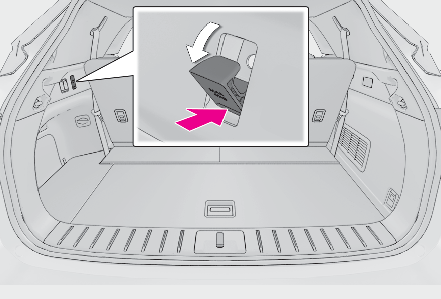

RX350L

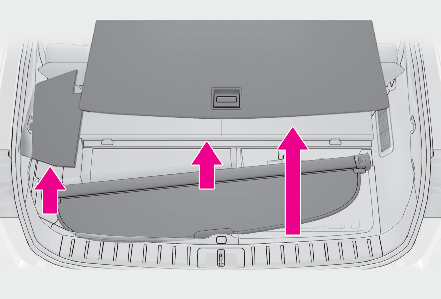

NOTICE:To prevent damage to the grocery bag hooksDo not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hooks.LUGGAGE COVERremoving the luggage cover unit (rx350l)Remove the deck board and side auxiliary box cover and take out the luggage cover unit. (Auxiliary boxes (RX350))

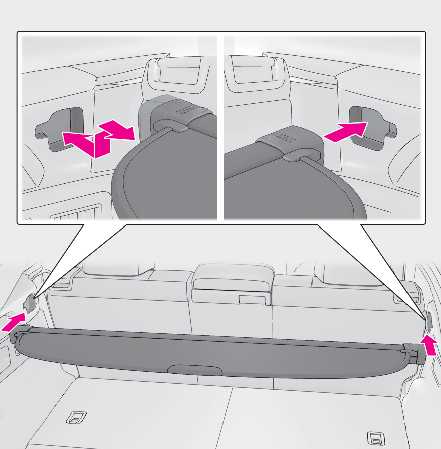

USING THE LUGGAGE COVERRX350L: Before installing the luggage cover, fold down the third-row seats. (Rear seats)Insert either end of the luggage cover into the recess, then compress the other end of the luggage cover and insert it into the recess.

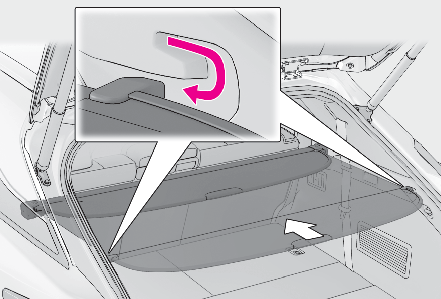

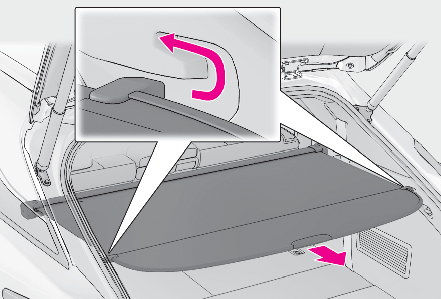

Pull out the luggage cover and hook it onto the anchors.

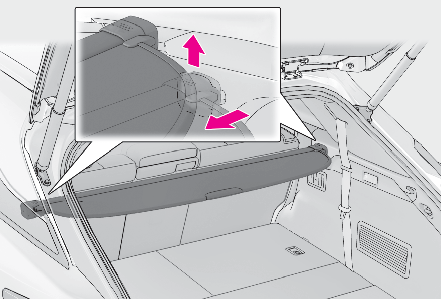

REMOVING THE LUGGAGE COVERRelease the cover from the left and right anchors and allow it to retract.
Compress the end of the luggage cover and lift the luggage cover up.RX350: After removing the luggage cover, place it somewhere other than the passenger compartment.RX350L: Stow the luggage cover under the deck board and side auxiliary box cover.

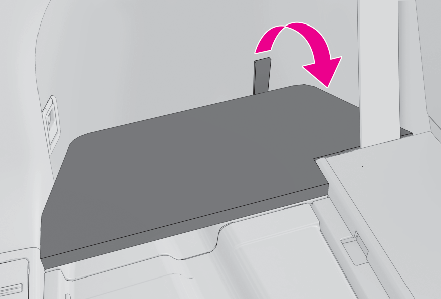

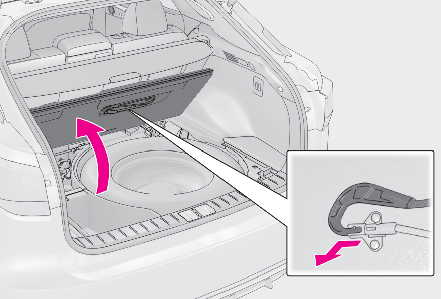

WARNING:Luggage coverDo not place anything on the luggage cover. In the event of sudden braking or turning, the item may go flying and strike an occupant. This could lead to an unexpected accident, resulting in death or serious injury.Do not allow children to climb on the luggage cover. Climbing on the luggage cover could result in damage to the luggage cover, possibly causing death or serious injury to the child.AUXILIARY BOXES (RX350)Pull the lever up and fold the flap of the deck board.
Lift the deck board and disengage the hook on the underside of the deck board.

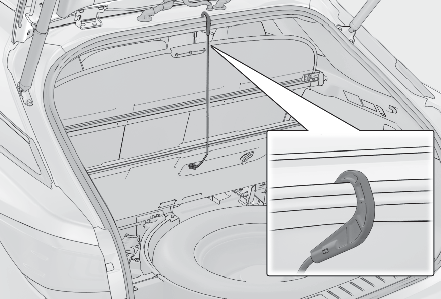

Attach the hook to the upper edge of the back door opening as shown.

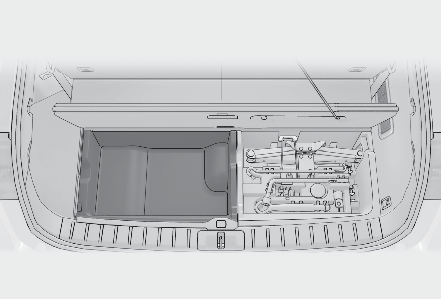

Deck floor box
Deck side box

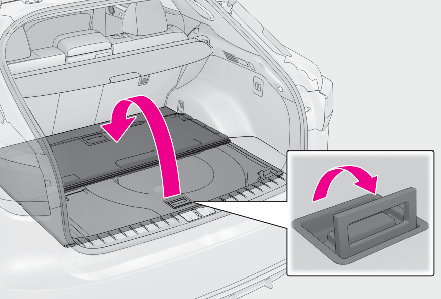

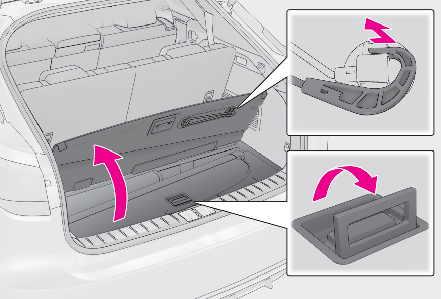

WARNING:If the deck board is folded or removedReturn it to its original position before driving. In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored in the deck under tray.NOTICE:When closing the back doorDo not leave the deck board hook hooked on the edge of the back door opening. The deck board hook may get damaged.AUXILIARY BOXES (RX350L)Pull up the lever, lift the deck board and pull out the hook from the underside of the deck board.

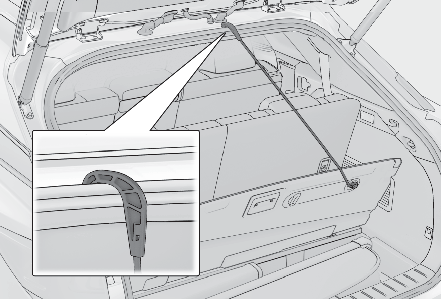

Attach the hook to the upper edge of the back door opening as shown.

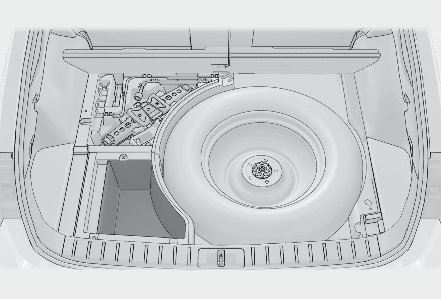

Deck floor box (if equipped)

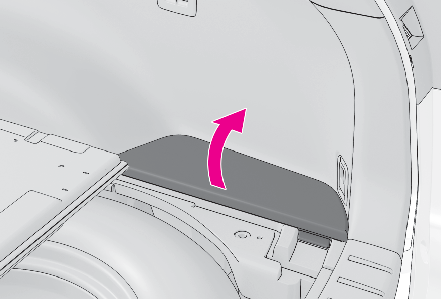

Side auxiliary box

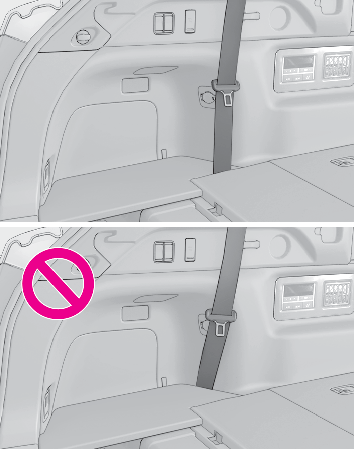

WARNING:If the deck board is folded or removedReturn it to its original position before driving. In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored in the deck under tray.When installing the deck side box and side auxiliary box coverMake sure that the third-row seat seatbelt is positioned correctly. If the seatbelt is positioned incorrectly, the seatbelt may be damaged when a passenger uses the seatbelt. Also, in the case of sudden braking, the side auxiliary box cover may come off and things stored in the deck side box may fly about and strike an occupant, possibly resulting in death or serious injury.
NOTICE:When closing the back doorDo not leave the deck board hook hooked on the edge of the back door opening. The deck board hook may get damaged.
