2019 Toyota RAV4 Owners Manual - Using the storage features



Owner’s Manuals 2019 Using the storage features

Using the storage features

    Lighters or spray cans may explode. If they come into con- tact with other stored items, the lighter may catch fire or the spray can may release gas, causing a fire hazard.

Glove box

Pull up the lever to open the glove box.

WARNING
    Caution while driving

Keep the console box closed.

Injuries may result in the event of an accident or sudden braking.

Cup holders

WARNING
    Caution while driving

Keep the glove box closed. In the event of sudden braking or sud- den swerving, an accident may occur due to an occupant being struck by the open glove box or the items stored inside.

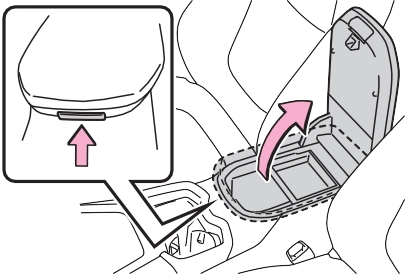

Lift the lid while pushing the but- ton to release the lock.

    Console box tray (if equipped)

The tray can be removed and stored in the bottom of the console box.

’ Front

’ Rear

Bottle holders

’ Front

’ Rear

    Bottle holders
    When storing a bottle, close the cap.
    The bottle may not be stored depending on its size or shape.

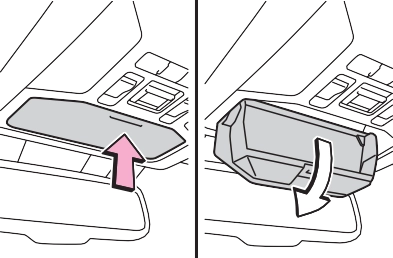

Auxiliary boxes

’ Type B (if equipped)

WARNING
    Caution while driving

Do not leave the auxiliary box (type A) open while driving.

Injuries may result in the event of an accident or sudden braking.

    Items unsuitable for storing (type A)

Do not store items heavier than 0.4 lb. (0.2 kg).

Doing so may cause the auxiliary box to open and the items inside may fall out, resulting in an acci- dent.

’ Driver’s side

’ Front passenger’s side

’ Front of console

Raise the hook to use.

The cargo hooks are provided for securing loose items.

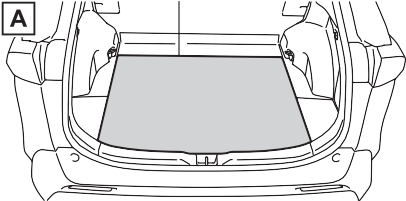

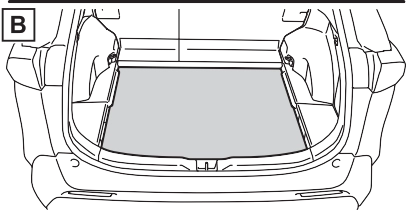

    Setting the deck board underside (resin side) up

Original position Underside (resin side)

    Changing the deck board

positions

Height of the deck board can be changed by setting the deck board under the floor.

Upper Lower

    Pull up the tab to raise the deck board and move it toward you to remove
    Place the deck board through the groove and move forward

    Setting the deck board upright
    Remove the deck board (P.526)
    Turn the deck board under- side up and place the front edge into the hole.
    Fold the deck board and

place the rear edge into the holes.

WARNING
    When operating the deck board

Do not place anything on the deck board when operating the board. Otherwise, your fingers may be caught or an accident may result causing injuries.

    Caution while driving

Keep the deck board closed.

In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored under the deck board.

Side auxiliary box

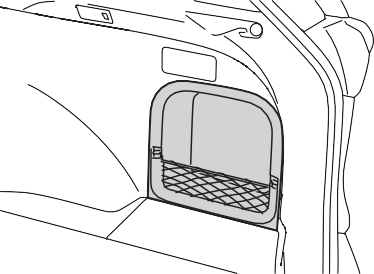

’ Type A

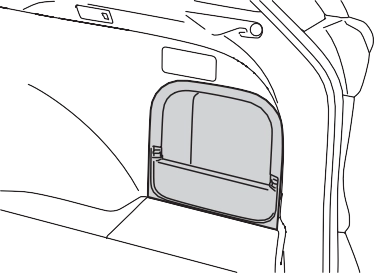

’ Type B
    Removing the partition plate

Disengage the claws

    Installing the luggage cover
    Compress the both ends of the luggage cover and insert into the recess to install.
    Pull out the luggage cover and hook it onto the anchors.

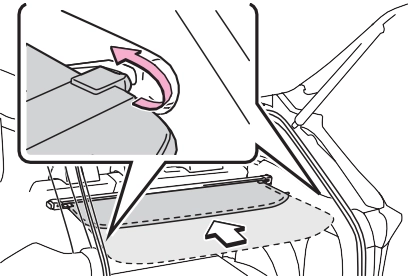

    Removing the luggage cover
    Release the cover from the left and right anchors and allow it to retract.

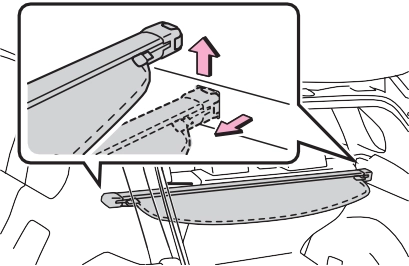

    Compress the end of the lug- gage cover and lift the lug- gage cover up.
    Stowing the luggage cover

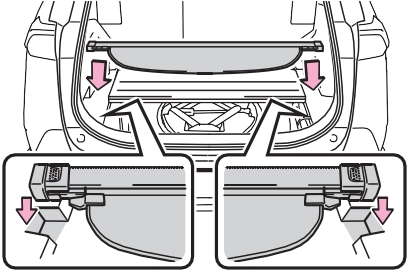

1 Open the rear deck board and remove the side deck covers.

2 Place the both ends of the luggage cover into the holder.

WARNING
    Luggage cover
    When installing/stowing the lug- gage cover, make sure that the luggage cover is securely installed/stowed. Failure to do so may result in serious injury in the event of sudden braking or a collision.
    Do not place anything on the luggage cover. In the event of sudden braking or turning, the item may go flying and strike an occupant. This could lead to an unexpected accident, resulting in death or serious injury.
    Do not allow children to climb on the luggage cover. Climbing on the luggage cover could result in damage to the luggage cover, possibly causing death or serious injury to the child.
