The functions included in Toy- ota Entune are classified into the following four types.
Type A: Function achieved by using a smartphone or an embed- ded cellular device in the vehicle (DCM: Data Communication Module) and the system
Type B: Function achieved by using DCM and the system
Type C: Function achieved by using DCM
Type D: Function achieved by using DCM and a smartphone
Function
Type
Toyota Entune App Suite Connect
Type A
Wi-Fi® Hotspot
Type B
Safety Connect
Type C
Toyota Entune Remote Connect, Toyota Entune Service Con- nect
Type D
Availability of functions of the Toy- ota Entune is dependent on net-
work reception level.
Each function is available in the following areas:
Toyota Entune App Suite Connect is available in the contiguous United States, Washington D.C., Alaska, Hawaii, Puerto Rico and Canada.
Toyota Entune App Suite Connect is not available in the United States Virgin Islands.
Wi-Fi® Hotspot is available in the contiguous United States, Wash- ington D.C.,Alaska and Hawaii.
Wi-Fi® Hotspot is not available in Puerto Rico, Canada in the United States Virgin Islands, Guam and Saipan.
Safety Connect features include: Automatic Collision Notification, Emergency Assistance, S.O.S, Stolen Vehicle Location (available in the contiguous United States, Washington D.C., Hawaii, Alaska, Puerto Rico and Canada) and Enhanced Roadside Assistance (available in the contiguous United States, Washington D.C., Alaska, Puerto Rico and Canada).
Safety Connect is not available in the United States Virgin Islands.
Toyota Entune Remote Connect is available in the contiguous United States, Washington D.C. and Alaska.
Toyota Entune Remote Connect is not available in Puerto Rico, Can- ada, and in the United States Vir- gin Islands.
Toyota Entune Service Connect is available in the contiguous United States, Washington D.C., and Alaska.
Toyota Entune Service Connect is not available in Puerto Rico, Can- ada, and the United States Virgin Islands.
Provides contents to the application server.
Application server
Provides applications to the system or a smartphone.
Smartphone*
Using the Toyota Entune App Suite Connect, communication is relayed between the system, application server and contents pro- vider. The smartphone cannot be operated while communicating.
Applications
Display usable content from the content providers on the screen using the data connection of the connected smartphone or DCM.
System
Content received, via a smartphone or DCM, from content pro- vider servers is displayed on the screen. The system is equipped with an application player to run applications.
These functions are not made available in some countries or areas. Availability of functions of the Toyota Entune App Suite Con- nect service is dependent on net- work reception level.
Initializing personal data
The following personal data can be deleted and returned to their default settings:
Downloaded contents
Radio stations that were listened to
Once initialized, the data and set- tings will be erased. Pay much attention when initializing the data.
Download the Toyota Entune App Suite Connect applica- tion to your smartphone or the system.
Register the smartphone with the system.
In order to use Toyota Entune App Suite Connect, the following must first be performed:
Register a Bluetooth® phone with the hands-free system. (P.392)
Applications can only be used when the Toyota Entune App Suite Connect application has been downloaded to your smart- phone or the system, and the application is running.
Toyota Entune App Suite Connect operational procedures can also be confirmed by visiting http://www.toyota.com/Entune/
If a Toyota Entune App Suite Con- nect application is used while iPod audio/video is being played back, system operation may become unstable.
*: Vehicles equipped with DCM
Subscription
After you have signed the Telematics Subscription Service Agree- ment and are enrolled, you can begin receiving services. A variety of subscription terms are available. Contact your Toyota dealer, or call 1-800-331-4331 in the United States, 1-888-869-6828 in Can- ada, and 1-877-855-8377 in Puerto Rico, for further subscription details. (P.489)
Availability of functions
Wi-Fi® Hotspot is available in the contiguous United States, Wash- ington D.C., Alaska and Hawaii.
Wi-Fi® Hotspot is not available in Puerto Rico, Canada, and in the United States Virgin Islands.
*: Vehicles equipped with DCM
Free/Open Source Software Infor- mation
This product contains Free/Open Source Software (FOSS).
The license information and/or the source code of such FOSS can be found at the following URL. https://www. toyota.com/opensource/dcm

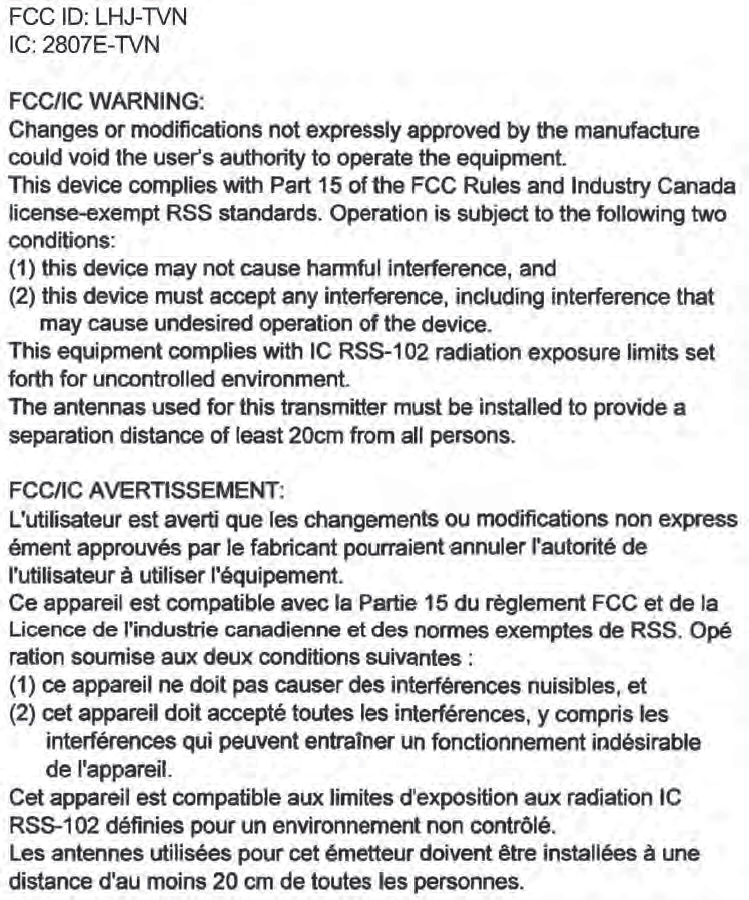

Exposure to radio frequency sig- nals:
The Toyota Entune system installed in your vehicle includes a low power radio transmitter and receiver. The system receives and also sends out radio frequency (RF) signals.
In August 1996, the Federal Com- munications Commission (FCC) adopted RF exposure guidelines with safety levels for mobile wire- less phones. Those guidelines are consistent with the safety stan- dards previously set by both U.S. and international standards bod- ies.
ANSI (American National Stan- dards Institute) C95.1 [1992]
NCRP (National Council on Radi- ation Protection and Measure- ment) Report 86 [1986]
ICNIRP (International Commis- sion on Non-Ionizing Radiation Protection) [1996]
These standards are based on
Certification
comprehensive and periodic eval- uations of the relevant scientific lit- erature. Over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1).
The design of Toyota Entune sys- tem complies with the FCC guide- lines in addition to those standards.
Contact with the Toyota Entune center is dependent upon the telematics device being in opera- tive condition, cellular connection availability and GPS satellite sig- nal reception, which can limit the ability to reach the Toyota Entune center or receive support. Enroll- ment and Telematics Subscription Service Agreement required. A variety of subscription terms are available; charges vary by sub- scription term selected.
The Toyota Entune center offers support in multiple languages.
Select Safety Connect-sub- scribed vehicles are capable of communicating vehicle informa- tion. Please see the terms and conditions for additional details. Owners who do not wish to have their vehicle transmit this informa- tion can opt out at the time of enrollment or by calling 1-800- 331-4331 in the United States, 1- 888-869-6828 in Canada, and 1- 877-855-8377 in Puerto Rico, and following the prompts for Safety Connect.
For further details about the ser- vice, contact your Toyota dealer.
Toyota Entune functions are not subject to section 255 of the Tele- communications Act and the sys- tem is not TTY compatible.
’ For vehicles sold in the U.S.A., Canada and Puerto Rico
Availability of function
Toyota Entune Remote Con- nect is available in the contig- uous United States, Washington D.C. and Alaska.
Toyota Entune Remote Con- nect is not available in Puerto Rico, Canada, and in the United States Virgin Islands.
Availability of functions of the Toy- ota Entune Remote Connect is dependent on network reception level.
Subscription
After you sign the Telematics Subscription Service Agree- ment (see the Safety Connect section P.65), download the Toyota Entune Remote Con- nect app from your smart- phone’s app store, and register within the app (or enroll and complete registra- tion at the dealer), you can begin using these services.
A variety of subscription terms are available. Contact your
Toyota Entune Remote Connect should only be used by authorized users.
Laws in some communities may require that the vehicle be within view of the user when operating Toyota Entune Remote Connect. In some states, use of Toyota Entune Remote Connect may vio- late state or local laws. Before using Toyota Entune Remote Con- nect, check your state and local laws.
Any malfunction of the vehicle should be repaired by your Toyota dealer.
Toyota Entune Remote Connect is designed to work at temperatures
above approximately -22 °F (-30
°C). This specification is related to the Toyota Entune Remote Con- nect operation, but is dependent on the vehicle’s operating tem- perature range which may be dif- ferent.
