Instrument cluster

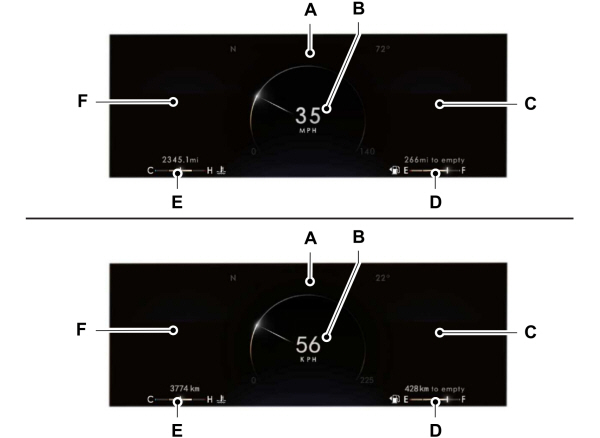

INSTRUMENT CLUSTER OVERVIEW
A Status bar.B Speedometer.C Right information group.D Fuel gauge.E Engine coolant temperature gauge.F Left information group. |
TACHOMETER
Indicates the engine speed.
SPEEDOMETER
Indicates the vehicle speed.
WHAT IS THE FUEL GAUGE
Indicates approximately how much fuel is in the fuel tank.
FUEL GAUGE LIMITATIONS
The fuel gauge may not provide an accurate reading when your vehicle is on an incline.
LOCATING THE FUEL FILLER DOOR
The arrow adjacent to the fuel pump symbol indicates on which side of your vehicle the fuel filler door is located.
WHAT IS THE LOW FUEL REMINDER
A low fuel level reminder displays and sounds when the distance to empty reaches 75 mi (120 km) to empty for MyKey, and at 50 mi (80 km), 25 mi (40 km), 12 mi (20 km) and 0 mi (0 km) for all vehicle keys.
Note: The low fuel reminder can appear at different fuel gauge positions depending on fuel economy conditions. This variation is normal.
WHAT IS DISTANCE TO EMPTY
Indicates the approximate distance your vehicle can travel on the fuel remaining in the tank. Changes in driving pattern can cause the value to not only decrease but also increase or stay constant for periods of time.
ENGINE COOLANT TEMPERATURE GAUGE
Indicates the engine coolant temperature.
ENGINE OIL PRESSURE GAUGE
Indicates the engine oil pressure.
Note: This is a configurable gauge.
TRANSMISSION FLUID TEMPERATURE GAUGE
Indicates the transmission fluid temperature.
Special operating conditions can cause higher than normal operating temperatures. See Special Operating Conditions Scheduled Maintenance.
Note: This is a configurable gauge.
WHAT ARE THE INSTRUMENT CLUSTER WARNING LAMPS
Warning lamps alert you to a vehicle condition that could become serious. Some lamps illuminate when you start your vehicle to make sure they work.If any lamps remain on after starting your vehicle, refer to the respective system warning lamp for further information.
INSTRUMENT CLUSTER WARNING LAMPS
ANTI-LOCK BRAKE SYSTEM
 If it illuminates when you are driving, this indicates that the system requires service. Your vehicle continues to have normal braking without the anti-lock brake system function. Have your vehicle checked as soon as possible. |
BATTERY
 It illuminates when you switch the ignition on.
If it illuminates when the engine is running, this indicates your vehicle requires service. Have your vehicle checked as soon as possible. |
BRAKE SYSTEM
Note: Indicators may vary depending on region.
DOOR AJAR
 It illuminates when you switch the ignition on and remains on if any door is open. |
ELECTRIC PARKING BRAKE
 It illuminates or flashes when the electric parking brake requires service. |
ENGINE COOLANT TEMPERATURE
 If it illuminates, safely stop your vehicle and switch your vehicle off. |
FASTEN SEATBELT
 It illuminates and a tone sounds until you fasten the seatbelts. |
HOOD AJAR
 It illuminates when the ignition is on and the hood is not completely closed. |
LIFTGATE AJAR
 It illuminates when the ignition is on and the liftgate is not completely closed. |
LOW BEAM WARNING
 It illuminates when the low beam headlamp requires service. Have the system checked as soon as possible. |
LOW FUEL LEVEL
 It illuminates when the fuel level is low. |
LOW TIRE PRESSURE
 It illuminates when your tire pressure is low. If illuminated, check your tire pressure as soon as possible. If it begins to flash at anytime, have the system checked as soon as possible. |
LOW WASHER FLUID LEVEL
 It illuminates when the washer fluid is low. |
MALFUNCTION INDICATOR LAMP
 It illuminates when the ignition is on and the engine is off, this is normal operation. If it illuminates when the engine is on this indicates that the emission control system requires service. If it flashes, have your vehicle checked immediately. See Starting and Stopping the Engine – Warning Lamps. See Emission Law - United States of America. |
OIL PRESSURE
 It illuminates when the engine oil pressure is low. |
POWERTRAIN FAULT
 It illuminates when the powertrain requires service. Have your vehicle checked as soon as possible. |
WHAT ARE THE INSTRUMENT CLUSTER INDICATORS
Indicators notify you of various features that are active on your vehicle.
INSTRUMENT CLUSTER INDICATORS
ADAPTIVE CRUISE CONTROL
 See Adaptive Cruise Control. |
AIRBAG
 See Airbags. |
AUTO HOLD
  See Auto Hold. |
AUTOMATIC HIGH BEAM
 See Exterior Lighting. |
AUTO START-STOP
  See Auto-Start-Stop. |
BLIND SPOT INFORMATION SYSTEM
 See Blind Spot Information System. |
BLUECRUISE
 See Lincoln BlueCruise. |
CRUISE CONTROL
 See Adaptive Cruise Control. |
FRONT FOG LAMP
 See Exterior Lighting. |
HEADLAMP HIGH BEAM
 See Exterior Lighting. |
HILL DESCENT CONTROL
 See Hill Descent Control. |
HILL START ASSIST
 See Hill Start Assist. |
LANE CENTERING
| See Adaptive Cruise Control. |
LANE KEEPING SYSTEM
 See Lane Keeping System. |
PARKING LAMPS
 See Exterior Lighting. |
PRE-COLLISION ASSIST
 See Pre-Collision Assist. |
REAR FOG LAMP
 See Exterior Lighting. |
STABILITY AND TRACTION CONTROL
  See Stability Control. See Traction Control. |
TURN SIGNAL
 See Exterior Lighting. |
