Exterior lighting

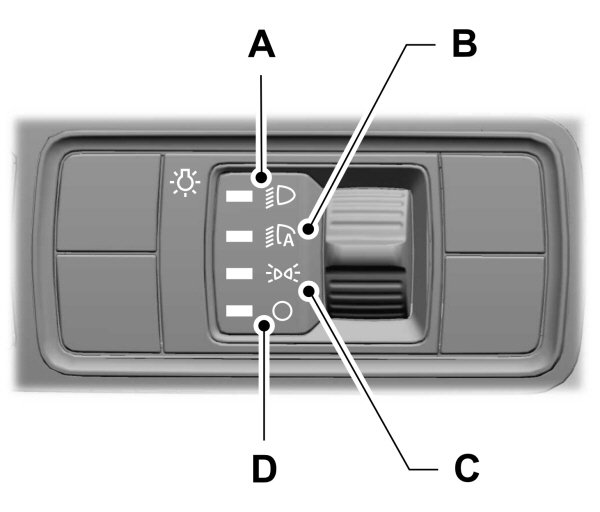

A Headlamps on.B Autolamps on.C Parking lamps on.D Lamps off. |
Press the toggle switch upward or downward to make a selection.
Note: The lighting control defaults to autolamps each time you switch your vehicle on.
Headlamps
USING THE HIGH BEAM HEADLAMPS
Push the lever forward again or pull the lever toward you to switch the high beams off.
Slightly pull the lever toward you and release it to flash the headlamps.
SWITCHING HEADLAMP EXIT DELAY ON AND OFF
To switch headlamp exit delay on, pull the turn signal lever toward you after switching your vehicle off.
To switch headlamp exit delay off, pull the turn signal lever toward you again or switch your vehicle on.
Note: The headlamps turn off after three minutes with any door open or 30 seconds after the last door closes.
ADJUSTING THE LEVEL OF THE HEADLAMPS
Your vehicle has a dynamic leveling system. The headlamps do not require additional aim adjustment.
HEADLAMP INDICATORS
LAMPS ON
 Illuminates when you switch the low beam headlamps or the parking lamps on. |
HEADLAMP HIGH BEAM
| Illuminates when you switch the high beam headlamps on. |
Headlamps - troubleshooting
HEADLAMPS – FREQUENTLY ASKED QUESTIONS
WHY IS THERE CONDENSATION IN THE HEADLAMPS?
- Headlamps have vents to accommodate normal changes in air pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a fine mist can form on the interior of the lens. The fine mist eventually clears and exits through the vents during normal operation.
HOW MUCH CONDENSATION IS ACCEPTABLE?
- The presence of a fine mist, for example no streaks, drip marks or large droplets. A fine mist covers less than 50% of the lens.
HOW LONG DOES IT TAKE FOR THE ACCEPTABLE CONDENSATION TO CLEAR?
- Clearing time can take as long as 48 hours under dry weather conditions.
HOW MUCH CONDENSATION IS UNACCEPTABLE?
- A water puddle inside the lamp. Streaks, drip marks or large droplets present on the interior of the lens.
WHAT SHOULD I DO IF UNACCEPTABLE CONDENSATION IS PRESENT?
- Have your vehicle checked as soon as possible.
WHY DO MY HEADLAMPS TURN OFF WHEN I HAVE THEM SWITCHED ON WHEN I SWITCH MY VEHICLE OFF?
- The battery saver turns the headlamps off after a short period of time after you switch your vehicle off.
Autolamps
WHAT ARE AUTOLAMPS
 WARNING: The system does not relieve you of your responsibility to drive with due care and attention. You may need to override the system if it does not turn the headlamps on in low visibility conditions, for example daytime fog. |
Autolamps turn the headlamps on in low light situations or when the windshield wipers operate.
AUTOLAMP SETTINGS
- Press Settings on the touchscreen.
- Press Vehicle Settings.
- Press Lighting.
- Press Autolamp Delay.
- Press a setting.
Exterior lamps
USING THE TURN SIGNAL LAMPS
Set the lever to the middle position to switch the turn signal lamps off.
Note: Tap the lever up or down to make the turn signal lamps flash three times.
TURN SIGNAL LAMP INDICATOR
Note: An increase in the rate of flashing warns of a failed turn signal lamp.
SWITCHING THE DAYTIME RUNNING LAMPS ON AND OFF - VEHICLES WITH: CONFIGURABLE DAYTIME RUNNING LAMPS
| WARNING: The daytime running lamps system does not activate the rear lamps and may not provide adequate lighting during low visibility driving conditions. Make sure you switch the headlamps on, as appropriate, during all low visibility conditions. Failure to do so may result in a crash. |
- Press Settings on the touchscreen.
- Press Vehicle Settings.
- Press Lighting.
- Switch Daytime Running Lights on or off.
The daytime running lamps turn on when all of the following occur:
- You switch the system on.
- You switch your vehicle on.
- The transmission is not in park (P) for vehicles with automatic transmissions or you release the parking brake for vehicles with manual transmissions.
- The lighting control is in the autolamps position.
- The headlamps are off.
Note: Other lighting control positions do not turn on the daytime running lamps.
SWITCHING THE DAYTIME RUNNING LAMPS ON AND OFF - VEHICLES WITH: DAYTIME RUNNING LAMPS (DRL)
| WARNING: The daytime running lamps system does not activate the rear lamps and may not provide adequate lighting during low visibility driving conditions. Make sure you switch the headlamps on, as appropriate, during all low visibility conditions. Failure to do so may result in a crash. |
Daytime running lamps are always on unless you switch on the headlamps or your vehicle is in park (P).
USING THE FRONT FOG LAMPS
To switch the lamps on or off:
- Set the lighting control to the parking lamps, headlamps or autolamps position.
Note: When the lighting control is in the autolamps position, you cannot switch the fog lamps on unless the low beam headlamps are on.
Press the button on the lighting control to switch the front fog lamps on or off.
Note: Only switch the front fog lamps on during reduced visibility.
Note: The brightness of the daytime running lamps may decrease when the front fog lamps are switched on.
FRONT FOG LAMPS INDICATOR
| It illuminates when you switch the front fog lamps on. |
SWITCHING WELCOME LIGHTING ON AND OFF
Welcome lighting turns on the exterior lamps when you approach your vehicle with an authenticated device or unlock the doors.
- Press Settings on the touchscreen.
- Press Vehicle Settings.
- Press Lighting.
- Switch Welcome Lighting on or off.
EXTERIOR LAMP INDICATORS
FRONT FOG LAMP
| It illuminates when you switch the front fog lamps on. |
TURN SIGNAL LAMP
Note: An increase in the rate of flashing warns of a failed turn signal lamp.
EXTERIOR LAMPS ON AUDIBLE WARNING
Sounds when you open the driver door and the exterior lamps are on.
Automatic high beam control
HOW DOES AUTOMATIC HIGH BEAM CONTROL WORK
Automatic high beam control turns the high beams on if it is dark enough and no other traffic is present. If it detects an approaching vehicle’s headlamps or tail lamps, or street lighting ahead, the system turns the high beams off.
A camera sensor, centrally mounted behind the windshield of your vehicle, continuously monitors conditions to turn the high beams on and off.
| AWithout automatic high beam control. B With automatic high beam control. |
AUTOMATIC HIGH BEAM CONTROL PRECAUTIONS
| WARNING: The system does not relieve you of your responsibility to drive with due care and attention. You may need to override the system if it does not turn the high beams on or off. WARNING: The system may not switch the high beams off if the lights of oncoming vehicles are hidden by obstacles, for example guard rails. WARNING: Do not use the system in poor visibility, for example fog, heavy rain, spray or snow. WARNING: You may need to override the system when approaching other road users. WARNING: You may need to override the system during inclement weather. |
AUTOMATIC HIGH BEAM CONTROL REQUIREMENTS
The system turns the high beams on if all of the following occur:
- You switch the system on.
- You set the lighting control to the autolamps position.
- The ambient light level is low enough that you require high beams.
- There is no traffic in front of your vehicle.
- The vehicle speed is greater than approximately 32 mph (52 km/h).
AUTOMATIC HIGH BEAM CONTROL LIMITATIONS
The system turns the high beams off if any of the following occur:
- You switch the system off.
- You set the lighting control to any position except autolamps.
- The ambient light level is high enough that you do not require high beams.
- The system detects an approaching vehicle's headlamps or a leading vehicle's tail lamps.
- The system detects severe rain, snow or fog.
- The system detects street lighting.
- The camera has reduced visibility.
- The vehicle speed falls below approximately 19 mph (30 km/h).
SWITCHING AUTOMATIC HIGH BEAM CONTROL ON AND OFF
- Press Settings on the touchscreen.
- Press Vehicle Settings.
- Press Lighting.
- Switch Auto Highbeam on or off.
AUTOMATIC HIGH BEAM CONTROL INDICATORS
 Illuminates to confirm when the system is ready to assist. |
OVERRIDING AUTOMATIC HIGH BEAM CONTROL
Push the lever away from you to switch the high beam on.
Push the lever away from you again to switch the high beams off.
Push the lever away from you for a third time to switch automatic high beam control back on.
AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES
| Message | Details |
|---|---|
|
Front Camera Low Visibility Clean Screen |
The camera has reduced visibility.Clean the windshield.If the message continues to appear, have your vehicle checked as soon as possible. |
|
Front Camera Temporarily Not Available |
The camera has malfunctioned.Wait a short period of time for the camera to cool down.If the message continues to appear, have your vehicle checked as soon as possible. |
|
Front Camera Malfunction Service Required |
The camera has malfunctioned.Have your vehicle checked as soon as possible. |
Glare free lighting (if equipped)
Glare free lighting enhances visibility and minimizes glare for other road users.
| AWithout glare free lighting. B With glare free lighting. |
GLARE FREE LIGHTING PRECAUTIONS
| WARNING: The system does not relieve you of your responsibility to drive with due care and attention. You may need to override the system if it does not adapt the light. WARNING: The system may not adapt the lighting to avoid glare if the lights of oncoming vehicles are hidden by obstacles such as guard rails. WARNING: You may need to override the system when approaching other road users. WARNING: You may need to override the system during inclement weather. WARNING: Do not use the system in poor visibility, for example fog, heavy rain, spray or snow. |
GLARE FREE LIGHTING REQUIREMENTS
The system turns on if all of the following occur:
- You switch the system on.
- You set the lighting control to the autolamps position.
- The ambient light level is low enough.
- Your vehicle speed is greater than approximately 32 mph (52 km/h).
The system adapts the lighting to avoid glare if all of the following occur:
- You switch the system on.
- You set the lighting control to the autolamps position.
- The system detects an approaching vehicle's headlamps or rear lamps.
GLARE FREE LIGHTING LIMITATIONS
The system turns off if any of the following occur:
- You switch the system off.
- You set the lighting control to any position except autolamps.
- The ambient light level is high enough.
- The system detects severe rain, snow or fog.
- The system detects street lighting.
- The camera has reduced visibility.
- The vehicle speed falls below approximately 19 mph (30 km/h).
Note: The deactivation speed is lower on curves.
SWITCHING GLARE FREE LIGHTING ON AND OFF
- Press Settings on the touchscreen.
- Press Vehicle Settings.
- Press Lighting.
- Switch Glarefree Lighting on or off.
GLARE FREE LIGHTING INDICATORS
| Illuminates to confirm when the system is ready to assist. |
OVERRIDING GLARE FREE LIGHTING
Push the lever away from you to switch the high beams on.
Push the lever away from you again to switch the high beams off.
Push the lever away from you for a third time to switch glare free lighting back on.
Glare free lighting - troubleshooting
| Message | Description |
|---|---|
|
Front Camera Low Visibility Clean Screen |
The camera has reduced visibility.Clean the windshield.If the message continues to appear, have your vehicle checked as soon as possible. |
|
Front Camera Temporarily Not Available |
The camera has malfunctioned.Wait a short period of time for the camera to cool down.If the message continues to appear, have your vehicle checked as soon as possible. |
|
Front Camera Malfunction Service Required |
The camera has malfunctioned.Have your vehicle checked as soon as possible. |
Adaptive front lighting
DYNAMIC BENDING LAMPS
Adaptive front lighting moves the light into the curve when you are steering around a curve or if the camera detects lane markings indicating a curve.
| AWithout adaptive front lighting. B With adaptive front lighting. |
SITUATIONAL SUPPLEMENTAL LIGHTING
Adaptive front lighting provides supplemental light on the road depending on your vehicle speed, steering wheel input, and camera detection of stop or yield traffic signs.
| AStandard low beam. B Supplemental lighting. |
SWITCHING ADAPTIVE FRONT LIGHTING ON AND OFF
Set the lighting control to the autolamps position to use adaptive front lighting.
Note: Other lighting control positions do not turn on adaptive front lighting.
