Refueling
Follow the following when refueling
General information
Follow the fuel recommendation prior to refueling.
When refueling, hook the filler nozzle completely into the filler pipe. Lifting up the filler nozzle during refueling causes:
Premature switching off.
Reduced return of the fuel vapors.
The fuel tank is full when the filler nozzle clicks off the first time.
Make sure that the fuel cap is closed properly after refueling, otherwise the emissions warning light may light up.
Follow safety regulations posted at the filling station.
Additional information:
Fuel quality.
Safety information
Refuel promptly
Do not overfill the fuel tank
Fuel cap
Opening
To open the fuel filler flap, press on the rear edge, arrow. The fuel filler flap opens.

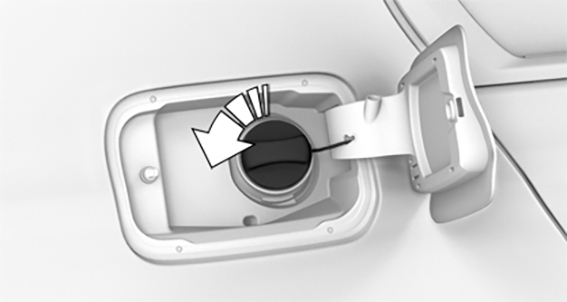

Turn the fuel cap counterclockwise.

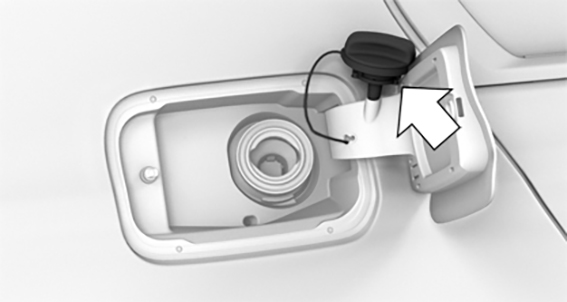

Place the fuel cap in the bracket attached to the fuel filler flap.
1
To open the fuel filler flap, press on the rear edge, arrow. The fuel filler flap opens.
2
Turn the fuel cap counterclockwise.
3
Place the fuel cap in the bracket attached to the fuel filler flap.
Closing
Do not crush the retaining strap
Fit the fuel cap and turn it clockwise until you clearly hear a click.
Press on the fuel filler flap until it engages.
Emergency unlocking
It may be necessary in certain situations to unlock the fuel filler flap manually, for instance with an electrical malfunction.
Have the fuel filler flap unlocked by an authorized service center or another qualified service center or repair shop.
