Interior equipment
Integrated universal remote control
Principle
The integrated Universal Remote Control in the interior mirror can operate up to 3 functions of remote-controlled systems such as garage door drives, barriers, or lighting systems.
General information
The Integrated Universal Remote Control replaces up to 3 different hand-held transmitters. To operate the remote control, the buttons on the interior mirror must be programmed with the desired functions. The hand-held transmitter for the particular system is required in order to program the remote control.
Before selling the vehicle, delete the stored functions for the sake of security.
If possible, do not install the antenna of the remote-controlled system, e.g. the garage door drive, near metal objects to ensure the best possible operation.
Safety information
Keep the travel paths of remote-controlled systems unobstructed
Compatibility
If this icon is printed on the packaging or in the operating instructions of the system to be controlled, the system is generally compatible with the integrated Universal Remote Control.
Additional questions are answered by:
An authorized service center or another qualified service center or repair shop.
www.homelink.com on the Internet.
HomeLink is a registered trademark of Gentex Corporation.

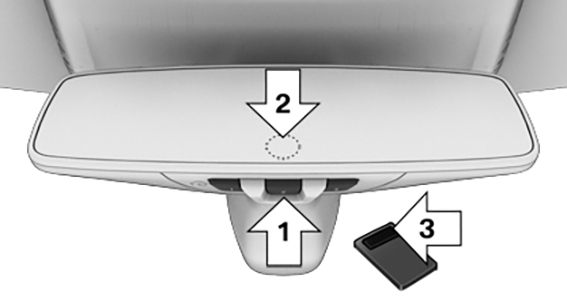

Control elements on the interior mirror
Buttons, arrow 1.
LED, arrow 2.
The hand-held transmitter, arrow 3, is required for programming.
Programming
General information
The battery of the hand-held transmitter must be fully charged at the time of programming to ensure an optimal range of the integrated universal remote control.
Turn on standby state.
Initial commissioning:
Press and hold the two outer buttons on the interior mirror simultaneously for approximately 10 seconds until the LED flashes green rapidly. This erases all programming of the buttons on the interior mirror.
Press the interior mirror button to be programmed. The LED on the interior mirror will slowly begin flashing orange.
Hold the hand-held transmitter for the system to be used approx. 1 to 12 in/2.5 to 30 cm away from the buttons on the interior mirror. The required distance depends on the hand-held transmitter.
Press and hold the button of the desired function on the hand-held transmitter.
The LED lights up green: programming completed.
Release the button.
The LED flashes fast: programming is not complete.
Press the button on the interior mirror for 2 seconds and release. Perform this procedure three times to complete the programming procedure.
If the integrated universal remote control remains nonoperational, continue with the special features for change code wireless systems.
LED does not flash green after 60 seconds: programming not completed.
Repeat steps 3 to 6.
To program other functions on other buttons, repeat steps 3 to 5.
Special feature of the rolling code wireless system
If you are unable to operate the remote-controlled system after repeated programming, please check if the system to be controlled features a rolling code radio system.
Refer to the operating instructions for the system.
For systems with a rolling code radio system, the integrated universal remote control and the system also have to be synchronized.
Please read the operating instructions to find out how to synchronize the system.
Synchronizing is easier with the aid of a second person.
Synchronizing the universal remote control with the system:
Park the vehicle within range of the remote-controlled system.
Program the relevant button on the interior mirror as described.
Locate and press the synchronizing button on the system being programmed, e.g. at the garage gate. You have approx. 30 seconds for the next step.
Hold down the programmed button on the interior mirror for approximately 3 seconds and then release it. If necessary, repeat this step up to three times in order to end synchronization. Once synchronization is complete, the programmed function will be carried out.
Reprogramming individual buttons
Turn on standby state.
Press and hold the interior mirror button to be programmed.
As soon as the LED on the interior mirror flashes orange after approx. 20 seconds, release the button.
Hold the hand-held transmitter for the system to be used approx. 1 to 12 in/2.5 to 30 cm away from the buttons on the interior mirror. The required distance depends on the hand-held transmitter.
Press and hold the button of the desired function on the hand-held transmitter.
The LED can light up in different ways.
The LED lights up green: the programming procedure is completed.
Release the button.
The LED flashes fast: the hand-held transmitter was detected but programming is not complete.
Press the button on the interior mirror for 2 seconds and release. Perform this procedure three times to complete the programming procedure.
If the integrated universal remote control remains nonoperational, continue with the special features for change code wireless systems.
LED does not flash green after 60 seconds: programming not completed.
Repeat steps 3 to 6.
If the programming procedure is not completed, the previous programming will remain unchanged.
Operation
Keep the travel paths of remote-controlled systems unobstructed
The system, such as the garage door, can be operated using the button on the interior mirror while the drive-ready or standby state is switched on. To do this, hold down the button within receiving range of the system until the function is activated. The interior mirror LED stays lit while the wireless signal is being transmitted.
Deleting stored functions
All stored functions will be deleted. The functions cannot be deleted individually.
Press and hold the two outer buttons on the interior mirror simultaneously for approximately 10 seconds until the LED on the interior mirror flashes green fast.
Sun visor
Glare shield
Fold the sun visor down or up.
Glare shield from the side
Folding out
Fold the sun visor down.
Detach it from the holder and swing it toward the side window.
Folding in
Proceed in the reverse order to close the sun visor.
Vanity mirror
A vanity mirror is located in the sun visor behind a cover. When the cover is opened, the mirror lighting switches on.
Sockets
Principle
The socket can be used for electronic devices when the standby or drive-ready state is switched on.
General information
The total load of all sockets must not exceed 140 watts at 12 volts.
Do not damage the socket by using unsuitable connectors.
Safety information
Keep the airbag unfolding area clear
Do not connect battery chargers to the sockets in the vehicle
Insert the cover after use again
Front center console
Push the cover forward until it engages.

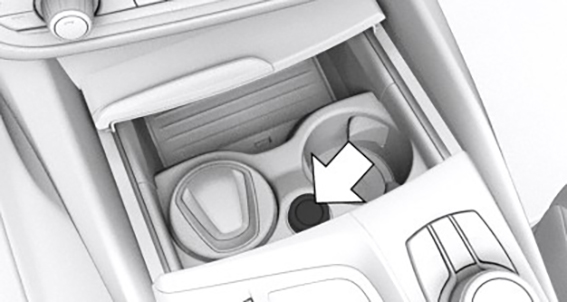

A socket is located between the cup holders.
Detach the cover.
Rear center console

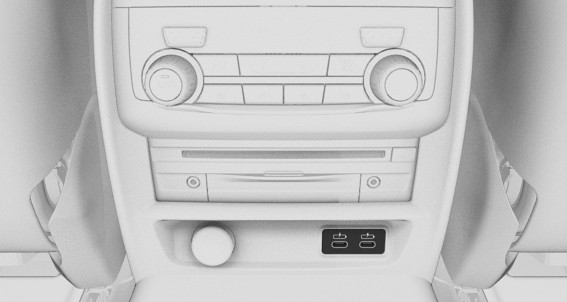

A socket is located in the center console.
Detach the cover.

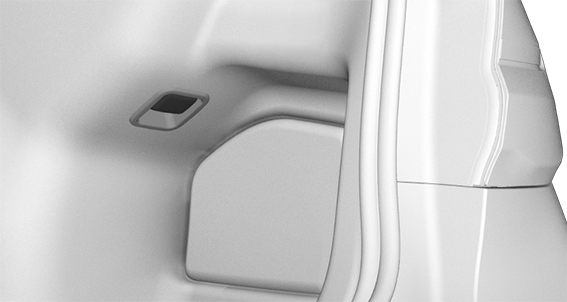

In the cargo area
A socket is located on the right side in the cargo area. Unfold the cover.
USB port
General information
Follow the information regarding the connection of mobile devices to the USB port in the section on USB connections.
Additional information:
USB connections.
In the center armrest
A USB port is located in the center armrest.
Properties:
USB port Type C.
For charging mobile devices.
Charge current: max. 3 A.
In the center console
Keep the movement area of the cover unobstructed
Push the cover forward until it engages.

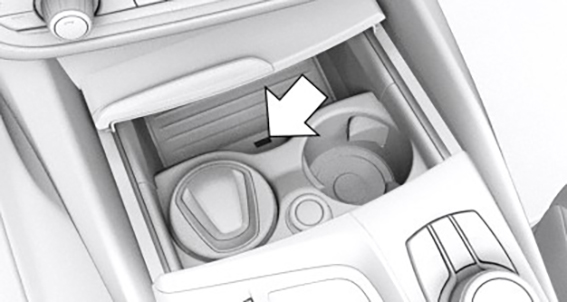

A USB port is located in the center console.
Properties:
USB port Type A.
For charging mobile devices and for data transfer.
Charge current: max. 1.5 A.
In the rear center console

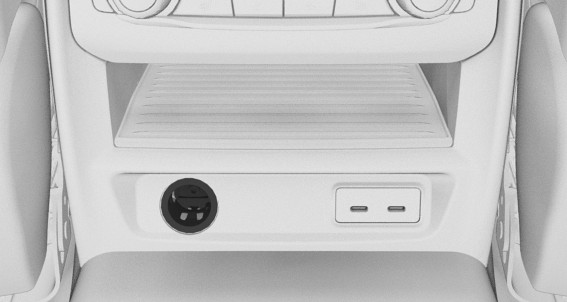

Two USB ports are located in the center console in the rear passenger compartment.
Properties:
USB port Type C.
For charging mobile devices.
Charge current: maximum 3 A per port.
Wireless charging tray
Principle
The wireless charging tray allows wireless charging of mobile phones and other mobile devices certified according to the Qi standard.
General information
When inserting the device to be charged, ensure that there are no objects between the device to be charged and the wireless charging tray.
The charging process is shown by the charge indicator on the control display.
NOTE
This device has been tested for human exposure limits and found compliant at a minimum distance of 2 in/5 cm during operation.
Therefore, a distance of 4 in/10 cm must be maintained in every direction when operating the device.

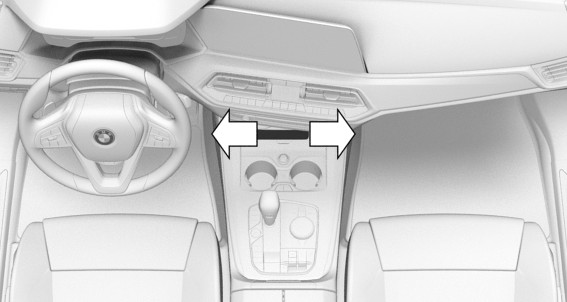

Mounting position of the product.
Safety information
Observe when charging a device with Qi standard

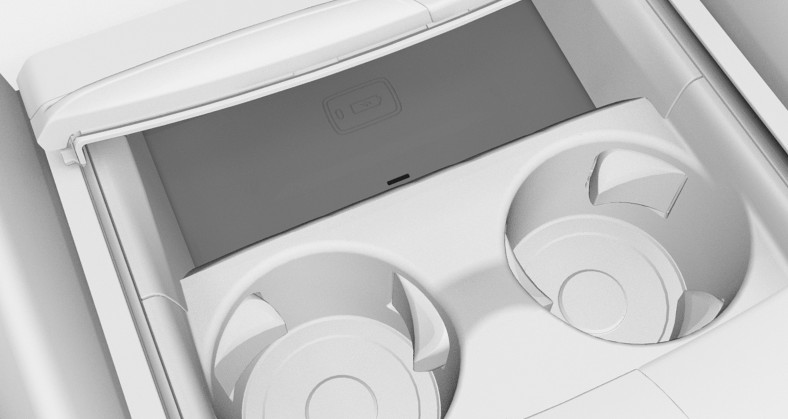

Overview
1
2
1
LED
2
Storage area
Functional requirements
The device to be charged must be certified according to the Qi standard. For more information, contact an authorized service center or another qualified service center or repair shop, or visit www.bmw.com/bluetooth.
Standby state is switched on.
The mobile phone must not exceed the maximum size of approximately 6.0 x 3.1 x 0.7 in/154.5 x 80 x 18 mm.
Protective sleeves and covers must be suitable for wireless charging.
The mobile phone to be charged is located in the center of the tray. The mobile phone display is pointing upwards.
Inserting the mobile phone
Open the tray cover.
Place the mobile phone centered in the tray with the display facing up.
Close the tray cover.
LED displays
|
Color |
Meaning |
|---|---|
|
Blue |
The mobile phone is charging. The blue LED stays illuminated once the inserted mobile phone with Qi capability is fully charged. |
|
Orange |
The mobile phone is not charging. Temperature of the mobile phone may be too high or foreign object may be in charging tray. |
|
Red |
The mobile phone is not charging. Contact an authorized service center or another qualified service center or repair shop. |
Forgotten warning
General information
A warning can be given if a Qi-certified mobile phone was forgotten in the wireless charging tray when leaving the vehicle.
The forgotten warning is displayed in the instrument cluster.
Enable/Disable Forgotten Warning
"CAR"
"Settings"
"General settings"
"Wireless charging tray"
"Activate reminder"
System limits
The charge current may be reduced or charging may be temporarily interrupted in the wireless charging tray in the following situations:
Due to excessive temperatures on the surface of the tray and mobile phone.
If there are objects between the mobile phone and the wireless charging tray.
Due to protective sleeves and covers that exceed a thickness of 0.07 in/2 mm.
Due to protective sleeves and covers made of unsuitable material, e.g., with magnetic parts.
Due to add-on parts for mobile phone, e.g., holders.
By settings on the mobile phone, for instance for charging. Follow the relevant instructions on the control display and in the instructions for the mobile phone, if applicable.
LTE-Compensator - Information and User Manual
Your car is equipped with a wireless charging tray (WCA) to charge your mobile phone and connect it to the mobile network. To ensure the best possible connection a signal booster (LTE-Compensator) is used in conjunction with the WCA. The following paragraphs refer to this booster:
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of Compensators. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. Warning E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please observe additionally the following information
Sprint Nextel will allow consumers to register their signal boosters by calling their toll-free number.
T-Mobile online registration link: (www.T-Mobile.com/BoosterRegistration); (https://saqat.t-mobile.com/sites/SignalBooster#).
Verizon’s online registration link: (http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html).
AT&T online registration link (https://securec45.securewebsession.com/attsignalbooster.com/).
U.S.Cellular online registration link (http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp).
Before use you must register your booster device with your wireless provider.
If you should be requested by the FCC to cease operating your booster you are not allowed to insert your mobile phone in the charging tray anymore unless the booster is permanently deactivated by your local BMW dealer.
You must not remove the booster from the car nor use it with any other than the preinstalled coupling device or antenna. Any modification of the existing antenna or coupling device as well as the use of other antennas or coupling devices will cause the cease of the booster´s operating license.
The booster device fulfills the network protection standards as required by the FCC, such as intermodulation limits, oscillation detection and gain limits.
Booster Manufacturer: Kathrein Automotive
Model Number: LTECOMPB0
Part Number: 6803145-01
FCC-ID: 2ACC7LTECOMPB0
