Displays
Instrument cluster
Principle

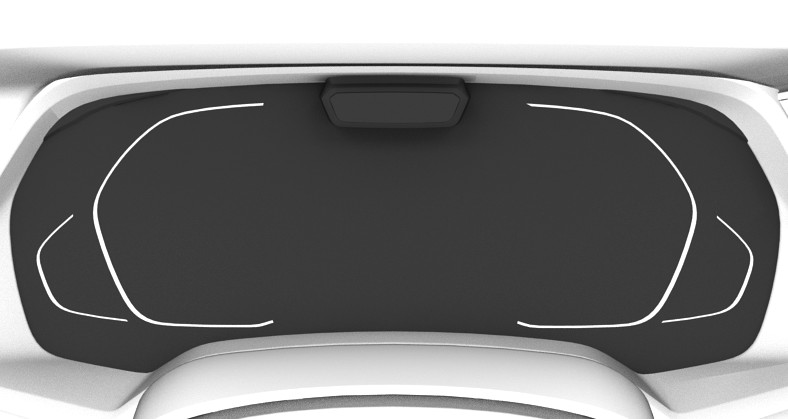

The instrument cluster consists of various digital displays, e.g., a speedometer, time, range, temperatures as well as indicator and warning lights.
General information
Some of the displays in the instrument cluster may differ from the illustrations in the Owner's Manual.
Safety information
Failure of the displays on instrument cluster
Overview
8
9
10
11
12
13
14
15
16
1
Speed Limit Info
2
Speed Limit Assistant
3
Time
4
Range
5

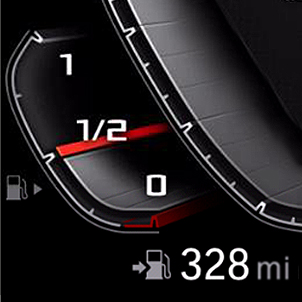

Fuel gauge
6

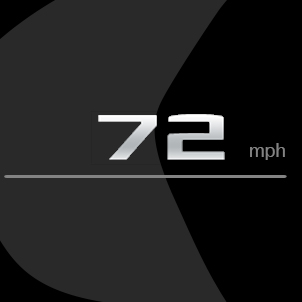

Speedometer
7
Navigation display
8
Central display range
9
Driver Attention Camera
10
Selection lists
11
Tachometer
12
Gear display with Drivelogic
13
Widgets
14

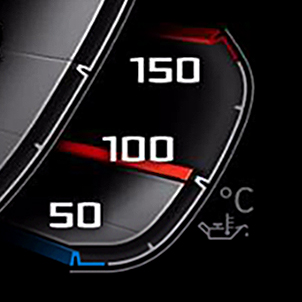

Engine oil temperature
15
Outside temperature
16
Check Control
Central display range
Depending on the equipment and configuration, the following is displayed in the central display range of the instrument cluster:
Navigation displays such as the map view or, if destination guidance is active, a route preview with route guidance information.
Displays showing service notifications.
Assisted Driving View. Information about the assist systems is displayed in an animated surrounding area of the vehicle.
Some displays in the central display range can be configured individually.
The displays may vary depending on the equipment and national-market version.
View on the instrument cluster
Principle
The display in the instrument cluster changes depending on the program that was selected via the M MODE button.
General information
The following views are available:
"ROAD": All driver assistance systems and Intelligent Safety displays are active on the instrument cluster for comfort-oriented driving.
"SPORT": Driver assistance systems and Intelligent Safety displays are reduced to a minimum. The digital speed, gear display with Drivelogic and the tachometer are displayed centered in the instrument cluster and support a sporty driving style. Additional displays, e.g., information about tires and engine, can be configured for the outer area of the instrument cluster.
"TRACK": All comfort-oriented driver assistance systems and Intelligent Safety displays are deactivated for driving on a racetrack. Additional displays, e.g., information about tires and engine, can be configured for the outer area of the instrument cluster.
Configuring M MODE
Depending on the selected View mode, various settings can be selected.
"CAR"
"M menu"
"Instrument panel"
"Configure view"
Select the desired setting.
Configuring additional displays
Depending on the view, additional displays can be configured for the outer left area of the instrument cluster.
"CAR"
"M menu"
"Instrument panel"
"Configure view"
"Widget selection, left"
Select the desired setting.
Display
1
2
3
4
5
1
Additional displays
2

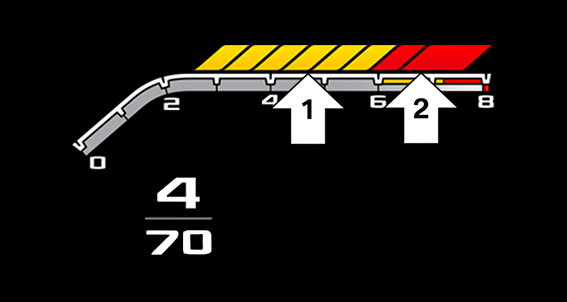

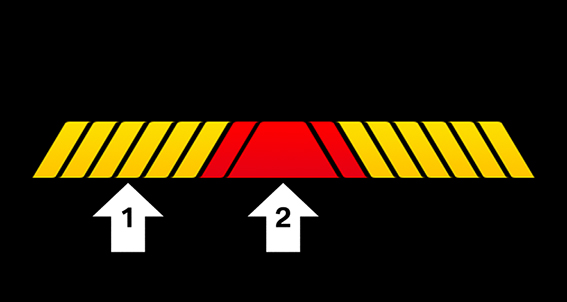

Tachometer
3
Gear display with Drivelogic
4
Tachometer
5
Widgets
Settings
Specific displays can be configured individually.
"CAR"
"Settings"
"Displays"
"Instrument panel"
Select the desired setting.

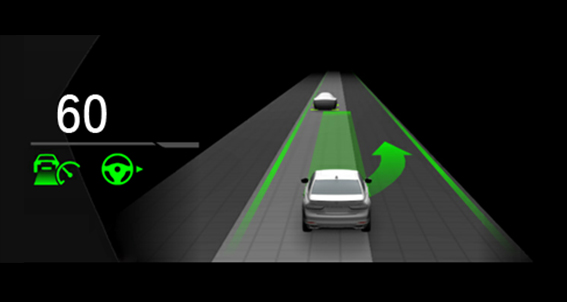

Assisted Driving View
Principle
Depending on vehicle equipment, information on driver assistance systems is displayed using an animation of the vehicle when driver assistance is enabled.
General information
Assisted Driving View is available in the standard ROAD view.
Depending on the settings, Assisted Driving View can be displayed permanently or temporarily with active Driver Assistance in the instrument cluster.
Safety information
Observe surrounding traffic and adapt driving style
Settings
Permanent display
"CAR"
"M menu"
"Instrument panel"
"Configure view"
"Central display area"
"Assisted Driving View"
Temporary display
"CAR"
"M menu"
"Instrument panel"
"Configure view"
"Display Assisted Driving View when Driver Assistance is active"
Display
An example: the indicator and warning lights for the Active Cruise Control with Stop&Go function and the Automatic Lane Change Assistant indicate a lane change to the next lane. At the same time, the lane change to the next lane is shown with animation in the Assisted Driving View.
System limits
The system's detection capability is limited. The system may indicate something wrong.
Only objects that are detected by the system are taken into account.
Additional information:
Cameras.
Radar sensors.
Widgets
Principle
Displays for specific functions can be displayed in the instrument cluster.
The following displays can be selected:

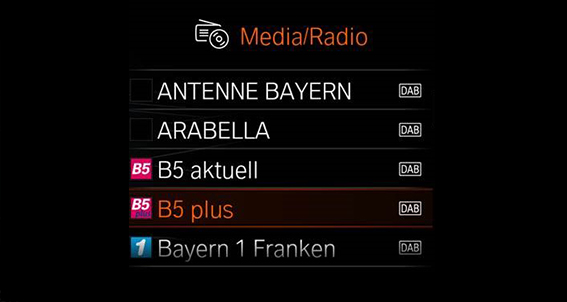

Current entertainment source, e.g., radio.
Torque and power.
G-meter.
Trip data.
Consumption display.
Tire data.
M SETUP display.
Engine data.
Selecting

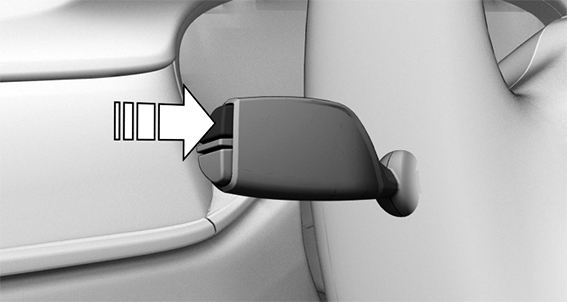

Continue to press the button on the turn signal lever until the desired widget is selected.
Display
G-meter
The G-meter indicates the forces that are applied in longitudinal and transverse direction on the vehicle occupants while driving.
Consumption display
Principle
Information about consumption can be displayed in the form of a consumption display as a widget in the instrument cluster, for example.
Average consumption
The average consumption indicates the fuel consumption when driving a specific route.
Current consumption
The current fuel consumption display allows you to check the current fuel consumption, e.g., to drive economically and in an environmentally-friendly manner.
Energy recovery
During energy recovery, the kinetic energy of the vehicle is converted into electric energy in coasting/overrun mode. The vehicle battery is partially charged and fuel consumption can be reduced.
Tire data
Information about wheels and tires can be displayed in the instrument cluster as widget.
M SETUP display
Some of the systems are displayed with their current settings, e.g., steering.
Engine data
Coolant temperature and boost pressure of the exhaust turbocharger can be displayed in the instrument cluster as widget.
Check Control
Principle
The Check Control system monitors functions in the vehicle and notifies you of faults in the monitored systems.
General information
A Check Control message is displayed as a combination of indicator or warning lights and text messages in the instrument cluster and, if applicable, in the Head-up display.
In addition, an acoustic signal may sound and a text message may appear on the Control Display.
Hiding Check Control messages
Press the button on the turn signal lever.
Continuous display
Some Check Control messages are displayed continuously and are not cleared until the fault is eliminated. If several faults occur at once, the messages are displayed consecutively.
The messages can be hidden for approx. 8 seconds. After this time, they are displayed again automatically.
Temporary display
Some Check Control messages are hidden automatically after approx. 20 seconds. The Check Control messages are stored and can be displayed again later.
Displaying stored Check Control messages
"CAR"
"Vehicle status"
"Check Control messages"
Select the desired text message.
Display
Check Control
At least one Check Control message is displayed or stored.
Text messages
Text messages in combination with an icon in the instrument cluster explain a Check Control message and the meaning of the indicator/warning lights.
Supplementary text messages
Additional information, such as the cause of a fault or the required action, can be called up via Check Control.
With urgent messages the added text will be automatically displayed on the Control Display.
Depending on the Check Control message, further help can be selected.
"CAR"
"Vehicle status"
"Check Control messages"
Select the desired text message.
Select the desired setting.
Messages after trip completion
Certain messages displayed while driving are displayed again after drive-ready state is switched off.
Indicator/warning lights
General information
The meaning of the indicator and warning lights is explained here.
Red lights
Seat belt reminder
Indicator lamp lights up in the following situations:
Seat belt on the driver or passenger side is not buckled.
The seat belt reminder can also be activated if objects are placed on the front passenger seat.
The seat belt is not buckled on the corresponding rear seat.
Make sure that the seat belts are positioned correctly.
Rear seat belt reminder: seat detection
The seat belt is not buckled on the corresponding rear seat.
Airbag system
Airbag system and seat belt tensioner may not be working.
Have vehicle checked immediately by an authorized service center or another qualified service center or repair shop.
Parking brake
The parking brake is set.
Additional information:
For releasing the parking brake.
Brake system
Brake system fault. Continue to drive moderately.
Have vehicle checked immediately by an authorized service center or another qualified service center or repair shop.
If equipped with Equipment Stop Assistant
Emergency Stop Assistant triggered.
Additional information:
Emergency Stop Assistant.
Risk of collision
Indicator light illuminates or flashes in conjunction with an acoustic signal if a collision is imminent.
Additional information:
Intersection warning with City light braking function.
Forward Collision Warning with light braking function
The indicator light is illuminated: prewarning. Brake and increase distance.
Indicator light flashes and an acoustic signal sounds: acute warning. Brake and make an evasive maneuver, if necessary.
Additional information:
Forward Collision Warning with light braking function.
Intersection Collision Warning: vehicle detected from the right
Indicator light illuminates: prewarning for risk of collision with a vehicle crossing from the right.
Indicator light flashes and a signal sounds: acute warning for an immediate risk of collision.
Additional information:
Intersection warning with City light braking function.
Intersection Collision Warning: vehicle detected from the left
Indicator light illuminates: prewarning for risk of collision with a vehicle crossing from the left.
Indicator light flashes and a signal sounds: acute warning for an immediate risk of collision.
Additional information:
Intersection warning with City light braking function.
Pedestrian Warning with City Collision Mitigation
Indicator light flashes and an acoustic signal sounds: imminent collision with a detected person or a cyclist.
Intervene immediately by braking or make an evasive maneuver.
Additional information:
Pedestrian Warning with City Collision Mitigation.
Active Cruise Control with Stop&Go function
Indicator light flashes and an acoustic signal sounds: braking and evading.
Additional information:
Active Cruise Control with Stop&Go function.
Steering Assistant
Depending on the equipment and national-market version: steering wheel icon flashes red or lights up red.
A signal sounds: the system is switched off.
Additional information:
Steering Assistant.
Yellow lights
Steering Assistant
The indicator light lights up and an acoustic signal may sound: a system interruption is imminent.
The indicator warning light flashes: lane boundary driven over.
Additional information:
Steering Assistant.
Antilock Braking System
The braking assistance may be faulty. Avoid abrupt braking. Take the longer braking distance into account.
Have checked immediately by an authorized service center or another qualified service center or repair shop.
Dynamic Stability Control
Indicator light blinks: Dynamic Stability Control controls the drive and brake forces. The vehicle is stabilized. Reduce speed and modify your driving style to the driving circumstances.
Indicator light illuminates: the Dynamic Stability Control has malfunctioned.
Have the system checked immediately by an authorized service center or another qualified service center or repair shop.
Additional information:
Dynamic Stability Control.
Dynamic Stability Control deactivated
The Dynamic Stability Control is deactivated or the M Dynamic Mode is activated.
Additional information:
Dynamic Stability Control.
M Dynamic Mode.
Tire pressure monitor
The indicator light illuminates: the Tire Pressure Monitor reports a low tire pressure or a flat tire. Follow the information in the Check Control message.
The indicator light flashes and is then illuminated continuously: flat tires or tire pressure losses cannot be detected.
Fault caused by systems or devices with the same radio frequency: after leaving the area of the interference, the system automatically becomes active again.
In the case of tires with special approval: the tire pressure monitor was unable to complete the reset. Reset the system again.
Wheel without wheel electronics installed: Have it checked by an authorized service center or another qualified service center or repair shop as needed.
Malfunction: have the system checked by an authorized service center or another qualified service center or repair shop.
Additional information:
Tire pressure monitor.
Steering system
Steering system may be faulty.
Have the system checked by an authorized service center or another qualified service center or repair shop.
Emissions
The warning light lights up:
Emissions are deteriorating. Have the vehicle checked as soon as possible.
The warning light flashes under certain circumstances:
This indicates that there is excessive misfiring in the engine.
Reduce the vehicle speed and have the system checked immediately; otherwise, serious engine misfiring within a brief period can seriously damage emission control components, in particular the catalytic converter.
Additional information:
Socket for OBD on-board diagnostics.
Green lights
Rear seats: seat belt fastened
The seat belt is buckled on the corresponding rear seat.
Rear seats: seat detection
The seat belt is buckled on the corresponding rear seat.
Turn signal
Turn signal is on.
Unusually rapid blinking of the indicator light indicates that a turn signal bulb has failed.
Additional information:
Turn signal.
Parking lights
Parking lights are switched on.
Additional information:
Parking lights/low beams.
Low beams
Low beams are switched on.
Additional information:
Parking lights/low beams.
Lane departure warning
Depending on vehicle equipment and national-market version:
The indicator light lights up: the system is switched on. A lane boundary has been detected on at least one side of the vehicle and the system is ready to intervene. Warnings will be issued.
Icon flashes green: the system is performing a steering intervention.
Additional information:
Lane departure warning.
Automatic High Beam Assistant
Automatic High Beam Assistant is switched on.
High beams are switched on and off automatically depending on the traffic situation.
Additional information:
Automatic High Beam Assistant.
Automatic Hold: vehicle is held automatically
Steptronic transmission: Automatic Hold is activated. The vehicle is automatically held in place when it is stationary.
Additional information:
Driving.
Automatic Hold: vehicle secured against rolling away
Steptronic transmission: The vehicle is prevented from rolling away after the brake is applied.
Additional information:
Driving.
Manual Speed Limiter
The indicator light lights up: the system is switched on.
The indicator light flashes: the set speed limit has been exceeded.
Additional information:
Manual Speed Limiter.
Depending on the equipment: Cruise Control
The system is active.
Additional information:
Driver assistance systems, Cruise Control.
Active Cruise Control with Stop&Go function switched on
The system is turned on.
Additional information:
Active Cruise Control with Stop&Go function.
Active Cruise Control with Stop&Go function: vehicle ahead
The indicator light lights up: the system is switched on. Vehicle ahead has been detected.
Indicator lamp flashes: preceding vehicle has started driving.
Additional information:
Active Cruise Control with Stop&Go function.
Speed Limit Assistant activated
Depending on the equipment, the indicator light is illuminated together with the icon for a speed control system: Speed Limit Assistant is active and detected speed limits can be accepted manually for the displayed system.
Additional information:
Speed Limit Assistant.
Speed Limit Assistant: apply speed limit
The detected speed limit can be applied with the SET button. As soon as the speed limit has been applied, a green checkmark is displayed.
Additional information:
Speed Limit Assistant.
Steering Assistant
The system supports the driver in keeping the vehicle within the lane.
Additional information:
Steering Assistant.
Automatic Lane Change Assistant: lane change in progress
Arrow icon for lane change green: the system carries out a lane change.
Additional information:
Automatic Lane Change Assistant.
Automatic Lane Change Assistant: lane change not possible
Gray line for lane boundary on the appropriate side: system detected a lane change request. Lane change not currently possible.
Additional information:
Automatic Lane Change Assistant.
Automatic Lane Change Assistant: functional requirements not met
Depending on the national-market version:
Arrow icon for lane change gray: lane change not possible; functional requirements not met.
Additional information:
Automatic Lane Change Assistant.
Assisted Driving Plus
The system is active.
Additional information:
Assisted Driving Plus.
Blue lights
High beams
High beams have been switched on.
Additional information:
High beams.
Gray lights
Active Cruise Control with Stop&Go function
Indicator light is illuminated: the system is interrupted.
Indicator light flashes: the conditions are not adequate for the system to work or the system has been deactivated.
Additional information:
Active Cruise Control with Stop&Go function.
Steering Assistant
Indicator light is illuminated: the system is ready.
Additional information:
Steering Assistant.
Assisted Driving Plus
Indicator light is illuminated: the system is interrupted.
Additional information:
Assisted Driving Plus.
White lights
Assisted Driving Plus
Indicator light is illuminated: the system is ready.
Additional information:
Assisted Driving Plus.
M xDrive: rear-wheel drive activated
The M xDrive 2WD program is activated. The driving forces are distributed via the rear axle.
Additional information:
M xDrive.
Fuel gauge
Principle
The current fill level of the fuel tank is displayed.
General information
Vehicle inclination may cause the display to vary.
Additional information:
Refueling.
Display
An arrow next to the fuel pump icon indicates the vehicle side on which the fuel filler flap is located.
The current range is displayed as numerical value.
Tachometer
General information
The engine has a permissible speed range. Excessive speeds are indicated by a yellow prewarning field and a red warning field. The permissible speed increases as the engine oil temperature increases.
Always avoid RPM in the red warning field. In this range, the fuel supply is reduced to protect the engine.
Reduced engine speed range
The available engine speed range may be reduced due certain factors such as a cold drive system. This reduction is represented by shifting the yellow and red advance warning zone in the tachometer. The maximum possible engine speed corresponds to the beginning of the red range.
Standby state and drive-ready state

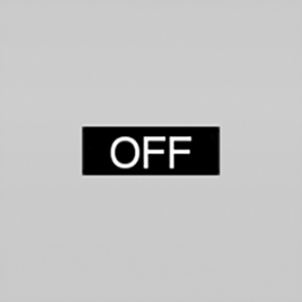

The word OFF in the instrument cluster indicates that drive-ready state is switched off and standby state is switched on.
The word READY in the instrument cluster indicates that the drive readiness is turned on and the Auto Start/Stop function is ready to start the engine automatically.
Additional information:
Operating condition of the vehicle.
Engine oil temperature
Display
Cold engine: the needle is at the low temperature value. Drive at moderate RPM and vehicle speeds.
Normal operating temperature: the needle is in the middle or in the lower half of the temperature display.
Hot engine: the needle is at the high temperature value. In addition, a Check Control message is displayed.
Additional information:
Coolant level.
Outside temperature
General information
If the indicator drops to +37 ℉/+3 ℃ or lower, a signal sounds.
A Check Control message is displayed.
There is an increased risk of ice on roads.
Safety information
Adjust driving style to weather conditions
Digital tachometer
General information
The digital tachometer is permanently displayed in the instrument cluster.
Display
The current speed is displayed in the instrument cluster.
M Steptronic Sport transmission: gear display with Drivelogic
Sequential mode
Gear shift indicator, arrow 1.
Engaged gear, arrow 2.
Selected Drivelogic program, arrow 3.
Drive mode
Engaged gear together with a D, arrow 1.
Selected Drivelogic program, arrow 2.
Range
Principle
The range indicates the distance that can still be covered with the current full tank of fuel.
General information
The estimated range with remaining fuel is permanently displayed on the instrument cluster.
With a low remaining range, a Check Control message is briefly displayed. A low remaining range means that engine functions cannot always be ensured for sporty driving, e.g., when cornering at speed.
The Check Control message appears continuously below a range of approx. 30 miles/50 km.
Safety information
Refuel promptly
Display
The current range is displayed as a numerical value next to the fuel gauge.
Service notifications
Principle
The function displays the service notifications and the corresponding maintenance scopes.
General information
After turning on the drive readiness, the next service appointment or the distance remaining until the next service is displayed briefly in the instrument cluster.
A service advisor can read out the current service notifications from your vehicle key.
Display
Detailed information on service notifications
More information on the type of service required may be displayed on the Control Display.
"CAR"
"Vehicle status"
"Required services"
Maintenance work and legally mandated inspections are displayed.
Select an entry to call up detailed information.
Icons
|
Icons |
Description |
|---|---|
|
|
No service is currently required. |
|
|
The time for recommended maintenance or a legally mandated inspection is approaching. |
|
|
Service interval is exceeded. |
Entering appointment dates
Enter the dates for the mandatory vehicle inspections.
Make sure that the vehicle's date and time are set correctly.
"CAR"
"Vehicle status"
"Required services"
"Vehicle inspection"
"Date:"
Select the desired setting.
Gear shift indicator
Principle
The shift point indicator recommends the gear that best suits the current driving situation. Using the optimal gear supports an efficient driving style.
General information
Depending on vehicle equipment and national-market version, the gear shift indicator is active in sequential mode of the M Steptronic Sport transmission.
M Steptronic Sport transmission: displays
|
Icon |
Description |
|---|---|
|
|
Upshift to efficient gear. |
Selection lists
Principle
Lists can be displayed and, if necessary, used for certain functions in the instrument cluster or the Head-up Display.
Entertainment source.
Current audio source.
List of most recent telephone calls.
If necessary, the corresponding menu will open on the Control Display.
Display
Depending on the equipment version, the list in the instrument cluster may differ from the illustration.
Displaying and using the list
The lists can be displayed and operated using the buttons on the steering wheel.
|
Button |
Function |
|---|---|
|
|
Change the entertainment source. Pressing the button again will close the currently displayed list. |
|
|
Show list of most recent telephone calls. |
|
|
Turn the thumbwheel to select the desired setting. Press the thumbwheel to confirm the setting. The list of the current entertainment source can be displayed in the instrument cluster again by turning the thumbwheel. |
Trip data
Principle
The trip data display provides various information about the trip, e.g., trip distance.
General information
The trip data can be displayed on the Control Display and in the instrument cluster.
The values can be displayed and reset depending on various intervals, such as after refueling.
Display on the control display
Overview
The following information is displayed depending on the set interval and driving mode:
Configured interval for displaying trip data.
Average consumption depending on the configured interval.
Average speed.
Total time for shut off engine through the Auto Start/Stop function.
Consumption history in form of a chart.
Displays
"CAR"
"Driving information"
"Trip data"
Consumption history
The average consumption is shown in the consumption history in form of a chart based on the distance traveled.
Display in the instrument cluster
Depending on the equipment, information about the distance covered can be displayed as widget in the instrument cluster.
The following information is displayed:
Total kilometers.
Configured interval for displaying trip data.
Distance traveled depending on the configured interval.
Average speed.
Selecting and setting widgets in the instrument cluster.
Additional information:
Widgets.
Adjusting the display of the trip data
The intervals for the display of the trip data in the instrument cluster and on the Control Display are adjustable.
"CAR"
"Driving information"
"Trip data"
"Values since"
Select the desired setting:
"Start of trip ( )": the values are automatically reset approx. four hours after the vehicle has come to a standstill.
"Refueling ( )": the values are automatically reset after refueling with a larger quantity of fuel.
"Factory": average consumption since delivery from the factory.
The values since the time of the factory delivery are displayed.
"Individual ( )": the values since the last manual reset are displayed. The values can be reset at any time.
Resetting average values manually
The following interval can be reset manually at any time: "Individual ( )".
With the button on the turn signal lever:
Continue to press the button on the turn signal lever until the widget for the trip data is selected.
Press and hold the button on the turn signal lever.
Via iDrive:
"CAR"
"Driving information"
"Trip data"
"Values since"
"Reset individual"
The average values and counters are reset. Once the average values and counters have been reset, the following interval is automatically set: "Individual ( )".
Sport displays
Principle
The Sport displays especially support a sporty driving style.
Display on the control display
Overview
The following information is displayed:
Boost pressure.
Engine oil temperature.
G-meter.
Torque.
Power.
Displays
"CAR"
"Driving information"
"Sport displays"
Display in the instrument cluster
The Sport displays can be displayed in form of widgets in the instrument cluster.
The following widgets can be selected:
Widget for torque and power.
Widget for G-meter.
Additional information:
Widgets.
Vehicle status
General information
The status can be displayed and actions performed for several systems.
Going to the vehicle status
"CAR"
"Vehicle status"
Information at a glance
|
Icons |
Description |
|---|---|
|
|
"Tire Pressure Monitor": status of the Tire Pressure Monitor. |
|
|
"Engine oil level": electronic oil measurement. |
|
|
"Check Control messages": displaying stored Check Control messages. |
|
|
"Required services": displaying service notifications. |
BMW Head-up Display
Principle
Animation: Head-up display
The Head-up display projects important information in the driver's field of view, for instance the speed.
General information
Follow instructions for cleaning the Head-up display in the Vehicle Care chapter.
Overview

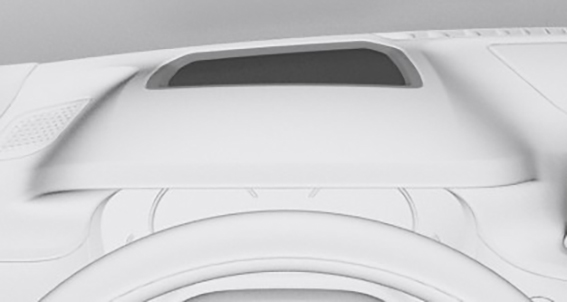

The protective glass of the Head-up display is located in the position marked.
Turning on/off
"CAR"
"Settings"
"Displays"
"Head-up display"
"Head-up display"
Display
Overview
The following information is displayed on the Head-up display:
Vehicle speed.
Navigation instructions.
Check Control messages.
Selection list in the instrument cluster.
Driver assistance systems.
Some of this information is only displayed briefly as needed.
Selecting displays in the Head-up Display
"CAR"
"Settings"
"Displays"
"Head-up display"
Select the desired setting.
Configuring M MODE
Depending on the selected View mode, various settings can be selected.
"CAR"
"Settings"
"Displays"
"Head-up display"
"Configure view"
Select the desired setting.
M view
The M view on the Head-up Display is a sportier view specific to M and is active in the M MODES SPORT and TRACK.
Setting the brightness
The brightness is automatically adjusted to the ambient brightness.
The base setting can be adjusted manually.
"CAR"
"Settings"
"Displays"
"Head-up display"
"Brightness"
Turn the Controller until the desired brightness is set.
Press the Controller.
When the low beams are switched on, the brightness of the Head-up Display can be adjusted using the instrument lighting.
Adjusting the height
"CAR"
"Settings"
"Displays"
"Head-up display"
"Height"
Turn the Controller until the desired height is reached.
Press the Controller.
The height of the Head-up Display can be stored using the memory function.
Setting the rotation
The Head-up Display view can be rotated.
"CAR"
"Settings"
"Displays"
"Head-up display"
"Rotation"
Turn the Controller until the desired setting is selected.
Press the Controller.
Visibility of the display
The visibility of the displays in the Head-up display is influenced by the following factors:
Seat position.
Objects on the protective glass of the Head-up display.
Dust or dirt on the protective glass of the Head-up display.
Windshield dirty on inside or outside.
Sunglasses with certain polarization filters.
Wet road.
Unfavorable light conditions.
If the image is distorted, have the basic settings checked by an authorized service center or another qualified service center or repair shop.
Special windshield
The windshield is part of the system.
The shape and coating of the special windshield enable the system to function.
If damaged, have the special windshield replaced by an authorized service center or another qualified service center or repair shop.
Shift lights
Principle
Shift lights on the instrument cluster indicate the time to upshift in order to achieve the best possible acceleration.
General information
If the Head-up Display is switched on, the Shift lights will be displayed in the Head-up Display.
Shift lights are only shown in the Head-up Display in the M view.
If the Head-up Display is switched off, the Shift lights are displayed in the instrument cluster.
Shift lights in the instrument cluster
Current engine speed is displayed in the tachometer.
Arrow 1: successive yellow illuminated fields indicate the upcoming shift point.
Arrow 2: fields are illuminated in red. Do not wait any further to shift.
When the maximum RPM is reached, the entire display flashes. The fuel supply is reduced to protect the engine.
Shift lights in the Head-up Display
Current engine speed is displayed in the tachometer.
Arrow 1: successive yellow illuminated fields indicate the upcoming shift point.
Arrow 2: fields are illuminated in red. Do not wait any further to shift.
When the maximum RPM is reached, the entire display flashes red and the fuel supply is interrupted in order to protect the engine.
Download Manual
