Engine compartment
Overview
1
Washer fluid
2
Jump-starting, positive battery terminal
3
Charge air coolant
4
Engine coolant
5
Oil filler neck
6
Jump-starting, negative battery terminal
7
Identification number
Hood
Safety information
Do not perform work in the engine compartment
Stay away from moving parts in the engine compartment
Keep the travel path of the hood unobstructed
Stop and close hood correctly
Keep the travel path of the hood unobstructed
Fold in wipers before opening the hood
Close the hood correctly

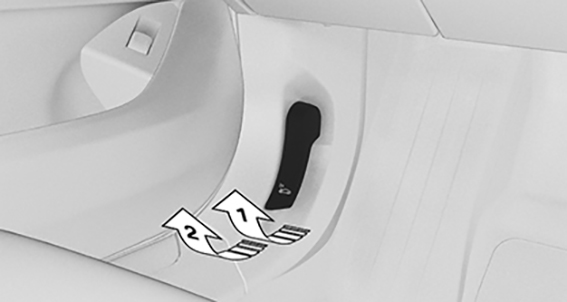

Opening hood
Pull lever, arrow 1. Hood is unlocked.
After the lever is released, pull the lever again, arrow 2.
Hood can be opened.
Be careful of protruding parts on the hood.

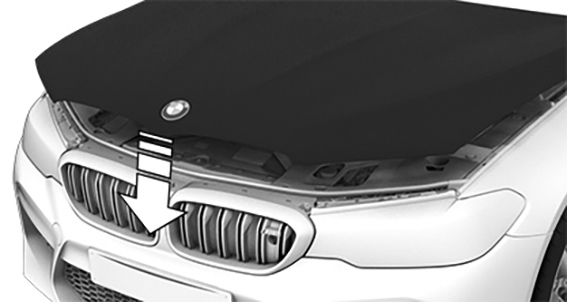

Closing the hood
Energetically close the hood from approx. 20 in/50 cm.
The hood must engage on both sides.
