WHEEL AND TIRE TORQUE SPECIFICATIONS
Proper lug nut/bolt torque is very important to ensure that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the vehicle, the lug nuts/bolts should be torqued using a properly calibrated torque wrench using a high quality six sided (hex) deep wall socket.
Base Model Vehicle
|
Lug Nut/Bolt Torque |
**Lug Nut/Bolt Size |
Lug Nut/Bolt Socket Size |
|
130 Ft-Lbs (176 N·m) |
M14 x 1.50 |
22 mm |
SRT Model Vehicle
|
Lug Nut/Bolt Torque |
**Lug Nut/Bolt Size |
Lug Nut/Bolt Socket Size |
|
110 Ft-Lbs (149 N·m) |
M14 x 1.50 |
22 mm |
**Use only authorized dealer recommended lug nuts/bolts and clean or remove any dirt or oil before tightening.
Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles.

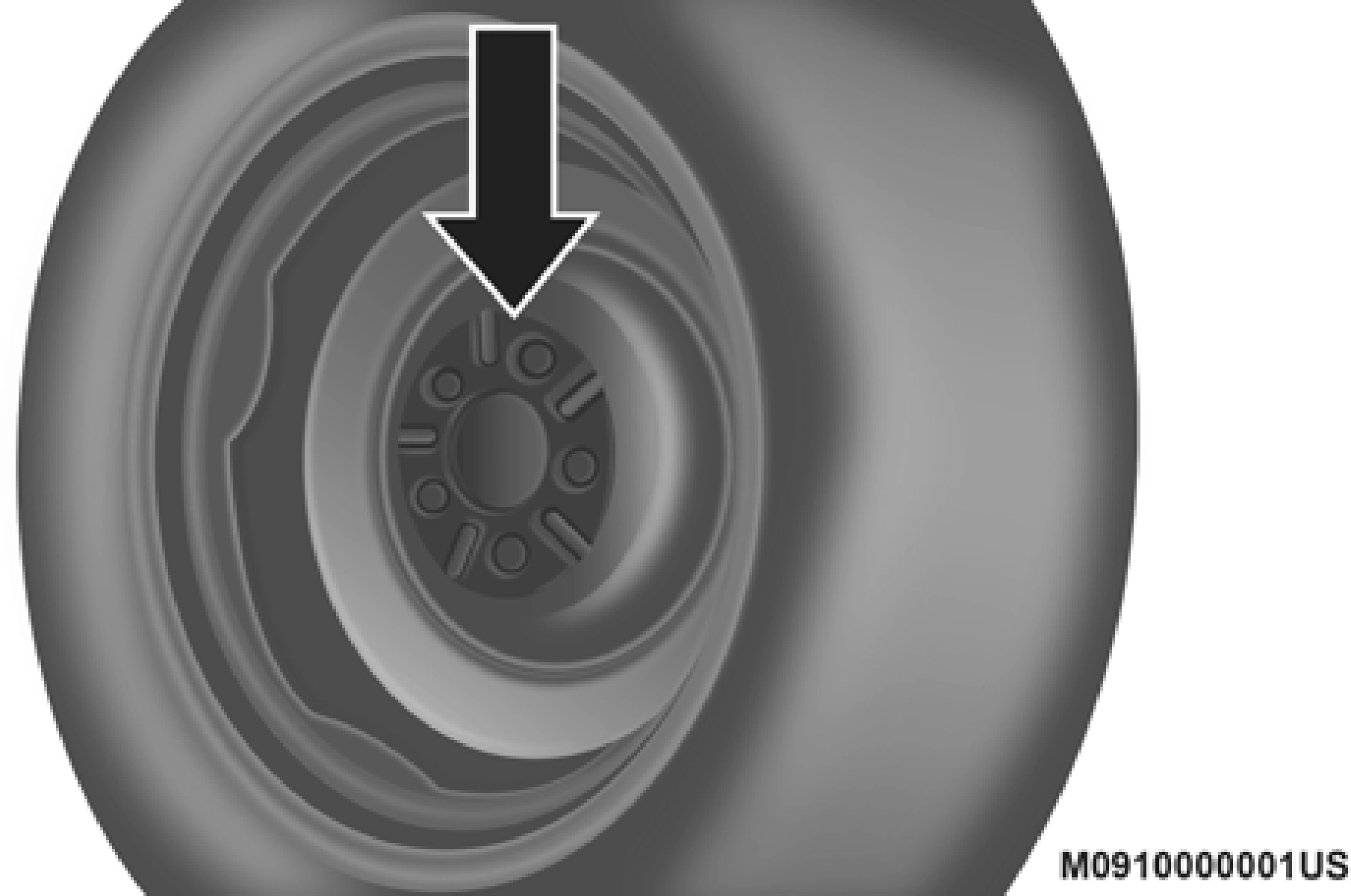

Wheel Mounting Surface
Tighten the lug nuts/bolts in a star pattern until each nut/ bolt has been tightened twice. Ensure that the socket is fully engaged on the lug nut/bolt (do not insert it half way).
NOTE:
If in doubt about the correct tightness, have them checked with a torque wrench by an authorized dealer or service station.
After 25 miles (40 km), check the lug nut/bolt torque to be sure that all the lug nuts/bolts are properly seated against the wheel.

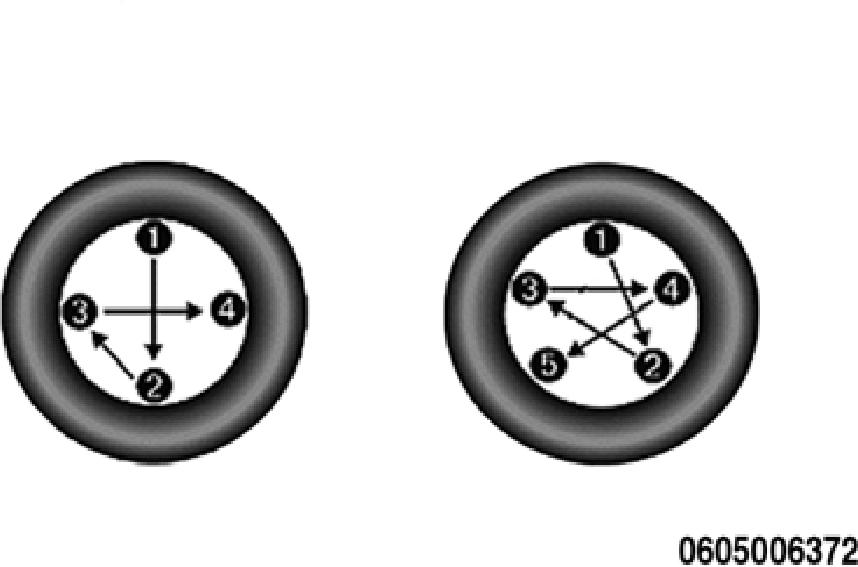

Torque Patterns
