UCONNECT REAR SEAT ENTERTAINMENT (RSE) SYSTEM — IF EQUIPPED
Your Rear Seat Entertainment (RSE) System is designed to give your family years of enjoyment. You can play your favorite CDs, DVDs or Blu-ray™ Discs, listen to audio over the wireless headphones, or plug and play a variety of stan- dard video games or audio devices.
Please review this Owner's Manual to become familiar with its features and operation.

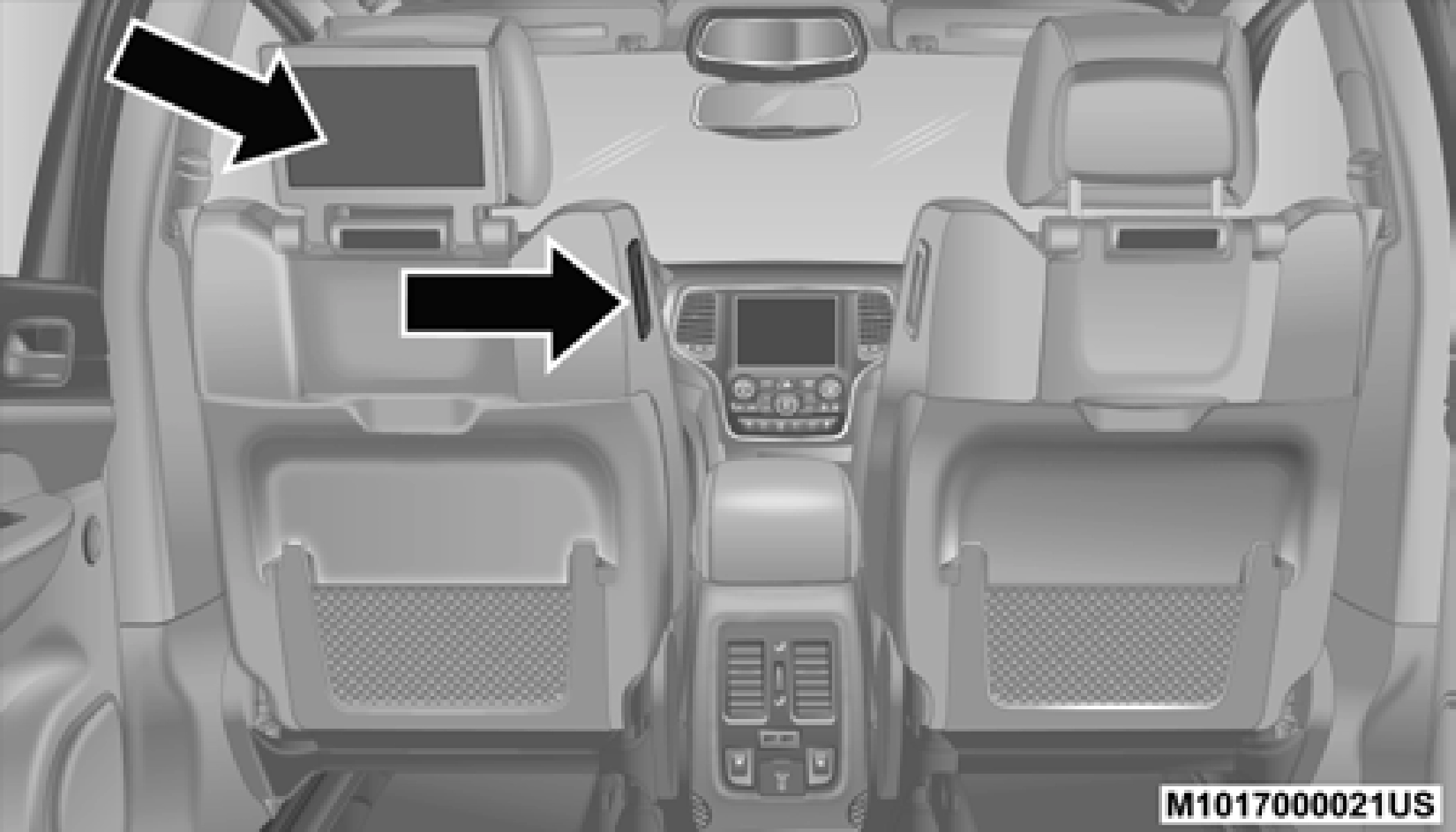

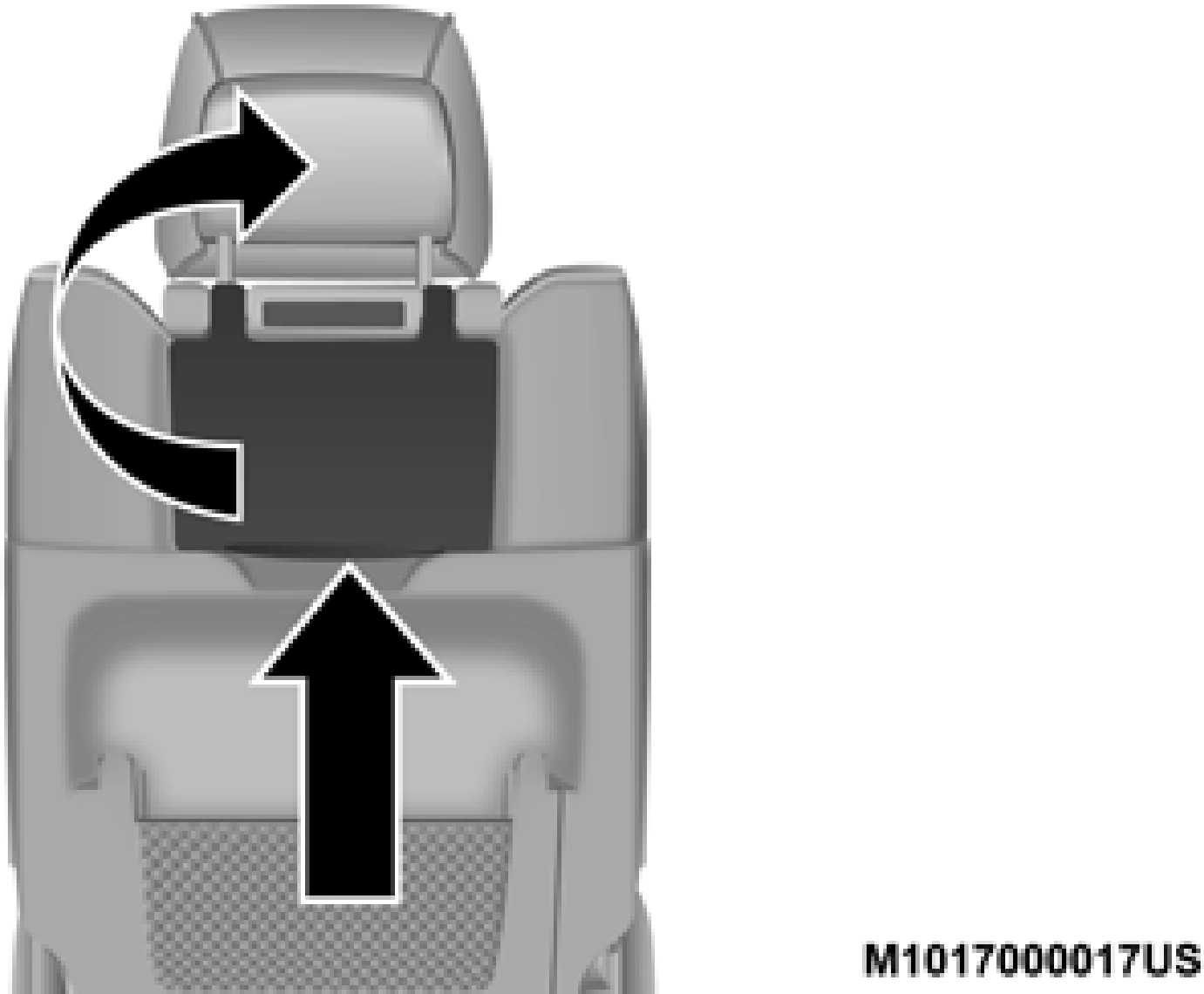

RSE System Screen
RSE System Channel 1 (Rear 1)

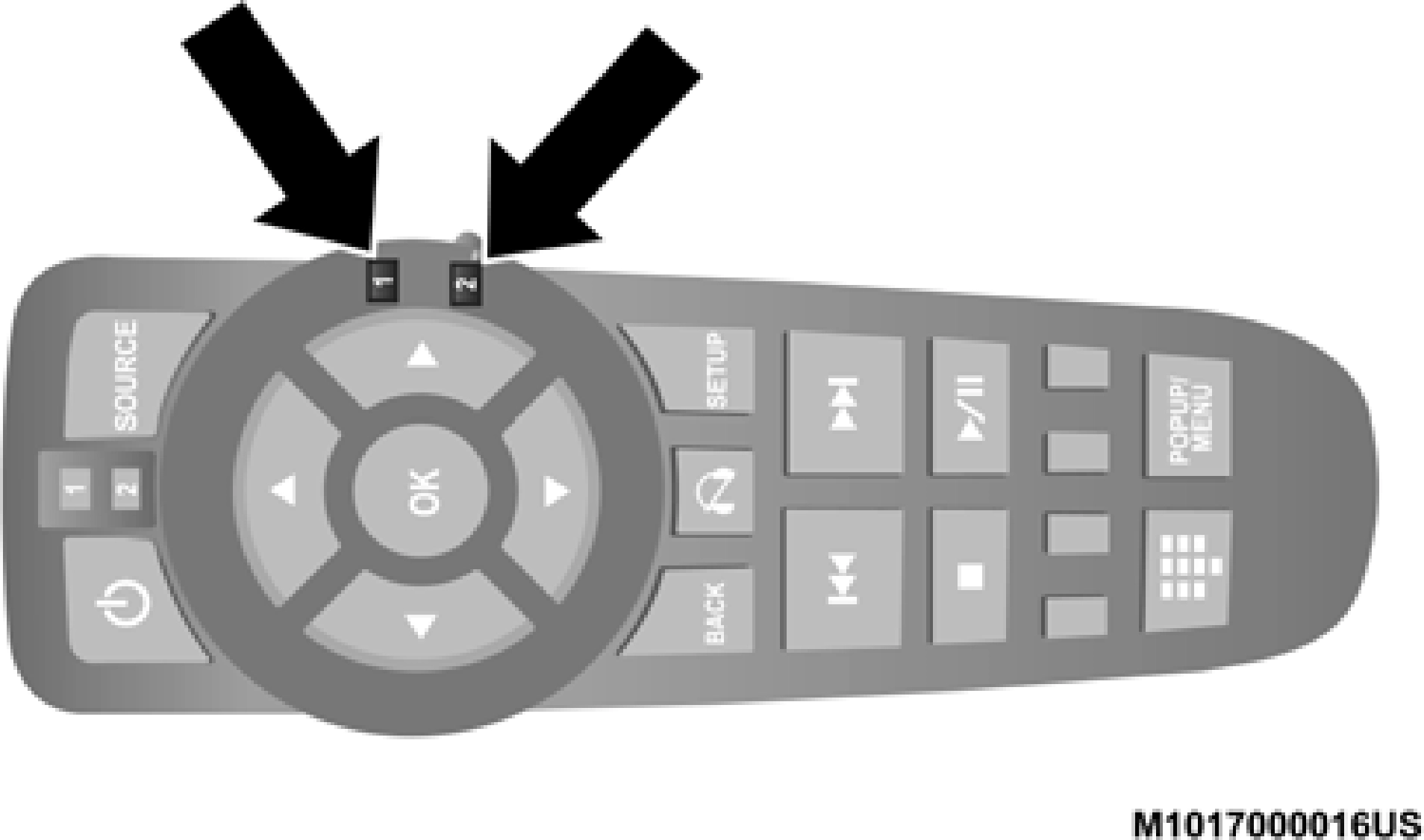

RSE System Remote Control Channel Selectors
9

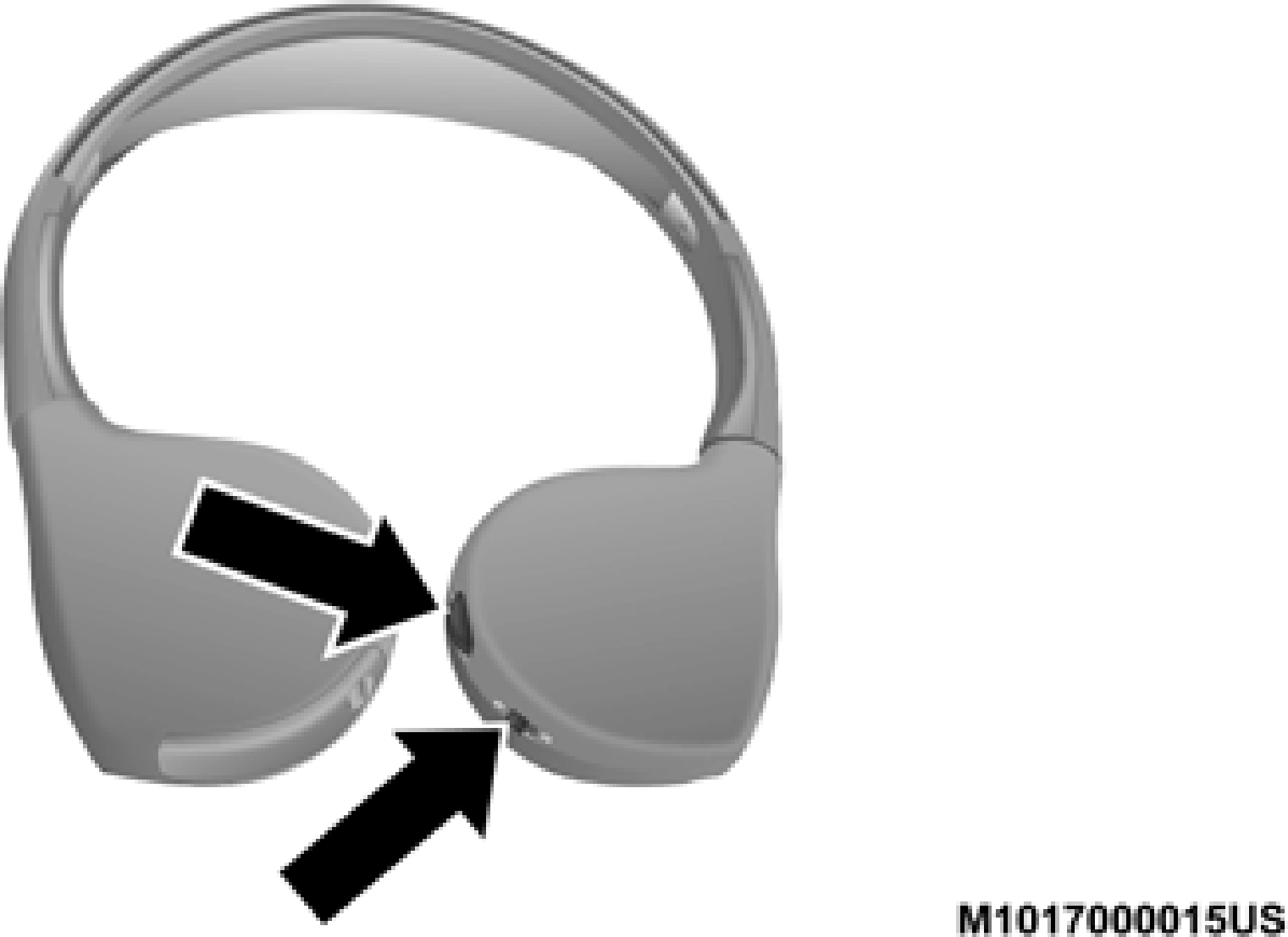

RSE System Headphone Channel Selectors
NOTE:
Typically there are two different ways to operate the features of the Rear Seat Entertainment System:
The Blu-ray™ disc player is located in the center console.

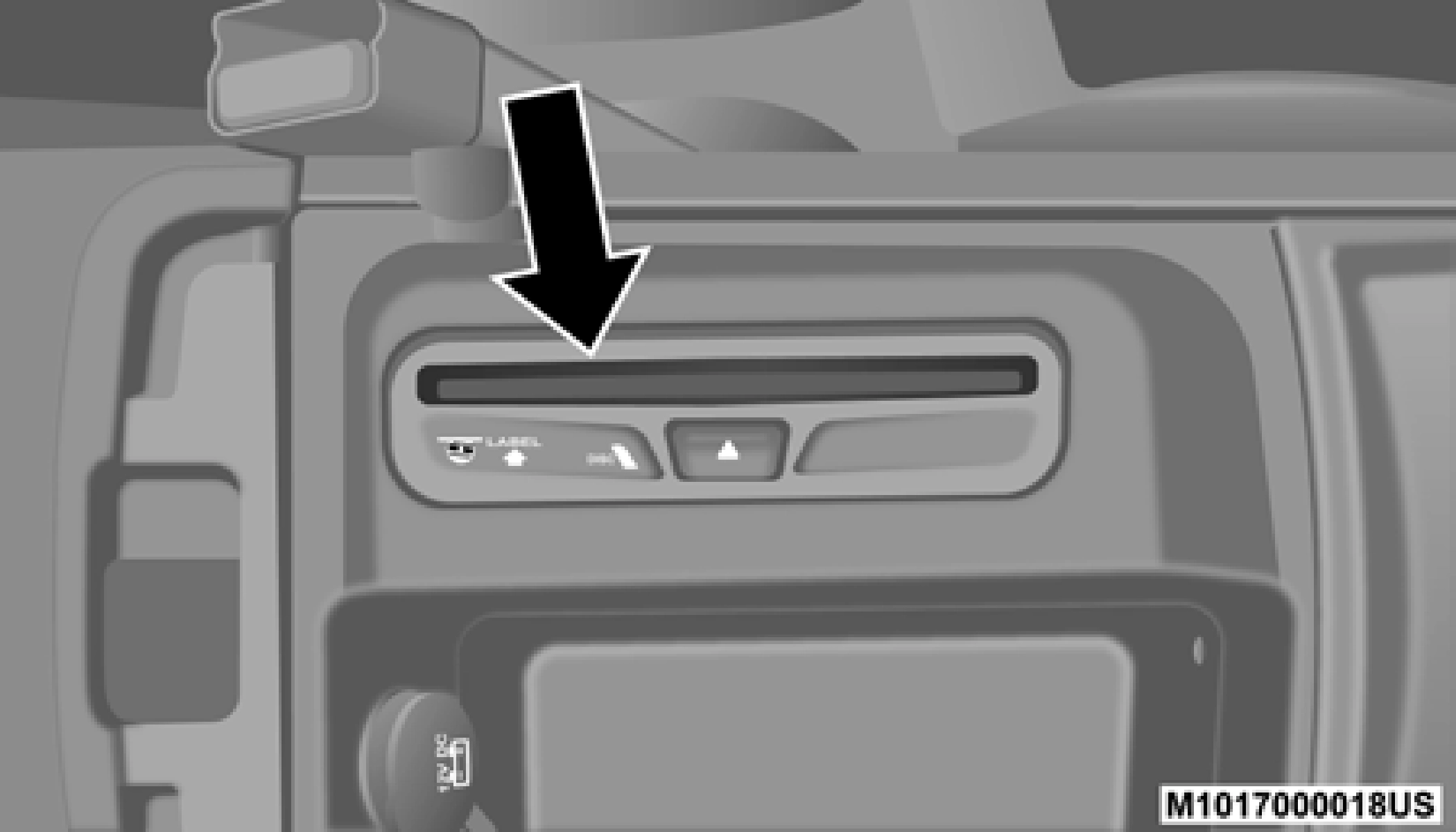

Blu-ray™ Disc Player Location
NOTE:
Using The Touchscreen Radio

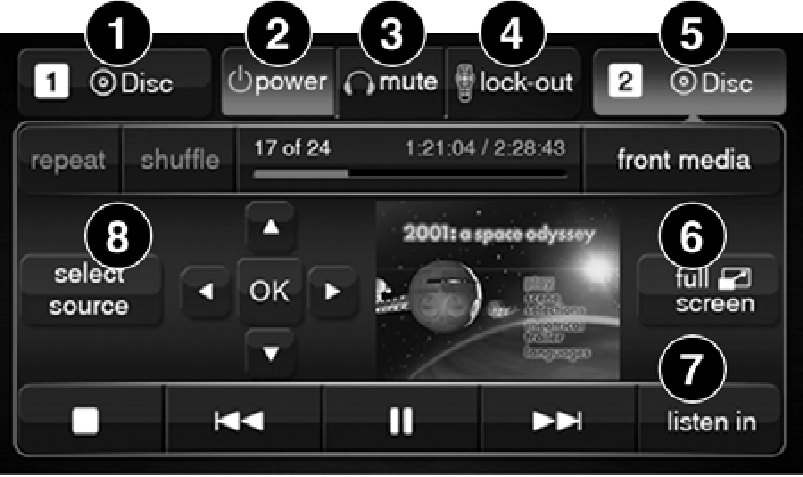

Rear Media Control Screen
Indicates the current source for Screen 1/Channel 1. This button will be highlighted when it is the active Screen/ Channel being controlled by the front user. If this button is not highlighted, select the button to access controls for Screen 1/Channel 1 source.
Press to turn RSE On/Off.
Mute rear headphones for the current ignition cycle. Pressing mute again will unmute rear headphones.
Press to enable/disable remote control functions.
Indicates the current source for Screen 2/Channel 2. This button will be highlighted when it is the active Screen/ Channel being controlled by the front user. If this button is not highlighted, select the button to access controls for Screen 2/Channel 2 source.
Select this button to change the cabin audio to the rear en- tertainment source currently shown on the rear media control screen.
Select this button to change to Full Screen Mode.
Select this button to change the source for the active (highlighted) rear Screen/Channel on the rear media con- trol screen.
Using The Remote Control
Connect the video game console to the Audio/Video RCA/ HDMI input jacks located on the side of each seat.
Audio/Video RCA/HDMI Jacks (AUX/HDMI Jacks) on the side of each seat enable the monitor to display video directly from a video camera, connect video games for display on the screen, or play music directly from an MP3 player.

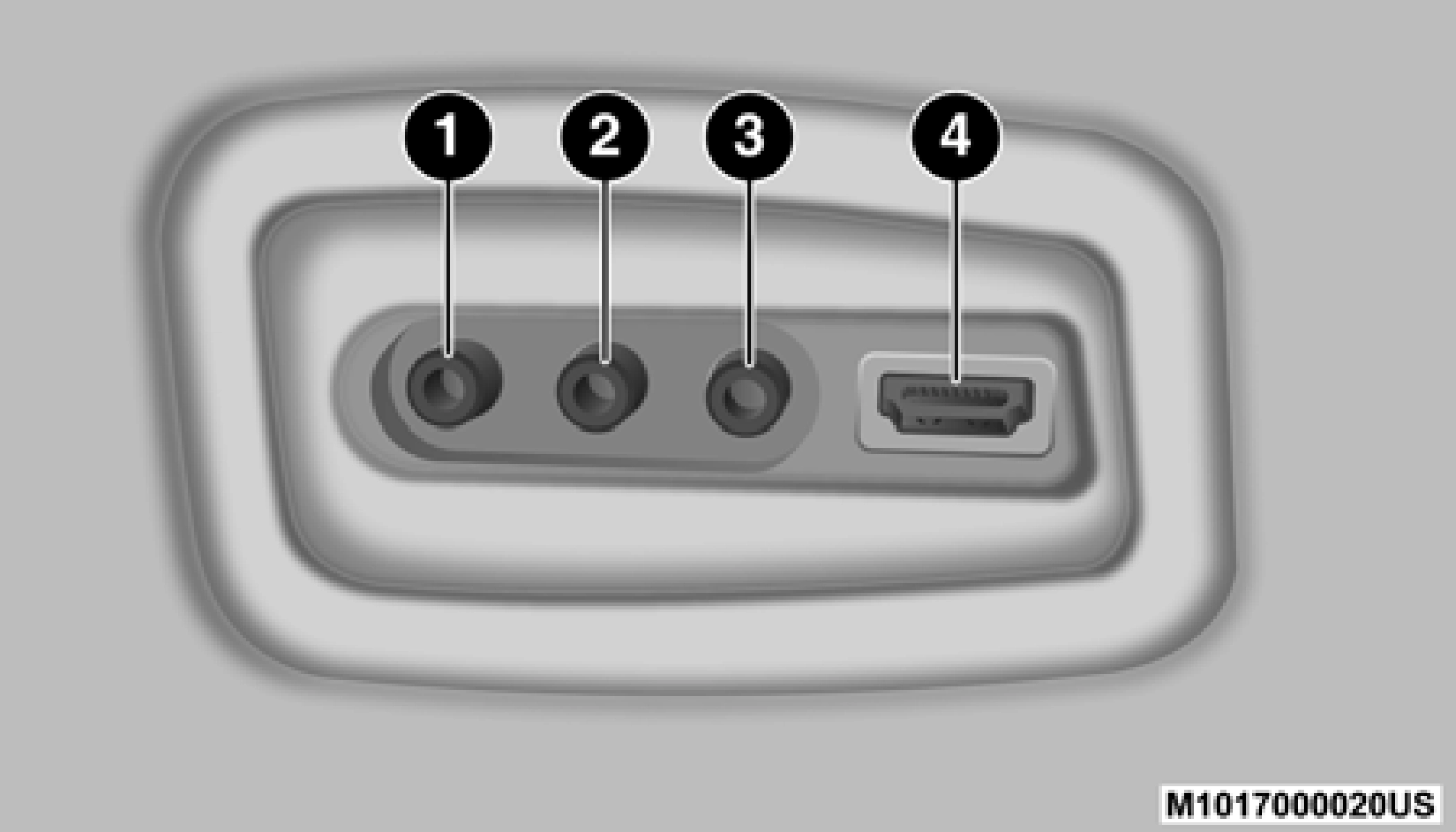

Audio/Video RCA/HDMI Input Jacks
When connecting an external source to the AUX/HDMI input, be sure to follow the standard color coding for the audio/video jacks:
NOTE:
Certain high-end video games’ consoles may exceed the power limit of the vehicle's Power Inverter.
9
Select DISC Mode On The Rear Seat Entertainment Screen
button on the touchscreen in the Media column. To exit, press the X at the top right of the screen.
NOTE:

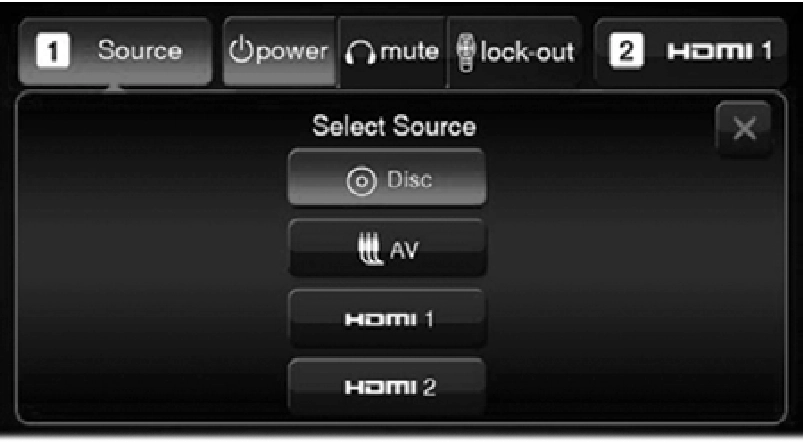

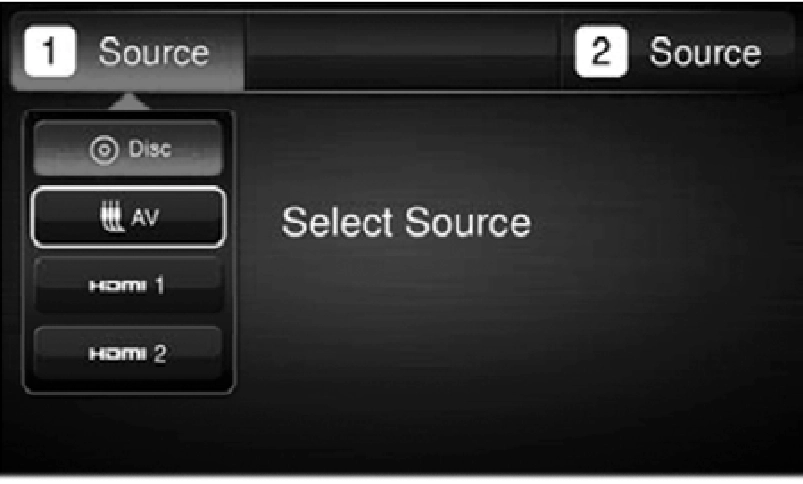

Rear Seat Entertainment Source Screen
9

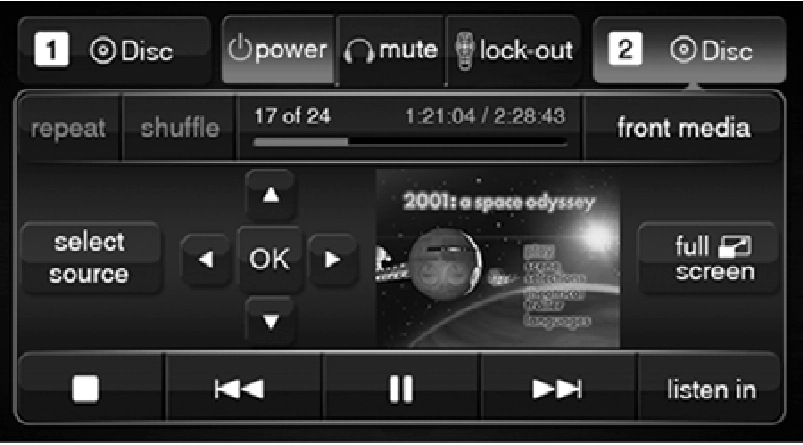

Rear Media Control Screen
Pressing the screen on the radio while a DVD or Blu-ray™ Disc is playing brings up the basic remote control functions for DVD play such as scene selection, Play, Pause, FF, RW, and Stop. Pressing the X in the upper corner will turn off the remote control screen functions.

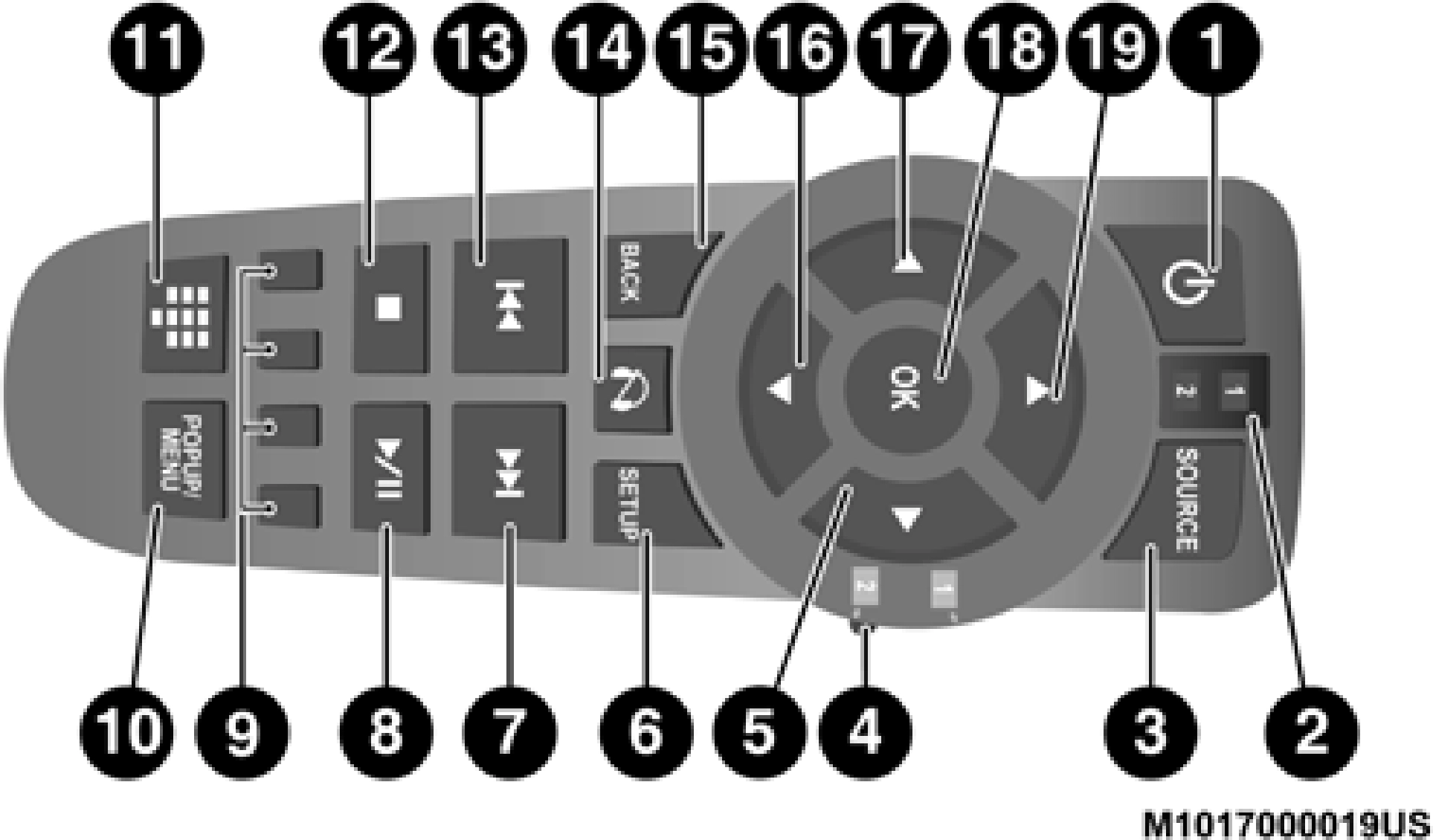

Blu-ray™ Player Remote Control
(Stop) — Stops disc play.
— Mutes headphone audio.9
The headphones receive two separate channels of audio using an infrared transmitter from the video screen.
If no audio is heard after increasing the volume control, verify that the screen is turned on, the channel is not muted, and the headphone channel selector switch is on the desired channel. If audio is still not heard, check that fully charged batteries are installed in the headphones.

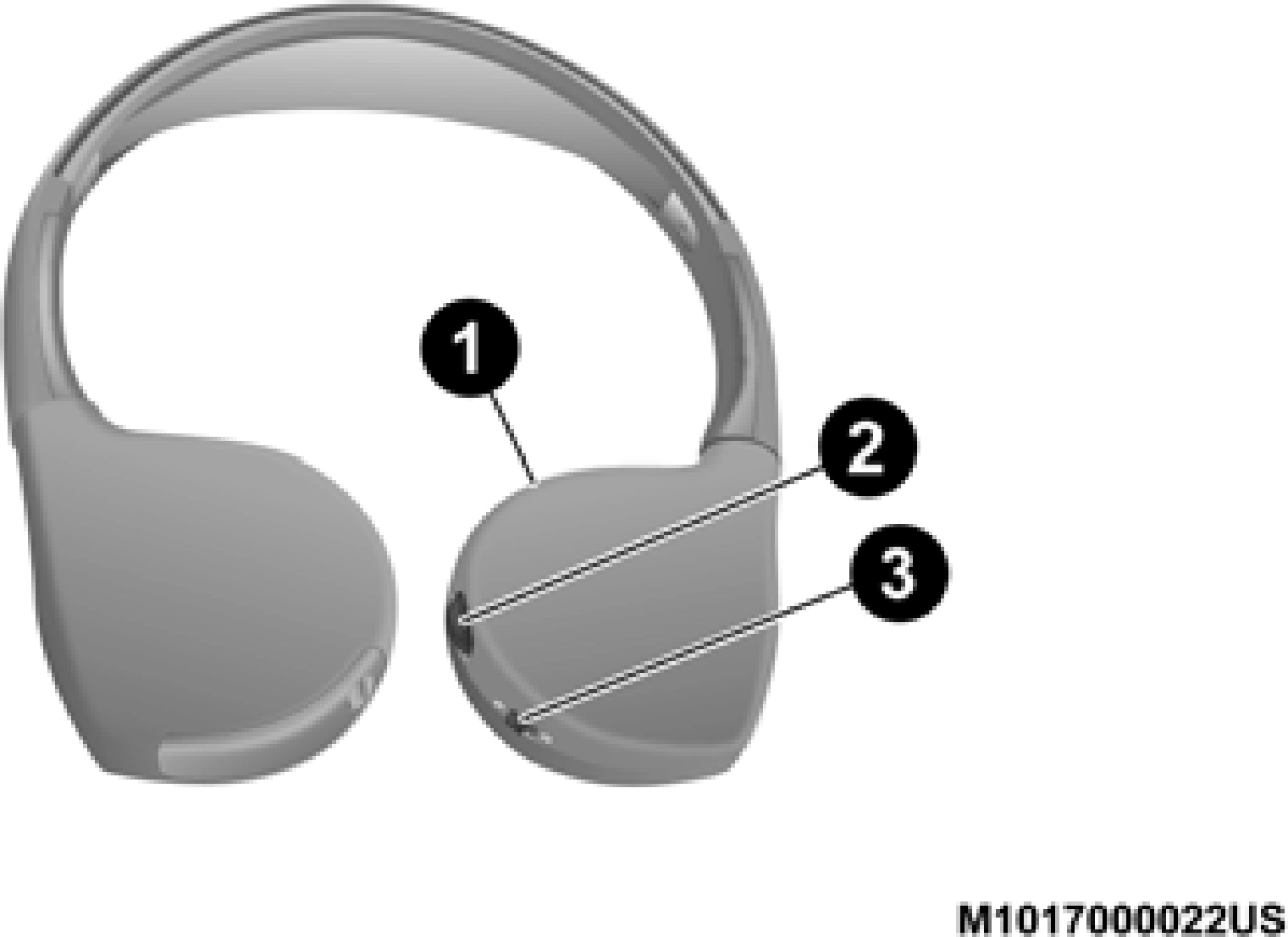

Rear Seat Entertainment Headphones
The headphone power indicator and controls are located on the right ear cup.
NOTE:
The rear video system must be turned on before sound can be heard from the headphones. To conserve battery life, the headphones will automatically turn off approximately three minutes after the rear video system is turned off.
Changing the Audio Mode for Headphones
NOTE:
Each set of headphones requires two AAA batteries for oper- ation. To replace the batteries:
Accessibility is a feature of the DVD/Blu-ray™ system that announces a function prior to performing the action. Refer to “Uconnect Settings” in “Multimedia” for further information.
Who Does This Warranty Cover? This warranty covers the initial user or purchaser ("you" or "your") of this particular Aptiv PLC (“Aptiv”) wireless headphone ("Product"). The warranty is not transferable.
How Long Does the Coverage Last? This warranty lasts as long as you own the Product.
What Does This Warranty Cover? Except as specified below, this warranty covers any Product that in normal use is defective in workmanship or materials.
What Does This Warranty Not Cover? This warranty does
not cover any damage or defect that results from misuse, 9
abuse, or modification of the Product other than by Aptiv. Foam earpieces, which will wear over time through normal use, are specifically not covered (replacement foam is available for a nominal charge). APTIV IS NOT LIABLE FOR ANY INJURIES OR DAMAGES TO PERSONS OR PROPERTY RESULTING FROM THE USE OF, OR ANY
FAILURE OR DEFECT IN, THE PRODUCT, NOR IS APTIV LIABLE FOR ANY GENERAL, SPECIAL, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY, PUNITIVE OR OTHER DAMAGES OF ANY
KIND OR NATURE WHATSOEVER. Some states and jurisdictions may not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which vary from jurisdiction to jurisdiction.
What Will Aptiv Do? Aptiv, at its option, will repair or replace any defective Product. Aptiv reserves the right to replace any discontinued Product with a comparable model. THIS WARRANTY IS THE SOLE WARRANTY FOR THIS PRODUCT, SETS FORTH YOUR EXCLUSIVE REMEDY REGARDING DEFECTIVE PRODUCTS, AND IS IN LIEU OF ALL OTHER WARRANTIES (EXPRESS OR IMPLIED), INCLUDING ANY WARRANTY FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If you have any questions or comments regarding your Aptiv wireless headphones, please email [email protected] or phone: 888-293-3332.
When listening to a CD Audio or CD Data disc, pushing the remote control’s Pop-Up/Menu button displays a list of all commands which control playback of the disc.

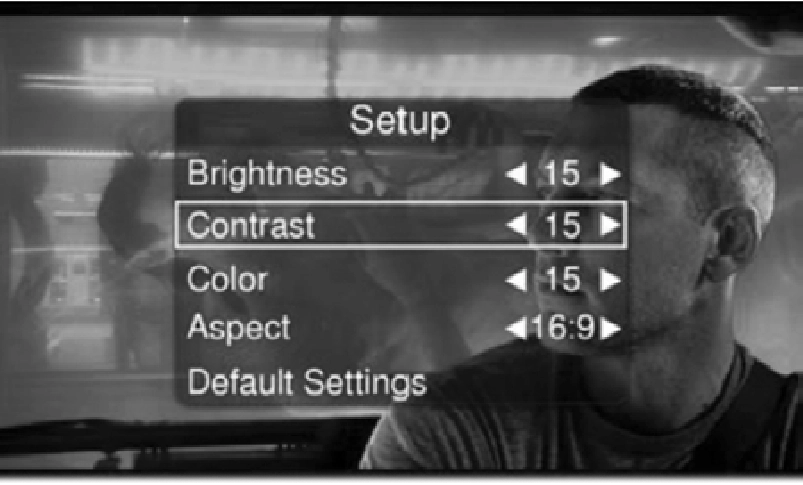

Video Screen Display Settings
When watching a video source (Blu-ray™ Disc or DVD Video with the disc in Play mode, Aux Video, etc.), pushing the remote control’s SETUP button activates the Display Settings menu. These settings control the appearance of the video on the screen. The factory default settings are already set for optimum viewing, so there is no need to change these settings under normal circumstances.
To change the settings, push the remote control’s Navigation buttons (▴, ▾) to select an item, then push the remote control’s Navigation buttons (▸, ◂◂) to change the value for
the currently selected item. To reset all values back to the original settings, select the Default Settings menu option and push the remote control’s ENTER/OK button.
Disc Features control the remote Blu-ray™ Disc player's settings of DVD being watched in the remote player.
To listen to only the audio portion of the channel with the screen closed:
If the screen is closed and there is no audio heard, verify that the headphones are turned on (the On indicator is illumi- nated) and the headphone selector switch is on the desired channel. If the headphones are turned on, push the remote control’s power button to turn audio on. If audio is still not heard, check that fully charged batteries are installed in the headphones.
The Blu-ray™ Disc player is capable of playing the following types of 4.7-inch (12-centimeter) diameter discs:
9
DVD Region Codes
The Blu-ray™ Disc player and many DVD discs are coded by geographic region. These region codes must match in order for the disc to play. If the region code for the DVD disc does not match the region code for the player, the disc will not play.
DVD Audio Support
When a DVD-Audio disc is inserted in the Blu-ray™ Disc player, the DVD-Audio title on the disc is played by default (most DVD-Audio discs also have a Video title, but the Video title is ignored). All multi-channel program material is auto- matically mixed down to two channels, which may result in a lowered apparent volume level. If you increase the volume level to account for this change in level, remember to lower the volume before changing the disc or to another mode.
Recorded Discs
The Blu-ray™ Disc player will play CD-R and CD-RW discs recorded in CD-Audio or Video-CD format, or as a CD-ROM containing MP3 or WMA files. The player will also play DVD-Video content recorded to a DVD-R or DVD-RW disc. DVD-ROM discs (either pressed or recorded) are not supported.
If you record a disc using a personal computer, there may be cases where the Blu-ray™ Disc player may not be able to play some or the entire disc, even if it is recorded in a compatible format and is playable on other players. To help avoid playback problems, use the following guidelines when recording discs:
If you are still having trouble writing a disc that is playable in the Blu-ray™ Disc player, check with the disc recording software publisher for more information about burning playable discs.
The recommended method for labeling recordable discs (CD-R, CD-RW, and DVD-R) is with a permanent marker. Do not use adhesive labels as they may separate from the disc, become stuck, and cause permanent damage to the DVD player.
Compressed Audio Files (MP3 and WMA)
The Blu-ray™ Disc player is capable of playing MP3 (MPEG-1 Audio Layer 3) and WMA (Windows Media Audio) files from a CD Data disc (usually a CD-R or CD-RW).
previous file.
Disc Errors
If the Blu-ray™ Disc player is unable to read the disc, a "Disc Error" message is displayed on the rear screen and Radio
displays. A dirty, damaged, or incompatible disc format are 9
all potential causes for a "Disc Error" message.
If a disc has a damaged track which results in audible or visible errors that persists for two seconds, the Blu-ray™ Disc player will attempt to continue playing the disc by skipping forward one to three seconds at a time. If the end of
the disc is reached, the Blu-ray™ Disc player will return to the beginning of the disc and attempt to play the start of the first track.
The Blu-ray™ Disc player may shut down during extremely hot conditions, such as when the vehicle’s interior tempera- ture is above 120°F (48.9°C). When this occurs, the player will display "High Temp" and will shut off the rear seat displays until a safe temperature is reached. This shutdown is neces- sary to protect the optics of the Blu-ray™ Disc player.
This product incorporates copyright protection technology that is protected by US patents and other intellectual prop- erty rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home or other limited viewing uses otherwise authorized by Macro- vision. Reverse engineering or disassembly is prohibited.
Dolby Digital and MLP Lossless Manufactured under license from Dolby Laboratories. "Dolby", "MLP Lossless", and the double-D symbol are trade-
marks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.
