IPOD®/USB/MP3 CONTROL — IF EQUIPPED
This feature allows an iPod® or external USB device to be plugged into the USB port.
iPod® control supports Mini, 4G, Photo, iPod nano®, 5G iPod®, and iPhone® devices. Some iPod® software versions may not fully support the iPod® control features. Please visit Apple’s® website for software updates.
For further information, refer to the Uconnect Owner’s Manual Supplement.
Use the connection cable to connect an iPod® or external USB device to the vehicles USB/AUX connector port which is located in the center console.
The USB ports on the media hub are equipped with a Smart Electronic Voltage Regulator (Smart Charge) feature. This feature allows a device to charge for up to one hour after the vehicle is powered off.

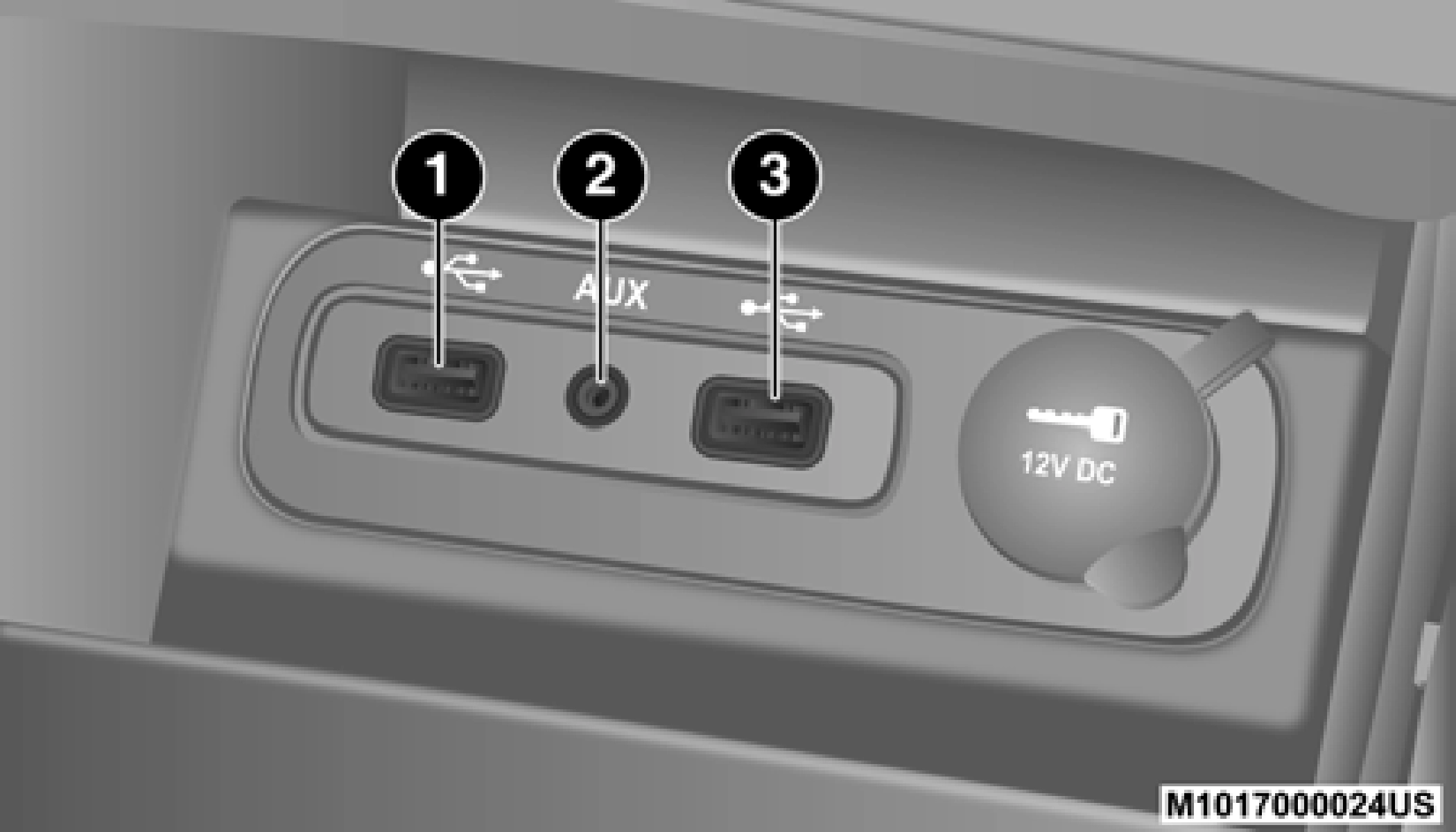

Integrated Center Console USB/AUX Media HUB
1 — USB Port One 2 — AUX Port
3 — USB Port Two
Once the audio device is connected and synchronized to the vehicles iPod®/USB/MP3 control system (iPod® or external USB device may take a few minutes to connect), the audio device starts charging and is ready for use.
NOTE:
If the audio device battery is completely discharged, it may not communicate with the iPod®/USB/MP3 control system until a minimum charge is attained. Leaving the audio device connected to the iPod®/USB/MP3 control system may charge it to the required level.
By using an iPod® cable or an external USB device to connect to the USB port:
NOTE:
For further information, refer to the Uconnect Owner’s Manual Supplement.
Second row USB connector ports can be used for charging purposes only. Use the connection cable to connect an iPod® or external USB device to the vehicle’s USB charging ports which are located either on the rear of the front center console.

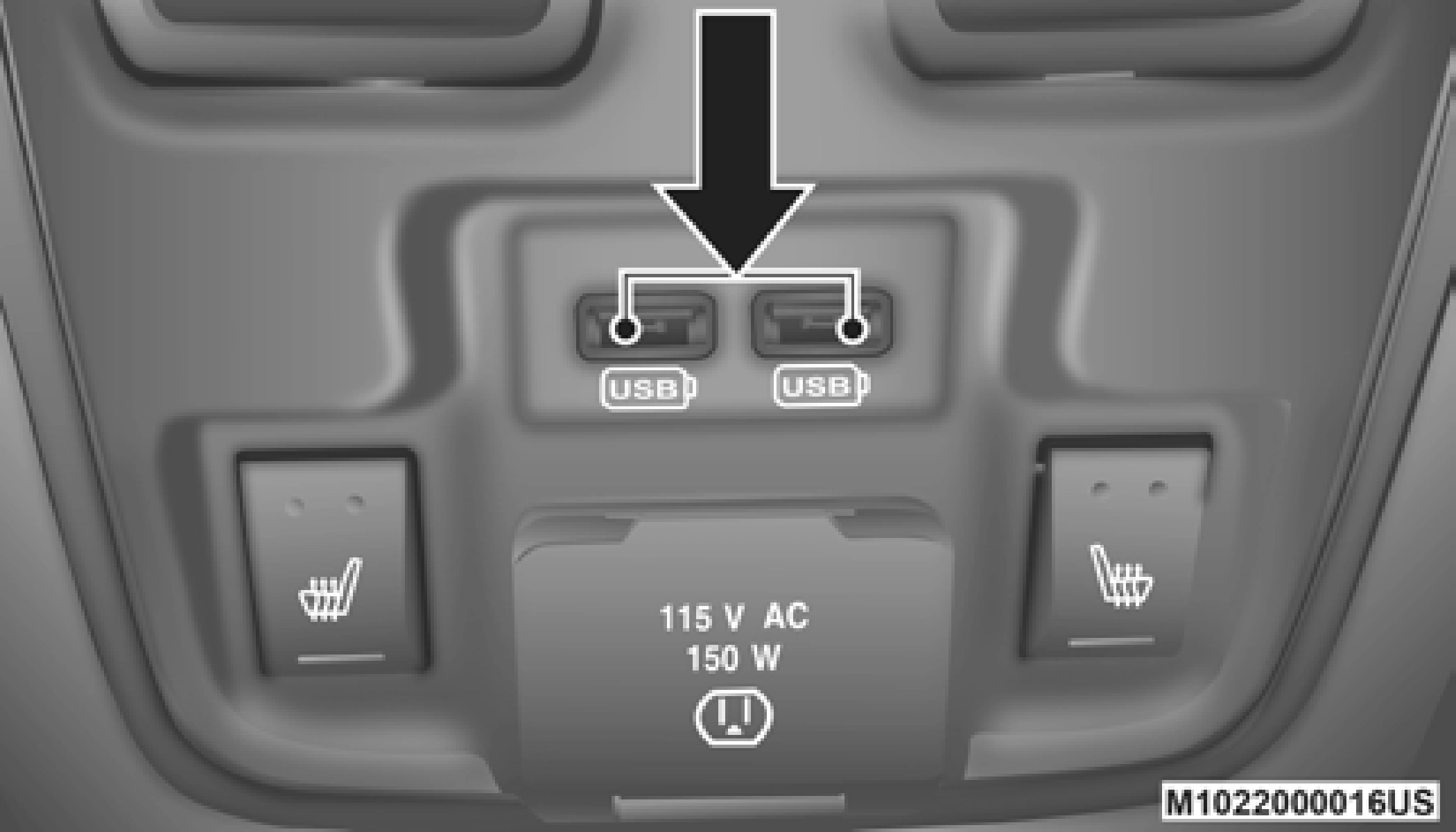

Front Center Console Rear USB Ports 9
