Push the fuel filler door release switch (located under the headlamp switch).
(or trailer, if equipped) for up to ten seconds while at 6
speed. If the vehicle speed remains below 8 mph (13 km/h), the Rear View Camera image will be dis- played continuously until deactivated via the “X” but- ton on the touchscreen.

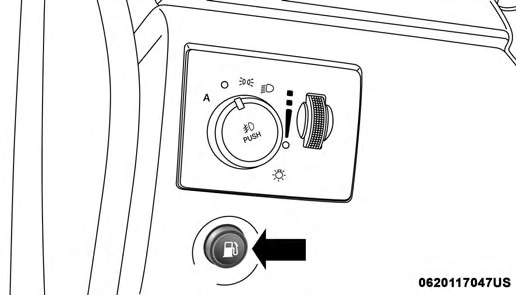

Fuel Filler Door Release Switch
Open the fuel filler door.

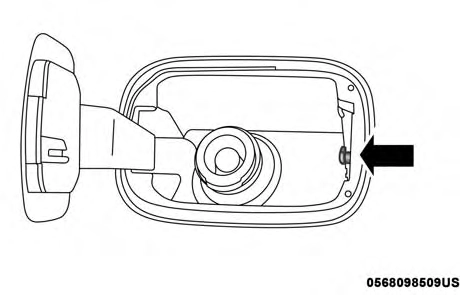

Fuel Filler Door Latch
NOTE: In certain cold conditions, ice may prevent the fuel door from opening. If this occurs, lightly push on the fuel door to break the ice buildup and re-release the fuel door using the inside release button. Do not pry on the door.
There is no fuel filler cap. Two flapper doors inside the pipe seals the system.
Insert the fuel nozzle fully into the filler pipe, the nozzle opens and holds the flapper doors while refueling.
Fill the vehicle with fuel, when the fuel nozzle “clicks” or shuts off the fuel tank is full.
Wait five seconds before removing the fuel nozzle to allow fuel to drain from nozzle.
Remove the fuel nozzle and close the fuel door.
Emergency Gas Can Refueling
Most gas cans will not open the flapper doors.
A funnel is provided to open the flapper doors to allow emergency refueling with a gas can.
Retrieve funnel from the spare tire storage area.
Insert funnel into same filler pipe opening as the fuel nozzle.
Ensure funnel is inserted fully to hold flapper doors open.
Pour fuel into funnel opening.
Remove funnel from filler pipe, clean off prior to putting back in the spare tire storage area.
If you are unable to open the fuel filler door, use the fuel filler door emergency release.
Open the liftgate.
Push the inboard edge of the left storage bin to the center, this will pop up the outboard edge.
Grab popped up outboard edge with other hand to disengage snaps.
Remove the storage bin.
Pull the release cable to open the fuel door, push the release cable back to the home position to re-seat the fuel door latch to the closed position. 6

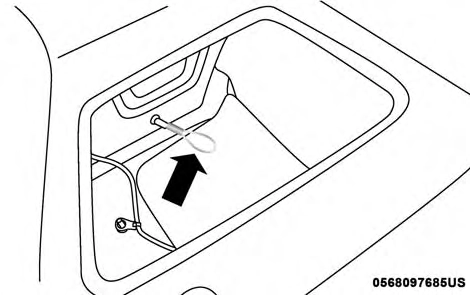

Release Cable
NOTE: If the fuel door does not latch after the manual release cable has been activated, the actuator latch should be manually returned to the closed position.
