FUSES
General Information
The fuses protect electrical systems against excessive cur- rent.

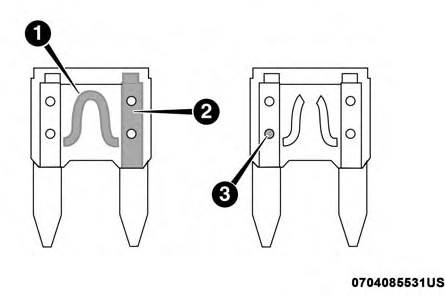

When a device does not work, you must check the fuse element inside the blade fuse for a break/melt.
Also, please be aware that when using power outlets for extended periods of time with the engine off may result in vehicle battery discharge.
Blade Fuses
The Power Distribution Center is located in the engine compartment near the battery. This center contains car- tridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.
Power Distribution Center
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F03 |
60 Amp Yellow |
– |
Radiator Fan — If Equipped |
|
F05 |
40 Amp Green |
– |
Compressor for Air Suspension — If Equipped |
|
F06 |
40 Amp Green |
– |
Anti-lock Brakes/Electronic Stability Control Pump |
|
F07 |
30 Amp Pink |
– |
Starter Solenoid |
|
F09 |
30 Amp Pink |
– |
Diesel Fuel Heater (Diesel Engine Only)/ Brake Vacuum Pump |
|
F10 |
40 Amp Green |
– |
Body Controller/Exterior Lighting #2 |
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F11 |
30 Amp Pink |
– |
Trailer Tow Electric Brake — If Equipped |
|
F12 |
40 Amp Green |
– |
Body Controller #3/Power Locks |
|
F13 |
40 Amp Green |
– |
Blower Motor Front |
|
F14 |
40 Amp Green |
– |
Body Controller #4/Exterior Lighting #1 |
|
F15 |
40 Amp Green |
– |
LTR (Low Temperature Radiator) Engine Cooling Pump — If Equipped |
|
F17 |
30 Amp Pink |
– |
Headlamp Washer — If Equipped |
|
F19 |
20 Amp Blue |
– |
Headrest Solenoid — If Equipped |
|
F20 |
30 Amp Pink |
– |
Passenger Door Module |
|
F22 |
20 Amp Blue |
– |
Engine Control Module |
|
F23 |
30 Amp Pink |
– |
Interior Lights #1 |
|
F24 |
30 Amp Pink |
– |
Driver Door Module |
|
F25 |
30 Amp Pink |
– |
Front Wipers |
|
F26 |
30 Amp Pink |
– |
Anti-lock Brakes/Stability Control Module, ECU and Valves |
|
F28 |
20 Amp Blue |
– |
Trailer Tow Backup Lights — If Equipped |
|
F29 |
20 Amp Blue |
– |
Trailer Tow Parking Lights — If Equipped |
|
F30 |
30 Amp Pink |
– |
Trailer Tow (Receptacle) / Trailer Tow (Sepa- rate E-Brake) / Trailer Tow (BUX) — If Equipped |
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F57 |
– |
20 Amp Yellow |
NOX Sensor — If Equipped |
|
F58 |
– |
15 Amp Blue |
HID Headlamps LH — If Equipped |
|
F59 |
– |
10 Amp Red |
Purging Pump (Diesel Engine Only) |
|
F60 |
– |
15 Amp Blue |
Transmission Control Module |
|
F61 |
– |
10 Amp Red |
Transmission Control Module/PM Sensor (Diesel Engine Only) |
|
F62 |
– |
10 Amp Red |
Air Conditioning Clutch |
|
F63 |
– |
20 Amp Yellow |
Ignition Coils / Ignition Coil Capacitors / Short Runner Valve Actuator — If Equipped (Gas) Urea Heater (Diesel) |
|
F64 |
– |
25 Amp Clear |
Fuel Injectors/Powertrain |
|
F66 |
– |
10 Amp Red |
Sunroof/Rain Sensor/Inside Rear View Mir- ror / USB Port / DSCR / DTV — If Equipped |
|
F67 |
– |
15 Amp Blue |
CD/DVD/UCI Port/USB Charging Port |
|
F68 |
– |
20 Amp Yellow |
Rear Wiper Motor |
|
F69 |
– |
15 Amp Blue |
Spotlight Feed — If Equipped |
|
F70 |
– |
20 Amp Yellow |
Fuel Pump Motor |
|
F71 |
– |
30 Amp Green |
Amplifier/ANCM — If Equipped |
|
F72 |
– |
10 Amp Red |
ECM |
7
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F90/F91 |
– |
20 Amp Yellow |
Power Outlet (Rear Seats) Selectable |
|
F92 |
– |
10 Amp Red |
Rear Console Lamp — If Equipped |
|
F93 |
– |
20 Amp Yellow |
Cigar Lighter |
|
F94 |
– |
10 Amp Red |
Shifter/Transfer Case Module |
|
F95 |
– |
10 Amp Red |
Rear Camera / Blind Spot Sensor — If Equipped |
|
F96 |
– |
10 Amp Red |
Rear Seat Heater Switch/Flashlamp Charger — If Equipped |
|
F97 |
– |
20 Amp Yellow |
Rear Heated Seats & Heated Steering Wheel — If Equipped |
|
F98 |
– |
20 Amp Yellow |
Ventilated Seats/Front Heated Seats — If Equipped |
|
F99 |
– |
10 Amp Red |
Climate Control/Driver Assistance Systems Module/HALF/Park Assist |
|
F100 |
– |
10 Amp Red |
Active Damping — If Equipped |
|
F101 |
– |
15 Amp Blue |
In Car Temperature Sensor/Humidity Sensor |
|
F102 |
– |
15 Amp Blue |
Spare |
|
F103 |
– |
10 Amp Red |
Cabin Heater (Diesel Engine Only)/Rear HVAC — If Equipped |
|
F104 |
– |
20 Amp Yellow |
Power Outlets (Instrument Panel/Center Console/Rear Cargo — If Equipped) |
