INTERNAL EQUIPMENT
Storage
Glove Compartment
The glove compartment is located on the passenger side of the instrument panel.

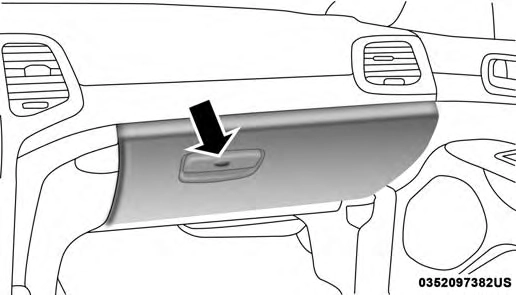

Glove Compartment
To open the glove compartment, pull the release handle.
Door Storage
Large storage areas are built into the door panels for easy access.

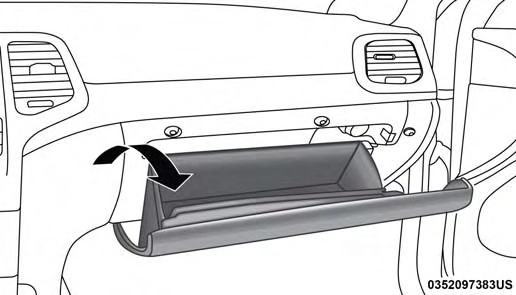

Opened Glove Compartment

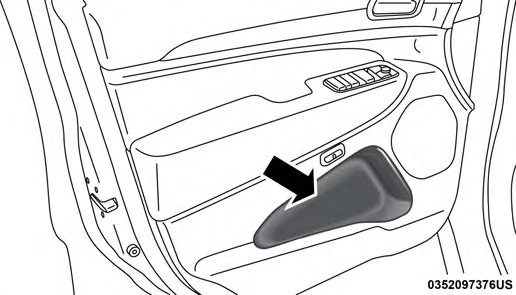

Door Panel Storage
Console Features
The center console contains both an upper and a lower storage area.

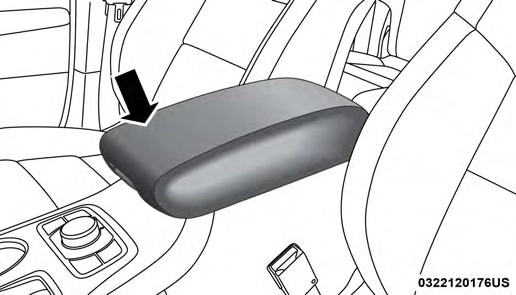

Storage Compartment
To open the upper storage compartment, pull upward on the small latch located on the lid.
Storage Compartment Latches
Lift upward on the larger of the latches to access the lower storage compartment.

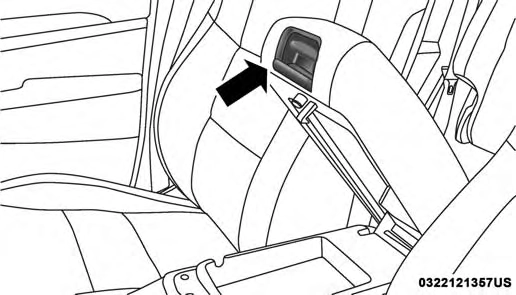

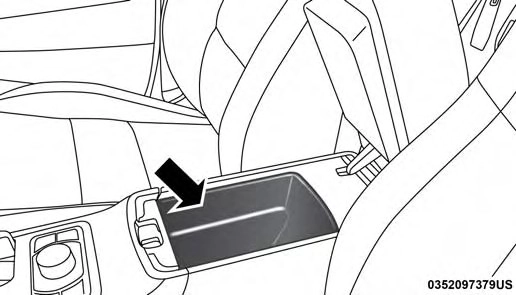

Lower Storage Compartment
Your vehicle may have an optional CD or DVD player located in the center console.

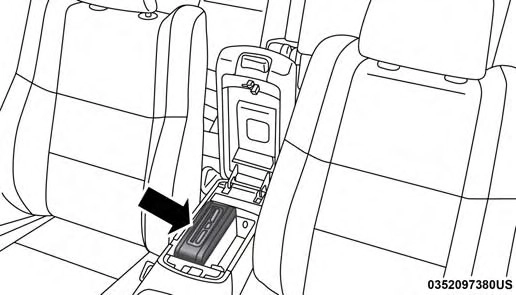

Lower Storage Compartment CD/DVD Player — If Equipped

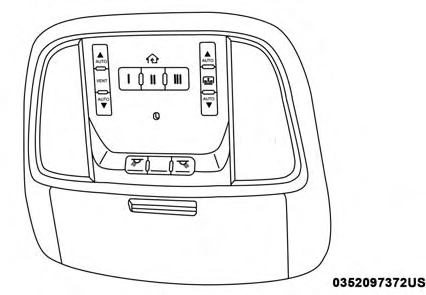

Overhead Console
The overhead console contains courtesy/reading lights and storage for sunglasses. Universal Garage Door Opener (HomeLink), power liftgate and power sunroof switches may also be included, if equipped.

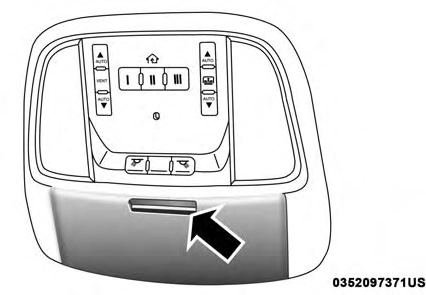

Overhead Console
There are two cupholders for the front seat passengers located in the center console.

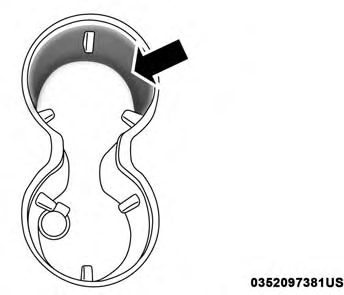

Front Cupholders
There are two cupholders for the rear seat passengers located in the fold-down center armrest.

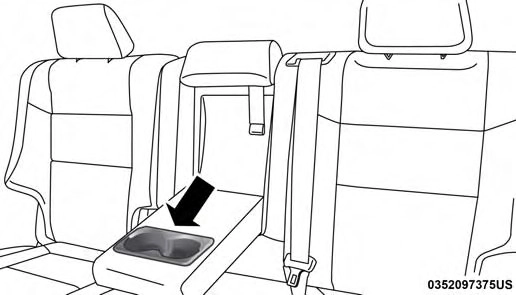

Rear Cupholders
Your vehicle is equipped with 12 Volt (15 Amp) power outlets that can be used to power cellular phones, small electronics and other low powered electrical accessories.
The power outlets are labeled with either a “key” or a 3
“battery” symbol to indicate how the outlet is powered. Power outlets labeled with a “key” are powered when the ignition is in the ON or ACC position, while the outlets labeled with a “battery” are connected directly to the battery and powered at all times.
NOTE:
All accessories connected to the “battery” powered outlets should be removed or turned off when the vehicle is not in use to protect the battery against discharge.

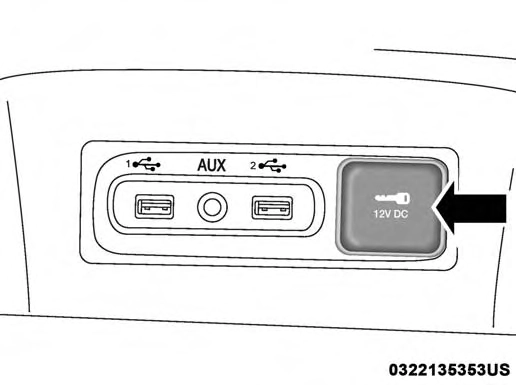

The front power outlet is located inside the storage area on the center stack of the instrument panel. Push inward on the storage lid to open the compartment and gain access to this power outlet.
Front Power Outlet

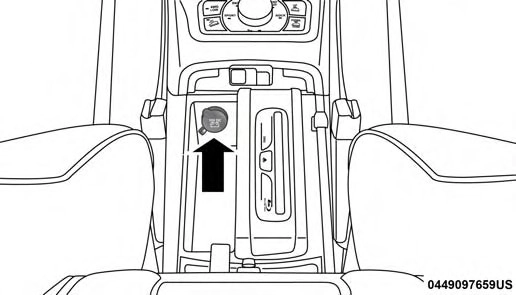

In addition to the front power outlet, there is also a power outlet located in the storage area of the center console.
Center Console Outlet

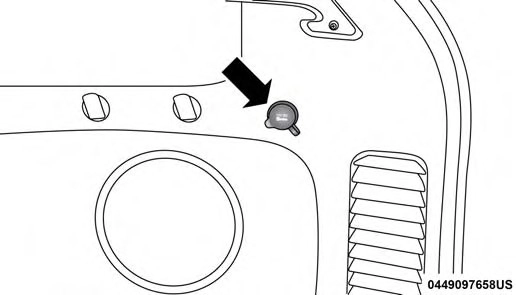

The rear power outlet is located in the right rear cargo area.
Rear Cargo Power Outlet
NOTE: The rear power outlet can be switched from switched “ignition” only to constant “battery” powered all the time. See your local authorized dealer for details.

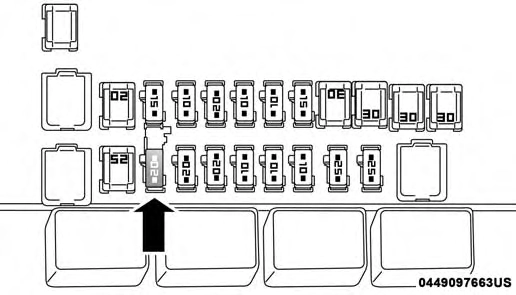

Power Outlet Right Rear Quarter Panel Fuse

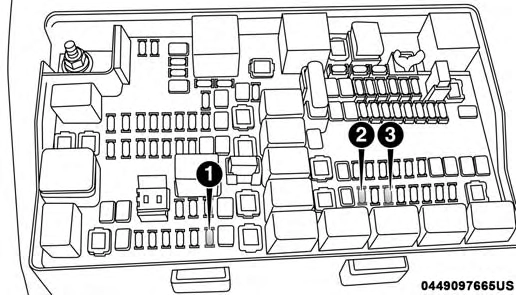

Power Outlet Fuse Locations
There is a 115 Volt, 150 Watt inverter outlet located on the back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electronics
and other low power devices requiring power up to 150 Watts.
NOTE: Certain high-end video game consoles, new com- puters and power tools will exceed this power limit.

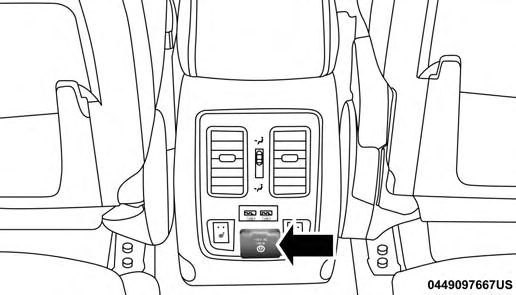

Power Inverter
The power inverter is designed with built-in overload protection. If the power rating of 150 Watts is exceeded, the power inverter will automatically shut down. Once the electrical device has been removed from the outlet, the inverter should automatically reset. To avoid overloading the circuit, check the power ratings on electrical devices prior to using the inverter.
At the front of the console, a compartment is provided for storing a pair of sunglasses. The storage compartment access is a “push/push” design. Push the chrome pad on the door to open. Push the chrome pad on the door to close.
Sunglasses Bin Door
