OFF ROAD PAGES — IF EQUIPPED

Your vehicle is equipped with Off Road Pages, which provides the vehicle status while operating on off road conditions. It supplies information relating to the vehicle ride height, the status of the transfer case, the pitch and roll of the vehicle (if equipped), and the active Selec-Terrain mode.

To access Off Road Pages, press the “Apps” button on the touchscreen, and then select “Off Road Pages”.

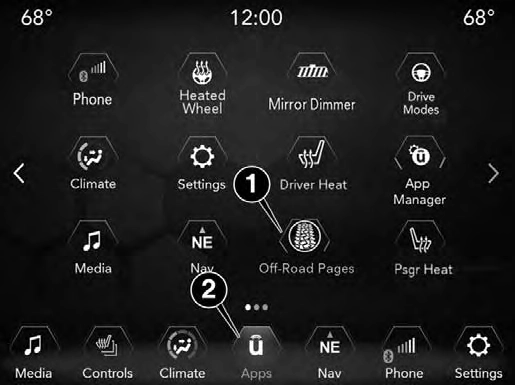

Main Menu

10

— Off Road Pages App

— Uconnect Apps Button

Off Road Pages has the following selectable pages:

Vehicle Dynamics

Suspension

Pitch and Roll — If Equipped

Accessory Gauge

Selec-Terrain — If Equipped

The Off Road Pages Status Bar is located along the bottom of Off Road Pages and is present in each of the five selectable page options. It provides continually updating information for the following items:

Current Transfer Case Status (only appears when in 4WD LOW)

Current Selec-Terrain mode — If Equipped

Current Latitude/Longitude

Current Altitude of the vehicle

Status of Hill Descent

Selec-Speed Control and Selected Speed in MPH (km/h)

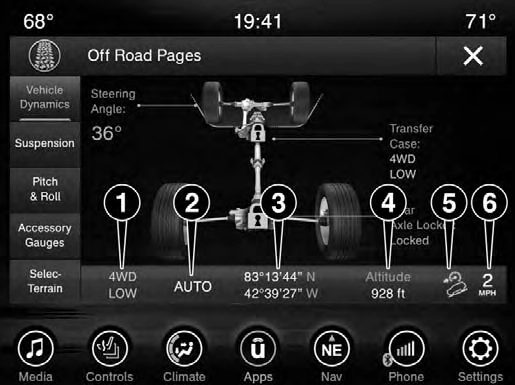

Status Bar

1 — Transfer Case Status (Only When In 4WD LOW) 2 — Selec-Terrain Mode — If Equipped

3 — Current Latitude/Longitude 4 — Current Altitude

— Hill Descent

— Selec-Speed Status And Set Speed

The Vehicle Dynamics page displays information concern- ing the vehicle’s drivetrain.

The following information is displayed:

Steering angle in degrees

Status of Transfer case

Status of the Rear Axles — If Equipped

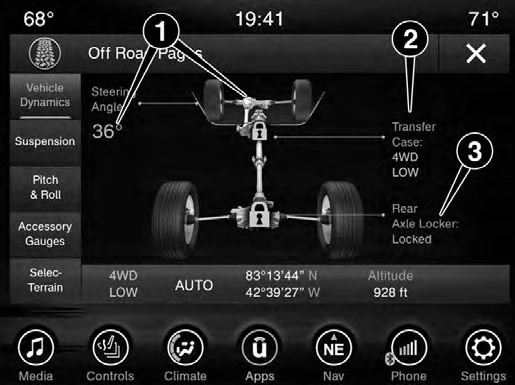

Vehicle Dynamics Menu

10

— Steering Angle

— Transfer Case Status

— Rear Axle Locker Status

The Suspension page displays information concerning the vehicle’s suspension.

The following information is displayed:

Suspension Articulation Indicator

Current Ride Height Status — If Equipped

Normal

Off Road 1

Off Road 2

Entry/Exit

Aero

NOTE: The wheel articulation will be represented by a yellow color in the Suspension Articulation Indicator. If Ride Height is adjusted, the Ride Height indicator on the screen will switch to the appropriate height and the Suspension Articulation Indicator will show the movement and change in height.

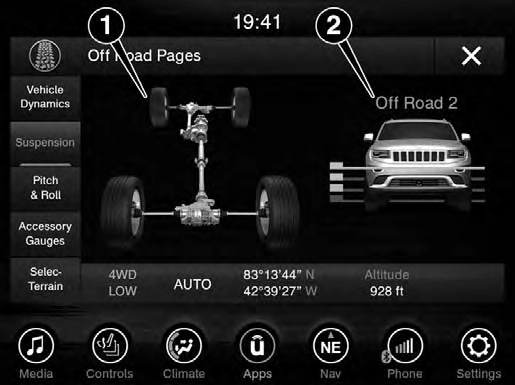

Suspension Menu

1 — Suspension Articulation Indicator 2 — Current Ride Height

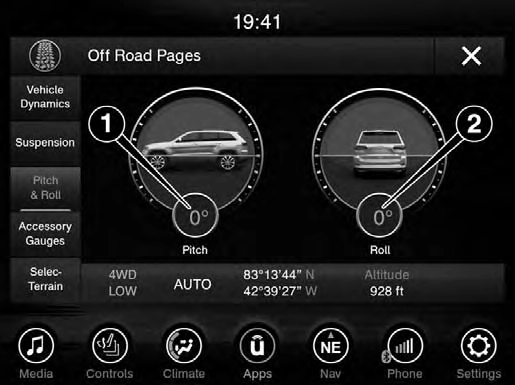

The Pitch And Roll page displays the vehicle’s current pitch (angle up and down) and roll (angle side to side) in degrees. The pitch and roll gauges provide a visualization of the current vehicle angle.

10

1 — Current Pitch 2 — Current Roll

Pitch And Roll Menu

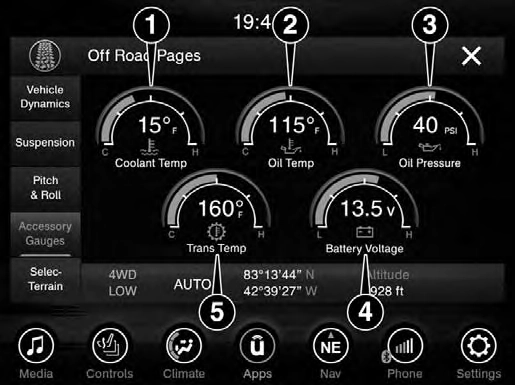

The Accessory Gauges page displays the current status of the vehicle’s Coolant Temperature, Oil Temperature, Oil Pressure (Gas Vehicles Only), Transmission Temperature, and Battery Voltage.

Accessory Gauges Menu

1 — Coolant Temperature 2 — Oil Temperature

3 — Oil Pressure (Gas Vehicles Only) 4 — Battery Voltage

5 — Transmission Temperature

The Selec-Terrain page displays the current Selec-Terrain mode through a high resolution image. Adjusting the Selec-Terrain mode will alter the image on the screen. The vehicle must be in the ON/RUN position to display Selec-Terrain information.

The selectable modes are as follows:

Snow

Sand

Auto — Default

Mud

Rock — Vehicle Must Be In 4 Wheel Drive Low

NOTE: While in the Selec-Terrain pages, the Off Road

Current Selec-Terrain Mode 10

Pages Status Bar will also display the current Selec-Terrain mode.
