INSTRUMENT CLUSTER

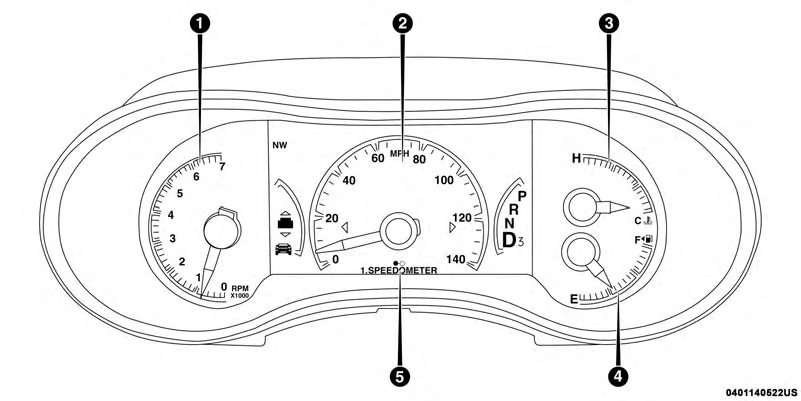

Instrument Cluster
Indicates the engine speed in revolutions per minute (RPM x 1000).
The temperature gauge shows engine coolant tem- perature. Any reading within the normal range indi- cates that the engine cooling system is operating satisfactorily.
The gauge pointer will likely indicate a higher tem- perature when driving in hot weather or up mountain grades. It should not be allowed to exceed the upper limits of the normal operating range.
The pointer shows the level of fuel in the fuel tank when the ignition is in the ON/RUN position.
The fuel pump symbol points to the side of the vehicle where the fuel door is located.
The instrument cluster display features a driver- interactive display. Refer to “Instrument Cluster Dis- play” in “Getting To Know Your Instrument Panel” for further information.
