UCONNECT SETTINGS
The Uconnect system uses a combination of buttons on the touchscreen and buttons on the faceplate located on the center of the instrument panel that allows you to access and change the customer programmable features. Many features can vary by vehicle.
9

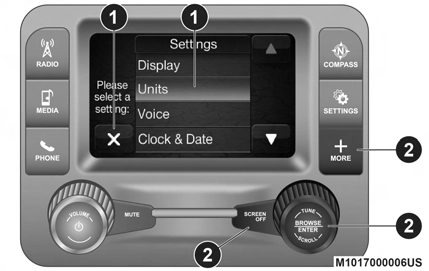

Uconnect 3 With 5-inch Display Buttons On The Touchscreen And Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen 2 — Uconnect Buttons On The Faceplate
Push the MORE or SETTINGS button on the faceplate, then press the Settings button on the touchscreen (if equipped) to display the Settings menu screen. In this mode, the Uconnect system allows you to access programmable features that may be equipped such as Display, Units, Voice, Clock, Safety & Driving Assistance, Brakes, Lights, Doors & Locks, Power Side Steps (if equipped), Auto-On Comfort (if equipped), Engine Off Options, Suspension (if equipped), Trailer Brake, Audio, Phone/Bluetooth®, SiriusXM® Setup (if equipped), Restore Settings, Clear Personal Data, and System Informa- tion.
NOTE:
Only one category may be selected at a time.
When making a selection, press the button on the touch- screen to enter the desired mode. Once in the desired mode, press and release the preferred setting until the button is highlighted. Once the setting is complete, either press the Back arrow or the Done button on the touchscreen. Pressing the Up or Down arrow buttons on the touchscreen on the right side of the screen will allow you to toggle up or down through the list of available settings.
NOTE:
All settings should be changed with the ignition in the ON/ RUN position.
After pressing the Language button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Set Language |
English |
Français |
Español |
|
NOTE: When the “Set Language” feature is selected, you may select one of multiple languages (English / Français / Español) for all display nomenclature, including the trip functions and the navigation system (if equipped). Press the Set Language button on the touchscreen, and then press the desired language button on the touchscreen until a check-mark appears next to the language, showing that setting has been selected. |
After pressing the Display button on the touchscreen, the following settings will be available.
9
After pressing Units on the touchscreen, the following will be available:
|
Setting Name |
Selectable Options |
||
|
Units |
US |
Metric |
Custom |
After pressing the Voice button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Voice Response Length |
Brief |
Detailed |
|
|
Show Command List |
Always |
With Help |
Never |
After pressing the Clock button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Set Time |
12 hour |
24 hour |
|
NOTE: Within the “Set Time” feature, press the corresponding arrow above and below the current time to adjust, and then select “AM” or “PM”. |
After pressing the Safety/Assistance button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
ParkView Backup Camera Active Guidelines |
On |
Off |
|
NOTE: Your vehicle may be equipped with the ParkView Backup Camera Active Guidelines that allows you to see active guidelines over the ParkView Back up camera display whenever the gear selector is put into REVERSE. The image will be displayed on the radio touchscreen display along with a caution note to “check entire surroundings” across the top of the screen. After five seconds, this note disappears. |
||
|
ParkView Backup Camera Delay |
On |
Off |
|
NOTE: When the vehicle is shifted out of REVERSE (with camera delay turned OFF), the rear camera mode is exited and the navi- gation or audio screen appears again. When the vehicle is shifted out of REVERSE (with camera delay turned ON), the rear view image with dynamic grid lines will be displayed for up to 10 seconds after shifting out of REVERSE unless the forward vehicle speed exceeds 8 mph (12 km/h), the transmission is shifted into PARK or the ignition is switched to the OFF position. |
||
|
Rain Sensing Auto Wipers — If Equipped |
On |
Off |
|
NOTE: When the “Rain Sensing Auto Wipers” feature is selected, the system automatically activates the windshield wipers if it senses moisture on the windshield. |
||
|
Trailer Length For Blind Spot Alert — If Equipped |
Auto |
Max (39.5 feet) |
|
Hill Start Assist — If Equipped |
On |
Off |
|
NOTE: When the “Hill Start Assist” feature is selected, the Hill Start Assist (HSA) system becomes active. |
After pressing the Brakes button on the touchscreen, the following setting will be available:
|
Setting Name |
Selectable Options |
|
|
Brake Service |
Yes |
No |
|
NOTE: Selecting the “Brake Service” feature will display a pop-up asking whether or not you would like to retract the park brakes to all brake system service. |
||
|
Auto Park Brake |
On |
Off |
After pressing the Lights button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
Auto Dim High Beams — If Equipped |
On |
Off |
|
Flash Lights With Lock |
On |
Off |
|
NOTE: When the “Flash Lights With Lock” feature is selected, the exterior lights flash when the doors are locked or unlocked with the key fob. This feature may be selected with or without the sound horn on lock feature selected. |
||
|
Steering Directed Lights — If Equipped |
On |
Off |
|
NOTE: When the “Steering Directed Lights” feature is selected, the headlights turn with the direction of the steering wheel. |
After pressing the Doors & Locks button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Auto Door Locks — If Equipped |
On |
Off |
|
NOTE: When the “Auto Door Locks” feature is selected, all doors lock automatically when the vehicle reaches a speed of 15 mph (24 km/h). |
9
|
Setting Name |
Selectable Options |
|
|
Passive Entry — If Equipped |
On |
Off |
|
NOTE: The “Passive Entry” feature allows you to lock and unlock the vehicle's door(s) without having to push the key fob lock or unlock buttons. It automatically unlocks the doors when the outside door handle is grabbed. |
||
|
Flash Lights With Lock |
On |
Off |
|
NOTE: When the “Flash Lights With Lock” feature is selected, the exterior lights flash when the doors are locked or unlocked with the key fob. This feature may be selected with or without the “Sound Horn With Lock” feature selected. |
After pressing the Power Side Steps button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Power Side Steps |
Automatic |
Stow |
After pressing the Auto-On Comfort button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Auto-On Driver Heated/ Ventilated Seat & Steering Wheel With Vehicle Start — If Equipped |
Off |
Remote Start Only |
All Starts |
|
NOTE: When the “Auto-On Driver Heated/Ventilated Seat & Steering Wheel With Vehicle Start” feature is selected, the driver's heated seat and heated steering wheel will automatically turn on when temperatures are below 40°F (4.4°C). When tempera- tures are above 80°F (26.7°C), the driver vented seat will turn on. |
After pressing the Engine Off Options button on the touchscreen, the following settings will be available:
9
After pressing the Suspension button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Sound Horn With Lower |
On |
Off |
|
Flash Lights With Lower |
On |
Off |
|
Auto Entry/Exit Suspension |
On |
Off |
|
NOTE: When the “Auto Entry/Exit Suspension” feature is selected, the vehicle automatically lowers from ride height position when vehicle shifted to park for easy entry/exit. |
||
|
Display Suspension Messages |
All |
Warning Only |
|
Automatic Aero Mode |
On |
Off |
|
NOTE: When the “Automatic Aero Mode” feature is selected, the Ride Height will automatically be adjusted depending on the vehicle speed. |
||
|
Tire Jack Mode |
On |
Off |
|
NOTE: When this feature is selected, the air suspension system is disabled to prevent auto leveling of the suspension while the vehicle is on a jack changing a tire. |
||
|
Transport Mode |
On |
Off |
|
NOTE: When the “Transport Mode” feature is selected, the air suspension system is disabled to assist with flat bed towing. |
|
Setting Name |
Selectable Options |
|
|
Wheel Alignment Mode |
On |
Off |
|
NOTE: The “Wheel Alignment Mode” feature prevents auto leveling of the air suspension while performing a wheel alignment service. Before performing a wheel alignment, this mode must be enabled. Refer to an authorized dealer for further informa- tion. |
After pressing the Trailer Brake button on the touchscreen, the following settings will be available:
9
After pressing the Audio button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|||
|
Balance/Fade |
Front |
Back |
Left |
Right |
|
NOTE: The “Balance/Fade” feature allows you to adjust the Balance and Fade settings. Press and drag the speaker icon or use the arrows to adjust, tap the C icon to readjust to the center. |
||||
|
Equalizer |
+ |
– |
||
|
NOTE: When in the “Equalizer” display, you may adjust the Bass, Mid and Treble settings. |
||||
|
Speed Adjusted Volume |
Off |
1 |
2 |
3 |
|
NOTE: The “Speed Adjusted Volume” feature increases or decreases volume relative to vehicle speed. |
||||
|
Surround Sound — If Equipped |
On |
Off |
||
|
NOTE: The “Surround Sound” feature provides simulated surround sound mode. |
|
Setting Name |
Selectable Options |
|
|
AUX Volume Offset — If Equipped |
On |
Off |
|
NOTE: The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through the AUX input. |
||
|
Loudness — If Equipped |
On |
Off |
|
NOTE: The “Loudness” feature improves sound quality at lower volumes. |
After pressing the Phone/Bluetooth® button on the touchscreen, the following settings will be available:
9
After pressing the SiriusXM® Setup button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Tune Start |
On |
Off |
|
Channel Skip |
List of Channels |
|
|
NOTE: SiriusXM® can be programmed to exclude undesirable channels while scanning. To make your selection, press the Channel Skip button on the touchscreen, select the channels you would like to skip. |
||
|
Subscription Information |
Sirius ID |
|
|
NOTE: New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM® Satellite Radio with your radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription Information screen to re-subscribe. Press the Subscription Information button on the touchscreen to access the Subscription Information screen.
Write down the SIRIUS ID numbers for your receiver. To reactivate your service, either call the number listed on the screen or visit the provider online.
|
After pressing the Restore Settings button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Restore Settings |
Yes |
Cancel |
|
NOTE: When the “Restore Settings” feature is selected, it will reset the Display, Clock, Audio, and Radio Settings to their default settings. If “Yes” is selected, a pop-up will appear asking "Are you sure you want to reset your settings to default?” Select “Yes” to restore or “Cancel” to exit. |
After pressing the Clear Personal Data Settings button on the touchscreen, the following settings will be available:
9

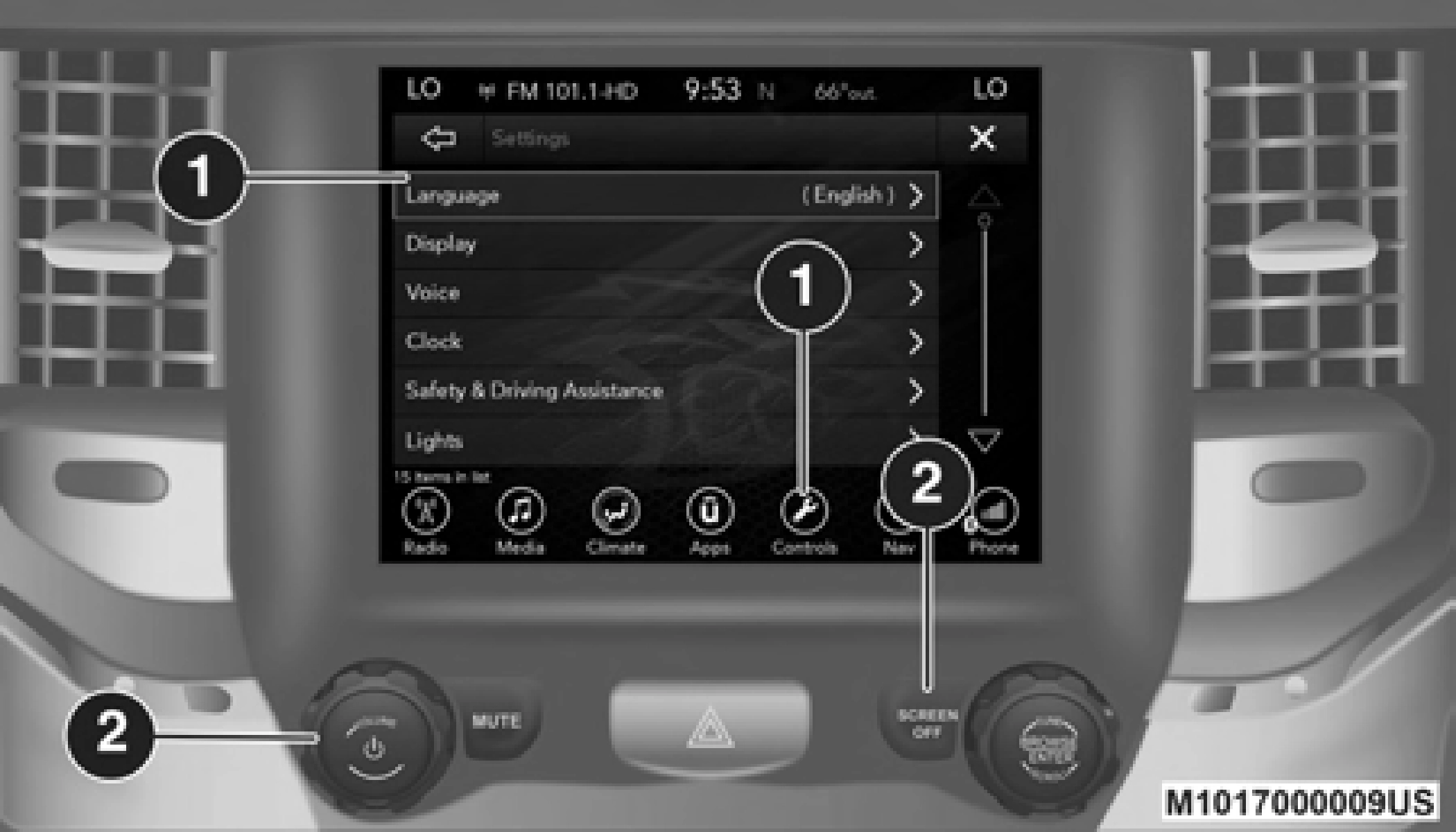

Uconnect 4/4C/4C NAV With 8.4-inch Display Buttons On The Touchscreen And Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen 2 — Uconnect Buttons On The Faceplate
Press the Apps button on the touchscreen then press the Settings button on the touchscreen to display the Settings menu screen. In this mode the Uconnect system allows you to access programmable features that may be equipped such as Language, Display, Units, Voice, Clock, Camera, Safety & Driving Assistance, Mirrors & Wipers, Brakes, Lights, Doors & Locks, Power Side Steps (if equipped), Auto-On Comfort
(if equipped), Engine Off Options, Suspension, Trailer Brake, Audio, Phone/Bluetooth®, SiriusXM® Setup (if equipped), Restore Settings, and System Information.
NOTE:
Only one category may be selected at a time.
When making a selection, press the button on the touch- screen to enter the desired mode. Once in the desired mode, press and release the preferred setting until a check-mark appears next to the setting, showing that setting has been selected. Once the setting is complete, press the Back arrow button on the touchscreen to return to the previous menu or press the X button on the touchscreen to close out of the settings screen. Pressing the Up or Down Arrow buttons on the touchscreen on the right side of the screen will allow you to toggle up or down through the list of available settings.
NOTE:
All settings should be changed with the ignition in the ON/ RUN position.
After pressing the Language button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Set Language |
English |
Français |
Español |
|
NOTE: When the “Set Language” feature is selected, you may select one of multiple languages (English / Français / Español) for all display nomenclature, including the trip functions and the navigation system (if equipped). Press the Set Language button on the touchscreen, and then press the desired language button on the touchscreen until a check-mark appears next to the language, showing that setting has been selected. |
After pressing the Display button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
Display Brightness With Headlights OFF |
– |
+ |
|
NOTE: To make changes to the "Display Brightness with Headlights OFF" setting, the headlights must be off and the interior dimmer switch must not be in the "party" or "parade" positions. |
||
|
Set Theme — If Equipped |
Pre-configured Themes |
|
|
Touchscreen Beep |
On |
Off |
|
Controls Screen Time-Out — If Equipped |
On |
Off |
|
Fuel Saver Display in Cluster — If Equipped |
On |
Off |
|
NOTE: When selected, the system displays fuel saver mode in the instrument cluster. |
||
|
Navigation Next Turn Pop-ups Displayed In Cluster — If Equipped |
On |
Off |
|
Phone Pop-ups Displayed in Cluster — If Equipped |
On |
Off |
After pressing the Units button on the touchscreen, you may select each unit of measure independently displayed in the instru- ment cluster display and navigation system (if equipped). The following selectable units of measure are listed below:
|
Setting Name |
Selectable Options |
|||
|
Units |
US |
Metric |
Custom |
|
|
NOTE: When the “Custom” setting is selected, units will appear according to your personally configured settings. To configure these settings, press the “Custom” bar. The following settings will appear: |
||||
|
Speed |
MPH |
km/h |
||
|
Distance |
mi |
km |
||
|
Fuel Consumption |
MPG (US) |
MPG (UK) |
L/100 km |
km/L |
|
Pressure |
PSI |
kPa |
bar |
|
|
Temperature |
°F |
°C |
After pressing the Voice button on the touchscreen, the following settings will be available: 9
After pressing the Clock button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Sync Time With GPS — If Equipped |
On |
Off |
|
Set Time Hours |
– |
+ |
|
Set Time Minutes |
– |
+ |
|
Time Format |
12 hrs |
24 hrs |
|
AM |
PM |
|
|
Show Time In Status Bar — If Equipped |
On |
Off |
|
NOTE: The “Show Time In Status Bar” feature allows you to turn on or shut off the digital clock in the status bar. |
After pressing the Camera button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
ParkView Backup Camera Delay |
On |
Off |
|
NOTE: The “ParkView Backup Camera Delay” setting determines whether or not the screen will display the rear view image with dynamic grid lines for up to 10 seconds after the vehicle is shifted out of REVERSE. This delay will be canceled if the vehicle's speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to the OFF position. |
|
Setting Name |
Selectable Options |
|
|
Active Parkview Backup Camera Guidelines |
On |
Off |
|
NOTE: The “Active ParkView Backup Camera Guide Lines” feature overlays the Rear Backup Camera image with active, or dynamic, grid lines to help illustrate the width of the vehicle and its projected backup path, based on the steering wheel posi- tion when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist with parking or aligning to a hitch/receiver. |
||
|
Fixed Parkview Backup Camera Guidelines |
On |
Off |
After pressing the Safety & Driving Assistance button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
||
|
Lane Sense Warning — If Equipped |
Early |
Med |
Late |
|
NOTE: Sets what distance the steering wheel provides feedback for potential lane departures. |
|||
|
Lane Sense Strength — If Equipped |
Low |
Med |
High |
|
ParkSense |
Sound Only |
Sound & Display |
|
|
NOTE: The Rear Park Assist system scans for objects behind the vehicle when the transmission gear selector is in REVERSE and the vehicle speed is less than 7 mph (11 km/h). |
|||
|
Front ParkSense Volume — If Equipped |
Low |
Med |
High |
|
Rear ParkSense Volume — If Equipped |
Low |
Med |
High |
|
Rear ParkSense Braking Assist — If Equipped |
On |
Off |
|
|
Power Side Steps — If Equipped |
Auto |
Store |
|
|
Blind Spot Alert — If Equipped |
Off |
Lights |
Lights & Chime |
|
NOTE: Brakes the vehicle while in reverse if potential rear collision is detected. |
|
Setting Name |
Selectable Options |
|
|
Trailer Length For Blind Spot Alert — If Equipped |
Auto |
Max (39.5 feet) |
|
NOTE: Auto detects the length of the trailer. Max sets all trailers to 39.5 ft (12 m). |
||
|
Hill Start Assist — If Equipped |
On |
Off |
|
Tire Fill Assist — If Equipped |
On |
Off |
After pressing the Mirrors & Wipers button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
Rain Sensing Auto Wipers — If Equipped |
On |
Off |
|
NOTE: Automatically adjusts the wiper speed based on the amount of precipitation. |
||
|
Headlights with Wipers |
On |
Off |
After pressing the Brakes button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Brake Service |
Yes |
No |
|
NOTE: Selecting the “Brake Service” feature will display a pop-up asking whether or you would like to retract the park brakes to all brake system service. |
||
|
Auto Park Brake |
On |
Off |
After pressing the Lights button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
Daytime Running Lights — If Equipped |
On |
Off |
|
NOTE: When the “Daytime Running Light” feature is selected, the daytime running lights can be turned on or off. This feature is only allowed by law in the country of the vehicle purchase. |
||
|
Flash Lights With Lock |
On |
Off |
|
NOTE: When the “Flash Lights With Lock” feature is selected, the exterior lamps flash when the doors are locked or unlocked with the key fob. This feature may be selected with or without the sound horn on lock feature selected. |
After pressing the Doors & Locks button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Auto Door Locks — If Equipped |
On |
Off |
|
NOTE: When the “Auto Door Locks” feature is selected, all doors lock automatically when the vehicle reaches a speed of 15 mph (24 km/h). |
|
Setting Name |
Selectable Options |
||
|
Auto Unlock On Exit |
On |
Off |
|
|
NOTE: When the “Auto Unlock On Exit” feature is selected, all doors unlock when the vehicle is stopped and the transmission is in the PARK or NEUTRAL position and the driver's door is opened. |
|||
|
Flash Lights With Lock |
On |
Off |
|
|
NOTE: When the “Flash Lights With Lock” feature is selected, the front and rear turn signals flash when the doors are locked or unlocked with the key fob. This feature may be selected with or without the “Sound Horn With Lock” feature selected. |
|||
|
Sound Horn With Lock |
Off |
1st Press |
2nd Press |
|
Sound Horn With Remote Start |
On |
Off |
9
|
Setting Name |
Selectable Options |
|
|
1st Press Of Key Fob Unlocks |
Driver Door |
All Doors |
|
NOTE: When “1st Press Of Key Fob Unlocks: Driver Door” is selected, only the driver's door unlocks on the first press of the key fob unlock button. You must push the key fob unlock button twice to unlock the passengers' doors.
When “All Doors” is selected, all of the doors unlock on the first push of the key fob unlock button.
If the vehicle is programmed “1st Press Of Key Fob Unlocks: All Doors”, all doors will unlock no matter which Passive Entry equipped door handle is grasped. If “1st Press Of Key Fob Unlocks: Driver Door” is programmed, only the driver's door will unlock when the driver's door is grasped.
With Passive Entry, if “1st Press Of Key Fob Unlocks: Driver Door” is programmed pushing the handle more than once only results in the driver's door opening. If “Driver Door” is selected, once the driver's door is opened, the interior door lock/unlock switch can be used to unlock all doors (or use key fob).
|
||
|
Passive Entry — If Equipped |
On |
Off |
|
NOTE: The “Passive Entry” feature allows you to lock and unlock the vehicle's door(s) without having to push the key fob lock or unlock buttons. |
|
Setting Name |
Selectable Options |
|
|
Personal Settings Linked To Key Fob — If Equipped |
On |
Off |
|
NOTE: The “Personal Settings Linked To Key Fob” feature provides automatic driver seat positioning to enhance driver mobility when entering and exiting the vehicle.
The seats return to the memorized seat location (if “Personal Settings Linked To Key Fob” is set to on) when the key fob is used to unlock the door.
|
After pressing the Power Side Steps button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Power Side Steps |
Automatic |
Stow |
9
After pressing the Auto-On Comfort button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Auto-On Driver Heated/ Ventilated Seat & Steering Wheel With Vehicle Start — If Equipped |
Off |
Remote Start |
All Starts |
|
NOTE: When the “Auto-On Driver Heated/Ventilated Seat & Steering Wheel With Vehicle Start” feature is selected, the driver's heated seat and heated steering wheel will automatically turn on when temperatures are below 40°F (4.4°C). When tempera- tures are above 80°F (26.7°C), the driver vented seat will turn on. |
After pressing the Engine Off Options button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Engine Off Power Delay |
– |
+ |
|
NOTE: When the “Engine Off Power Delay” feature is selected, the power window switches, radio, Uconnect phone system (if equipped), power sunroof (if equipped), and power outlets will remain active for up to 10 minutes after the ignition is cycled to OFF. Opening either front door will cancel this feature. |
|
Setting Name |
Selectable Options |
|
|
Headlight Off Delay |
– |
+ |
|
NOTE: When the “Headlight Off Delay” feature is selected, the driver can choose to have the headlights remain on for 0, 30, 60, or 90 seconds when exiting the vehicle. |
||
|
Auto Entry/Exit — If Equipped |
On |
Off |
|
Easy Exit Seat — If Equipped |
On |
Off |
|
NOTE: When the “Easy Exit Seat” feature is selected, the Driver's seat will automatically move rearward once the engine is shut off. |
After pressing the Suspension button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
Display Suspension Messages |
All |
Warnings Only |
|
Aero Mode |
On |
Off |
|
NOTE: When the “Automatic Aero Mode” feature is selected, the Ride Height will automatically be adjusted depending on the vehicle speed. |
||
|
Tire Jack Mode |
On |
Off |
|
NOTE: When the “Tire Jack Mode” feature is selected, the air suspension system is disabled to assist with changing a spare tire. |
||
|
Transport Mode |
On |
Off |
|
NOTE: When the “Transport Mode” feature is selected, the air suspension system lowers and then disables to assist with flat bed towing. |
||
|
Wheel Alignment Mode |
On |
Off |
|
NOTE: Before performing a wheel alignment, the “Wheel Alignment Mode” must be enabled. Refer to an authorized dealer for further information. |
|
Setting Name |
Selectable Options |
||
|
Four Corner Air Suspension Modes — If Equipped |
Tire Jack Mode |
Transport Mode |
Wheel Alignment Mode |
|
NOTE: There are four air suspension modes designed to protect the system in unique situations. Tire Jack Mode is selected to assist in changing a spare tire. Transport Mode is selected to assist when the vehicle is being flat bed towed. Wheel Alignment Mode is selected before performing a wheel alignment, refer to an authorized dealer for information. |
After pressing the Trailer button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|||
|
Trailer |
Trailer 1 |
Trailer 2 |
Trailer 3 |
Trailer 4 |
Once selecting the specific trailer, the following programmable options become available:
9
|
Setting Name |
Selectable Options |
|
|
Tire Pressure |
Are you sure you want to delete the Tire Pressure Settings for Trailer 1? |
|
|
Yes |
No |
|
|
Number Of Axles |
||
|
+ |
- |
|
|
Number Of Tires |
||
|
+ |
- |
|
|
NOTE: After pressing Next, the Target Pressure screen appears. The default for this option is 50 PSI (344 kPa), however the range is selectable anywhere between 25–125 PSI (172–862 kPa). Once PSI (kPa) is programmed the pairing screen appears. Tire sensors must be paired in order shown. Starting with Tire 1, deflate tire by 5 PSI (34 kPa) and wait for a horn chirp. Repeat process until complete. Do not exit the pairing screen until process is complete. If pairing has been unsuccessful, a double horn chirp will sound, and a prompt on the touchscreen will allow you to retry the procedure “Retry” will only appear when setup fails. Each tire must be successfully paired during a single pairing process to receive the success screen. |
||
|
Trailer Name |
List of Trailer Names |
|
|
NOTE: You can select and personalize your trailer name depending on the type of trailer you are hauling. Select the trailer name from the following list: trailer, boat, car, cargo, dump, equipment, flatbed, gooseneck, horse, livestock, motorcycle, snowmo- bile, travel, utility, and 5th wheel. |
NOTE:
For further information about Trailer Tire Pressure Monitoring, refer to ”Auxiliary Driving Systems” in “Safety.”
After pressing the Audio button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
AUX Volume Offset — If Equipped |
On |
Off |
|
NOTE: The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through the AUX input. |
||
|
Auto Play |
On |
Off |
After pressing the Phone/Bluetooth® Settings button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Phone Pop-ups Displayed in Cluster — If Equipped |
On |
Off |
|
Do Not Disturb |
List of Settings |
|
|
NOTE: Press “Do Not Disturb” to access the available settings. The following settings are: Auto Reply (both, text, call), Auto Reply Message (custom, default) and Custom Auto Reply Message (create message). |
||
|
Paired Phones and Audio Devices |
List Of Paired Phones and Audio Sources |
|
|
NOTE: The “Paired Phones and Audio Devices” feature shows which phones and audio sources are paired to the Phone and Audio Sources Settings system. For further information, refer to the Uconnect Owner's Manual Supplement. |
||
|
Smartphone Projection Manager |
On |
Off |
After pressing the SiriusXM® Setup button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Tune Start |
On |
Off |
|
NOTE: The “Tune Start” feature begins playing the current song from the beginning when you tune to a music channel using one of the twelve presets, so you can enjoy the complete song. This feature occurs the first time the preset is selected during that current song. Tune Start works in the background, so you will not even realize it's on, except that you will miss the experience of joining your favorite song with only a few seconds left to play. |
||
|
Channel Skip |
List of Channels |
|
|
NOTE: SiriusXM® can be programmed to designate a group of channels that are the most desirable to listen to or to exclude unde- sirable channels while scanning. This feature allows you to select the channels you would like to skip. |
9
|
Setting Name |
Selectable Options |
|
Subscription Information |
Sirius ID |
|
NOTE: New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM® Satellite Radio with your radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription Information screen to re-subscribe. Press the Subscription Information button on the touchscreen to access the Subscription Information screen.
Write down the Sirius ID numbers for your receiver. To reactivate your service, either call the number listed on the screen or visit the provider online.
SiriusXM® Travel Link is a separate subscription. |
After pressing the System Information button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
Software License |
System Software Information Screen |
|
NOTE: When the “Software License” feature is selected, a “System Software Information” screen will appear, displaying the system software version. |
After pressing the Reset button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Reset App Drawer |
OK |
Cancel |
After pressing the Restore Settings button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Restore Settings |
OK |
Cancel |
|
NOTE: When the “Restore Settings” feature is selected, it resets clock, audio, and other features to their default settings. |
After pressing the Clear Personal Data button on the touchscreen, the following settings will be available:
9

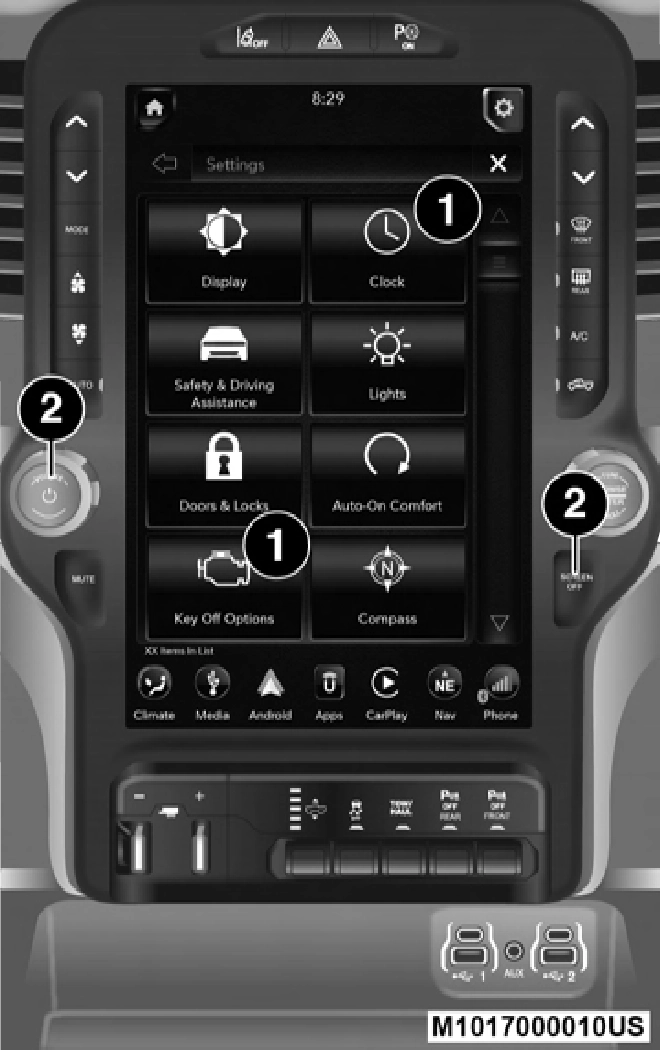

Uconnect 4C NAV With 12-inch Display Buttons On The Touchscreen And Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen 2 — Uconnect Buttons On The Faceplate
Press the Settings button on the touchscreen to display the Settings menu screen. In this mode the Uconnect system allows you to access programmable features that may be equipped such as Language, Display, Units, Voice Settings, Clock & Date, Camera, Safety & Driving Assistance, Mirrors and Wipers, Brakes, Lights, Doors & Locks, Auto-On Comfort & Remote Start (if equipped), Engine Off Options, Suspension, Trailer Brake, Audio Settings, Bluetooth®, Siri- usXM® Setup (if equipped), and Reset.
NOTE:
Only one category may be selected at a time.
When making a selection, press the button on the touch- screen to enter the desired mode. Once in the desired mode, press and release the preferred setting until a check-mark appears next to the setting, showing that setting has been selected. Once the setting is complete, press the Back arrow button on the touchscreen to return to the previous menu or press the X button on the touchscreen to close out of the settings screen. Pressing the Up or Down Arrow buttons on the touchscreen on the right side of the screen will allow you to toggle up or down through the list of available settings.
NOTE:
All settings should be changed with the ignition in the ON/ RUN position.
After pressing the Language button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Language |
English (US) |
Español |
Français |
|
NOTE: When the “Set Language” feature is selected, you may select one of multiple languages (English (US) / Français / Español) for all display nomenclature, including the trip functions and the navigation system (if equipped). Press the Set Language button on the touchscreen, and then press the desired language button on the touchscreen until a check-mark appears next to the language, showing that setting has been selected. |
After pressing the Display button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|
|
Display Brightness Headlight OFF |
- |
+ |
|
NOTE: To make changes to the "Display Brightness with Headlights OFF" setting, the headlights must be off and the interior dimmer switch must not be in the "party" or "parade" positions. |
||
|
Set Theme |
Pre-configured Themes |
|
|
Touchscreen Beep |
On |
Off |
|
Controls Screen Time-Out — If Equipped |
On |
Off |
|
Fuel Saver Display — If Equipped |
On |
Off |
|
NOTE: When selected, the system displays fuel saver mode in the instrument cluster. |
||
|
Navigation Turn-By-Turn Displayed in Cluster — If Equipped |
On |
Off |
|
Phone Pop-Ups Displays In Cluster |
On |
Off |
|
Ready To Drive Pop-Ups — If Equipped |
On |
Off |
After pressing Units on the touchscreen, the following will be available:
|
Setting Name |
Selectable Options |
|||
|
Units |
US |
Metric |
Custom |
|
|
NOTE: When the “Custom” setting is selected, units will appear according to your personally configured settings. To configure these settings, press the “Custom” bar. The following settings will appear: |
||||
|
Speed |
MPH |
km/h |
||
|
Distance |
mi |
km |
||
|
Fuel Consumption |
MPG (US) |
MPG (UK) |
L/100 km |
km/L |
|
Capacity |
Gal (US) |
Gal (UK) |
L |
|
|
Pressure |
psi |
kPa |
bar |
|
|
Temperature |
°F |
°C |
9
After pressing the Voice Settings button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Voice Response Length |
Brief |
Detailed |
|
|
Show Command List |
Never |
w/Help |
Always |
After pressing the Clock & Date button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Sync Time With GPS — If Equipped |
On |
Off |
|
Set Time Hours |
+ |
– |
|
Set Time Minutes |
+ |
– |
|
Time Format |
AM |
PM |
|
12 hrs |
24 hrs |
|
|
Show Time in Status Bar — If Equipped |
On |
Off |
After pressing the Camera button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Surround View Camera Delay |
On |
Off |
|
Surround View Camera Guidelines |
On |
Off |
|
Parkview Backup Camera Delay |
On |
Off |
|
NOTE: The “ParkView Backup Camera Delay” setting determines whether or not the screen will display the rear view image with dynamic grid lines for up to 10 seconds after the vehicle is shifted out of REVERSE. This delay will be canceled if the vehicle's speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to the OFF position. |
|
Setting Name |
Selectable Options |
|
|
Active Backup Camera Guidelines |
On |
Off |
|
NOTE: The “Active Backup Camera Guidelines” feature overlays the Rear Backup Camera image with active, or dynamic, grid lines to help illustrate the width of the vehicle and its project back up path, based on the steering wheel position when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist with parking or aligning to a hitch/ receiver. |
||
|
Fixed Backup Camera Guidelines |
On |
Off |
After pressing the Safety & Driving Assistance button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
||
|
Lane Sense Warning — If Equipped |
Early |
Med |
Late |
|
NOTE: Sets what distance the steering wheel provides feedback for potential lane departures. |
|||
|
Lane Sense Strength — If Equipped |
Low |
Med |
High |
|
ParkSense |
Sound Only |
Sound & Display |
|
|
NOTE: The Rear Park Assist system scans for objects behind the vehicle when the transmission gear selector is in REVERSE and the vehicle speed is less than 7 mph (11 km/h). |
|||
|
Front ParkSense Volume |
Low |
Med |
High |
|
Rear ParkSense Volume |
Low |
Med |
High |
|
Rear ParkSense Braking Assist |
On |
Off |
|
|
NOTE: Brakes the vehicle while in reverse if potential rear collision is detected. |
|||
|
Blind Spot Alert |
Off |
Lights |
Lights & Chime |
|
Trailer Length For Blind Spot Alert |
Auto |
Max (39.5 feet) |
|
|
NOTE: Auto detects the length of the trailer. Max sets all trailers to 39.5 ft (12 m). |
|
Setting Name |
Selectable Options |
|
|
Power Side Step — If Equipped |
Auto |
Store |
|
Hill Start Assist — If Equipped |
On |
Off |
|
Tire Fill Assist — If Equipped |
On |
Off |
After pressing the Mirror and Wipers button on the touchscreen, the following settings will be available:
9
After pressing the Brake button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Brake Service |
Yes |
No |
|
NOTE: Selecting the “Brake Service” feature will display a pop-up asking whether or you would like to retract the park brakes to all break system service. |
||
|
Auto Park Brake |
On |
Off |
After pressing the Lights button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Headlight Off Delay |
- |
+ |
|
NOTE: When the “Headlight Off Delay” feature is selected, the driver can choose to have the headlights remain on for 0, 30, 60, or 90 seconds when exiting the vehicle. |
||
|
Headlight Illumination On Approach |
– |
+ |
|
NOTE: When the “Headlight Illumination On Approach” feature is selected, the headlights will activate and remain on for 0, 30, 60, or 90 seconds when the doors are unlocked with the key fob. |
9
After pressing the Doors & Locks button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Auto Door Locks |
On |
Off |
|
|
Auto Unlock On Exit |
On |
Off |
|
|
NOTE: When the “Auto Unlock On Exit” feature is selected, all doors unlock when the vehicle is stopped and the transmission is in the PARK or NEUTRAL position and the driver's door is opened. |
|||
|
Flash Lights With Lock |
On |
Off |
|
|
NOTE: When the “Flash Lights With Lock” feature is selected, the front and rear turn signals flash when the doors are locked or unlocked with the key fob. This feature may be selected with or without the “Sound Horn With Lock” feature selected. |
|||
|
Sound Horn With Lock — If Equipped |
Off |
1st Press |
2nd Press |
|
Sound Horn With Remote Start |
On |
Off |
|
Setting Name |
Selectable Options |
|
|
1st Press Of Key Fob Unlocks |
Driver Door |
All Doors |
|
NOTE: When “1st Press Of Key Fob Unlocks: Driver Door” is selected, only the driver's door unlocks on the first press of the key fob unlock button. You must push the key fob unlock button twice to unlock the passengers' doors.
When “All Doors” is selected, all of the doors unlock on the first push of the key fob unlock button.
If the vehicle is programmed “1st Press Of Key Fob Unlocks: All Doors”, all doors unlock no matter which Passive Entry equipped door handle is grasped. If “1st Press Of Key Fob Unlocks: Driver Door” is programmed, only the driver's door unlocks when the driver's door is grasped.
With Passive Entry, if “1st Press Of Key Fob Unlocks: Driver Door” is programmed pushing the handle more than once only results in the driver's door opening. If “Driver Door” is selected, once the driver's door is opened, the interior door lock/unlock switch can be used to unlock all doors (or use key fob).
|
||
|
Passive Entry — If Equipped |
On |
Off |
|
NOTE: The “Passive Entry” feature allows you to lock and unlock the vehicle's door(s) without having to push the key fob lock or unlock buttons. |
9
|
Setting Name |
Selectable Options |
|
|
Personal Settings Linked To Key Fob — If Equipped |
On |
Off |
|
NOTE: The “Personal Settings Linked To Key Fob” feature provides automatic driver seat positioning to enhance driver mobility when entering and exiting the vehicle.
The seats return to the memorized seat location (if “Personal Settings Linked To Key Fob” is set to on) when the key fob is used to unlock the door.
|
After pressing the Auto-On Comfort & Remote Start button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
||
|
Auto-On Driver Heated/ Vented Seat & Steering Wheel — If Equipped |
Off |
Remote Start |
All Starts |
|
NOTE: When the “Auto-On Driver Heated/Vented Seat & Steering Wheel” feature is selected, the driver's heated seat and heated steering wheel will automatically turn on when temperatures are below 40°F (4.4°C). When temperatures are above 80°F (26.7°C), the driver vented seat will turn on. |
After pressing the Engine Off Options button on the touchscreen, the following settings will be available:
9
After pressing the Suspension button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Sound Horn With Lower |
On |
Off |
|
NOTE: When the “Sound Horn With Lower” feature is selected, a short horn sound will occur when the key fob remote lower button is pushed. |
||
|
Flash Lights With Lower |
On |
Off |
|
NOTE: When the “Flash Lights With Lower” feature is selected, the front and rear turn signals will flash when the key fob remote lower button is pressed twice. This feature may be selected with or without the Sound Horn on Lower feature selected. |
||
|
Display Suspension Messages |
All |
Warning Only |
|
Aero Mode |
On |
Off |
|
NOTE: When the “Aero Mode” feature is selected, the Ride Height will automatically be adjusted depending on the vehicle speed. |
||
|
Tire Jack Mode |
On |
Off |
|
NOTE: When the “Tire Jack Mode” feature is selected, the air suspension system is disabled to assist with changing a spare tire. |
|
Setting Name |
Selectable Options |
||
|
Transport Mode |
On |
Off |
|
|
NOTE: When the “Transport Mode” feature is selected, the air suspension system lowers and then disables to assist with flat bed towing. |
|||
|
Wheel Alignment Mode |
On |
Off |
|
|
NOTE: Before performing a wheel alignment, the “Wheel Alignment Mode” must be enabled. Refer to an authorized dealer for further information. |
|||
|
Four Corner Air Suspension Modes — If Equipped |
Tire Jack Mode |
Transport Mode |
Wheel Alignment Mode |
|
NOTE: There are four air suspension modes designed to protect the system in unique situations. Tire Jack Mode is selected to assist in changing a spare tire. Transport Mode is selected to assist when the vehicle is being flat bed towed. Wheel Alignment Mode is selected before performing a wheel alignment, refer to an authorized dealer for information. |
After pressing the Trailer button on the touchscreen, the following settings will be available: 9
|
Setting Name |
Selectable Options |
|||
|
Trailer |
Trailer 1 |
Trailer 2 |
Trailer 3 |
Trailer 4 |
Once selecting the specific trailer, the following programmable options become available:
|
Setting Name |
Selectable Options |
|||||
|
Use This Trailer |
On |
Off |
||||
|
Braking |
Light Electric |
Surge |
None |
Light Electric Over Hydraulic |
Heavy Electric |
Heavy Electric Over Hydraulic |
|
Tire Pressure |
Are you sure you want to delete the Tire Pressure Settings for Trailer 1? |
|||||
|
Yes |
No |
|||||
|
Number Of Axles |
||||||
|
+ |
- |
|||||
|
Number Of Tires |
||||||
|
+ |
- |
|||||
|
NOTE: After pressing Next, the Target Pressure screen appears. The default for this option is 50 PSI (344 kPa), however the range is selectable anywhere between 25–125 PSI (172–862 kPa). Once PSI (kPa) is programmed the pairing screen appears. Tire sensors must be paired in order shown. Starting with Tire 1, deflate tire by 5 PSI (34 kPa) and wait for a horn chirp. Repeat process until complete. Do not exit the pairing screen until process is complete. If pairing has been unsuccessful, a double horn chirp will sound, and a prompt on the touchscreen will allow you to retry the procedure “Retry” will only appear when setup fails. Each tire must be successfully paired during a single pairing process to receive the success screen. |
|
Setting Name |
Selectable Options |
|
Trailer Name |
List of Trailer Names |
|
NOTE: You can select and personalize your trailer name depending on the type of trailer you are hauling. Select the trailer name from the following list: trailer, boat, car, cargo, dump, equipment, flatbed, gooseneck, horse, livestock, motorcycle, snowmo- bile, travel, utility, and 5th wheel. |
NOTE:
For further information about Trailer Tire Pressure Monitoring, refer to ”Auxiliary Driving Systems” in “Safety.”
After pressing the Audio button on the touchscreen, the following settings will be available:
9
|
Setting Name |
Selectable Options |
|||
|
Speed Adjusted Volume |
Off |
1 |
2 |
3 |
|
NOTE: The “Speed Adjusted Volume” feature increases or decreases volume relative to vehicle speed. |
||||
|
Surround Sound — If Equipped |
On |
Off |
||
|
NOTE: The “Surround Sound” feature provides simulated surround sound mode. |
||||
|
AUX Volume Offset — If Equipped |
On |
Off |
||
|
NOTE: The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through the AUX input. |
||||
|
Auto Play |
On |
Off |
After pressing the Bluetooth® button on the touchscreen, the following settings will be available:
9
After pressing the SiriusXM® Setup button on the touchscreen, the following settings will be available:
|
Setting Name |
Selectable Options |
|
|
Sirius All Access |
Choose a Subscription Package |
|
|
Add Listener |
Add up to five profiles |
|
|
NOTE: The “Add Listener” feature allows you to add up to five different profiles for customizing personal music or satellite radio choices. |
||
|
Listener Items |
Listening History |
List Of Options |
|
Tune Start |
On |
Off |
|
NOTE: The “Tune Start” feature begins playing the current song from the beginning when you tune to a music channel using one of the 12 presets, so you can enjoy the complete song. This feature occurs the first time the preset is selected during that current song. Tune Start works in the background, so you will not even realize it's on, except that you will miss the experience of joining your favorite song with only a few seconds left to play. |
||
|
Channel Skip |
List of Channels |
|
|
NOTE: SiriusXM® can be programmed to designate a group of channels that are the most desirable to listen to or to exclude unde- sirable channels while scanning. This feature allows you to select the channels you would like to skip. |
|
Setting Name |
Selectable Options |
|
Subscription Information |
Sirius ID |
|
NOTE: New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM® Satellite Radio with your radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription Information screen to re-subscribe. Press the Subscription Information button on the touchscreen to access the Subscription Information screen.
Write down the Sirius ID numbers for your receiver. To reactivate your service, either call the number listed on the screen or visit the provider online.
SiriusXM® Travel Link is a separate subscription. |
After pressing the Reset button on the touchscreen, the following settings will be available:
9
Download Manual
