REFUELING THE VEHICLE
The fuel filler is located behind the fuel filler door, on the left side of the vehicle.
There is no fuel filler cap. Two flapper doors inside the pipe seal the system.
Put the vehicle in park and switch the ignition off.
Push the center-rear edge of the fuel filler door (3 o'clock position) and release to open.

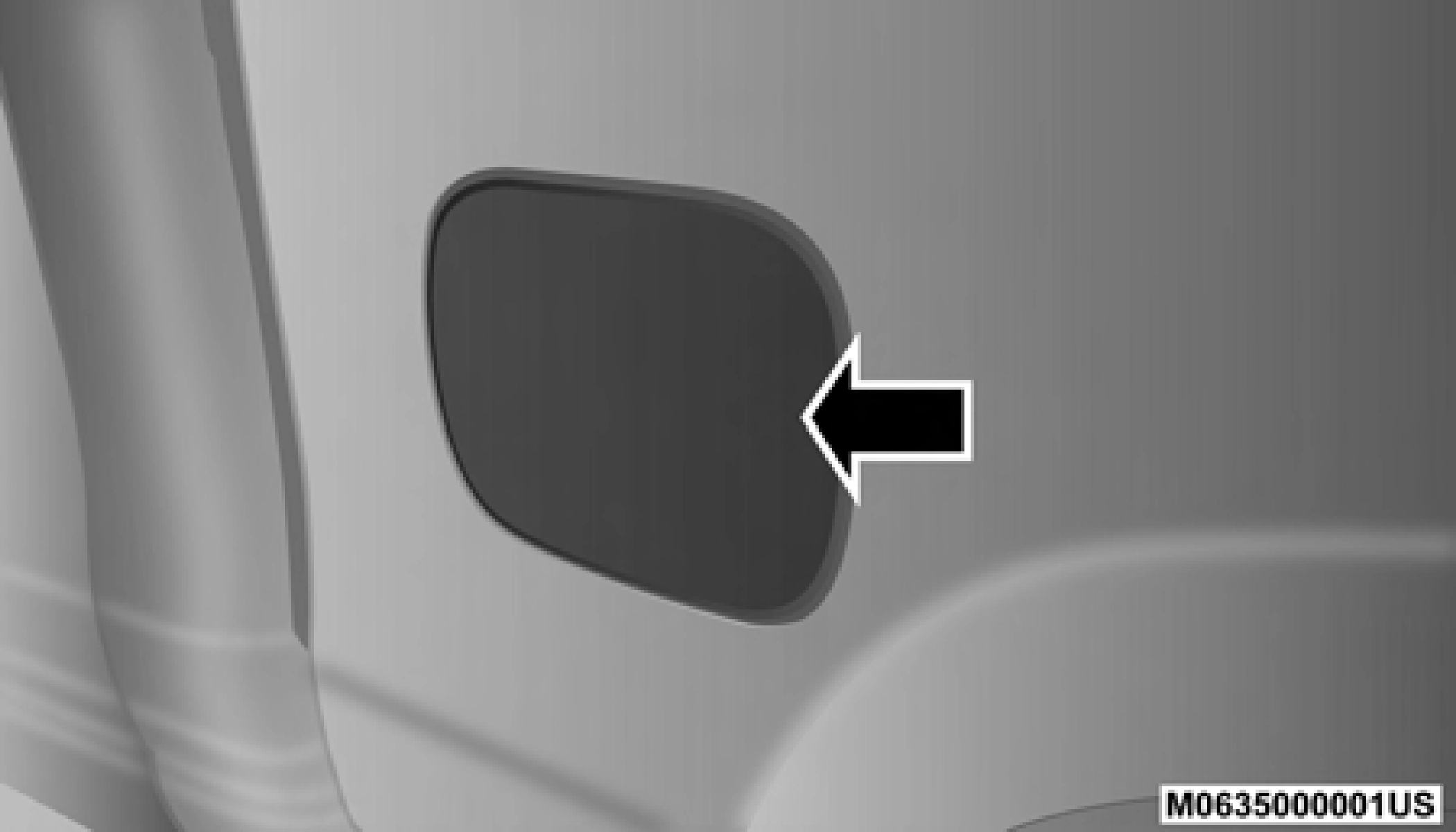

Fuel Filler Door
Insert the fuel nozzle fully into the filler pipe, the nozzle opens and holds both flapper doors while refueling.

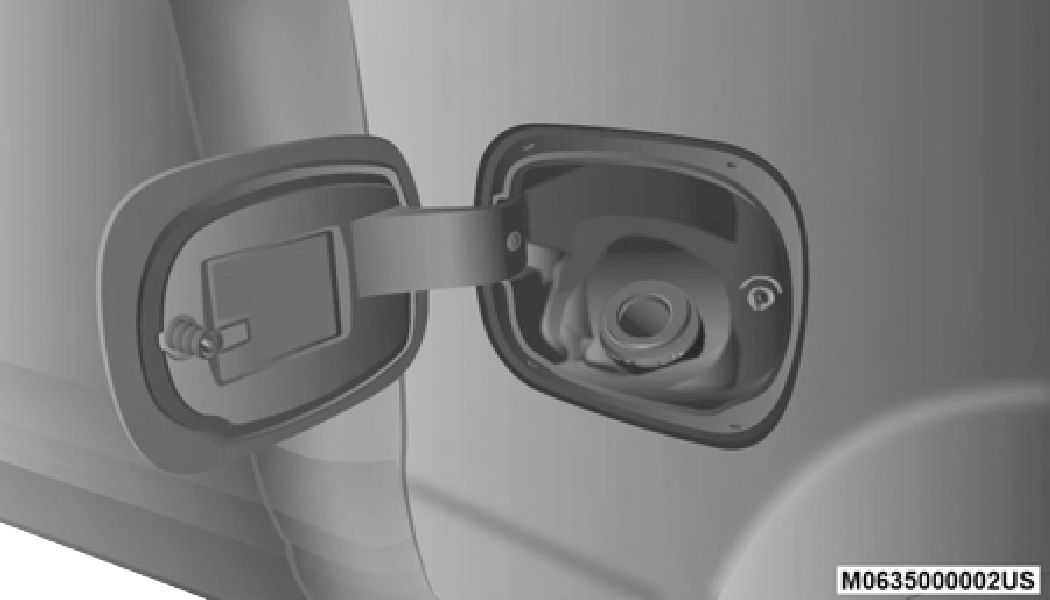

Fuel Filler
When the fuel nozzle “clicks” or shuts off, the fuel tank is full.
Keep the nozzle in the filler for five seconds after nozzle clicks to allow fuel to drain from the nozzle.
Remove the fuel filler nozzle.
To close the fuel filler door, push the center-rear edge (3 o'clock position) of the fuel filler door and then release. The fuel filler door will latch closed.
NOTE:
In certain cold conditions, ice may prevent the fuel filler door from opening. If this occurs, lightly push on the fuel filler door around the perimeter to break the ice build up.
Emergency Gas Can Refueling
Most gas cans will not open the flapper doors.
A funnel is provided to open the flapper doors to allow emergency refueling with a gas can.
Retrieve funnel from the jack and jack tool kit.
Insert funnel into same filler pipe opening as the fuel nozzle.
Ensure funnel is inserted fully to hold flapper doors open.
Pour fuel into funnel opening.
Remove funnel from filler pipe, clean off prior to putting back in the jack and jack tool kit.
