MIRRORS
Inside Day/Night Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right for
various drivers. The mirror should be adjusted to center on 2
the view through the rear window.

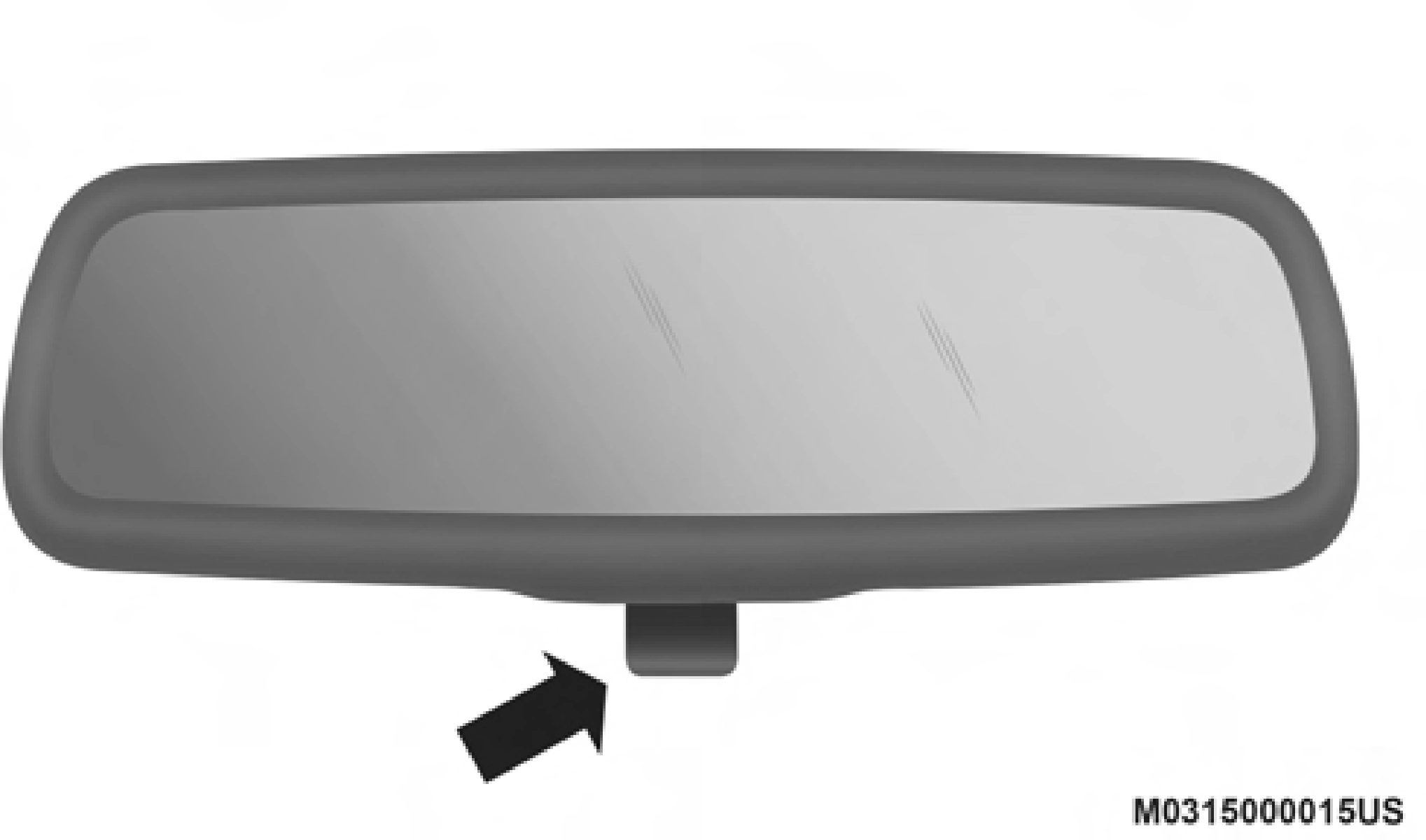

Headlight glare from vehicles behind you can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle). The mirror should be adjusted while set in the day position (toward the windshield).
Adjusting Rearview Mirror
The mirror head can be adjusted up, down, left, and right for various drivers. The mirror should be adjusted to center on the view through the rear window.

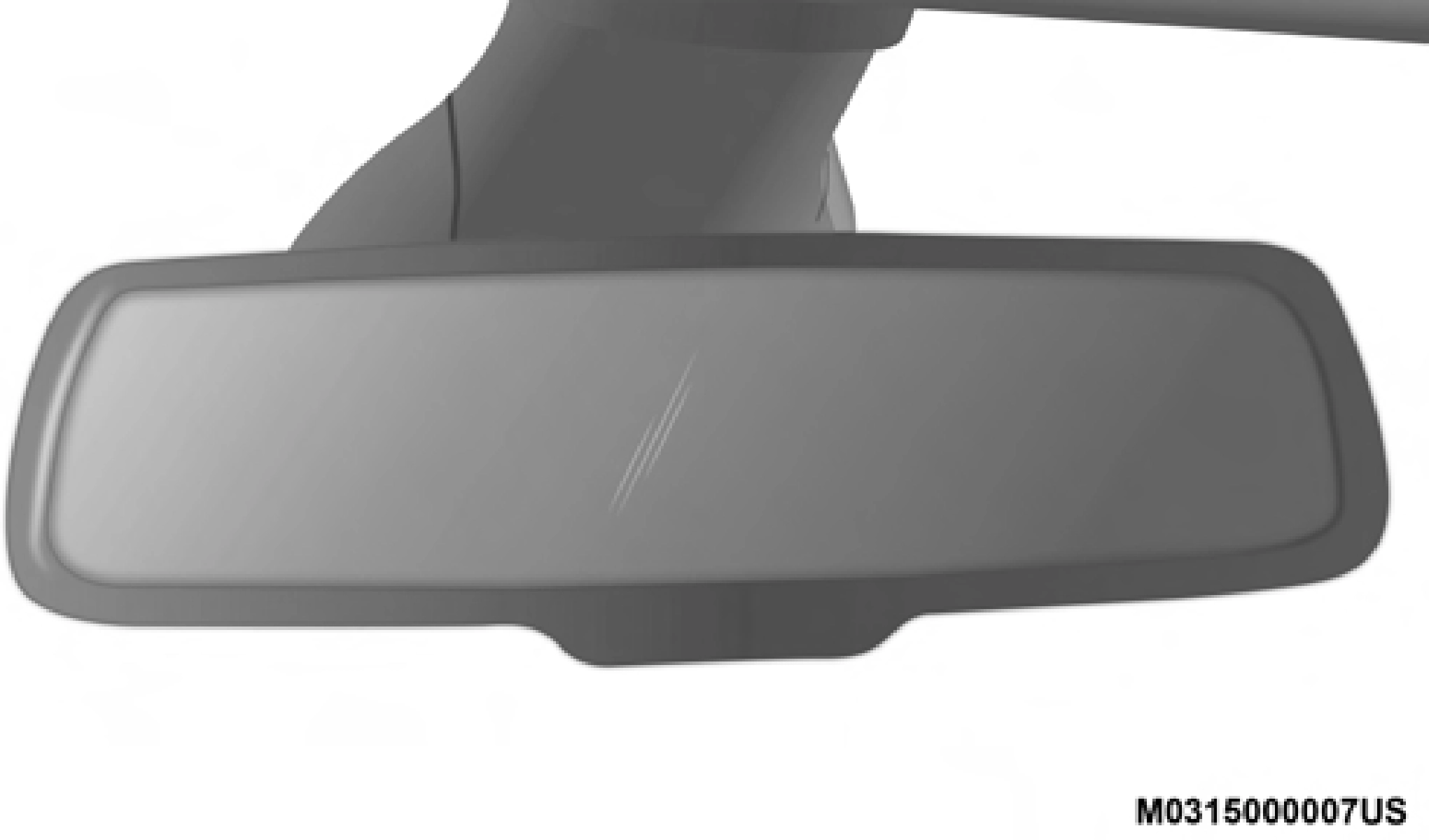

This mirror automatically adjusts for headlight glare from vehicles behind you.
NOTE:
The Automatic Dimming feature is disabled when the vehicle is in REVERSE to improve rear view viewing.
The Automatic Dimming feature can be turned on or off through the touchscreen.
Automatic Dimming Mirror
To receive maximum benefit, adjust the outside mirrors to center on the adjacent lane of traffic with a slight overlap of the view obtained on the inside mirror.
NOTE:
If your vehicle is equipped with puddle lamps under the outside mirrors, they can be turned off through the Uconnect display. For further information, refer to “Uconnect Settings” in “Multimedia”.
the inside automatic dimming mirror and will automatically adjust for headlight glare when the inside mirror adjusts.
The controls for the power mirrors are located on the driver's 2
door trim panel.
The driver's outside mirror will automatically adjust for glare from vehicles behind you. This feature is controlled by

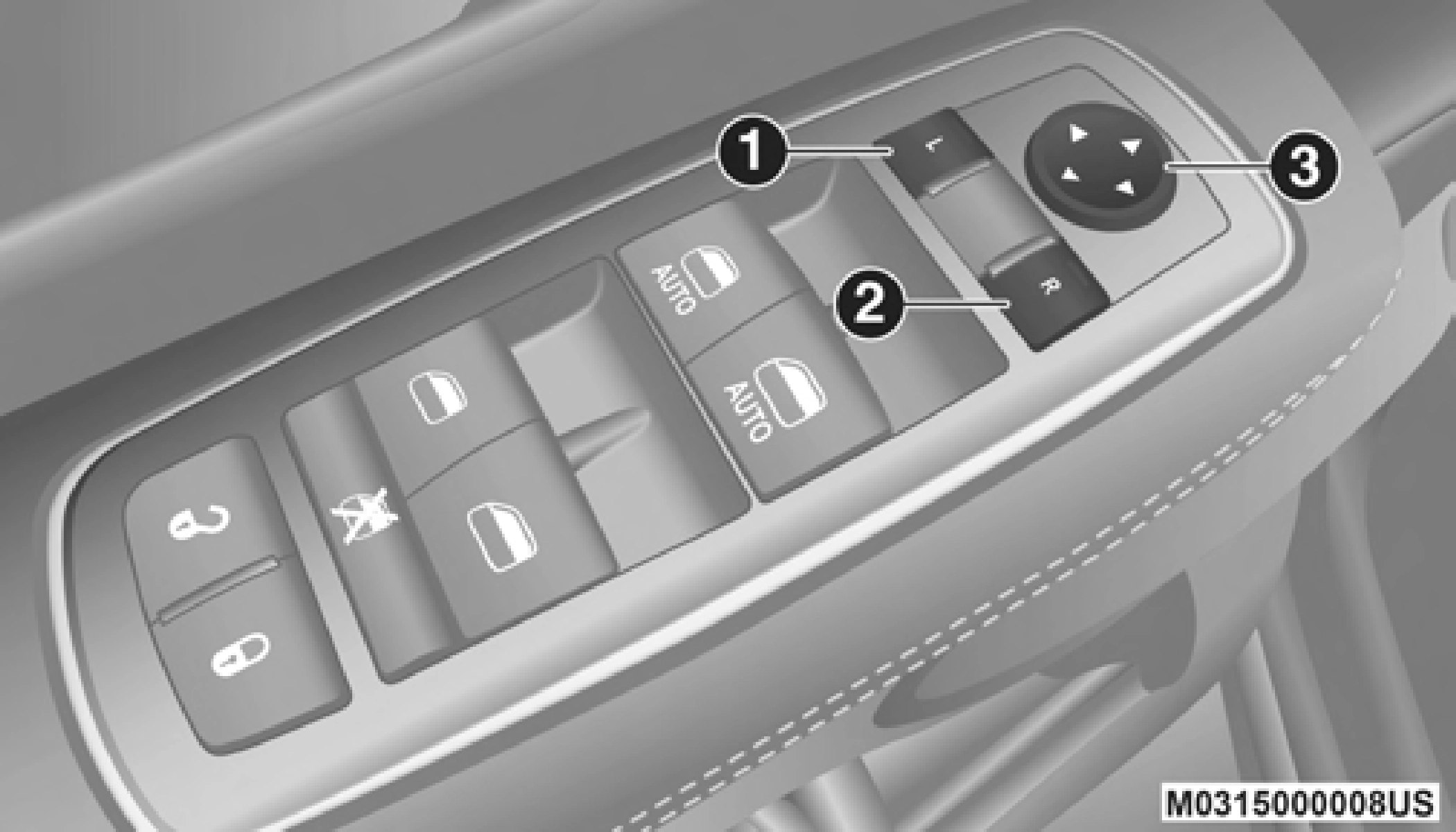

Power Mirror Controls
1 — Left Mirror Selection 2 — Right Mirror Selection
3 — Mirror Direction Control
The power mirror controls consist of mirror select buttons and a four-way mirror control switch.
To adjust a mirror, push either the L (left) or R (right) button to select the mirror that you want to adjust.

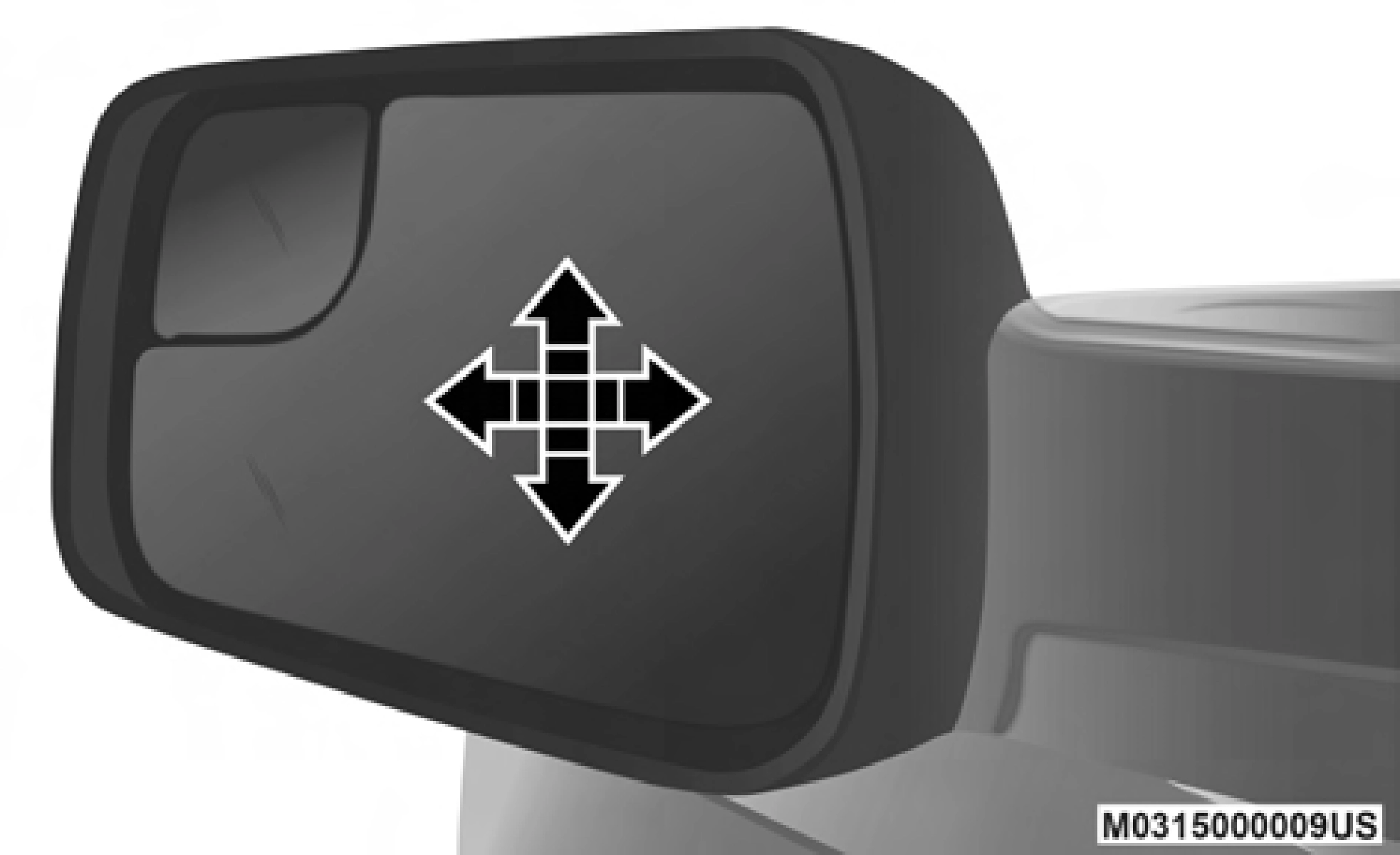

Using the mirror control switch, push on any of the four arrows for the direction that you want the mirror to move.
Power Mirror Movement
If equipped with power folding mirrors, they can be electri- cally folded rearward and unfolded into the drive position.

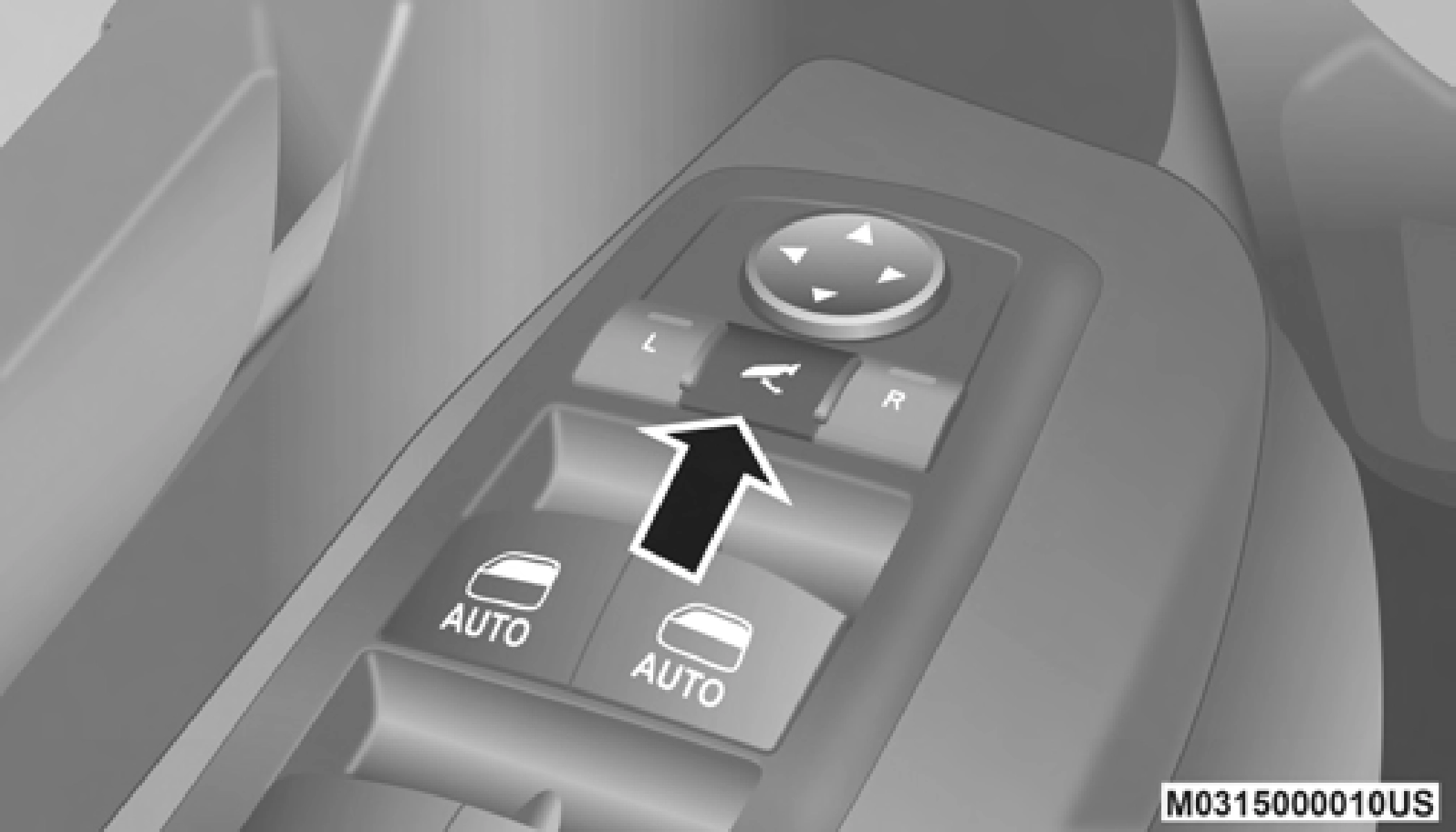

The switch for the power folding mirrors is located between the power mirror switches L (left) and R (right). Push the switch once and the mirrors will fold in, push the switch a second time and the mirrors will return to the normal driving position.
If the mirror is manually folded after electrically cycled, a potential extra button push is required to get the mirrors back to the home position. If the mirror does not electrically fold, check for ice or dirt build up at the pivot area which can cause excessive drag.
Power Folding Mirror Switch Resetting The Power Folding Outside Mirrors
You may need to reset the power folding mirrors if the following occurs:
To Reset The Power Folding Mirrors:
to the full retract position (this may require multiple button pushes). This resets them to their normal position.
NOTE:

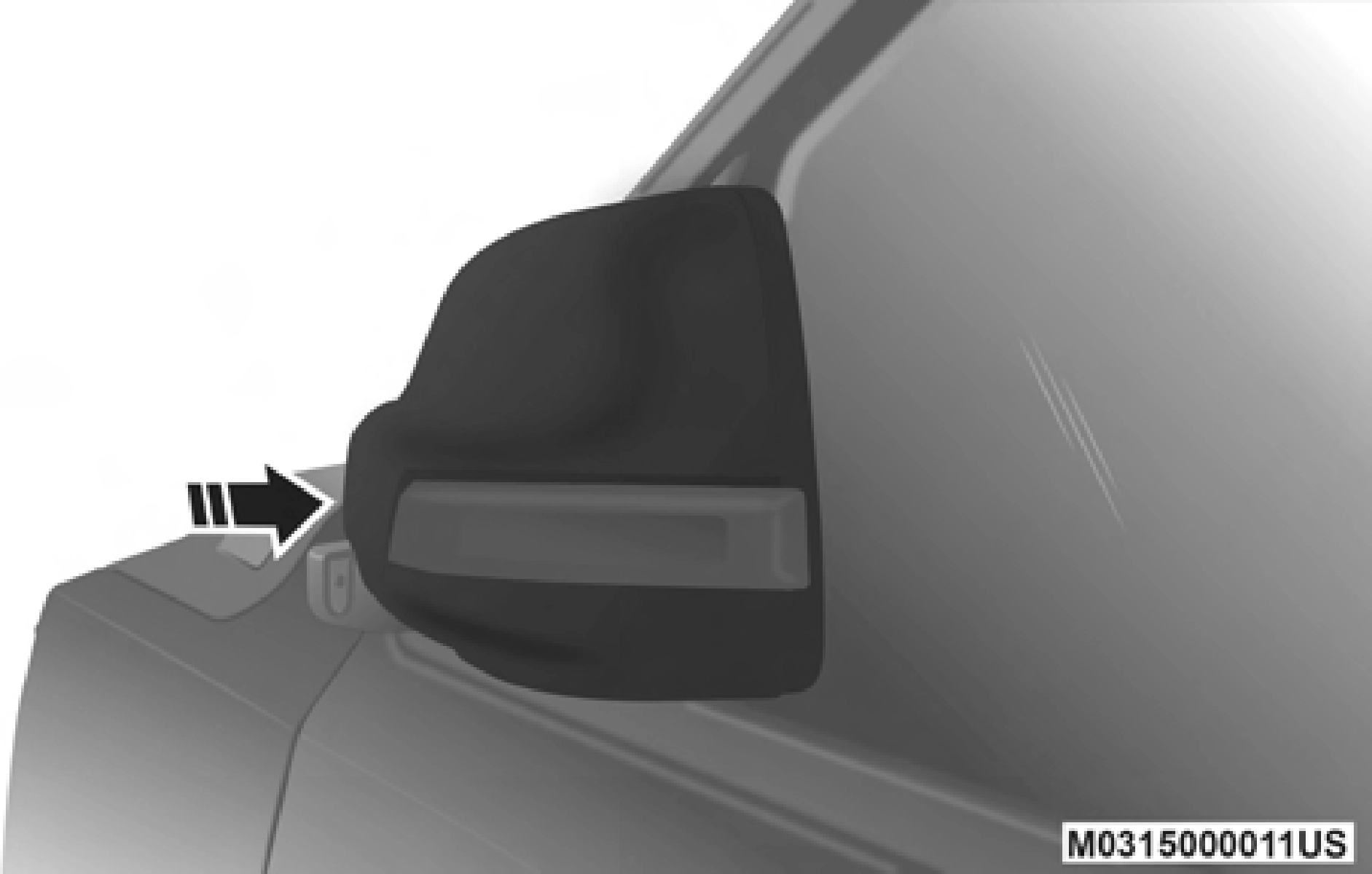

All outside mirrors are designed to be able to be manually folded both forward and rearward to prevent damage.
Folding Mirror

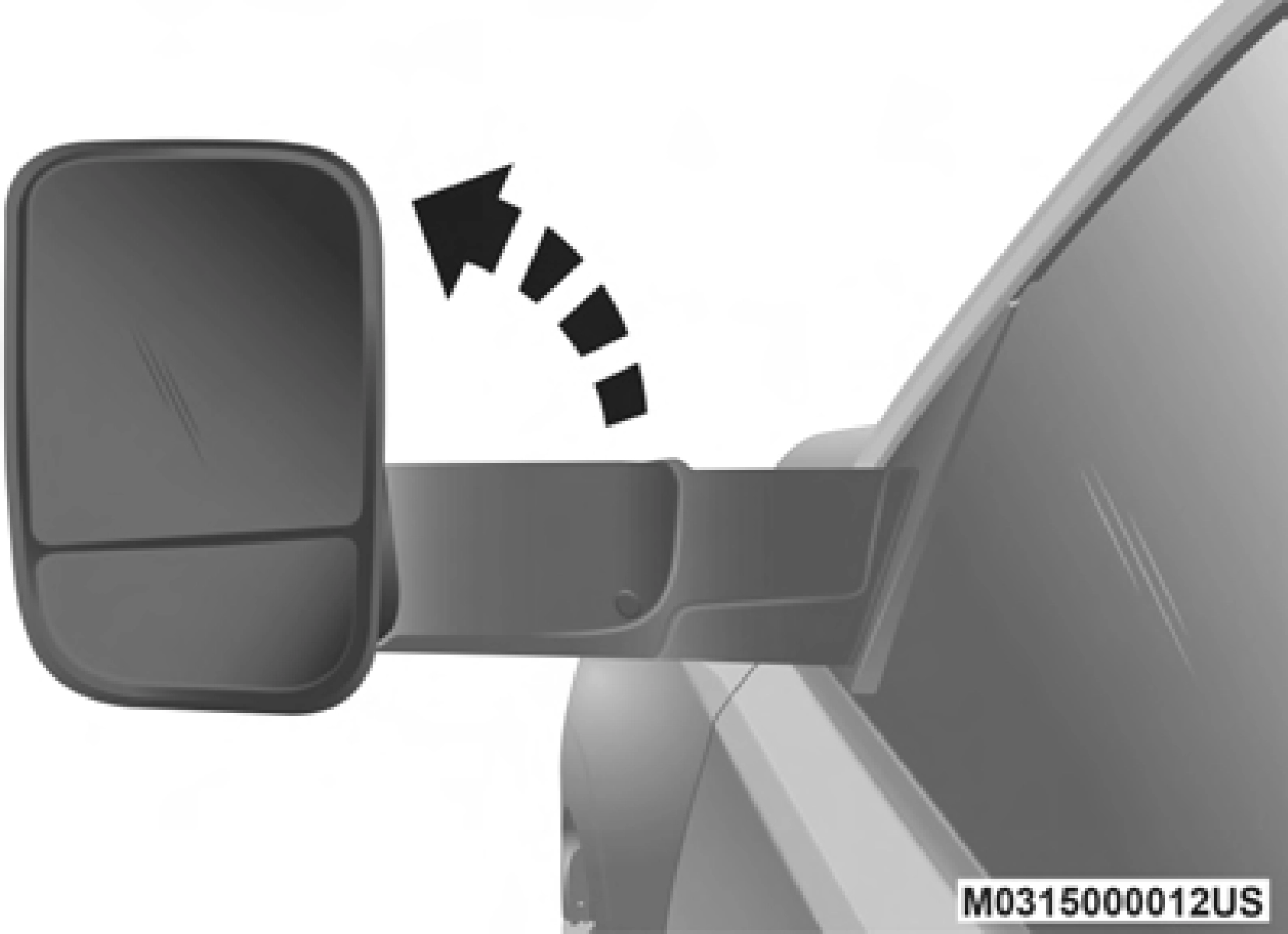

These mirrors are designed with an adjustable mirror head to provide a greater vision range when towing extra-wide loads. To change position inboard or outboard, the mirror head should be rotated (flipped in or out).
Trailer Towing Position
NOTE:
Fold the trailer towing mirrors rearward prior to entering an automated car wash.

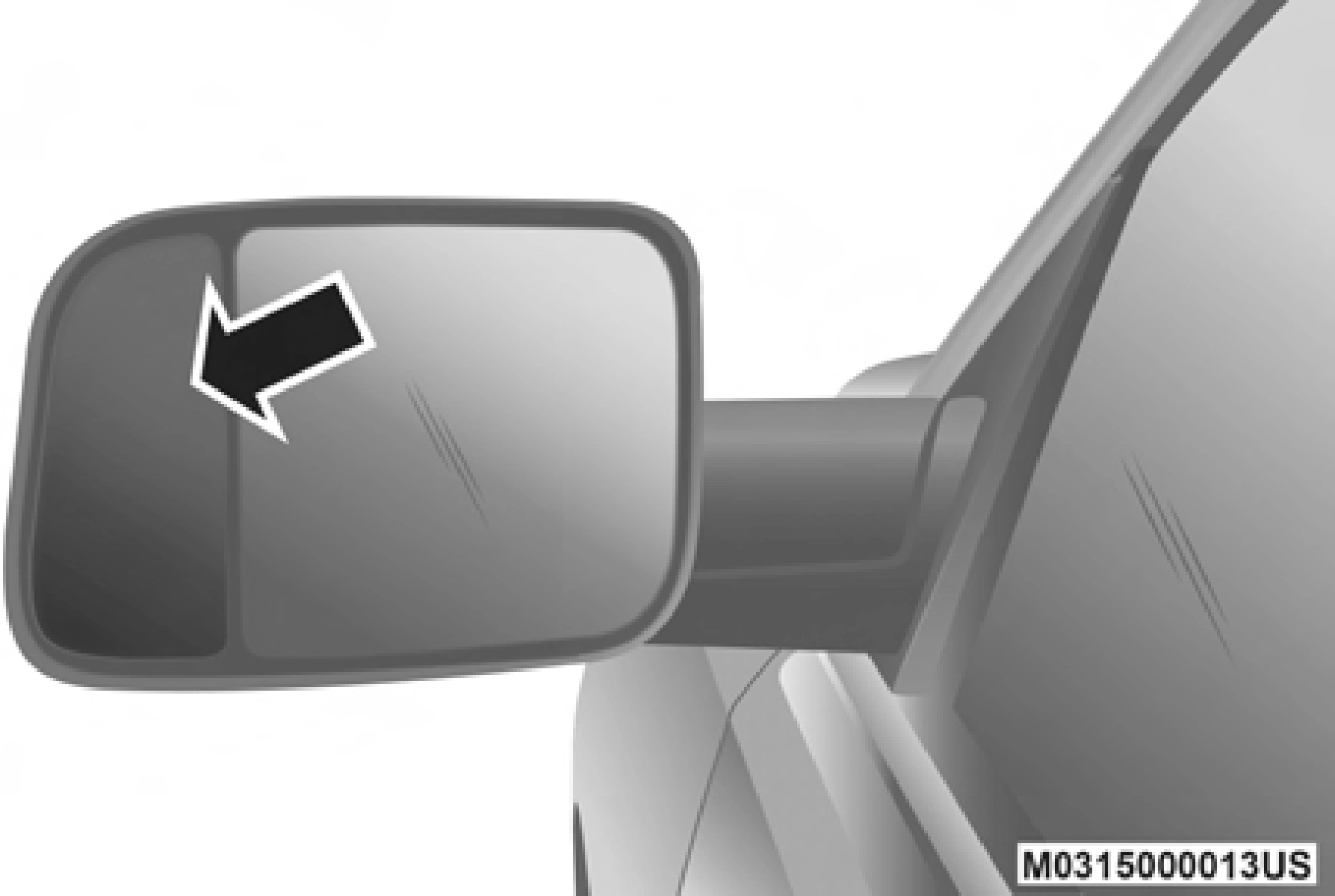

A small blindspot mirror is located next to main mirror and can be adjusted separately.
Blindspot Mirror
These mirrors are heated to melt frost or ice. This feature will be activated whenever you turn on the rear window defroster (if equipped).
Refer to “Climate Controls” in this chapter for further infor- mation.
Tilt Side Mirrors In Reverse provides automatic outside mirror positioning which will aid the driver's view of the ground rearward of the front doors. The outside mirrors will move slightly downward from the present position when the vehicle is shifted into REVERSE. The outside mirrors will then return to the original position when the vehicle is shifted out of the REVERSE position. Each stored memory setting will have an associated Tilt Side Mirrors In Reverse position.
NOTE:
The Tilt Side Mirrors In Reverse feature is not turned on when delivered from the factory.
This feature can be programmed through the Uconnect system. Refer to “Uconnect Settings” in “Multimedia” for further information.
Illuminated vanity mirrors are located on each sun visor. To use the mirror, rotate the sun visor down and swing the mirror cover upward. The lights will turn on automatically. Closing the mirror cover turns off the light.
Illuminated Vanity Mirror
The sun visor “Slide-On-Rod” feature allows for additional flexibility in positioning the visor to block out the sun.
To use the “Slide-On-Rod” feature, rotate the sun visor downward and unclip it. Pull the sun visor along the “Slide-On-Rod” until the sun visor is in the desired position.
“Slide-On-Rod” Extender
