IPOD®/USB/MP3 CONTROL — IF EQUIPPED
Located on the center stack, just below the instrument panel, is the main media hub. There are four total USB Ports: Two Mini-USBs (Type C) and two Standard USBs (Type A). There is also an AUX Port located in the middle of the USB Ports.
NOTE:
For example, if a device is plugged into the Type A USB port and another device is plugged into the Type C USB port, a message will appear and allow you to select which device to use.

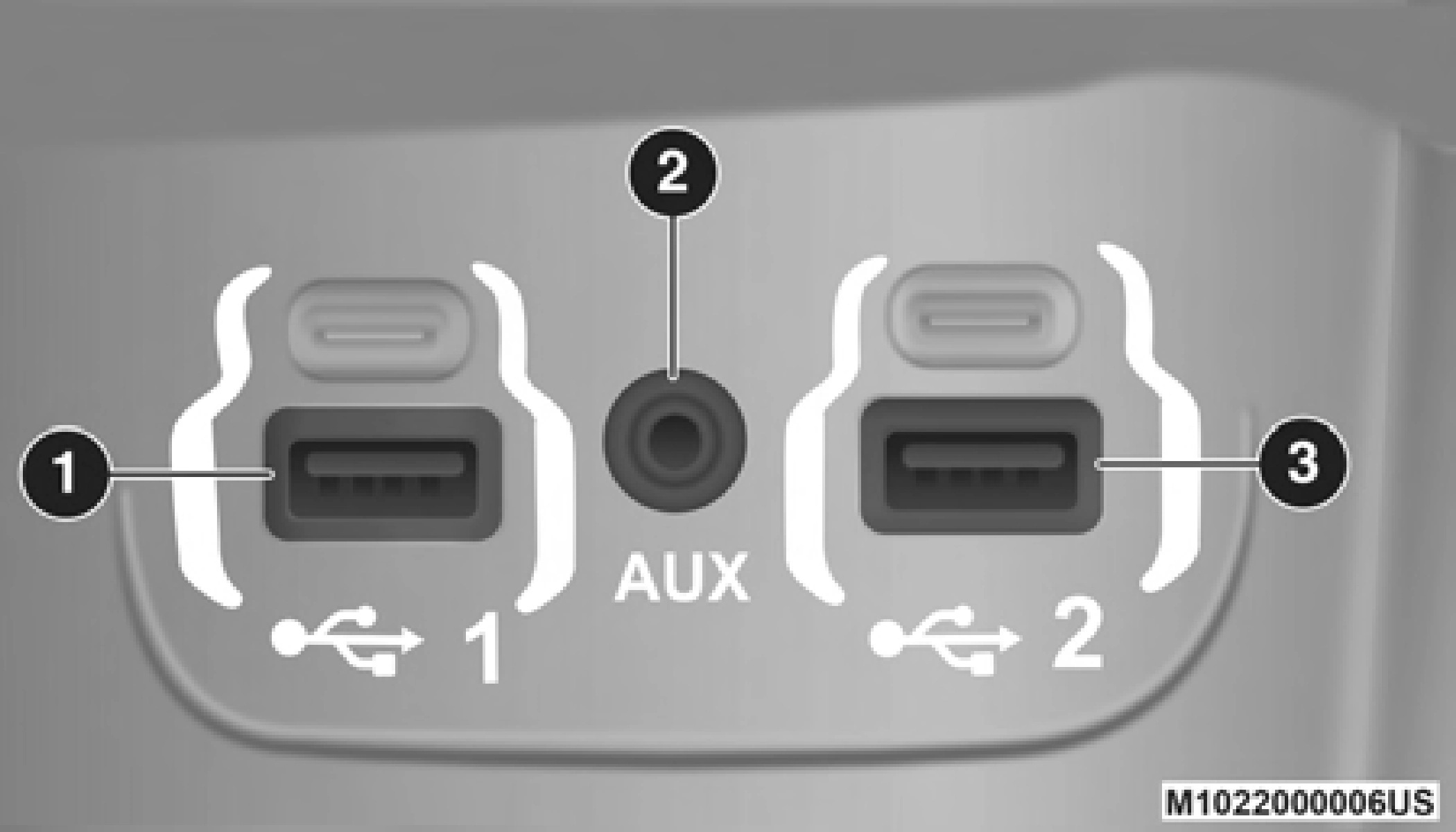

Center Stack USB/AUX Media Hub
1 — Standard USB Type A Port #1 2 — AUX Port
3 — Standard USB Type A Port #2
9
A third and fourth USB Ports are located behind the center console, above the Power Inverter. These USBs Ports are charge only.

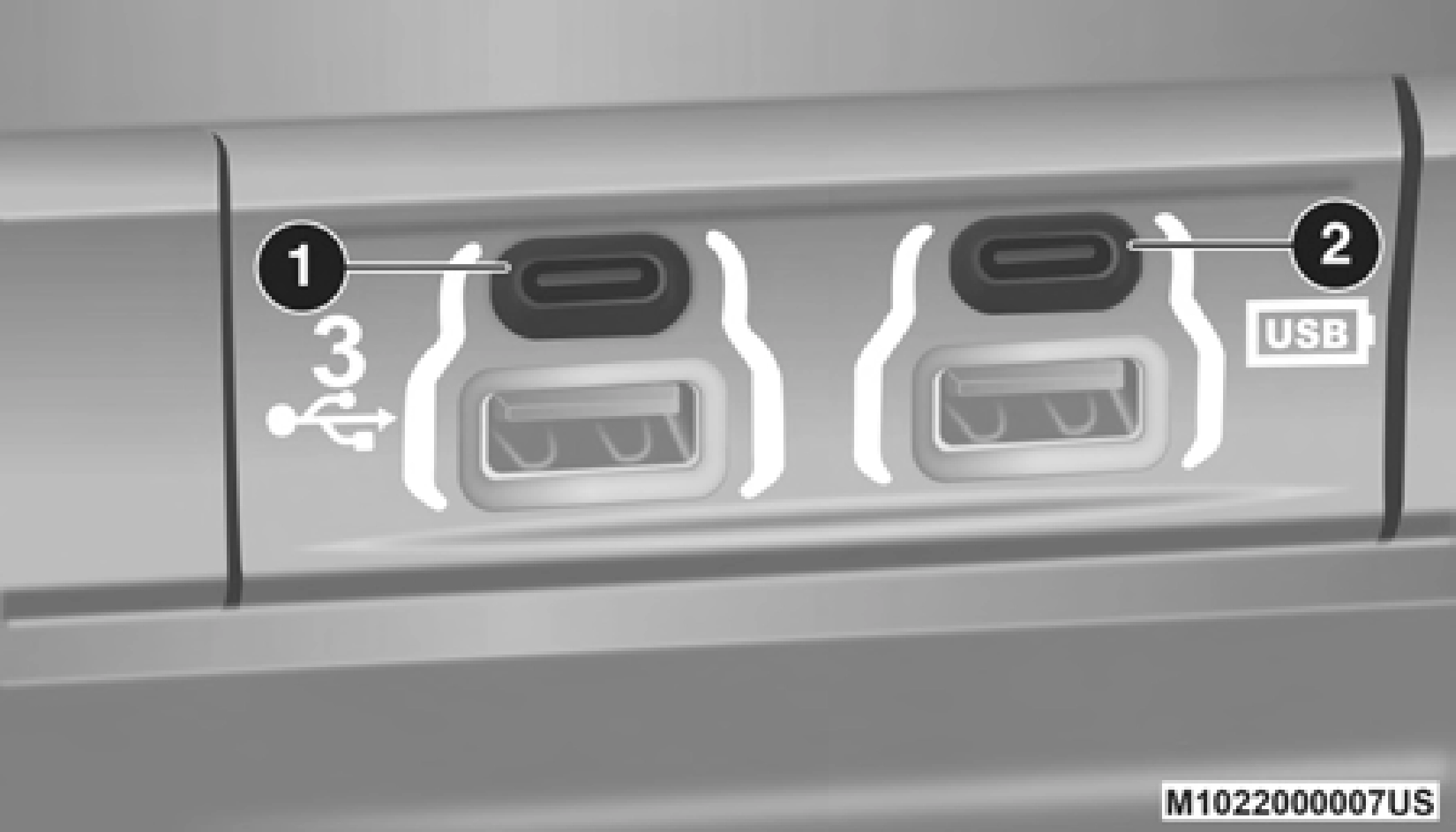

Rear Center Console Mini-USB (Type C) USB Ports
1 — Mini-USB Type C Port #1 2 — Mini-USB Type C Port #2

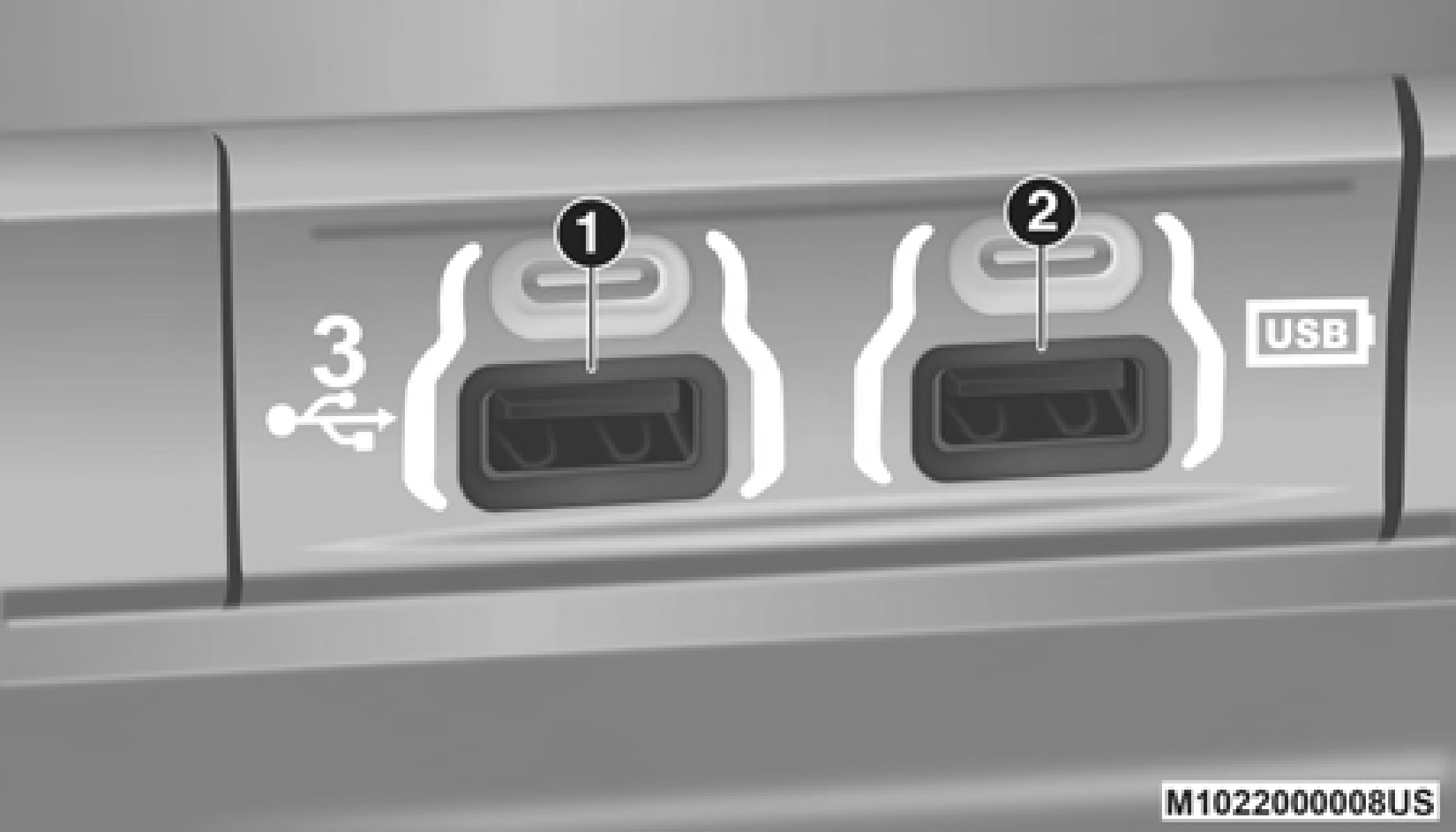

Rear Center Console Standard (Type A) USB Ports
1 — Standard USB Type A Port #1 2 — Standard USB Type A Port #2
Different scenarios are shown below when a non-phone device is plugged into the smaller and larger USB Ports and when a phone device is plugged into the smaller and larger USB Ports:

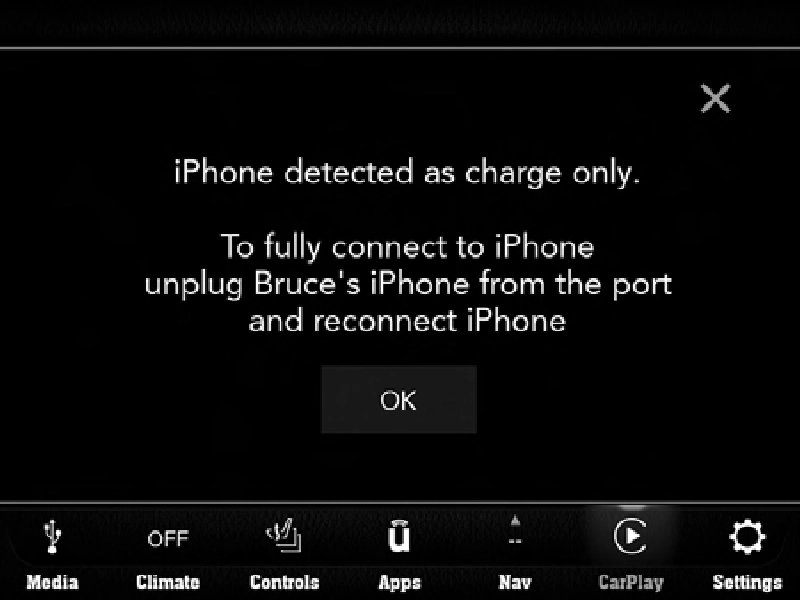

Device Plugged In Message Screen
Plugging in a phone or another USB device may cause the connection to a previous device to be lost.
If equipped, your vehicle may also contain a USB Port located on the top tray of the vehicles center console.

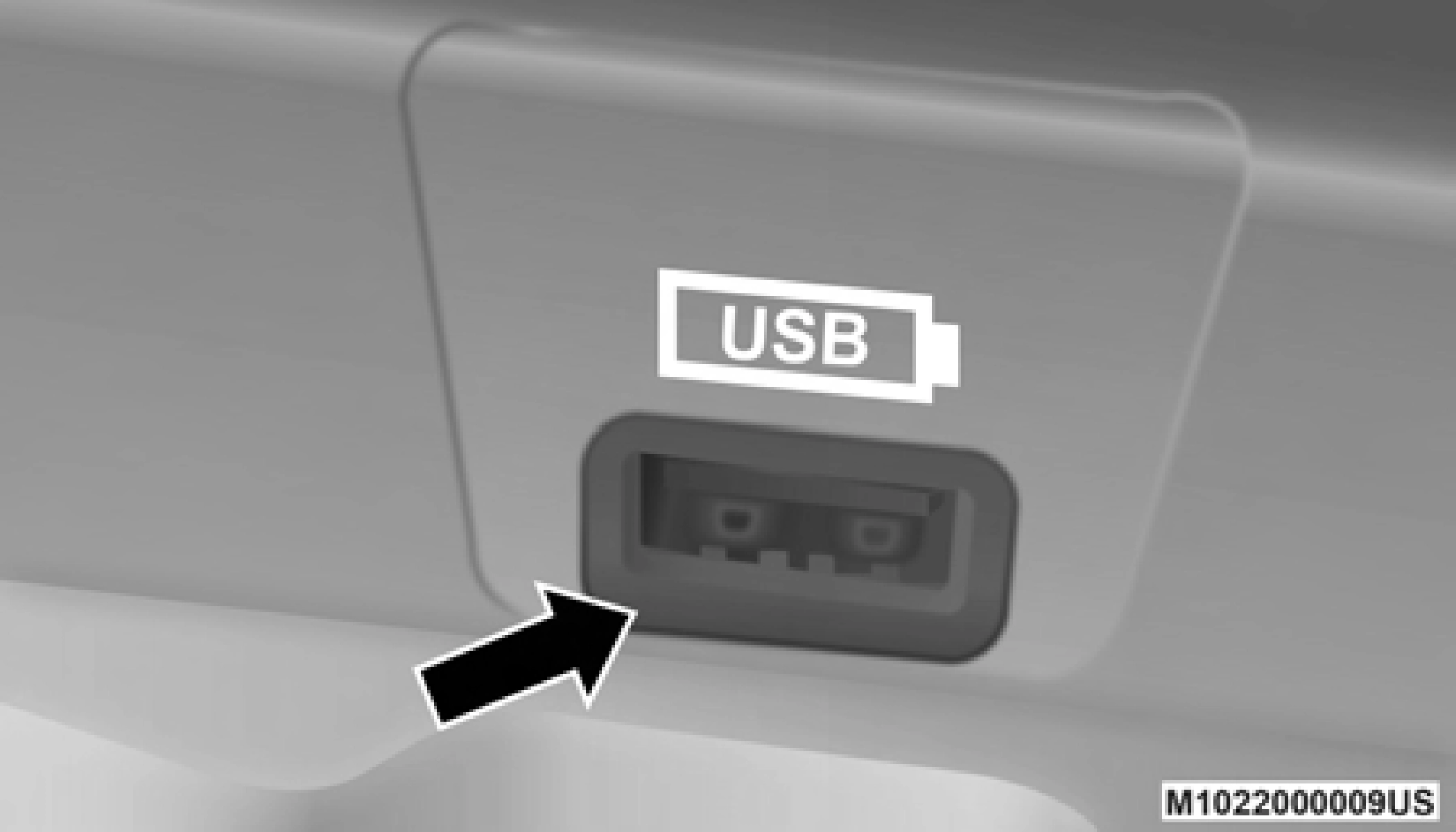

Center Console USB Port
9
If equipped, two Mini-USB Ports (Type C), two Standard USB Ports (Type A), and one AUX Port may be located to the left of the center stack, just below the climate controls.

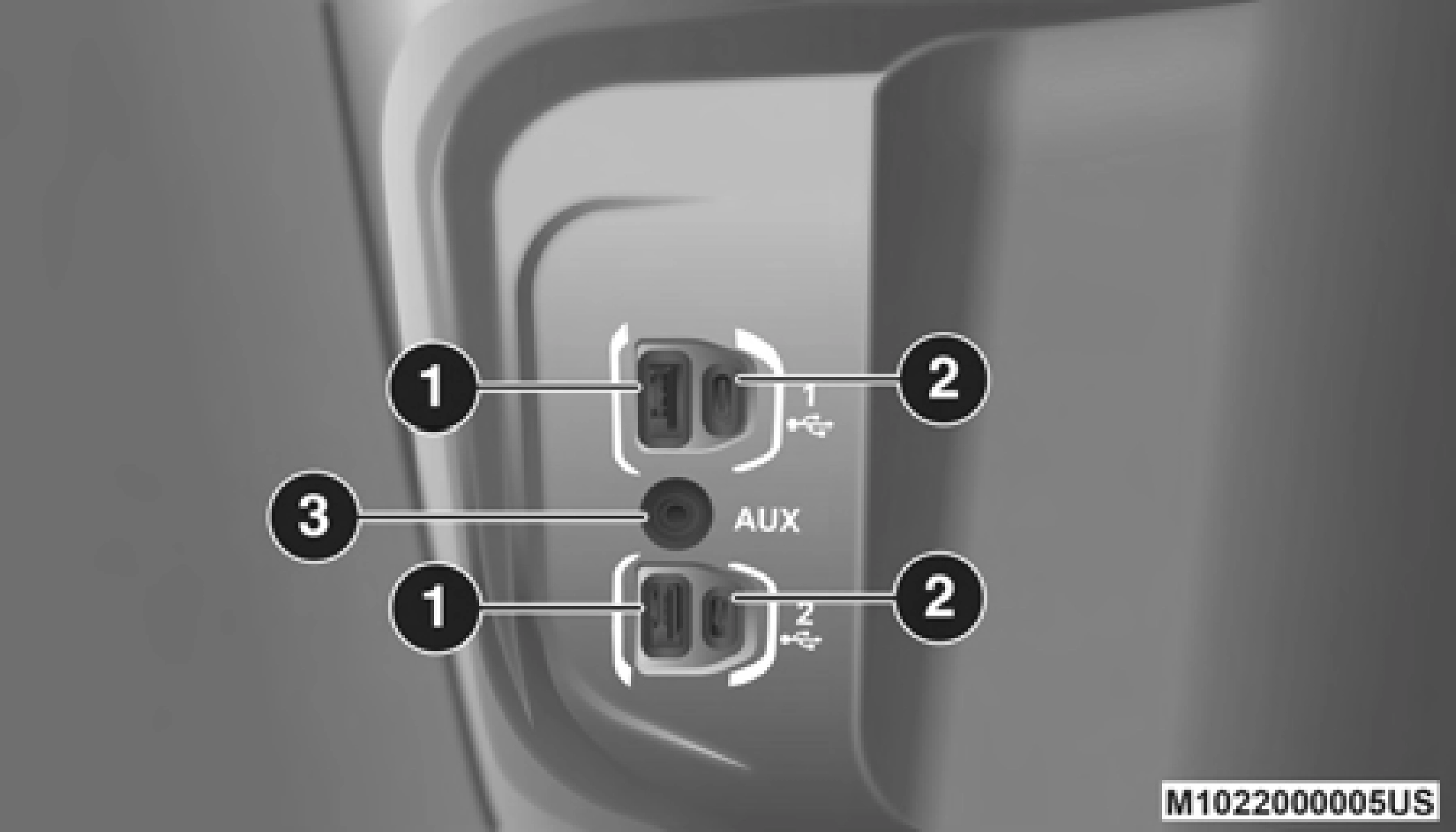

Center Console USB/AUX Media Hub
1 — Standard USB Type A Ports 2 — Mini-USB Type C Ports
3 — AUX Port
Some USB ports support media and charging. You can use features, such as Apple CarPlay®, Android Auto™, Pandora®, and others while charging your phone.
NOTE:
Plugging in a phone or another USB device may cause the connection to a previous device to be lost.
For further information, refer to the Uconnect Owner's Manual Supplement or visit UconnectPhone.com.
