FUSES
External Power Distribution Center

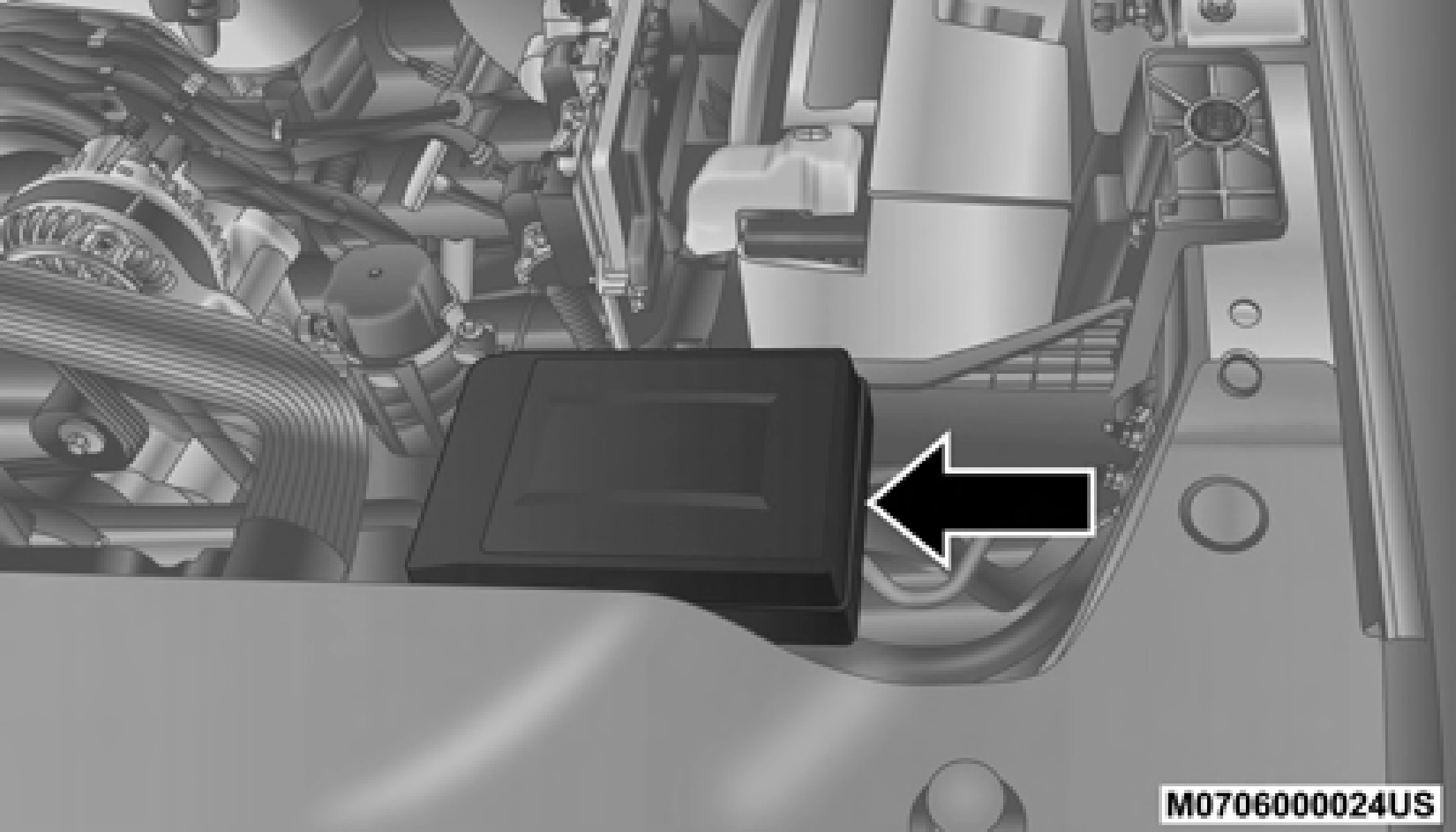

The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.
Power Distribution Center 6
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F11 |
– |
– |
Spare |
|
F12 |
20 Amp Blue |
– |
Trailer Tow Park Lamp |
|
F13 |
– |
– |
Spare |
|
F14 |
– |
10 Amp Red |
AC Clutch |
|
F15 |
– |
5 Amp Tan |
Intelligent Battery Sensor (IBS) |
|
F16 |
– |
– |
Spare |
|
F17 |
– |
20 Amp Yellow |
Air Suspension |
|
F18 |
– |
15 Amp Blue |
AGS / Rear Axle Cooling Valve / Active Air Dam |
|
F19 |
– |
– |
Spare |
|
F20 |
– |
20 Amp Yellow |
Adjustable Pedals |
|
F21 |
30 Amp Pink |
– |
Power Side Step |
|
F22 |
50 Amp Red |
– |
I Air Module |
|
F23 |
– |
– |
Spare |
|
F24 |
– |
20 Amp Yellow |
TCM SBW |
|
F25 |
40 Amp Green |
– |
Exterior Lights 2 |
|
F26 |
50 Amp Red |
– |
ESP Module |
|
F27 |
30 Amp Pink |
– |
Front Wiper |
|
F28 |
– |
10 Amp Red |
PCM / ECM |
|
F29 |
40 Amp Green |
– |
ESP Module |
6
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F48 |
– |
– |
Spare |
|
F49 |
30 Amp Pink |
– |
Htr Ctrl – If Equipped (Diesel Only) |
|
F50 |
– |
– |
Spare |
|
F51 |
– |
– |
Spare |
|
F52 |
– |
– |
Spare |
|
F53 |
– |
10 Amp Red |
Supply / Purging Pump – If Equipped |
|
F54 |
– |
15 Amp Blue |
PCM – If Equipped |
|
F55 |
– |
15 Amp Blue |
Right HID Headlamp |
|
F56 |
– |
– |
Spare |
|
F57 |
– |
20 Amp Yellow |
Horn |
|
F58 |
– |
– |
Spare |
|
F59 |
– |
25 Amp Clear |
Injectors / IGN Coil / Glow Plug Module |
|
F60 |
– |
20 Amp Yellow |
ECM / PCM / ACT Short Running Valve |
|
F61 |
– |
15 Amp Blue |
Left HID Headlamp |
|
F62 |
60 Amp Blue |
– |
Glow Plug – If Equipped |
|
F63 |
20 Amp Blue |
– |
NOx Sensor |
|
F64 |
– |
10 Amp Red |
PM Sensor – If Equipped |
The Power Distribution Center is located under the drivers side instrument panel. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F01 |
30 Amp Pink |
– |
Trailer Tow Receptacle |
|
F03 |
– |
20 Amp Yellow |
Module Seat Heater Front (Pass) |
|
F04 |
– |
– |
Spare |
|
F05 |
– |
20 Amp Yellow |
Module PPU Cooling Fan |
|
F06 |
40 Amp Green |
– |
Mod CBC 4 Exterior Light 2 |
|
F07 |
40 Amp Green |
– |
Mod CBC 3 PWR Locks |
|
F08 |
– |
– |
Spare |
|
F09 |
– |
– |
Spare |
|
F10 |
40 Amp Green |
– |
HVAC Blower Motor |
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F11 |
– |
5 Amp Tan |
Output to Under-hood Power Distribution Center (UPDC) Run Coil |
|
F12 |
– |
25 Amp Clear |
Mod Audio Amplifier / Active Noise Cancellation / SW Inverter |
|
F13 |
– |
20 Amp Yellow |
Mod Seat Heater Front (Driver) |
|
F14 |
– |
15 Amp Blue |
Mod Seat Heater Front (Steering Wheel) |
|
F15 |
– |
– |
Spare |
|
F16 |
– |
– |
Spare |
|
F17 |
– |
20 Amp Yellow |
LT Spot Lamp |
|
F18 |
30 Amp Pink |
– |
Motor Sunshade Sunroof |
|
F19 |
– |
– |
Spare |
|
F20 |
– |
20 Amp Yellow |
Comfort Rear Seat Module (CRSM) (Heat Rear RT) |
|
F21 |
– |
– |
Spare |
|
F22 |
– |
– |
Spare |
|
F23 |
– |
– |
Spare |
|
F24 |
– |
15 Amp Blue |
Mod RF Hub / Mod Ignition / Mod Cluster |
|
F25 |
40 Amp Green |
– |
Mod Integrated Trailer Brake |
|
F26 |
– |
15 Amp Blue |
Mod Cluster CCN / Mod Cyber Security |
|
F27 |
– |
5 Amp Tan |
Mod Cluster CCN / Mod SGW |
6
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F43 |
– |
10 Amp Red |
Port Diagnostics / Mod CD / Front & Rear USB |
|
F44 |
– |
20 Amp Yellow |
Radio / DCSD / Telematics Box Mod |
|
F45 |
30 Amp Pink |
– |
Mod Door MUX Driver |
|
F46 |
30 Amp Pink |
– |
Mod Door MUX Passenger |
|
F47 |
– |
– |
Spare |
|
F48A |
- |
10 Amp Red |
Rear View Mirror / Humidity Rain And Light Sensor (HRLS) / SW Window Passenger / Rear USB / Wireless Charging Pad Mod |
|
F49 |
– |
15 Amp Blue |
Mod CVPM / SNSR Blind Spot / HDLP Adaptive Front Lighting Sensor (AFLS) |
|
F50A |
– |
10 Amp Red |
Battery PACK Control Mod |
|
F51 A&B |
– |
– |
Spare |
|
F52 |
20 Amp Blue |
– |
Direct Battery Feed |
|
F53 |
– |
15 Amp Blue |
Mod ICS Switch / Mod HVAC CTRL / Sw Bank Upper / Sw EPB / Mod Control Steering |
|
F54B |
– |
20 Amp Yellow |
Power Outlet Center Seat |
|
F55 |
25 Amp White |
– |
Upfitter |
|
F56 |
30 Amp Pink |
– |
Mod Network Interface |
|
F57 |
20 Amp Blue |
– |
Direct Battery Feed |
|
F58 |
20 Amp Blue |
– |
Direct Battery Feed |
|
Cavity |
Cartridge Fuse |
Micro Fuse |
Description |
|
F60 |
50 Amp Red |
– |
Mod Inverter |
|
F61 |
– |
– |
Spare |
|
F62 A&B |
– |
10 Amp Red |
ITBM / Mod Occupant Class / Mod IAIR Suspension / Mod HVAC Snsr Incar Temp / Rear Coolant Temp / PTS / Mod IRCM |
|
F63 |
– |
– |
Spare |
|
F64 |
– |
– |
Spare |
|
F65 |
– |
10 Amp Red |
Mod ORC |
|
F66 |
– |
10 Amp Red |
Run - Accessory Feed |
6
(Continued)
