PREMIUM INSTRUMENT CLUSTER

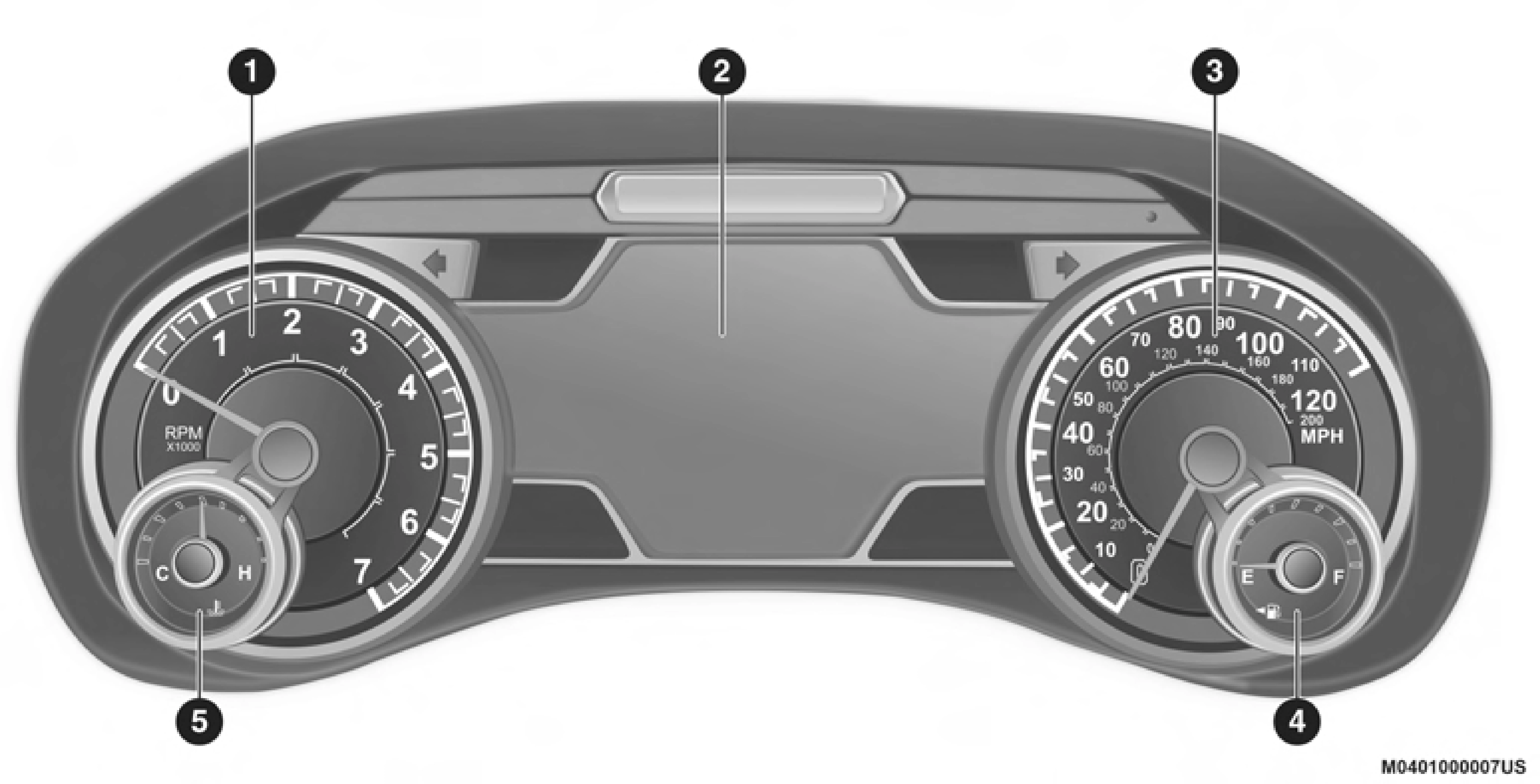

Premium Instrument Cluster Display
Tachometer
Indicates the engine speed in revolutions per minute (RPM x 1000).
Instrument Cluster Display
When the appropriate conditions exist, this display shows the instrument cluster display messages. Refer to “Instrument Cluster Display” in “Getting To Know Your Instrument Panel” for further information.
Speedometer
Indicates vehicle speed.
Fuel Gauge
The pointer shows the level of fuel in the fuel tank
when the ignition is in the ON/RUN position. 3
The fuel pump symbol points to the side of the vehicle where the fuel door is located.Temperature Gauge
The pointer shows engine coolant temperature. The pointer positioned within the normal range indicates that the engine cooling system is operating satisfacto- rily.
The pointer will likely indicate a higher temperature when driving in hot weather, up mountain grades, or when towing a trailer. It should not be allowed to exceed the upper limits of the normal operating range.
