INTERNAL EQUIPMENT
The glove compartment is located on the passenger side of the instrument panel and features both an upper and lower storage area.
NOTE:
Not all vehicles are equipped with a door over the upper storage area.
Glove Compartment

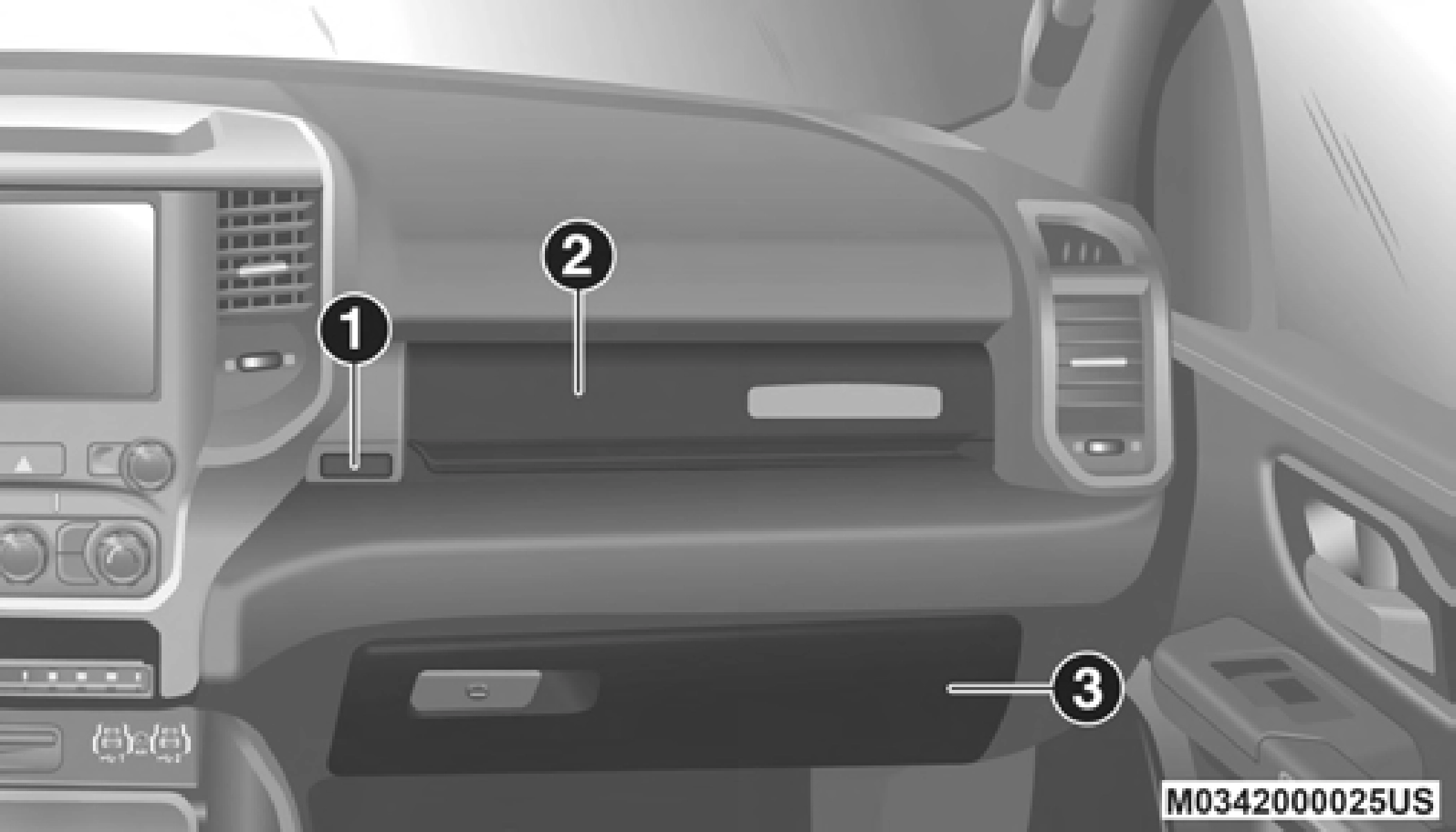

1 — Upper Glove Compartment Release Button (If Equipped) 2 — Upper Glove Compartment
3 — Lower Glove Compartment
If equipped with a covered upper glove compartment, push the release button to open.
To open the lower glove compartment, pull the release handle.
Front Door Storage — If Equipped

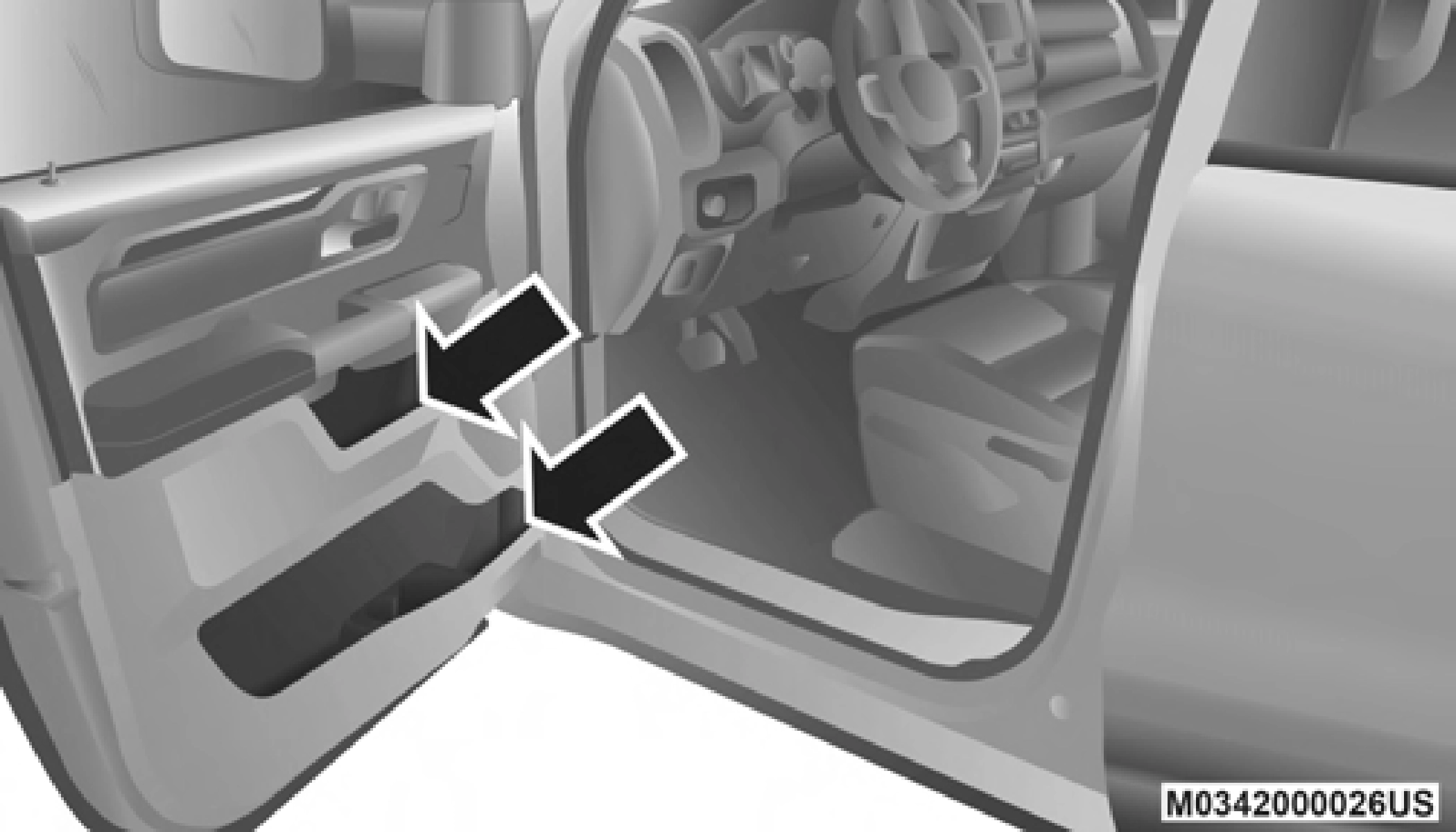

Storage areas are located in the door trim panels.
Front Door Storage
Rear Door Storage — If Equipped

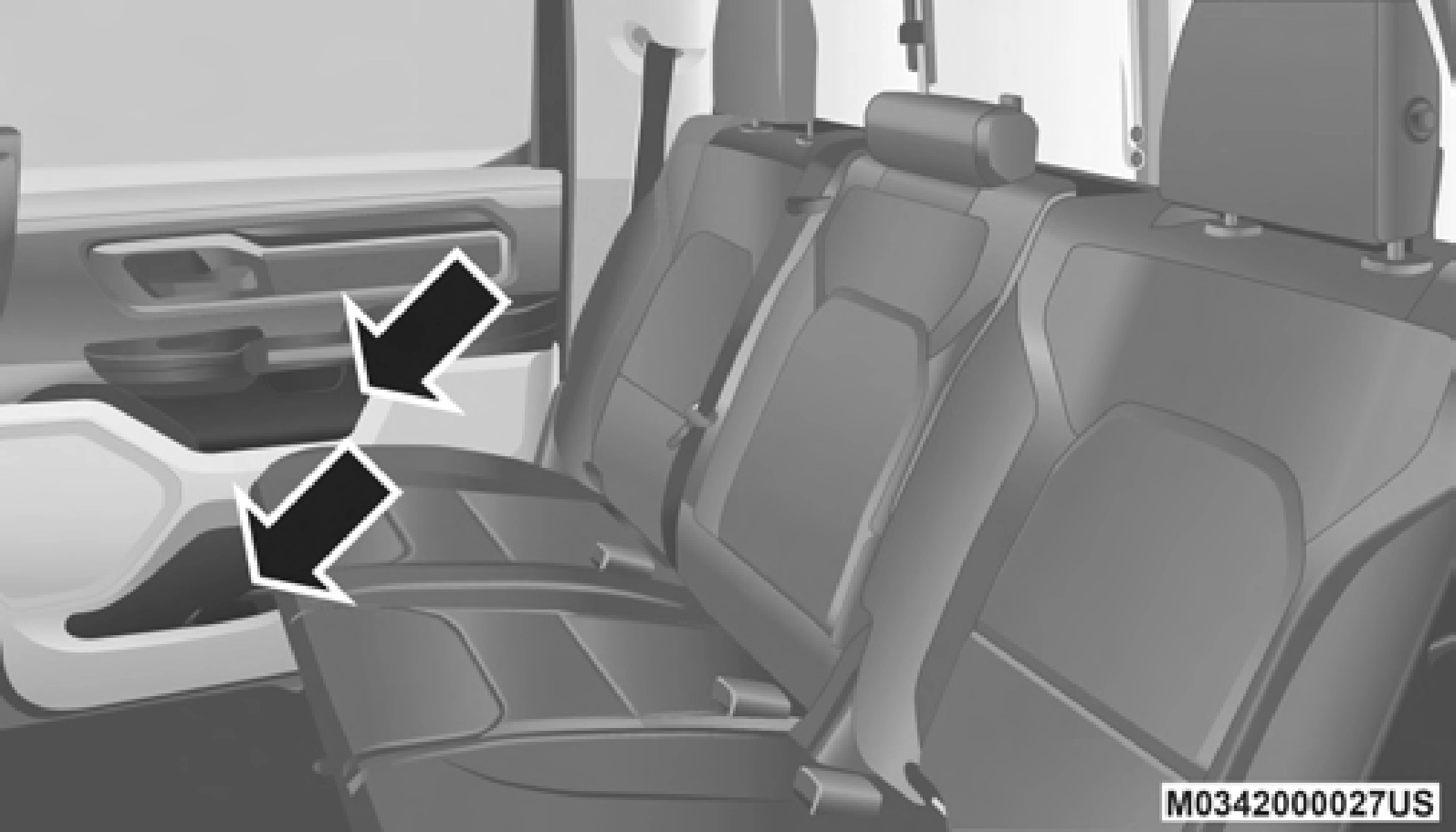

Storage compartments are located in both the driver and passenger rear door trim panels.
2
Rear Door Storage
The center storage compartment is located between the driver and passenger seats. The storage compartment provides an armrest and contains both and upper and lower storage area.
Center Storage Compartment
Pull on the upper handle on the front of the armrest to raise the cover. The upper storage area contains a USB power outlet located at the rear of the area that can be used to power small electrical devices, refer to “Electrical Power Outlets” in this section for further information.
With the upper lid closed, pull on the lower handle to open the lower storage bin. The lower bin contains a power inverter outlet located in the forward portion of the lower bin. There is also a “fill line” located long the rear inside wall of the lower bin. Contents above the “fill line” may interfere with cupholder placement if equipped with a premium center console.

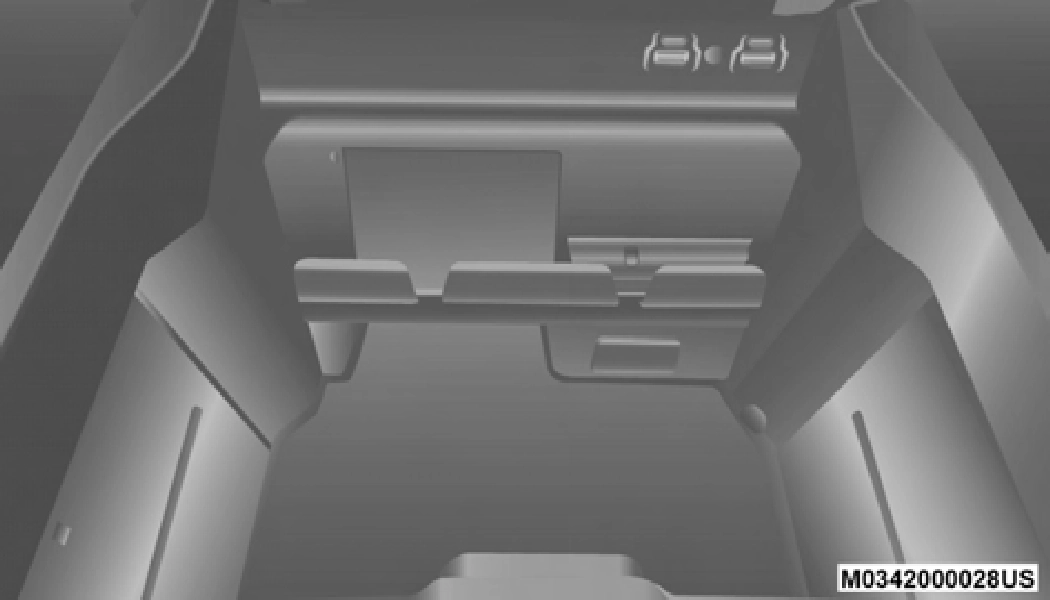

Forward Portion Of Lower Storage Bin
Premium Center Console — If Equipped

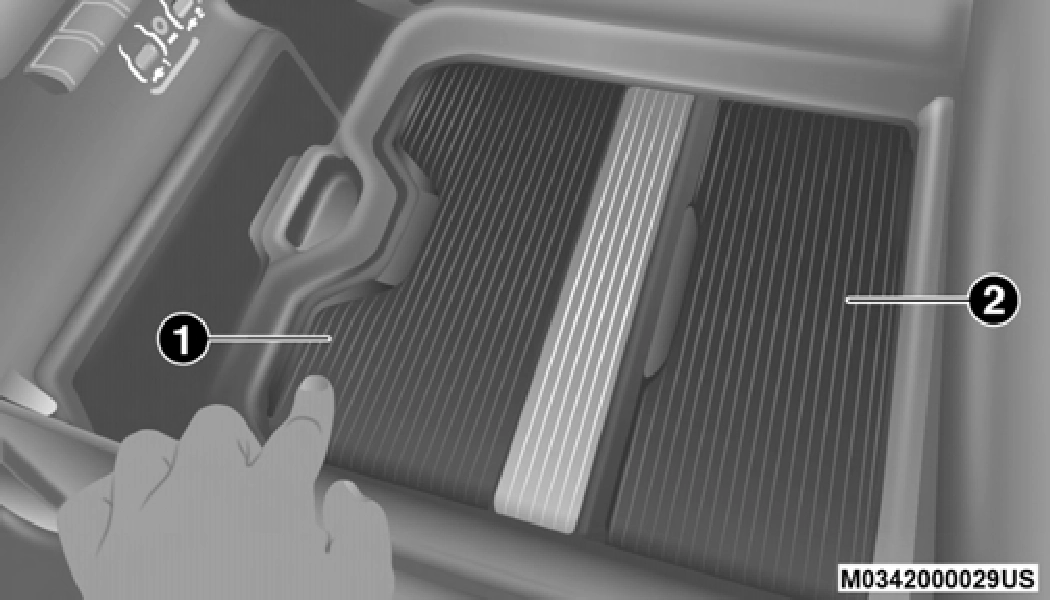

The premium center console is equipped with two front storage bins located in front of the center storage compart- ment. These storage bins may be equipped with tandem doors. Push the front bin to access the cupholders. Or push the rear bin to access the coinholder/small storage bin.
Center Console Tandem Doors— If Equipped

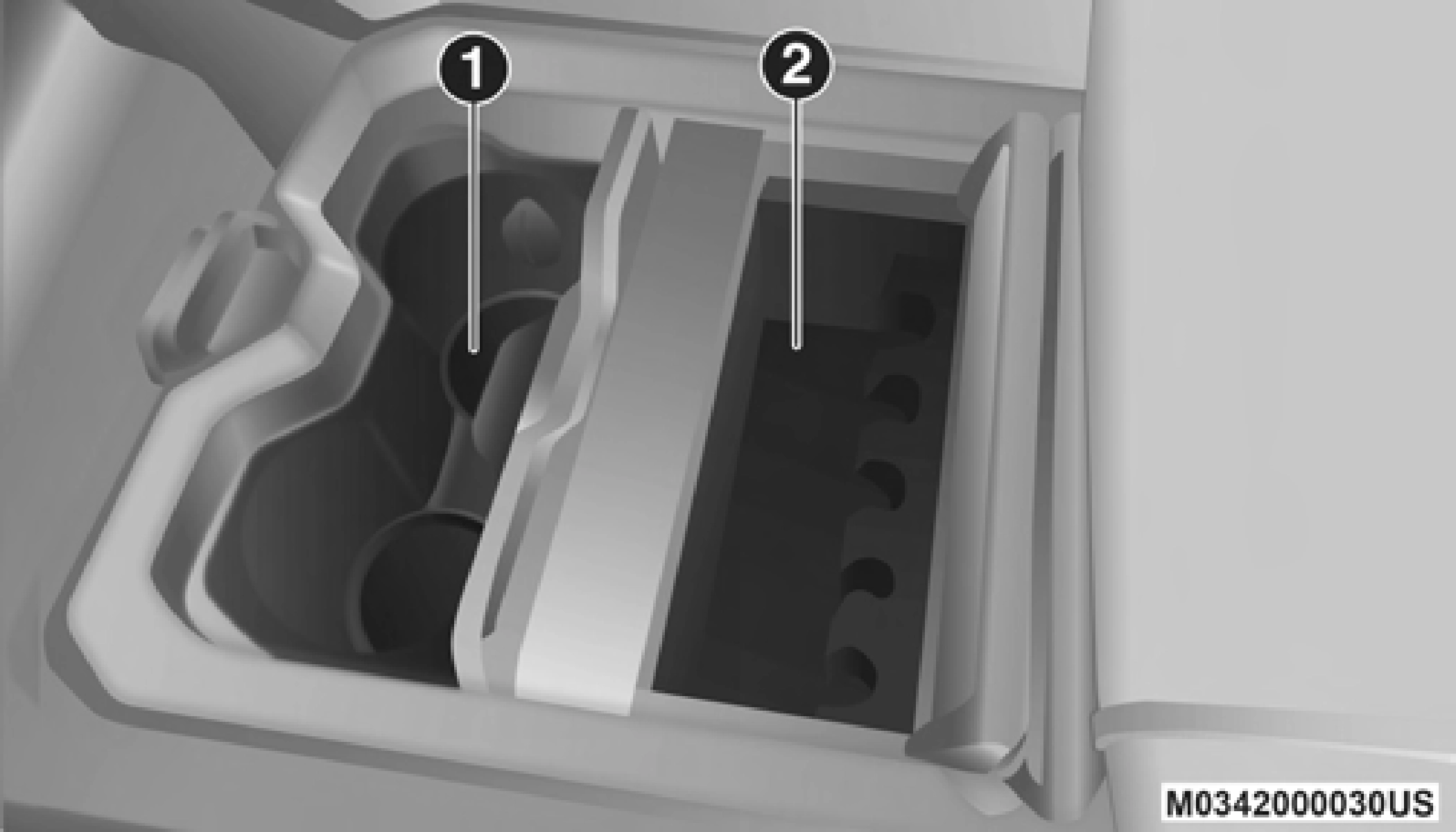

1 — Push Front Bin Access 2 — Push Rear Bin Access
Tandem Doors Open Position
1 — Front Bin Open 2 — Rear Bin Open

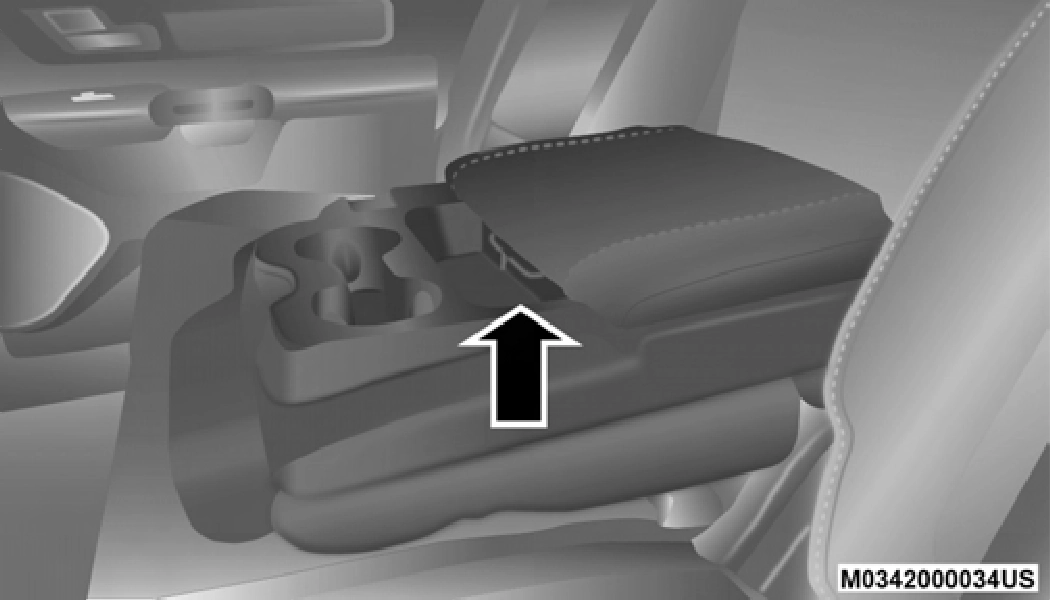

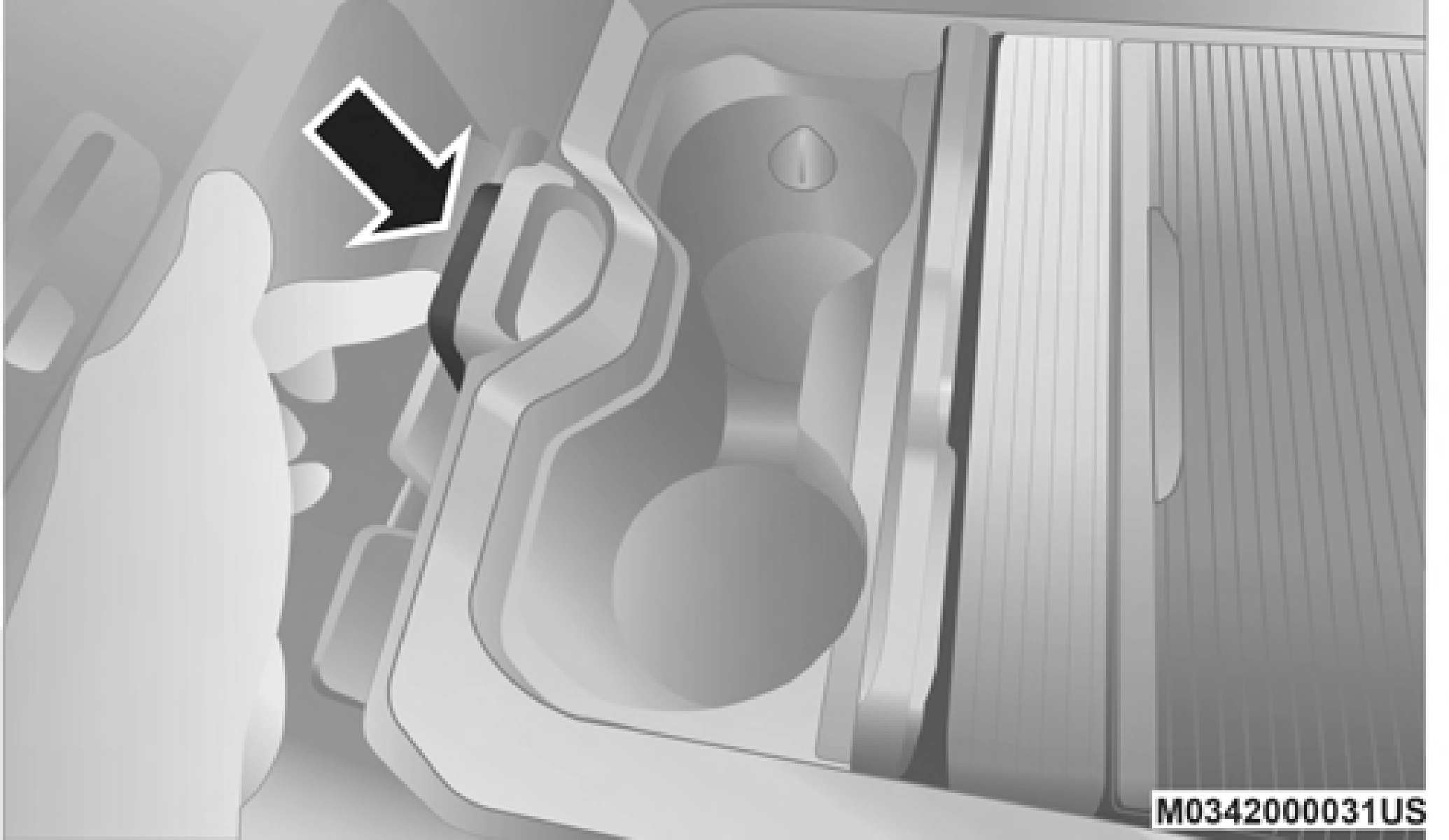

Push the release button at the front of the cupholder bin to slide tray rearward for access of front lower storage bin, or forward to access the rear lower storage bin with the center console lid in the open position.
Push Release Button To Slide Tray
If your vehicle is equipped with a front bench seat, storage can be found by folding down the center seat back. A console storage area and cupholders are available. With the seatback in the upright position, lifting the seat bottom also reveals a storage location.
There is a storage drawer located in the lower center of the instrument panel. It can be released by pushing the access button above it. The drawer is actuator assisted once the access button is pushed. Pull drawer outward to the fully
open position. 2
Front Bench Seat Storage

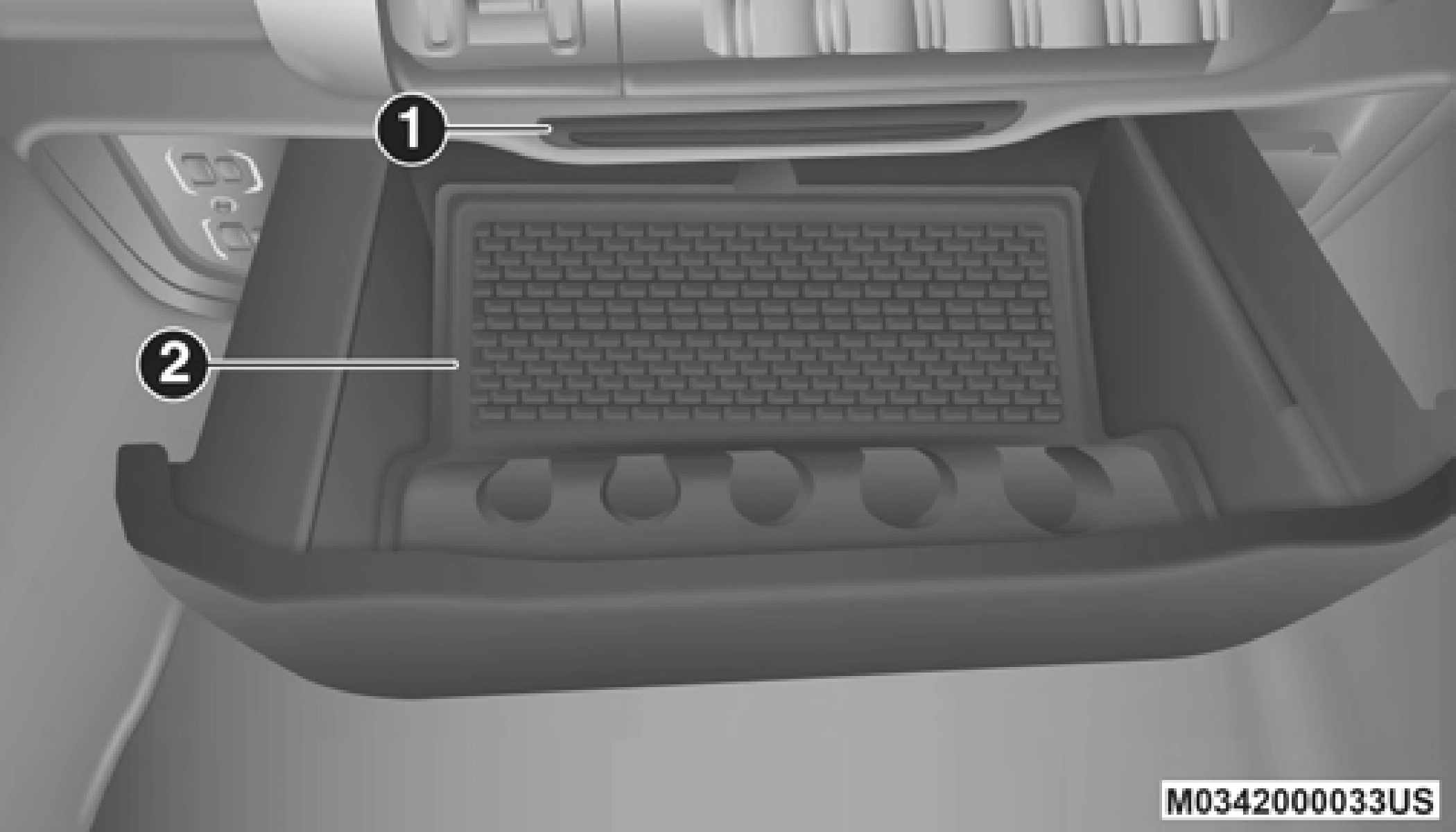

1 — Access Button 2 — Storage Drawer
Storage Drawer

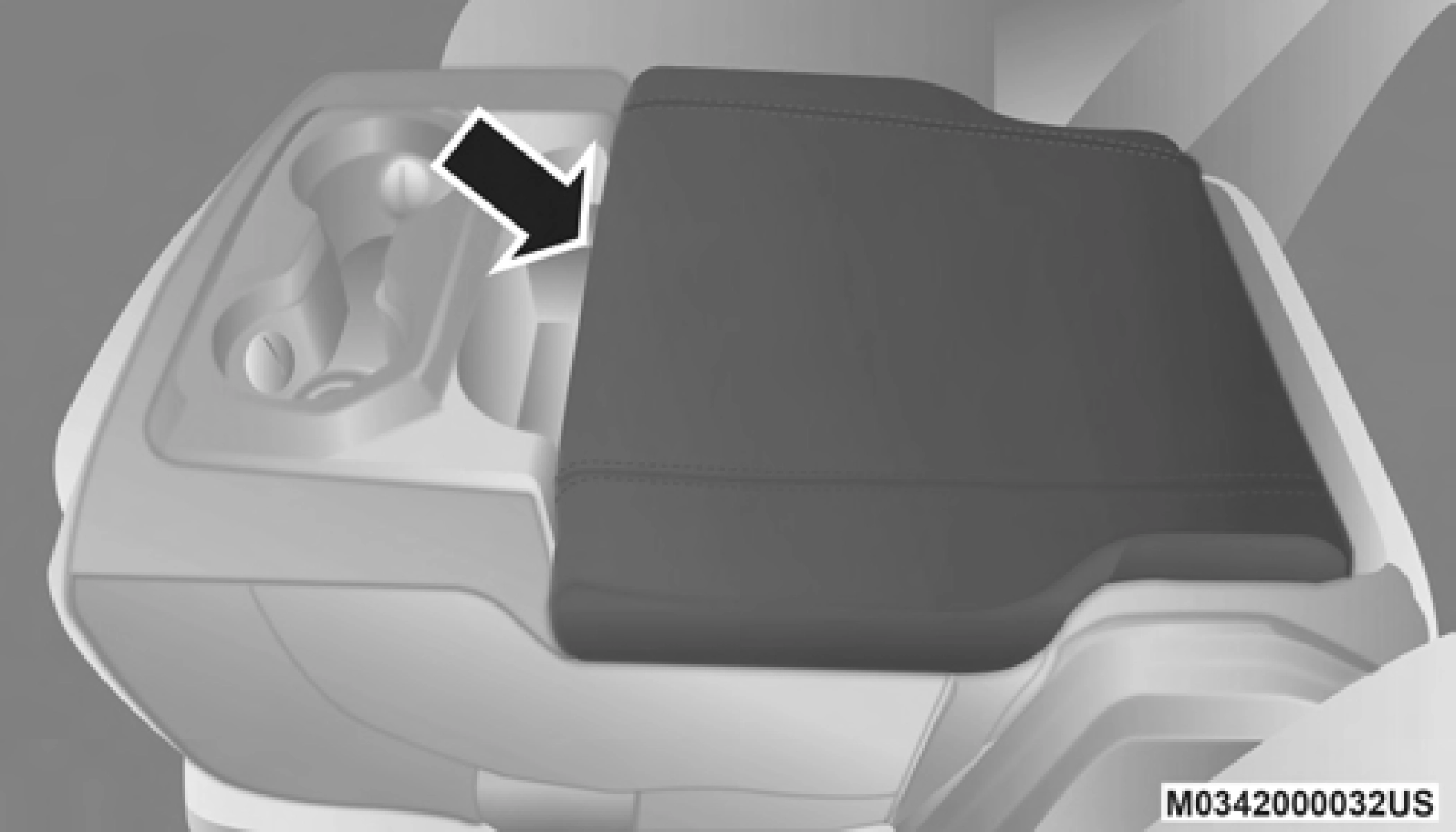

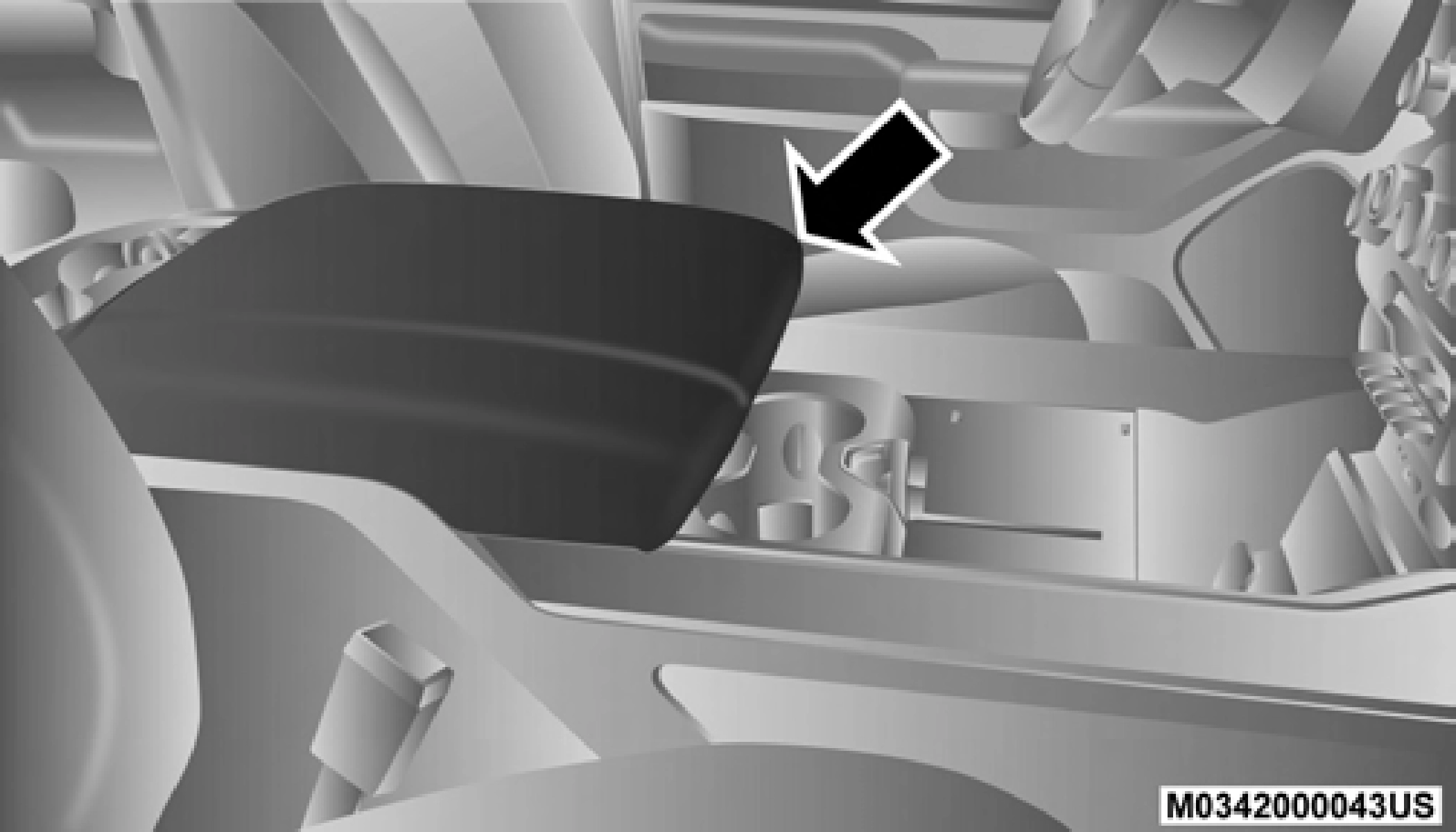

If vehicle is equipped with “Smart Fold”, the center portion of the 40/20/40 rear seat will fold forward for rear seat cupholders and a storage compartment. Lift up on the console latch to access.
Rear Console Latch Location

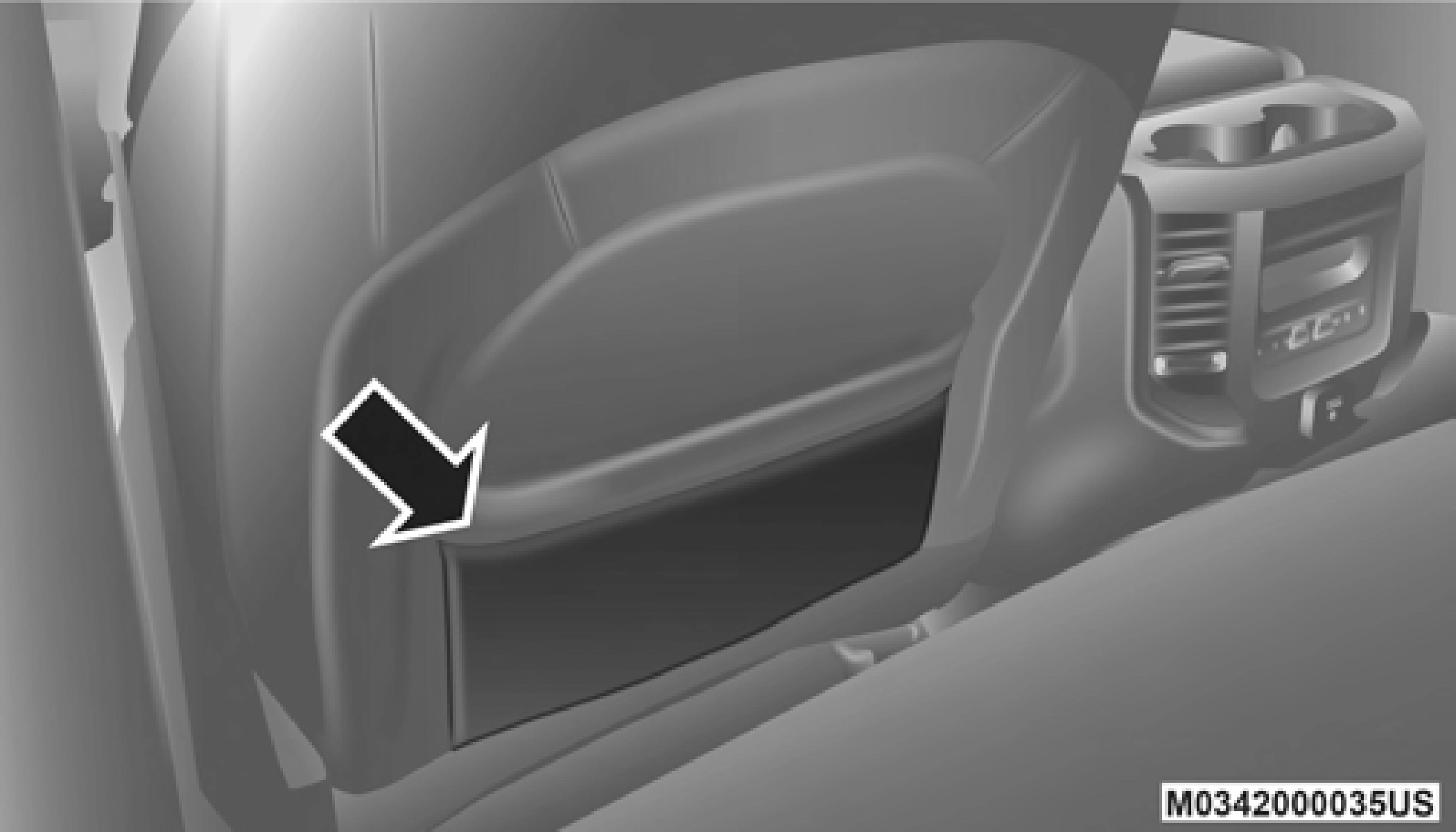

Located in the back of both the driver and passenger front seats are pockets that can be used for storage.
Driver's Side Seatback Storage
In-floor storage bins are located in front of the second row seats and can be used for extra storage. The storage bins have removable liners that can be easily removed for cleaning.
To open the in-floor storage bin, lift upward on the handle of the latch and open the lid.

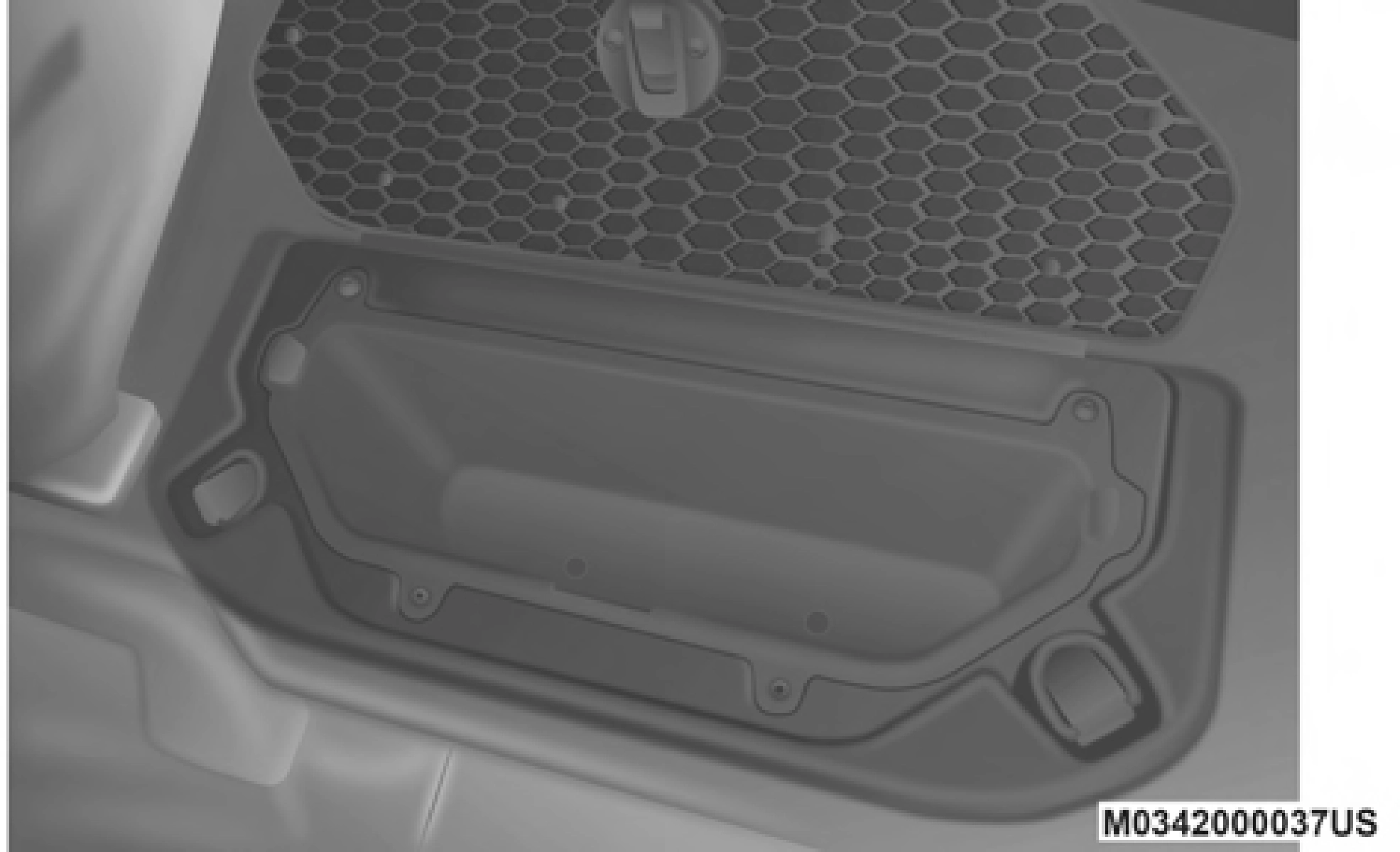

In-Floor Storage Bin Latch
NOTE:
The front seat may have to be moved forward to fully open the lid.
2
Opened Storage Bin

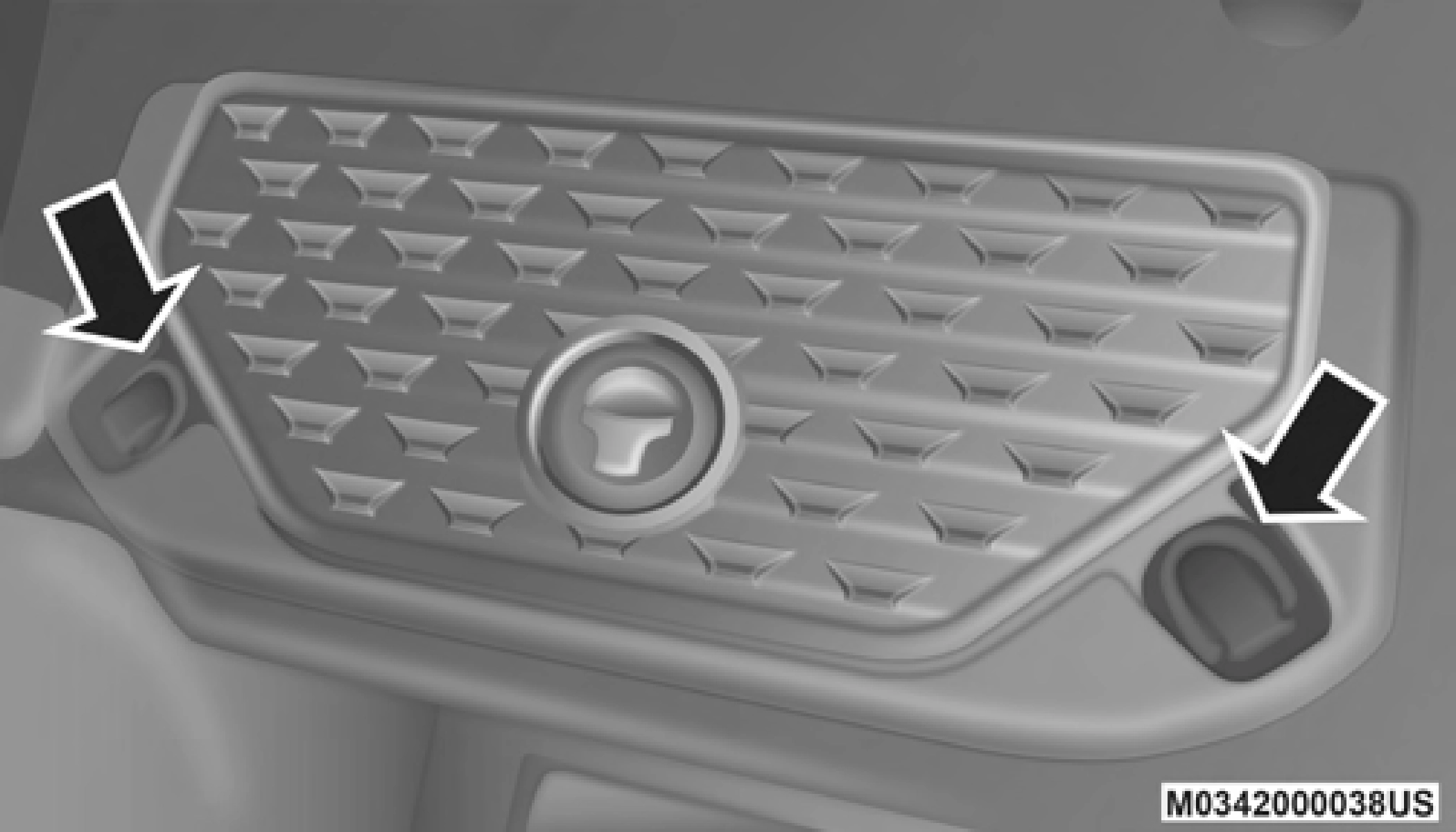

Each storage bin also contains two hooks for securing cargo. These hooks should be used to secure loads safely when the vehicle is moving.

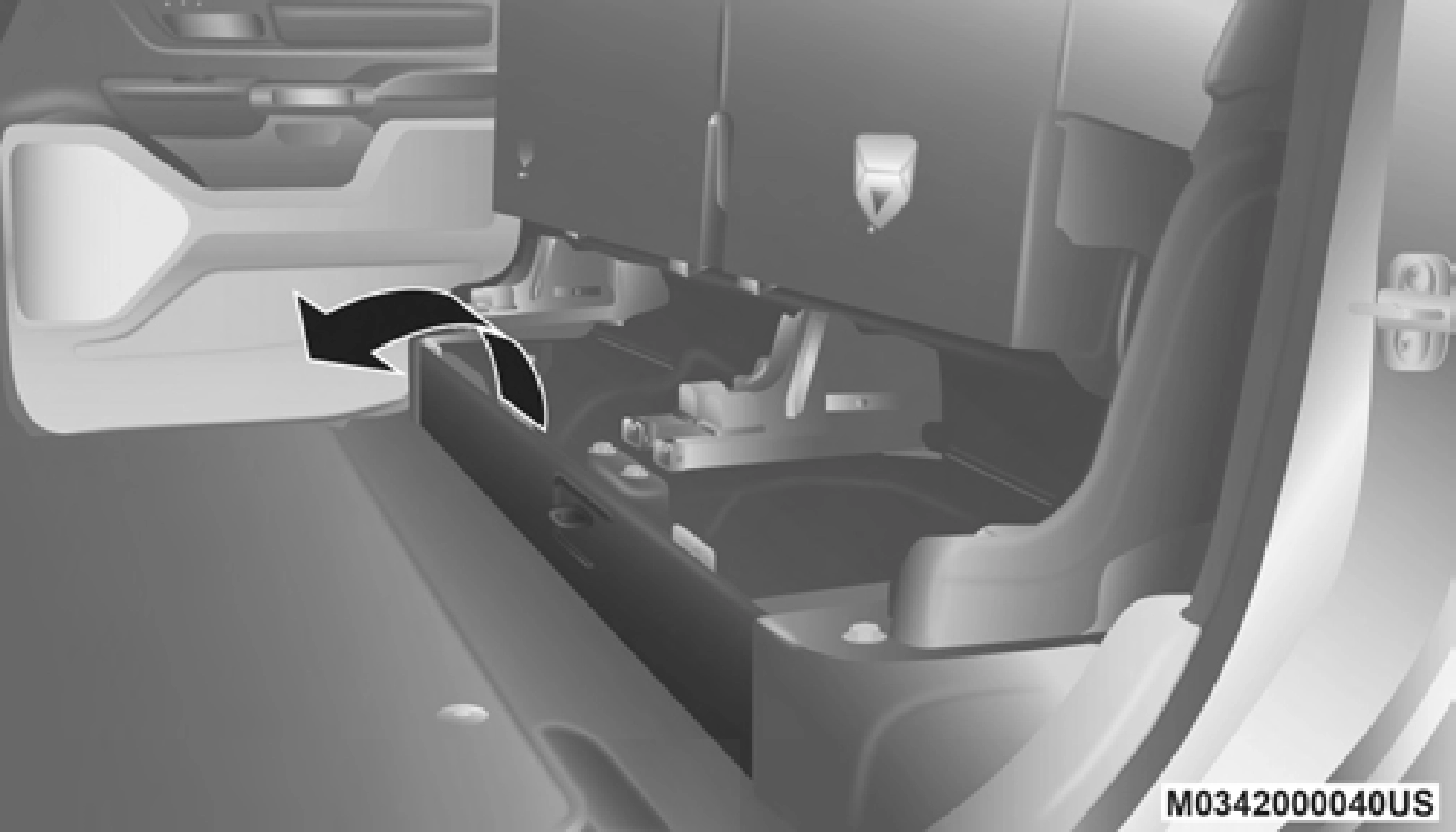

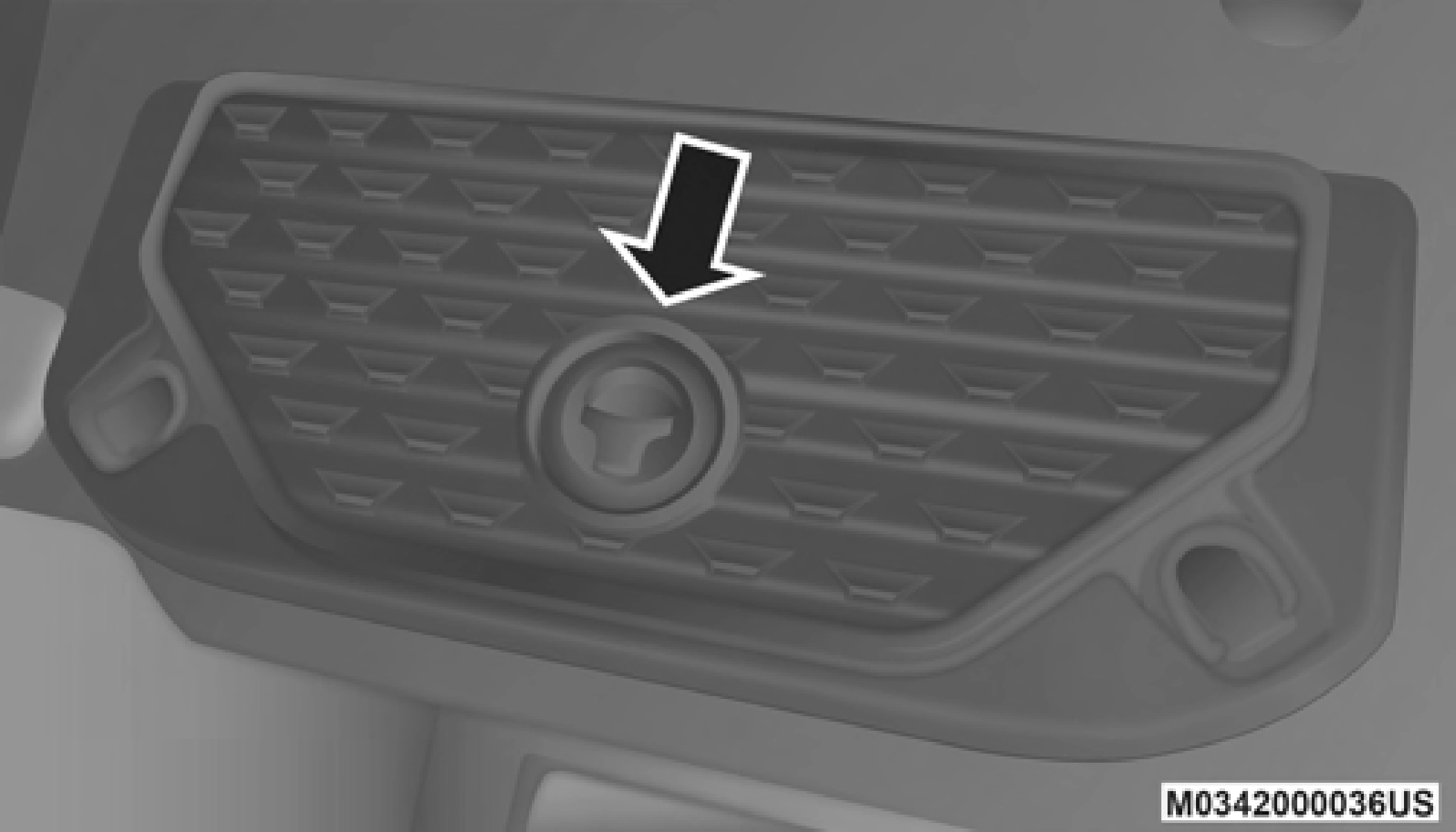

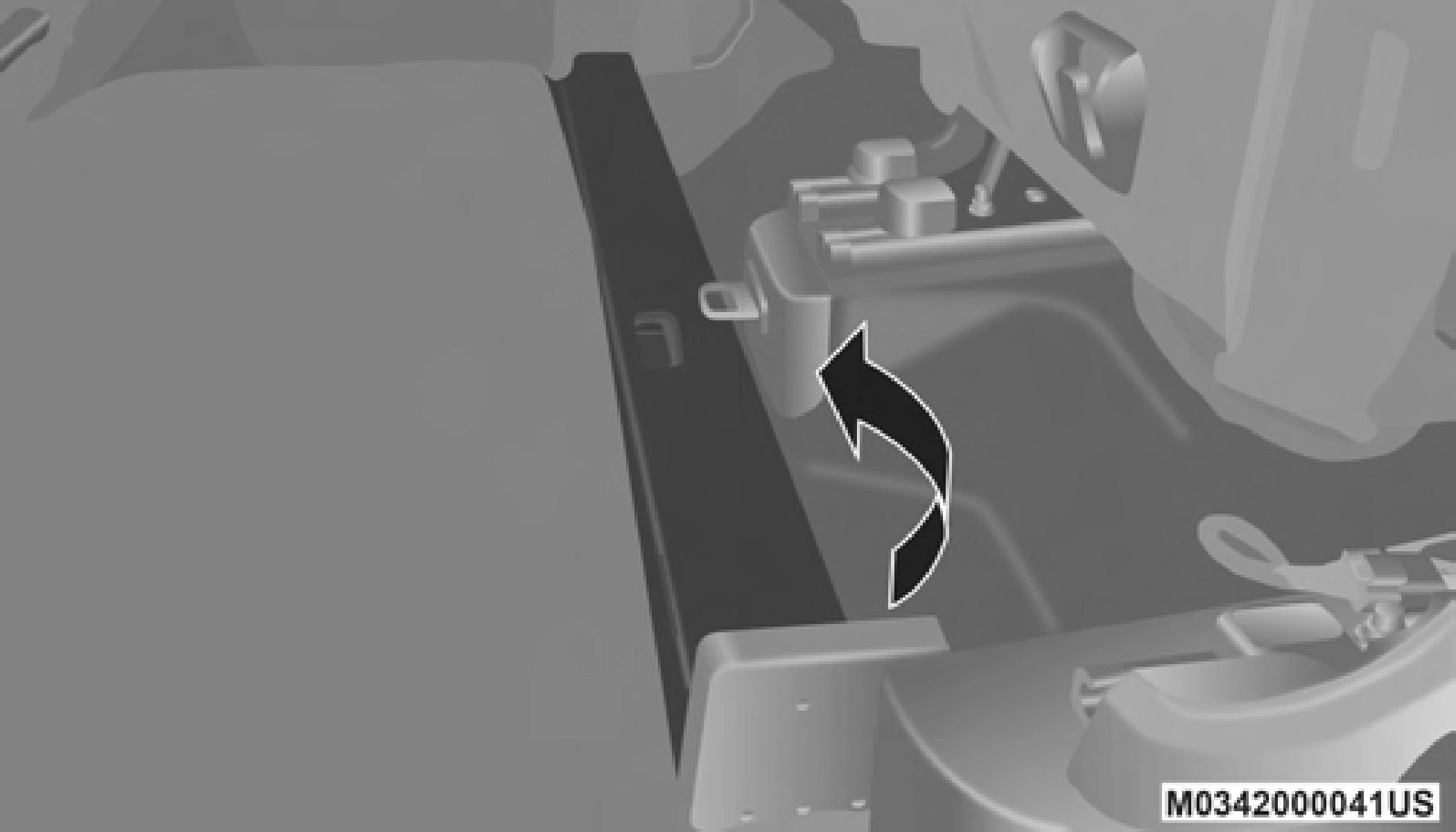

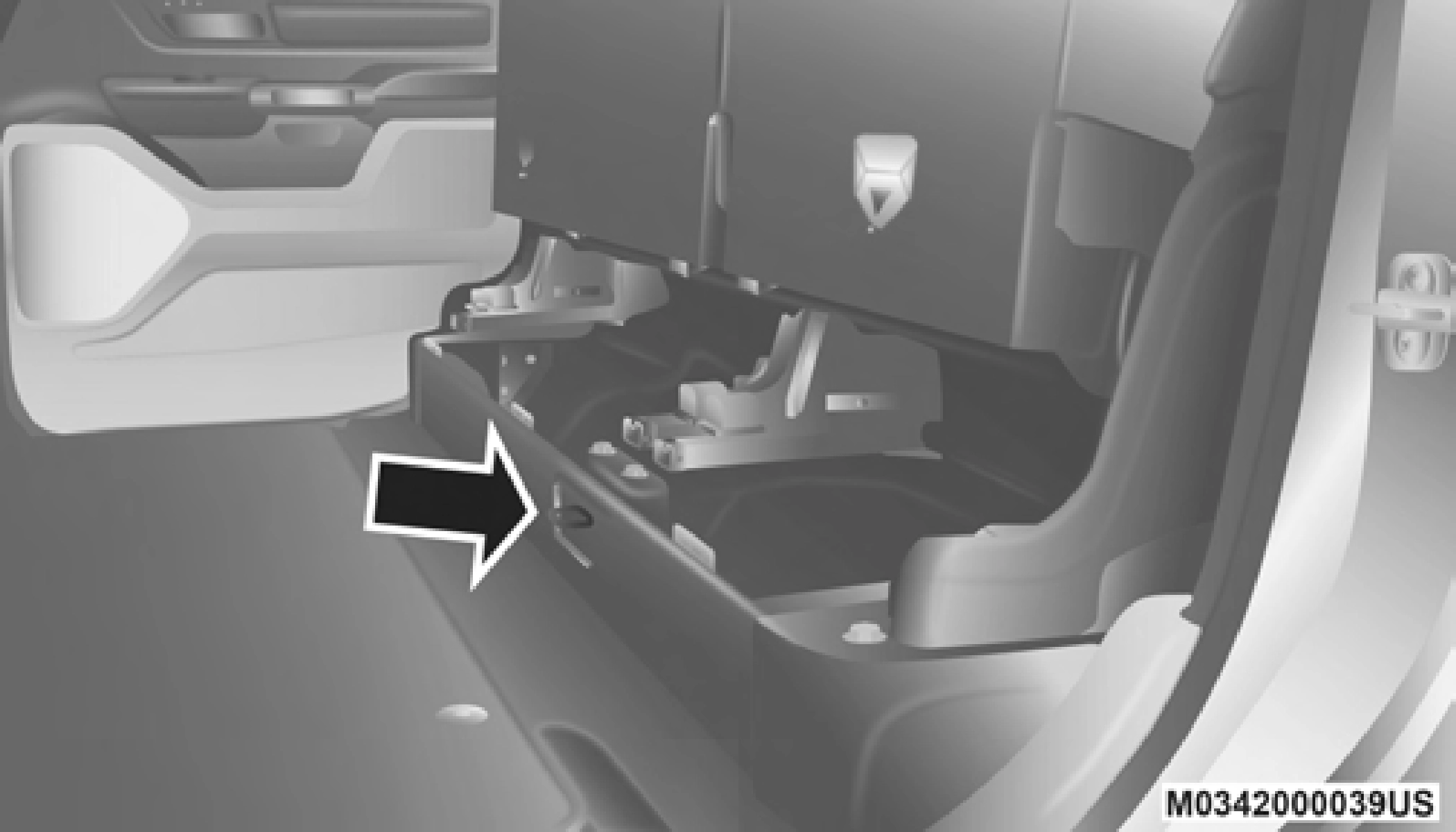

For additional storage below the rear seats, unlatch the lock mechanism in the center of the seat base by rotating it to either side, and fold the front of the base forward.NOTE:
In-Floor Storage Bin Hooks
Rotate Lock Mechanism
The maximum load limit for each hook is 250 lbs (113 kg).
Fold Seat Base Forward
2
Flip Inside Of Base Upward
For vehicles equipped with a center console, two cupholders are located in front of the console storage bin.
Fully Extended Storage Area
NOTE:
The rear seats do not need to be folded up to access this feature.

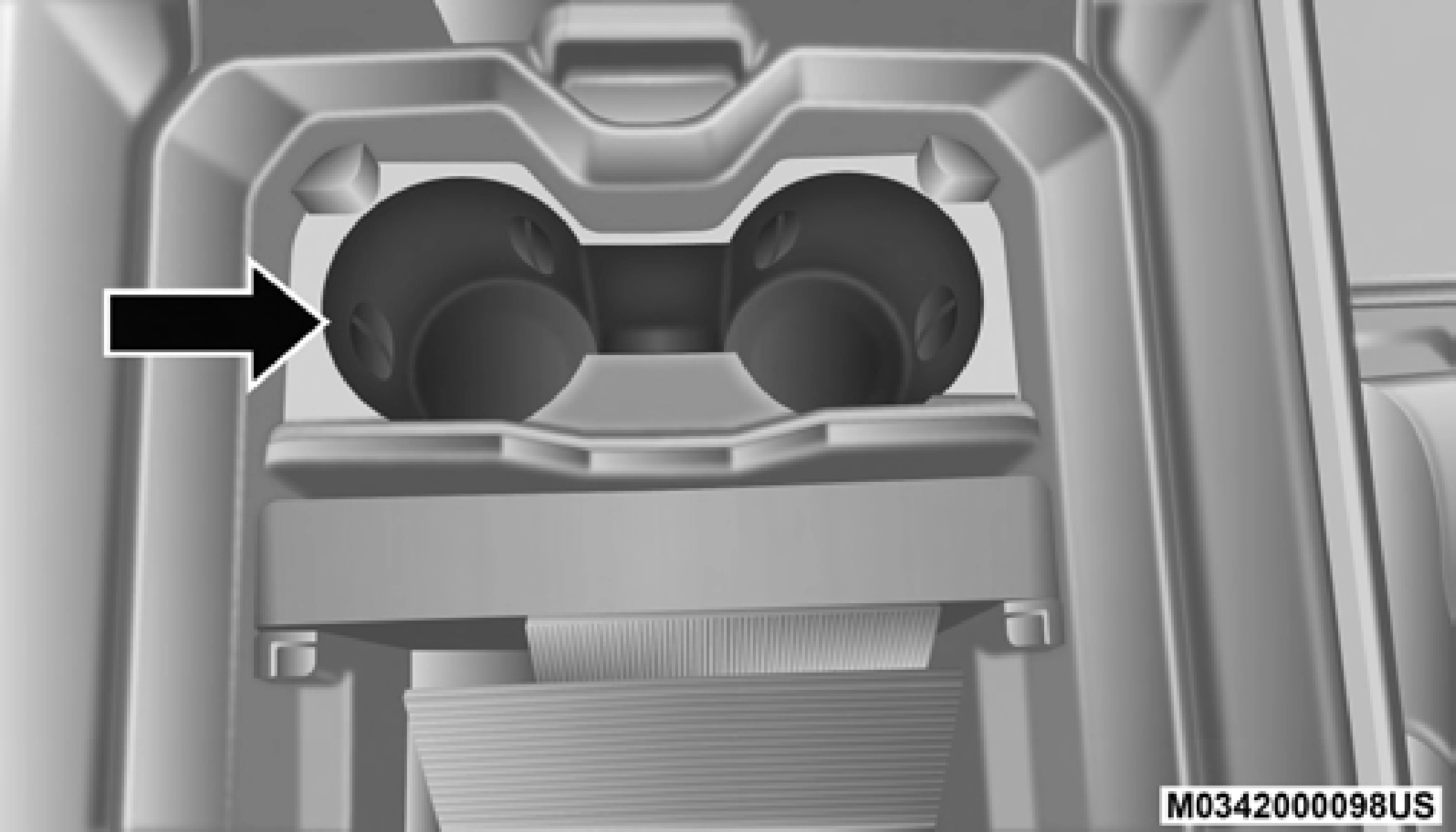

Front Cupholders
NOTE:
If the vehicle is equipped with a premium center console with double (tandem) doors, push the front bin door to access the cupholders.
Vehicles Equipped With 40/20/40 Seats
The cupholders are located on the backside of the center portion of the front seat (20). Fold down the center section of the front seat to gain access to the cupholders.

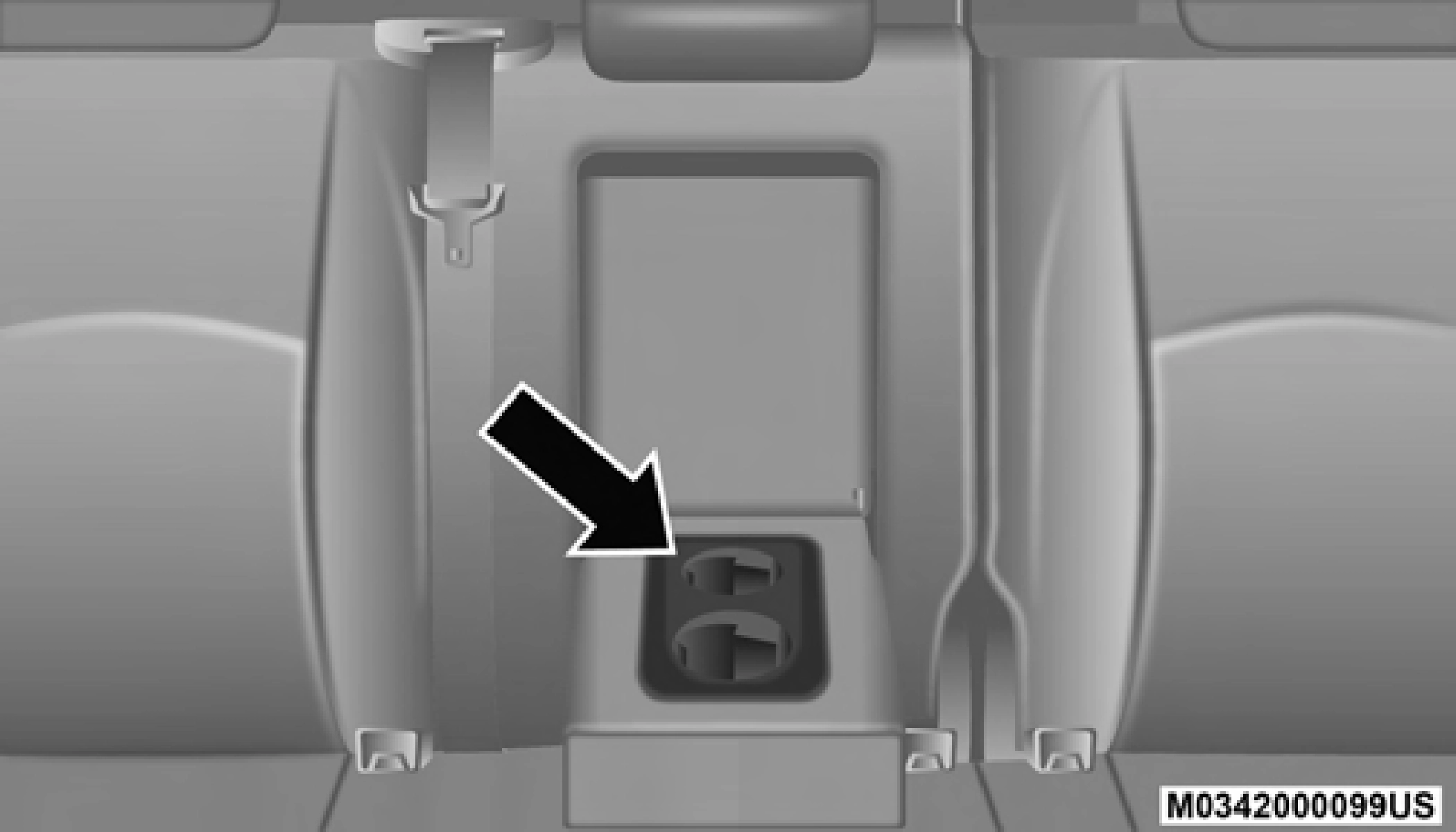

Rear seat cupholders can be found on the rear of the center console near the floor.
Some vehicles may also be equipped with rear cupholders 2
located in the center armrest.
Front Cupholders With Bench Seat

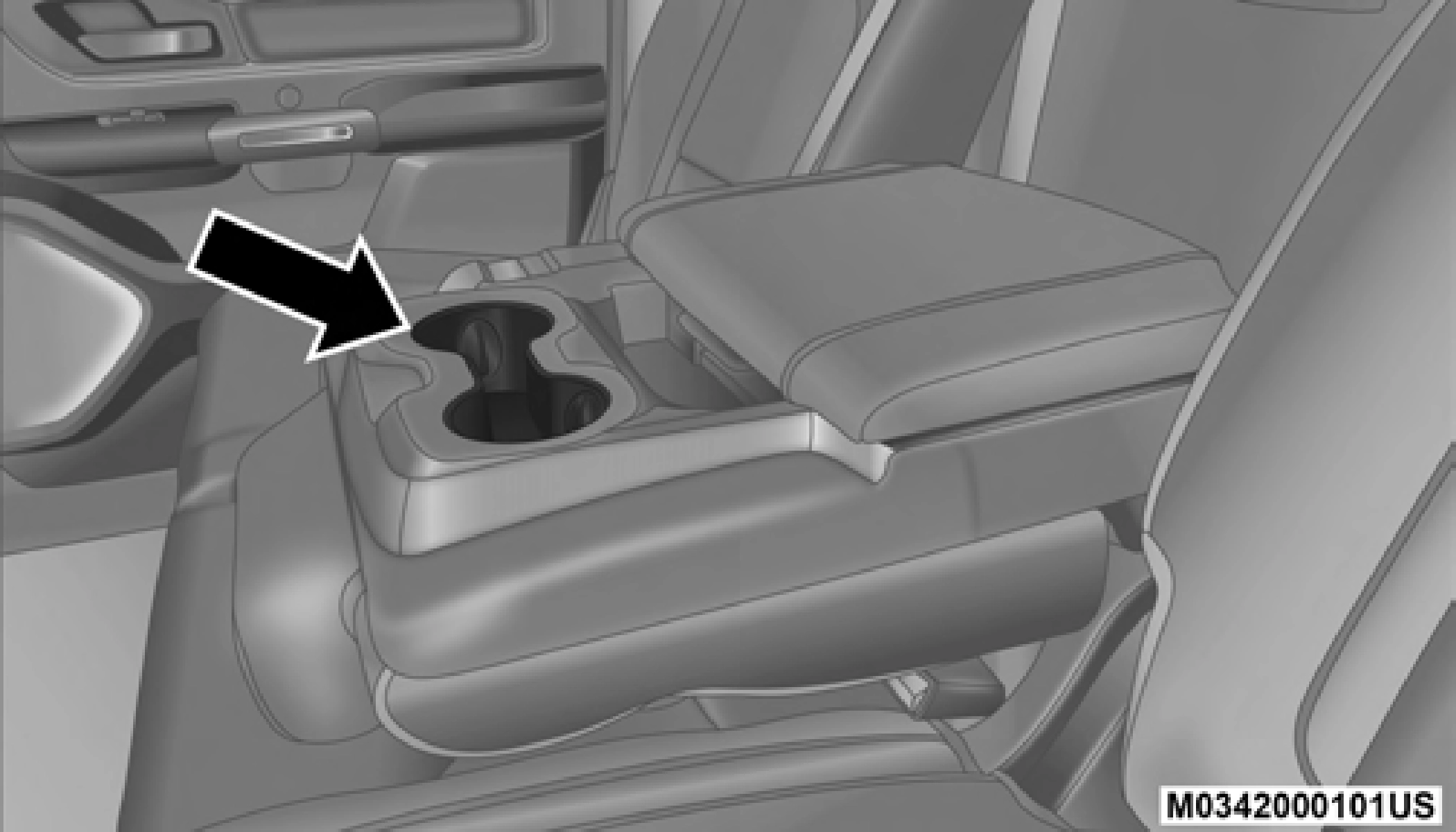

Rear Armrest Cupholder
If your vehicle is equipped with “Smart Fold”, the entire center section of the 40/20/40 seat folds forward for access of cupholders and console storage.

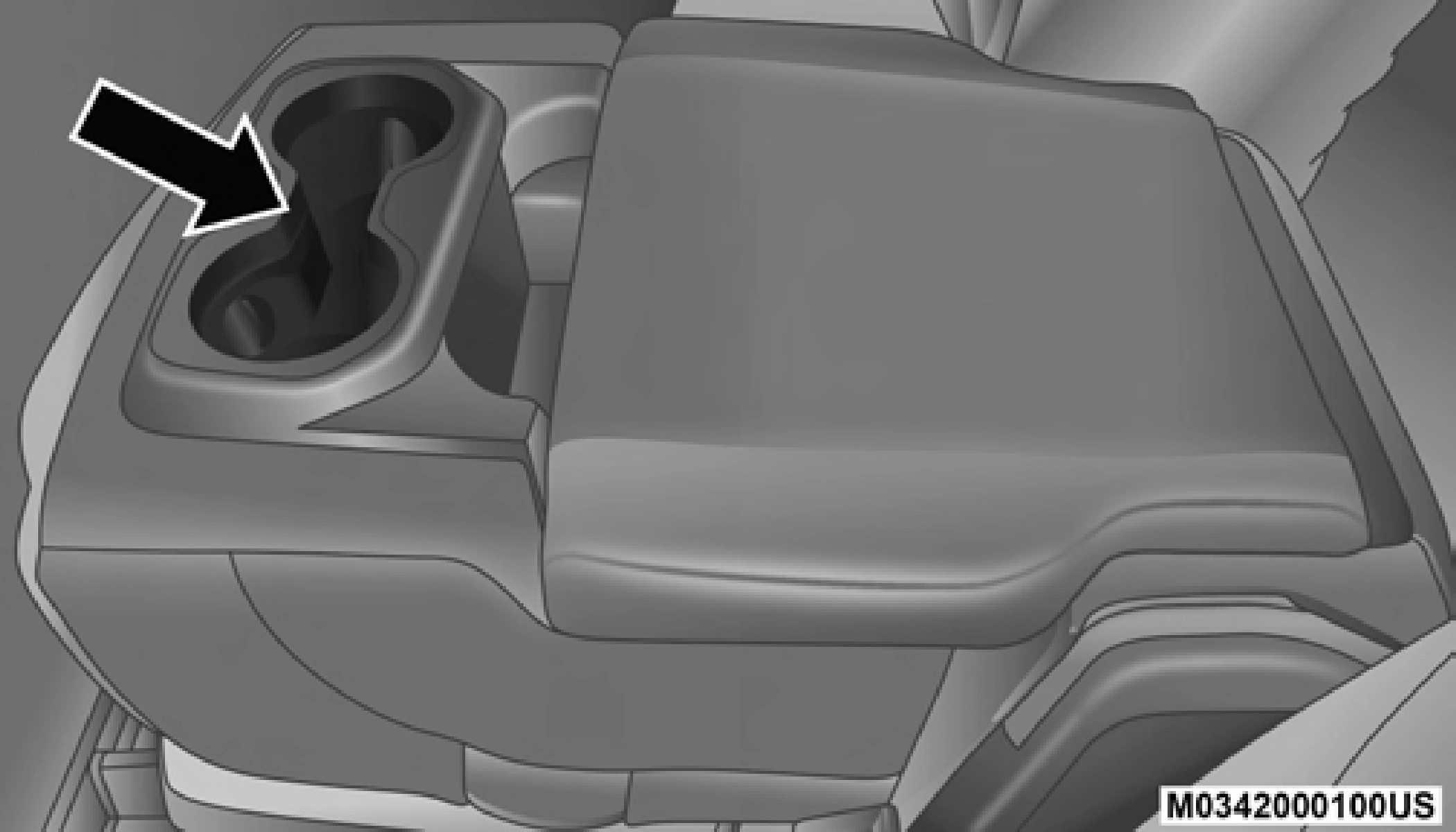

Rear Armrest Cupholder With Smart Fold
The auxiliary 12 Volt (13 Amp) power outlet can provide power for in-cab accessories designed for use with the standard “cigar lighter” plug. The 12 Volt power outlets and 5 Volt (2.5 Amp) USB Port (Charge Only) have a cap attached to the outlet indicating “12V DC,” together with either a key symbol, battery symbol, or USB symbol.
A key symbol indicates that the ignition must be in the ON/ RUN or ACC positions for the outlet to provide power. The battery symbol indicates that the outlet is connected to the battery, and can provide power at all times.

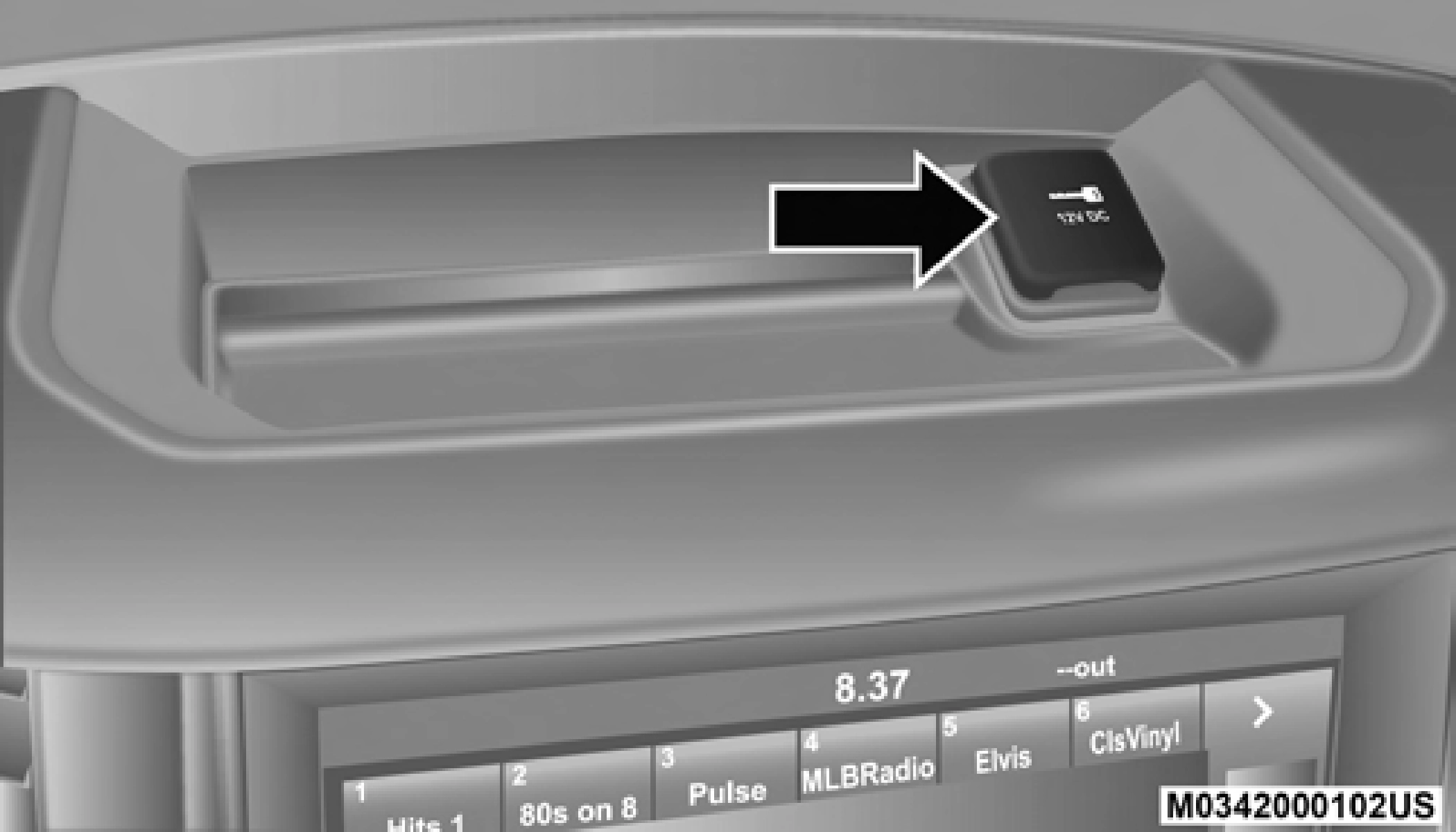

An auxiliary power outlet can be found in the tray on top of the center stack. This power outlet only works when the igni- tion is in the ON/RUN or ACC position.
Power Outlet — Top Of Center Stack
2
Power Outlet Fuse Locations

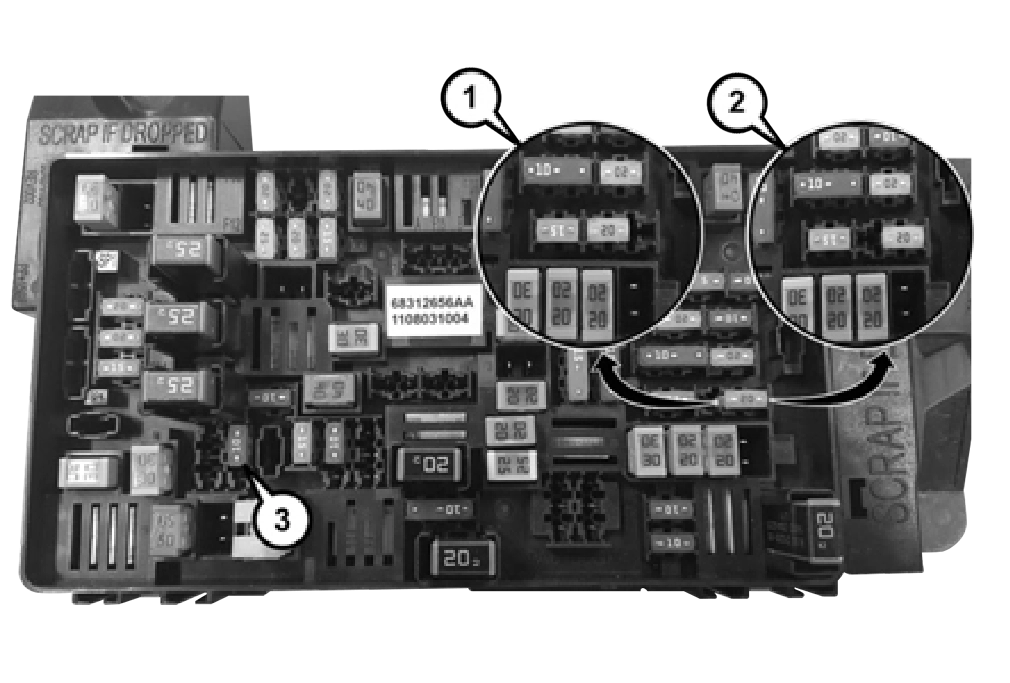

1 — F54 Fuse 20 A Yellow Power Outlet Battery Fed Position 2 — F54 Fuse 20 A Yellow Power Outlet Ignition Fed Position 3 — F48 Fuse 10 A Red Port Power or Rear USB (Charge Only)
When the vehicle is turned off, be sure to unplug any equip- ment as to not drain the battery of the vehicle. All accessories connected to the outlet(s) should be removed or turned off when the vehicle is not in use to protect the battery against discharge.

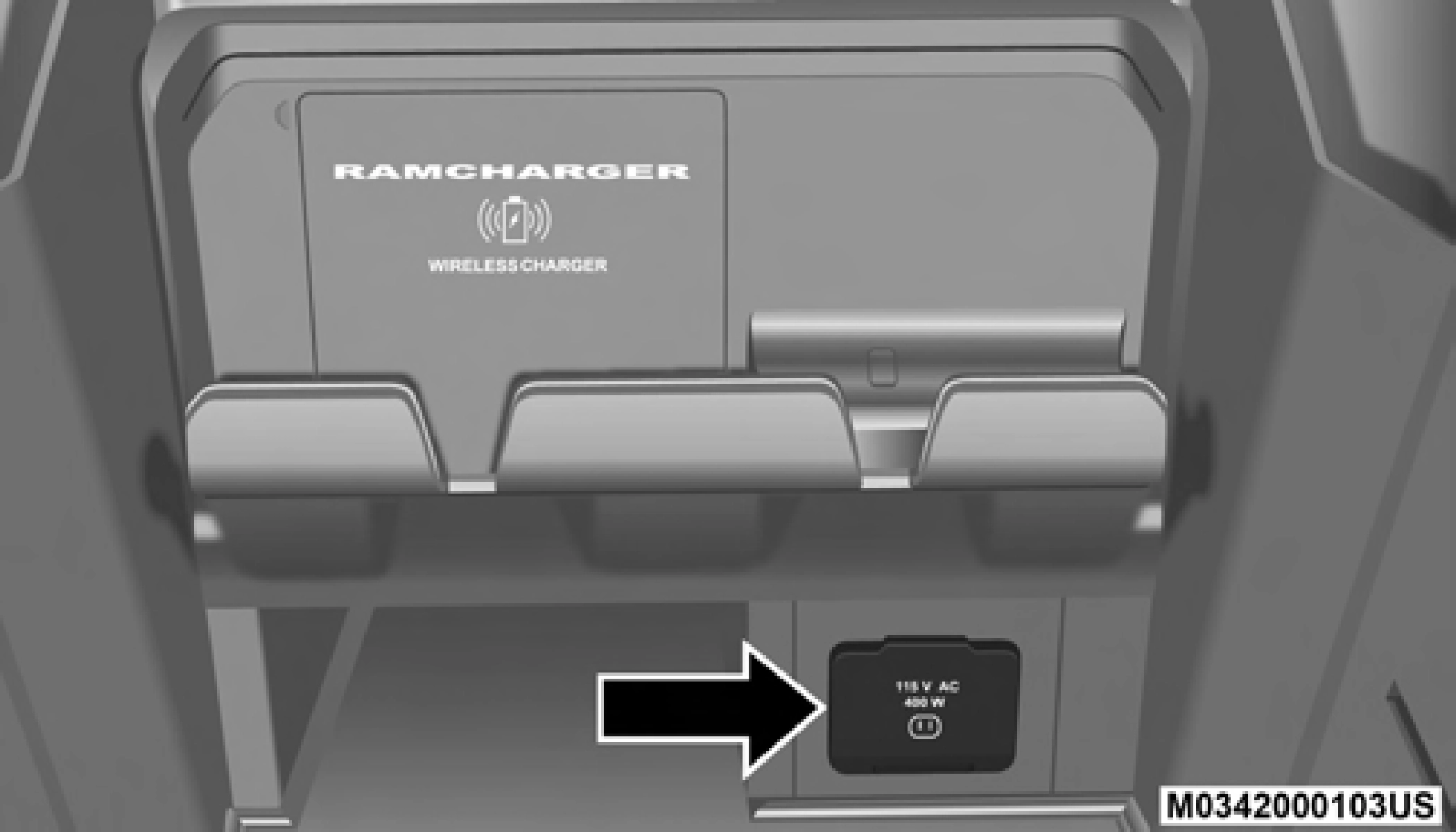

If equipped, a 115 Volt (400 Watts Maximum) inverter may be located inside the center console towards the right hand side, just under the Wireless Charging Pad (if equipped). This inverter can power cellular phones, electronics and other low power devices requiring power up to 400 Watts. Certain high-end video game consoles exceed this power limit, as will most power tools.
Center Console Power Inverter Outlet

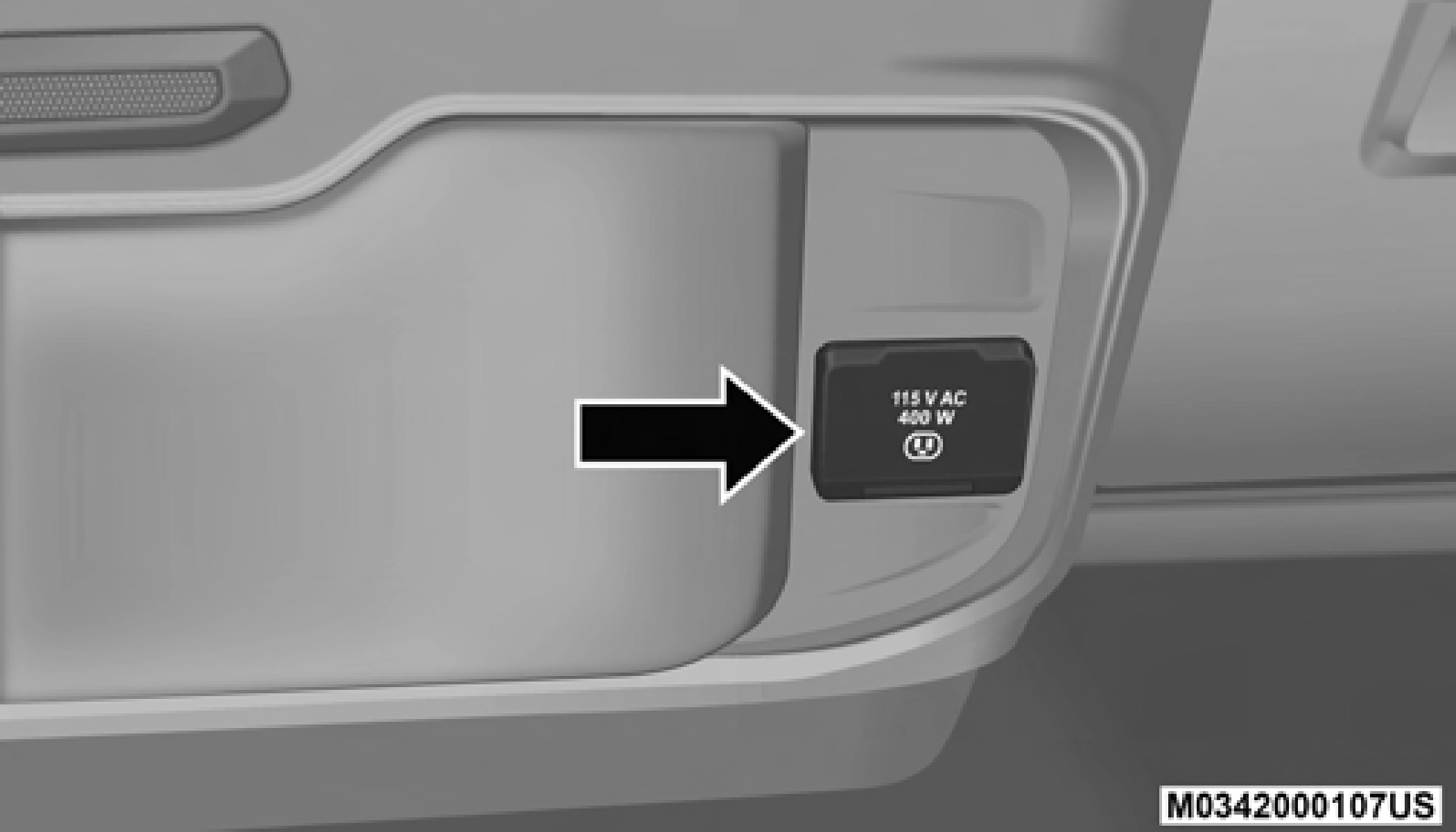

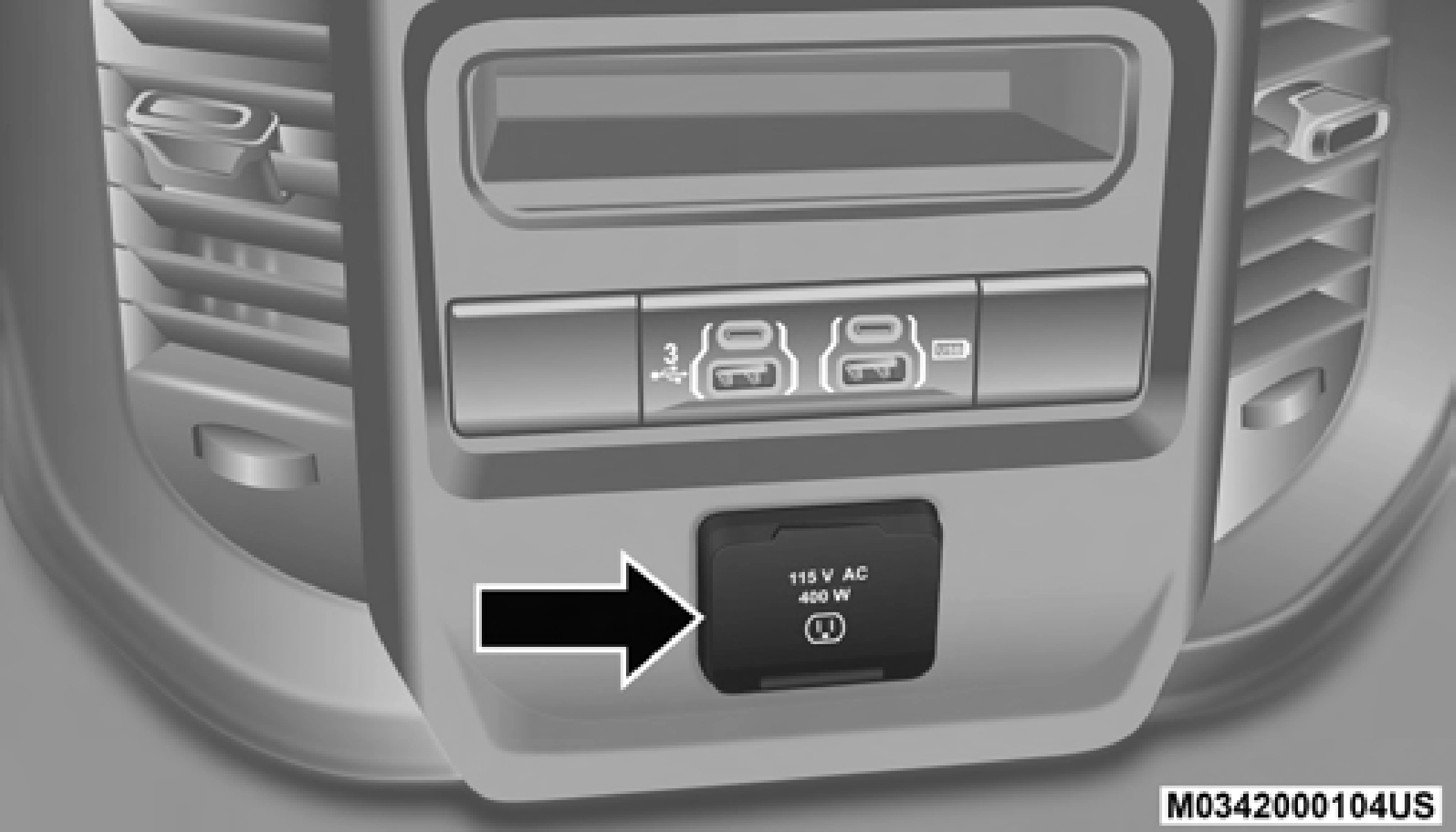

There is also a second 115 Volt (400 Watts Maximum) power inverter located on the rear of the center console. This inverter can power cellular phones, electronics and other low power devices requiring power up to 400 Watts. Certain
high-end video game consoles exceed this power limit, as 2
will most power tools.
All power inverters are designed with built-in overload protection. If the power rating of 400 Watts is exceeded, the power inverter shuts down. Once the electrical device has been removed from the outlet the inverter should reset.
Rear Center Console Power Inverter Outlet
NOTE:
400 Watts is the maximum for the inverter, not each outlet. If three outlets are in use, 400 Watts is shared amongst the devices plugged in.

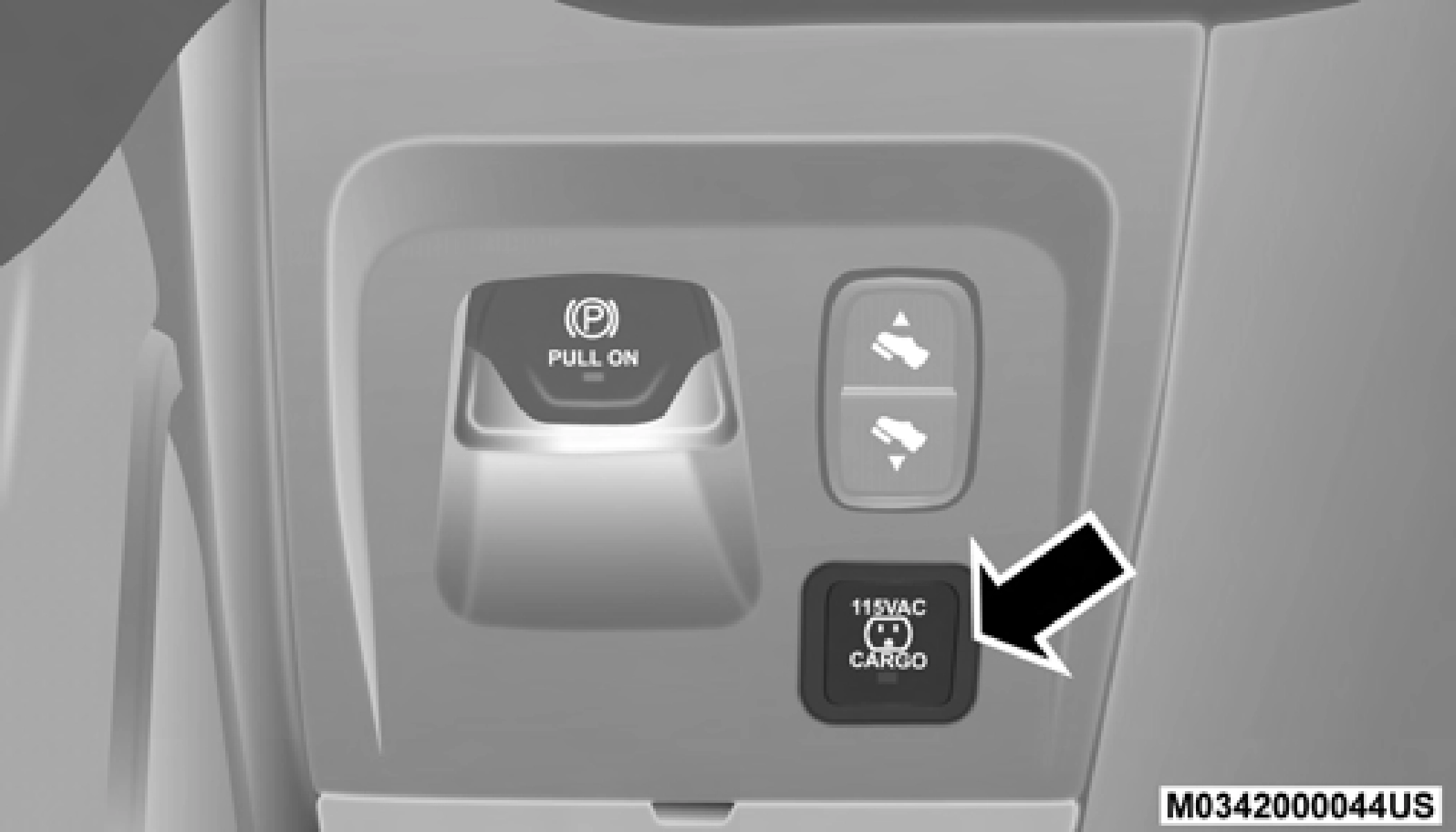

If equipped, a 115 Volt (400 Watts Maximum) inverter may be located inside the ram box of your vehicle. The inverter can be turned on by the Instrument Panel Power Inverter switch located to the left of the steering wheel. The RamBox inverter can power cellular phones, electronics and other low power devices requiring power up to 400 Watts. Certain high-end video game consoles exceed this power limit, as will most power tools.
The Instrument Panel Power Inverter switch is only found on vehicles equipped with a RamBox. The switch only controls on/off operation of the power outlet in the RamBox; it does not control on/off operation of the power outlets located inside the cabin of the vehicle.

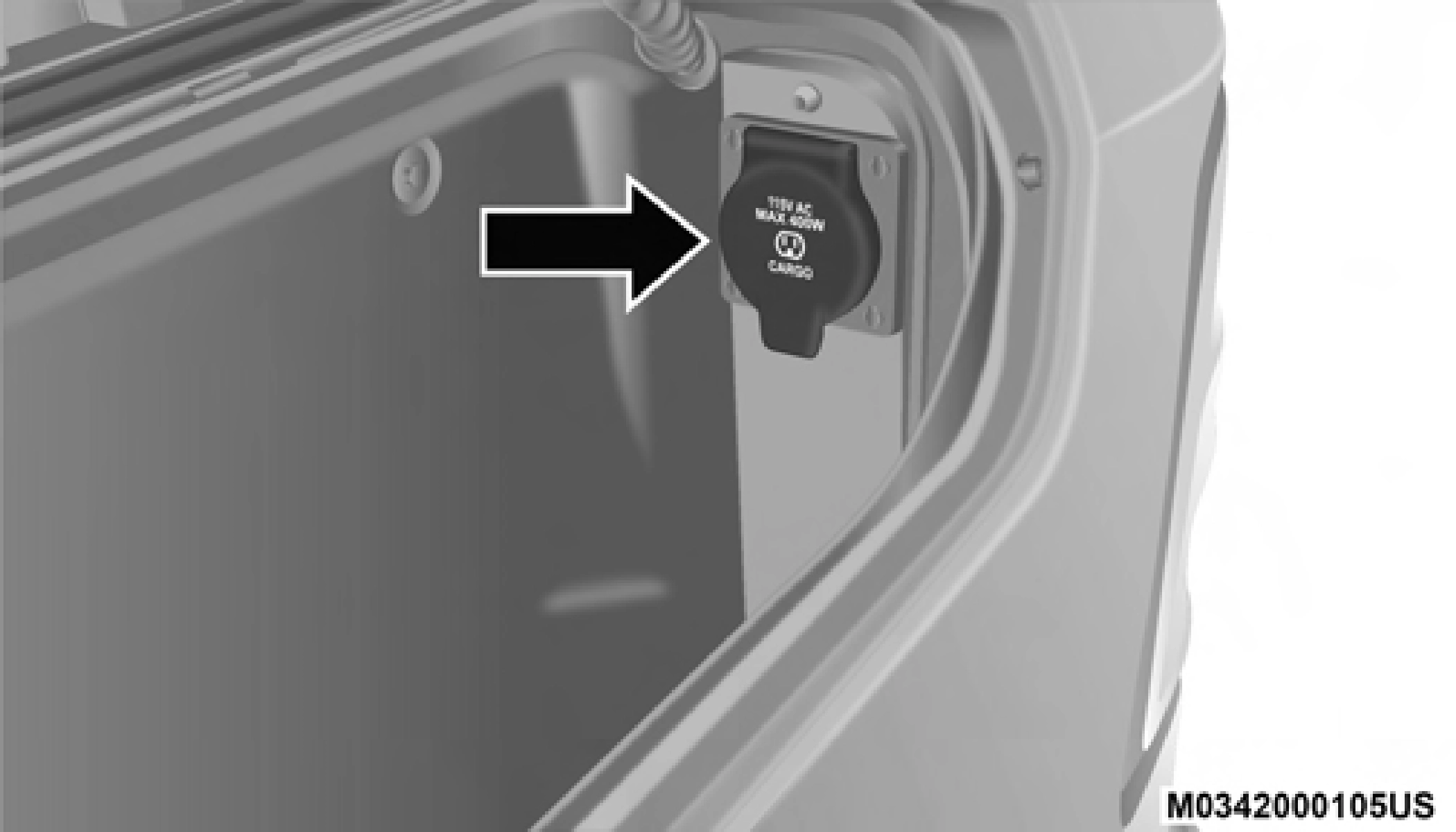

Ram Box Power Inverter
Instrument Panel Power Inverter Switch
If equipped with a front bench seat, there may be a 115 Volt (400 Watts Maximum) inverter located to the right of the center stack, just below the climate controls. This inverter can power cellular phones, electronics and other low power devices requiring power up to 400 Watts. Certain high-end video game consoles exceed this power limit, as will most power tools.
2
Center Stack Power Inverter
To turn on the power outlet, simply plug in the device. The outlet turns off when the device is unplugged.
NOTE:
Wireless Charging Pad

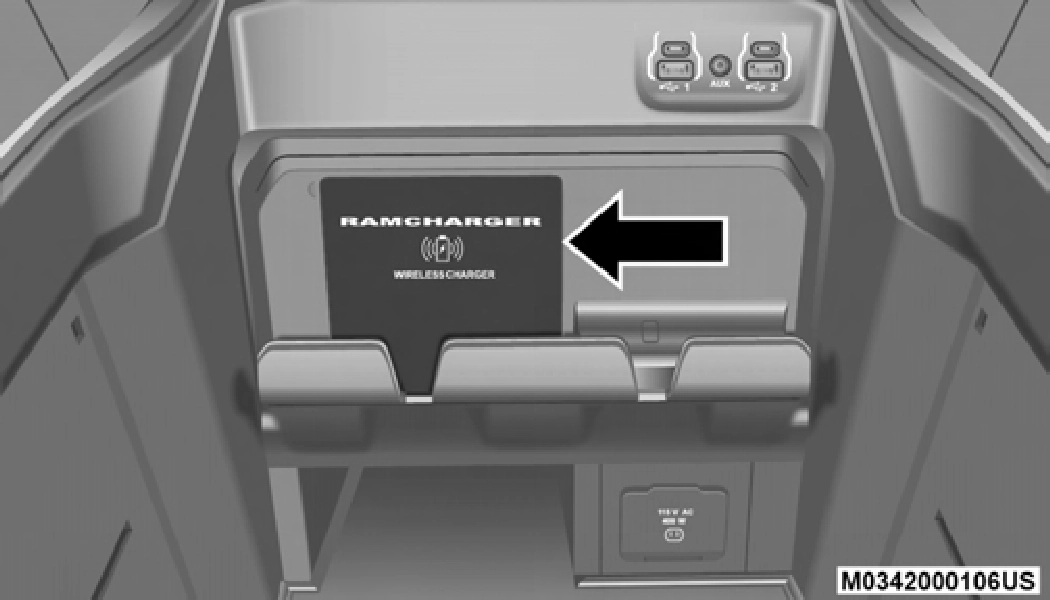

Your vehicle may be equipped with a 15W 3A Qi wireless charging pad located inside of the center console just below the CD player (if equipped). This charging pad is designed to wirelessly charge your Qi enabled mobile phone. Qi is a stan- dard that uses magnetic induction to transfer power to your mobile device.
Your mobile phone must be designed for Qi wireless charging. If the phone is not equipped with Qi wireless charging functionality, an aftermarket sleeve or a specialized back plate can be purchased from your mobile phone provider or an local electronics retailer. Please see your phone's owner's manual for further information.
The wireless charging pad is equipped with an anti-slip mat, an adjustable cradle to hold your mobile phone in place and an LED indicator light.

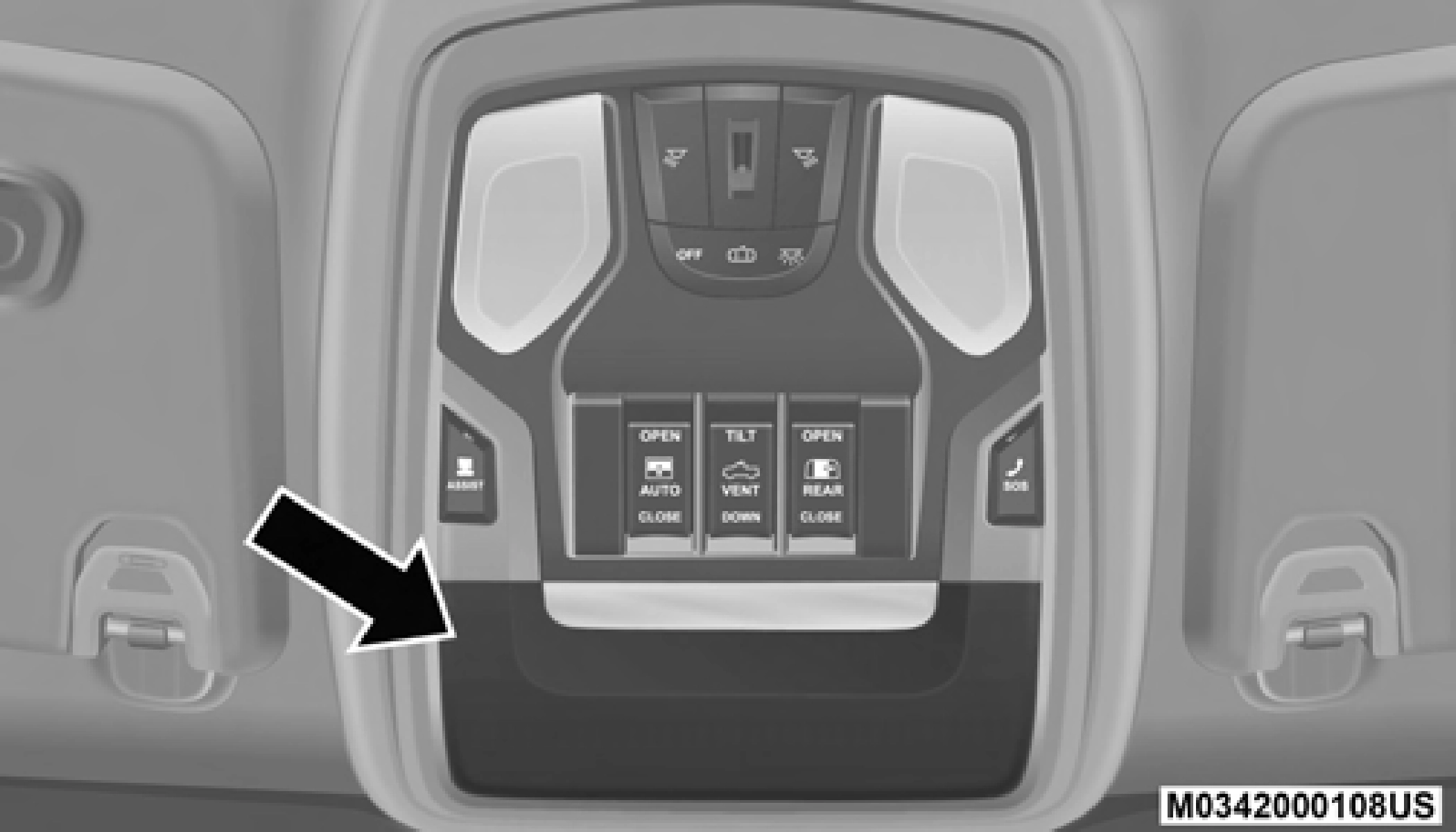

At the front of the overhead console, a compartment is provided for the storage of one pair of sunglasses.
From the closed position, push the door latch to open the compartment.
Overhead Sunglass Door
The door will slowly rotate to the full open position.
