Malfunction
Indicators

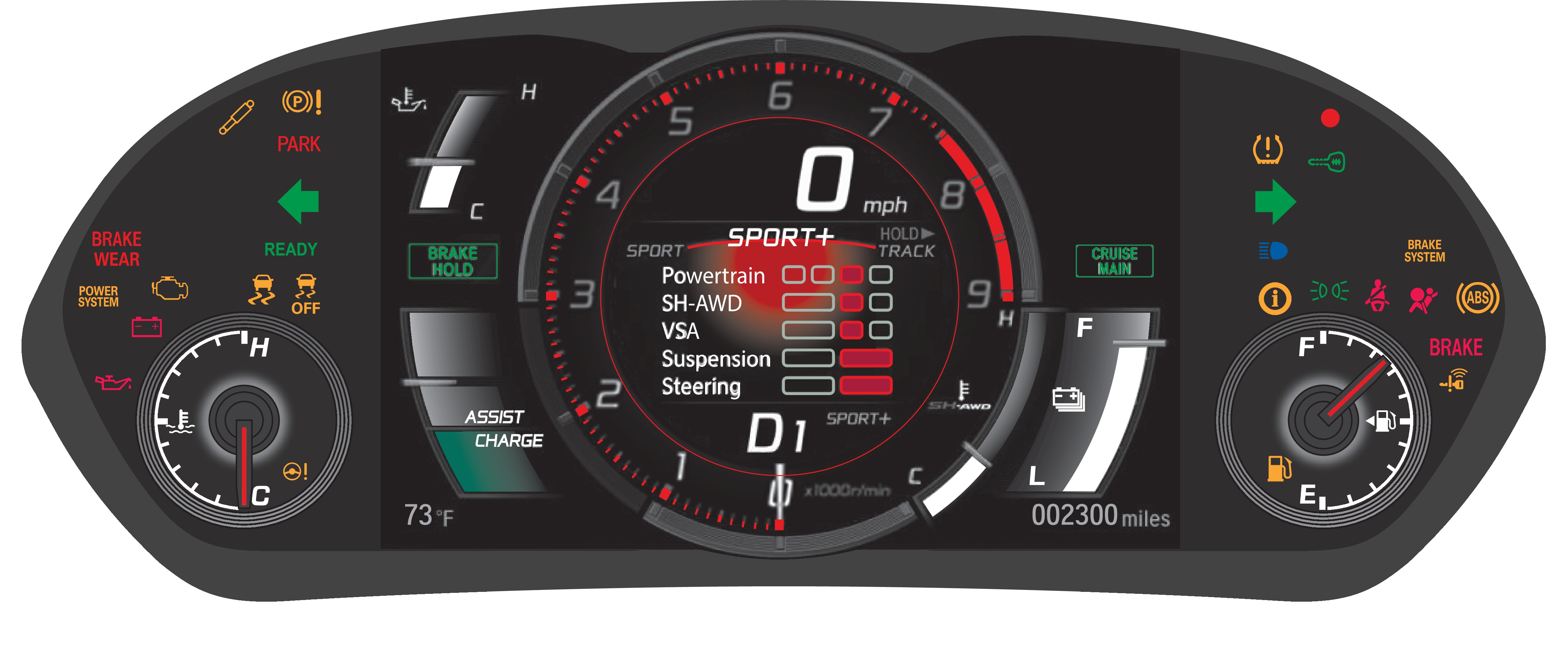

Learn about the indicators, gauges, and displays related to driving the vehicle.
Indicators briefly appear with each engine start and then go out. Red and amber indicators are most critical. Blue and green indicators are used for general information.
These are the most critical indicators. If they come on and stay lit while driving or at any other time, there may be a problem. See your authorized Acura NSX dealer if necessary.
|
|
Brake System Brake fluid is low, or there is a malfunction in the brake system. Press the brake pedal lightly to check pedal pressure. If normal, check the brake fluid level when you stop. If abnormal, take immediate action. If necessary, downshift the transmission to slow the vehicle using engine braking. Have your vehicle repaired immediately. |
|
|
Low oil pressure Engine oil pressure is low. Stop in a safe place. Open the hood and check the oil level, and add oil if necessary. If the indicator does not turn off, have your vehicle repaired immediately. |
|
|
Malfunction indicator lamp (check engine light) (Steady) The emissions control system may have a problem. Have you vehicle checked by a authorized Acura NSX dealer. (Blinks) A misfire in the engine's cylinders is detected. Stop in a safe place, and wait for the engine to cool down. |
|
|
Charging system The battery is not charging. Turn off all electrical items, but do not turn off the vehicle to prevent further battery discharge. Have your vehicle repaired immediately. |
|
|
Anti-lock Brake System (ABS) There is a problem with the anti-lock brake system. Your vehicle still has normal braking ability, but no anti-lock function. |
|
|
Supplemental Restraint System (SRS) There is a problem with one of the airbag systems or seat belt tensioners. |
|
|
Electric Power Steering (EPS) There is a problem with the electric power steering system. |
|
|
Power system There is a problem with the electric vehicle system. Have you vehicle checked by a authorized Acura NSX dealer immediately. |
|
|
Keyless Access System There is a problem with the keyless access system. |
|
|
Vehicle Stability Assist® (VSA®) There is a problem with the VSA system. |
|
|
Brake system There is a problem with the hydraulic brake boost system or the hill start assist system. Have you vehicle checked by a authorized Acura NSX dealer immediately. |
