2018 Acura NSX Owners Manual - Changing Wiper

If the wiper blades leave streaks across the windshield, try cleaning them first with a paper towel or soft cloth and wiper fluid. If the wiper blade rubber has deteriorated, you should change the wiper blades.

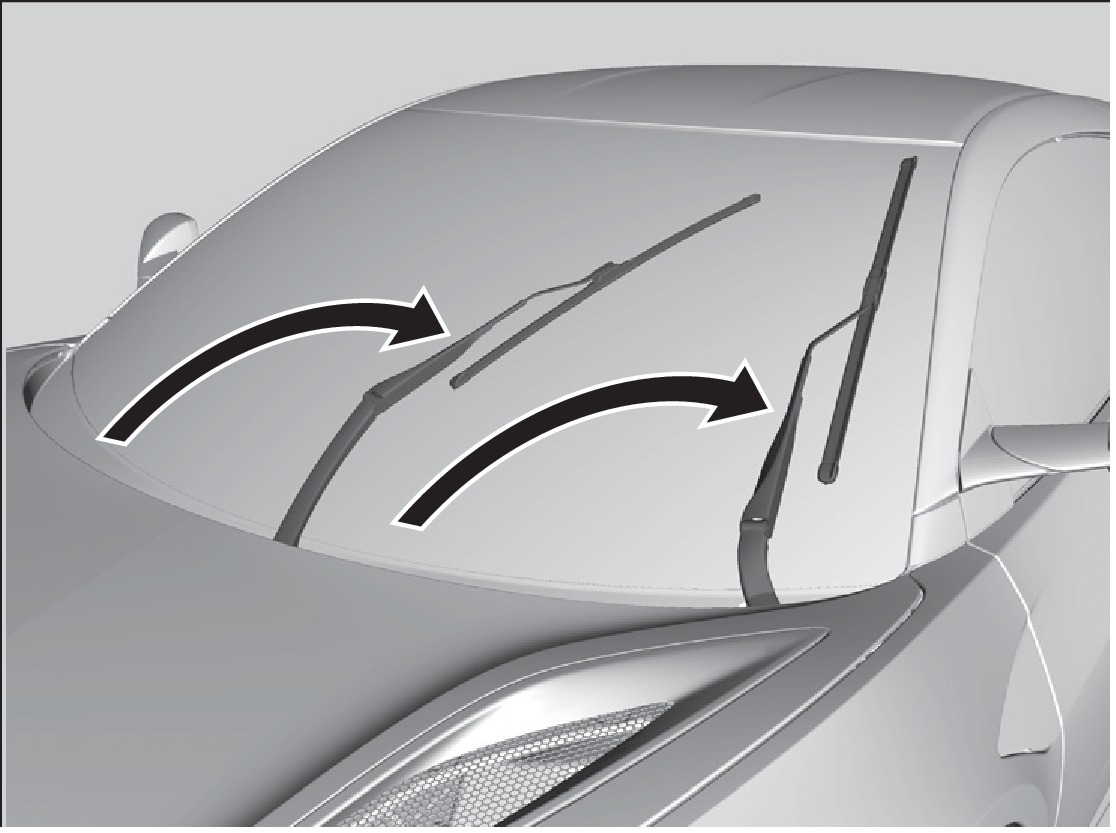

1. Hold the wiper switch in the MIST position as you change the power mode to VEHICLE OFF. The wiper arms will move into the service position.

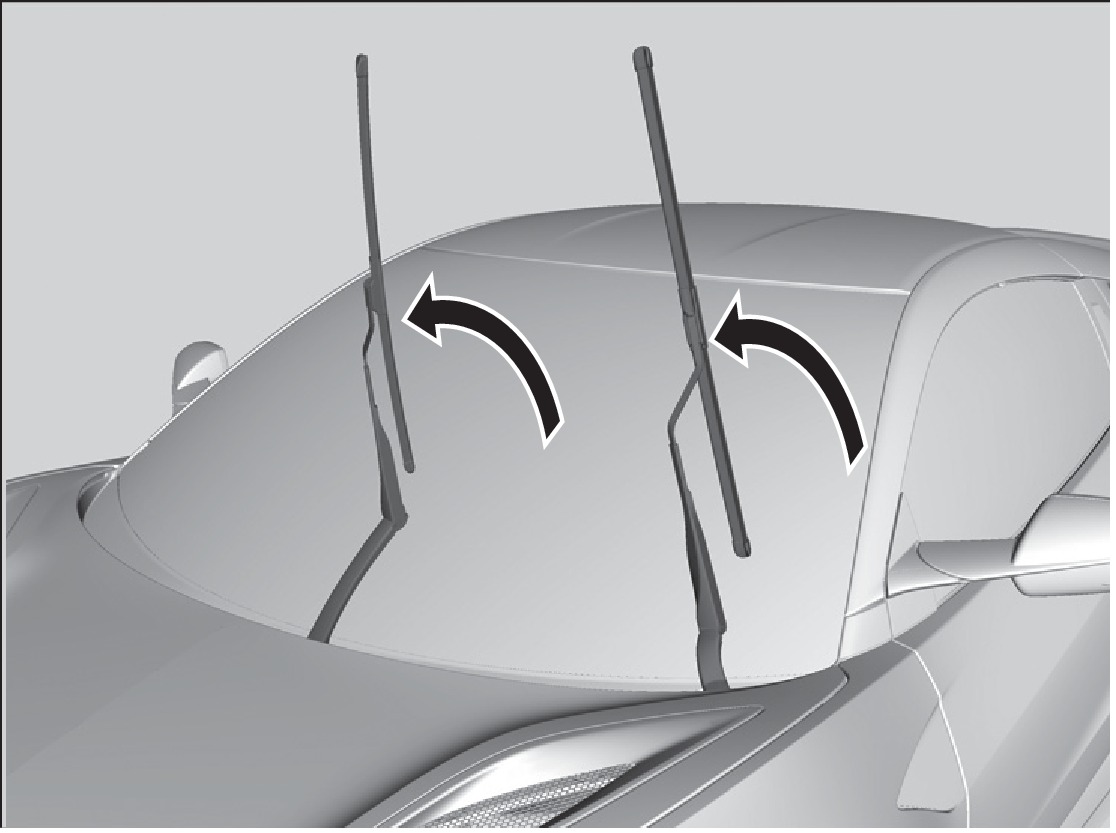

2. Lift both wiper arms.

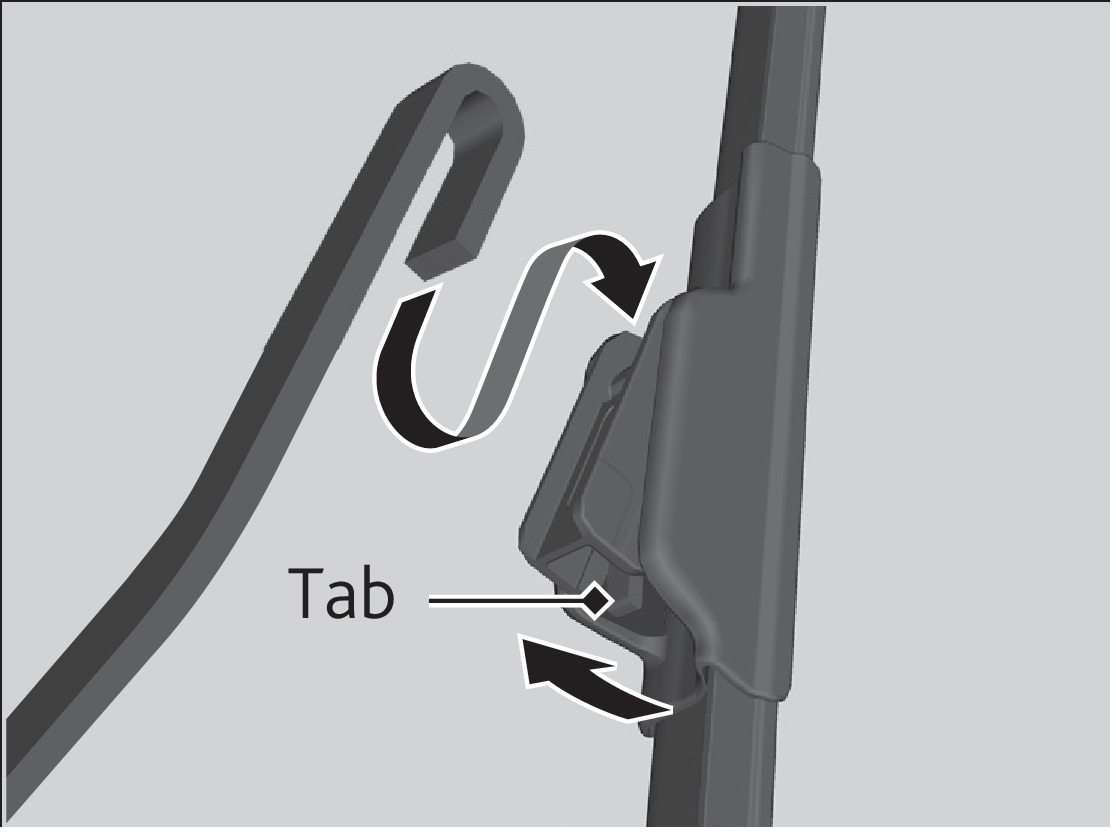

3. For each wiper, press and hold the tab, then slide the wiper blade holder out from the wiper arm.

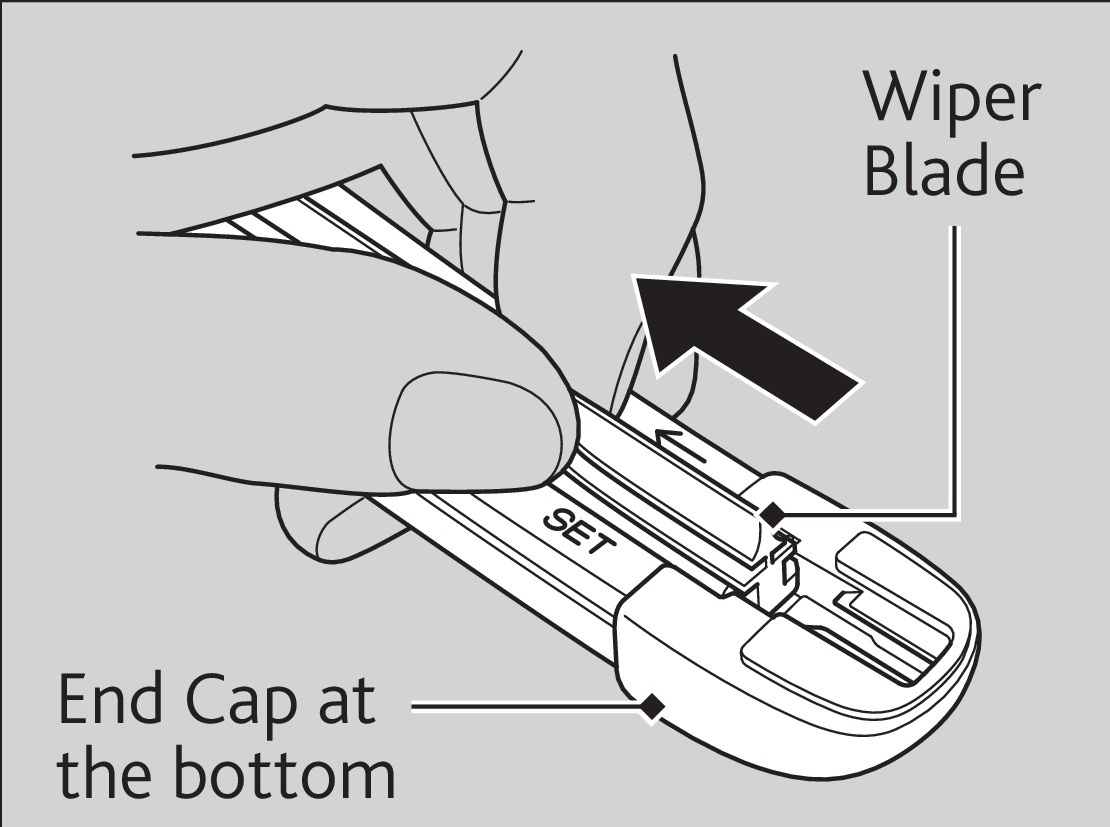

4. Pull the end of the wiper blade (in the direction of the arrow in the image) until it is out of the holder's end cap.

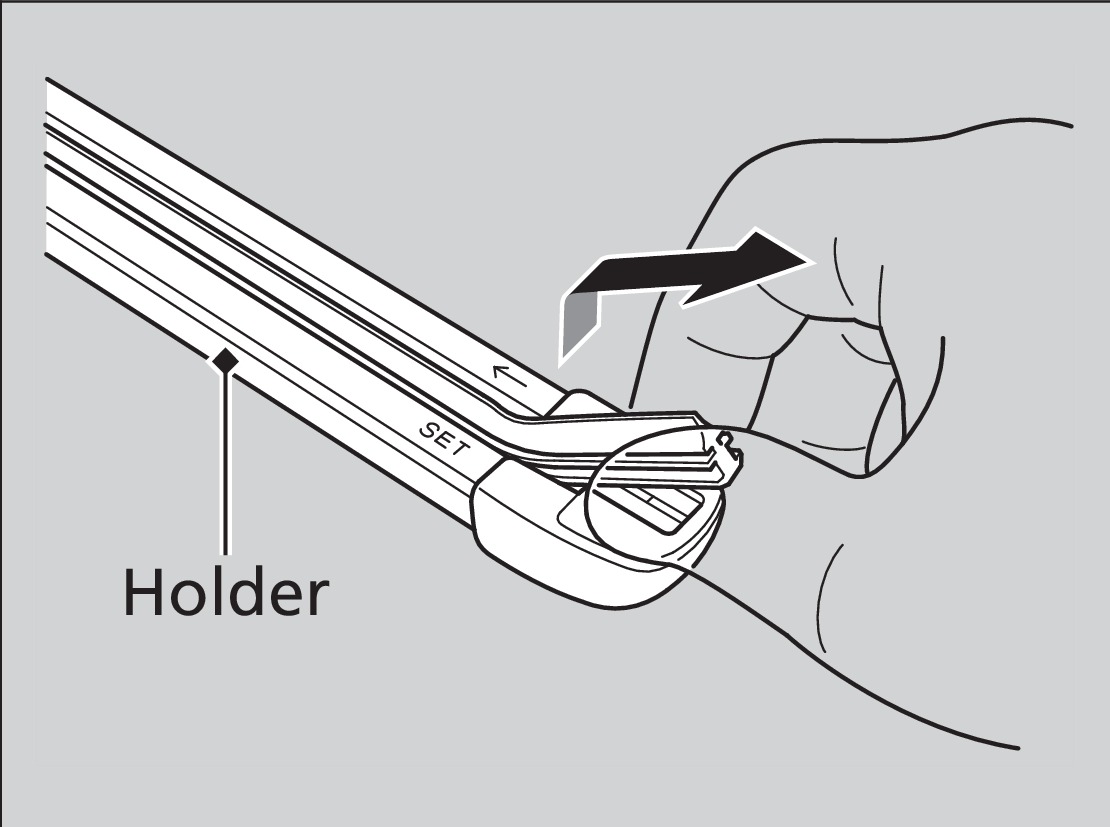

5. Pull the wiper blade in the opposite direction to slide it out of its holder. Insert the flat side of the new wiper blade onto the bottom part of the holder. Insert the blade all the way and install the end cap.

6. Slide the wiper blade onto the wiper arm until it locks and lower both wiper arms.
7. Set the power mode to ON. Hold the wiper switch in the MIST position until the wiper arms return to their normal position.
