Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF (LOCK) and check to see if any applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the fuse by the fuse number and box cover number.
Hood Fuse Box A

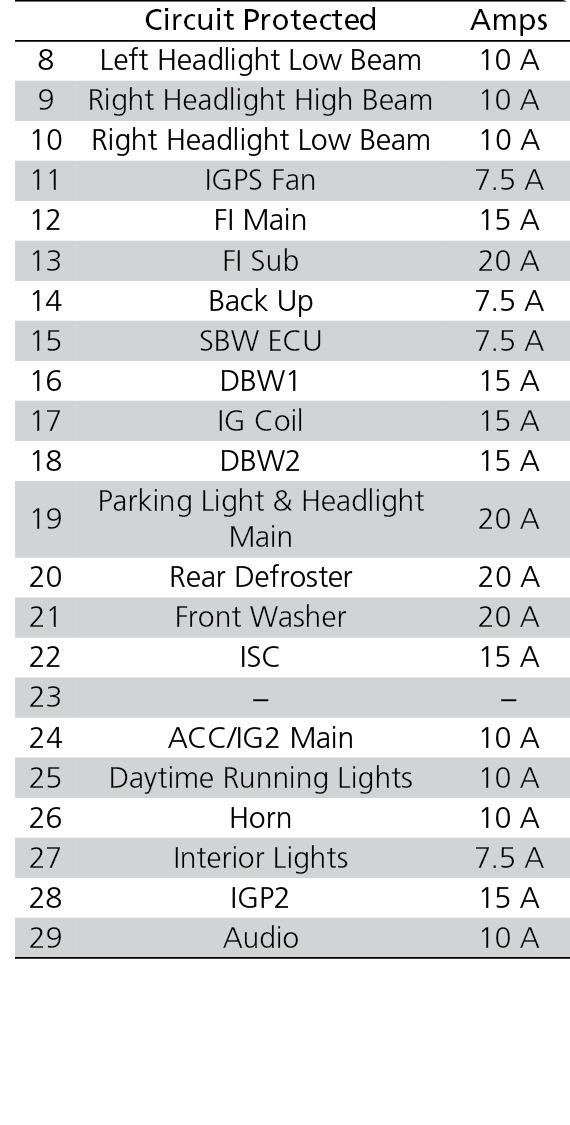

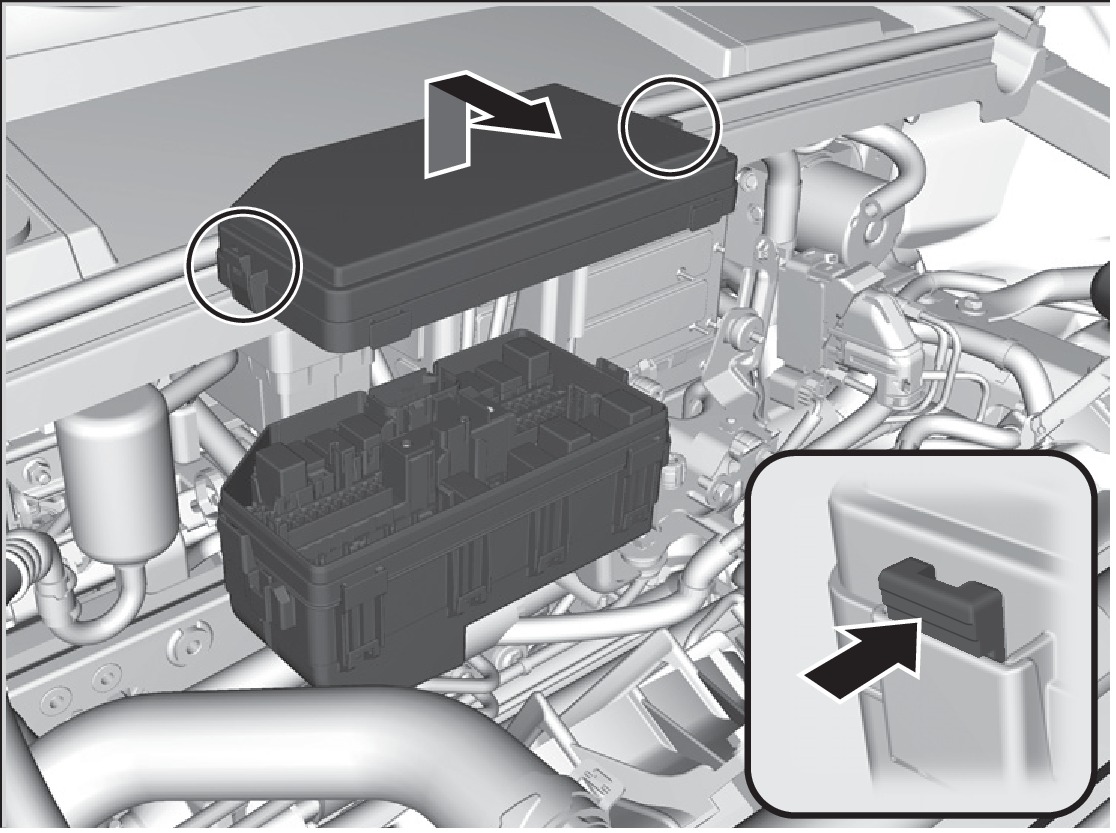

Located near the radiator. Push the tabs to open the box.

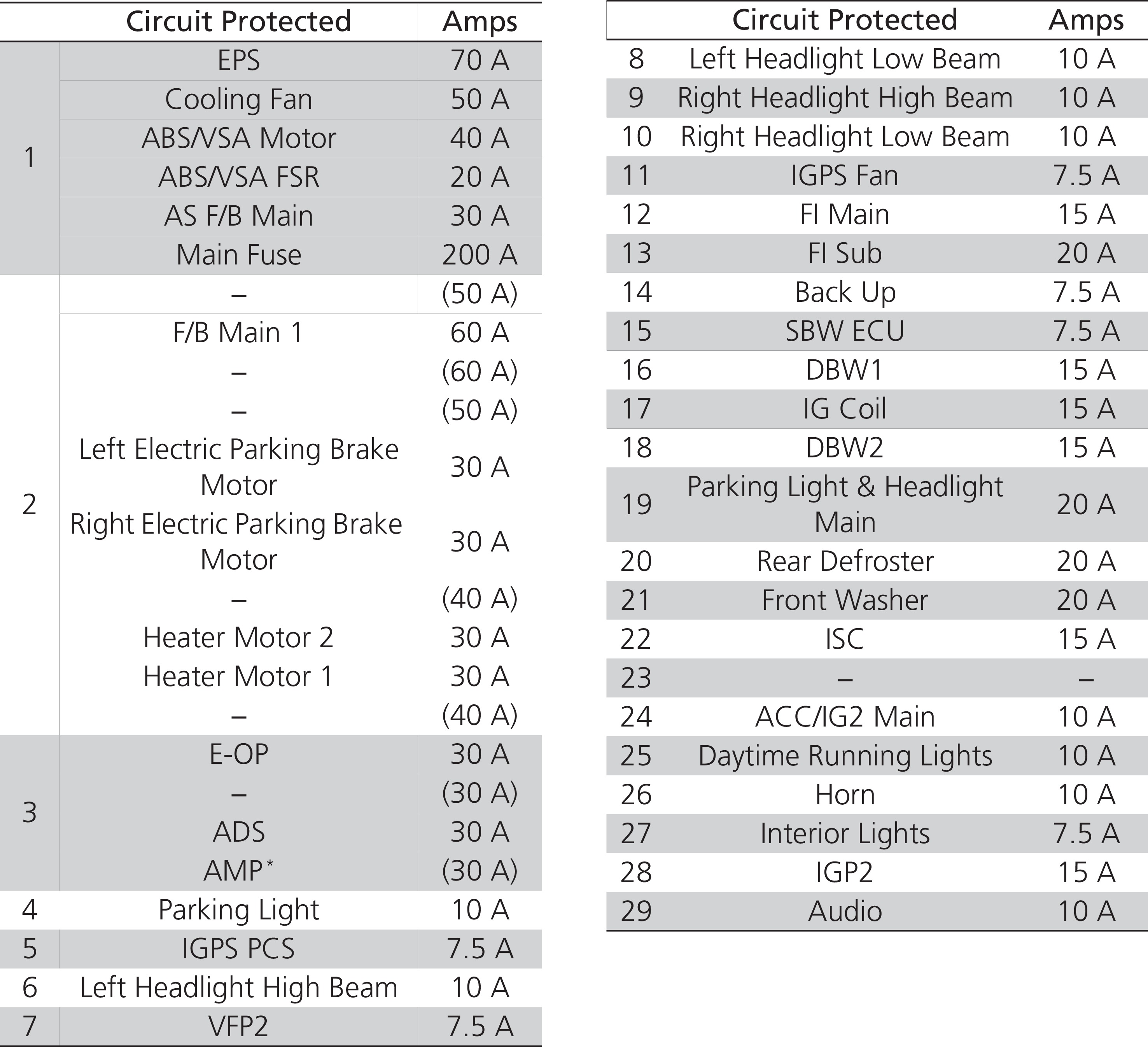

Fuses shown on next page.

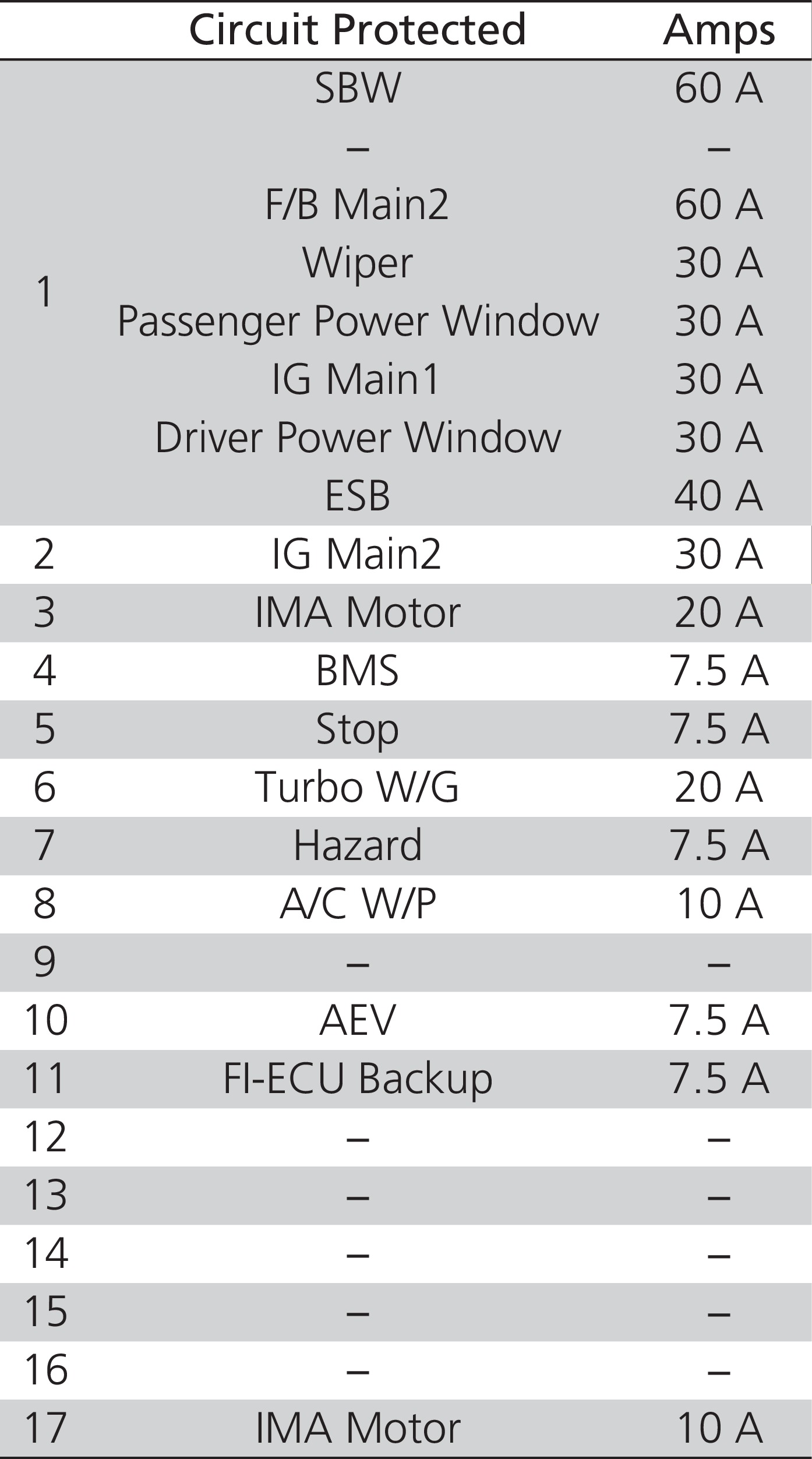

Hood Fuse Box B

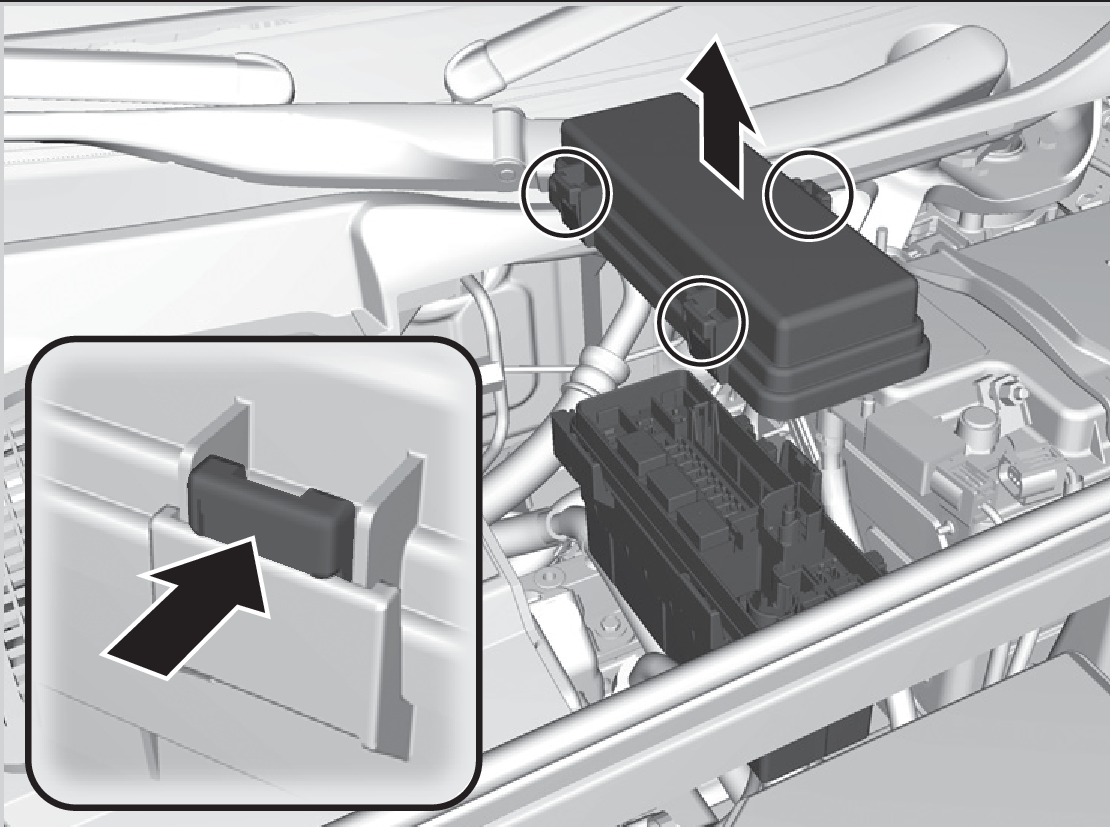

Located near the 12-volt battery. Remove the maintenance cover, then push the tabs to open the box.

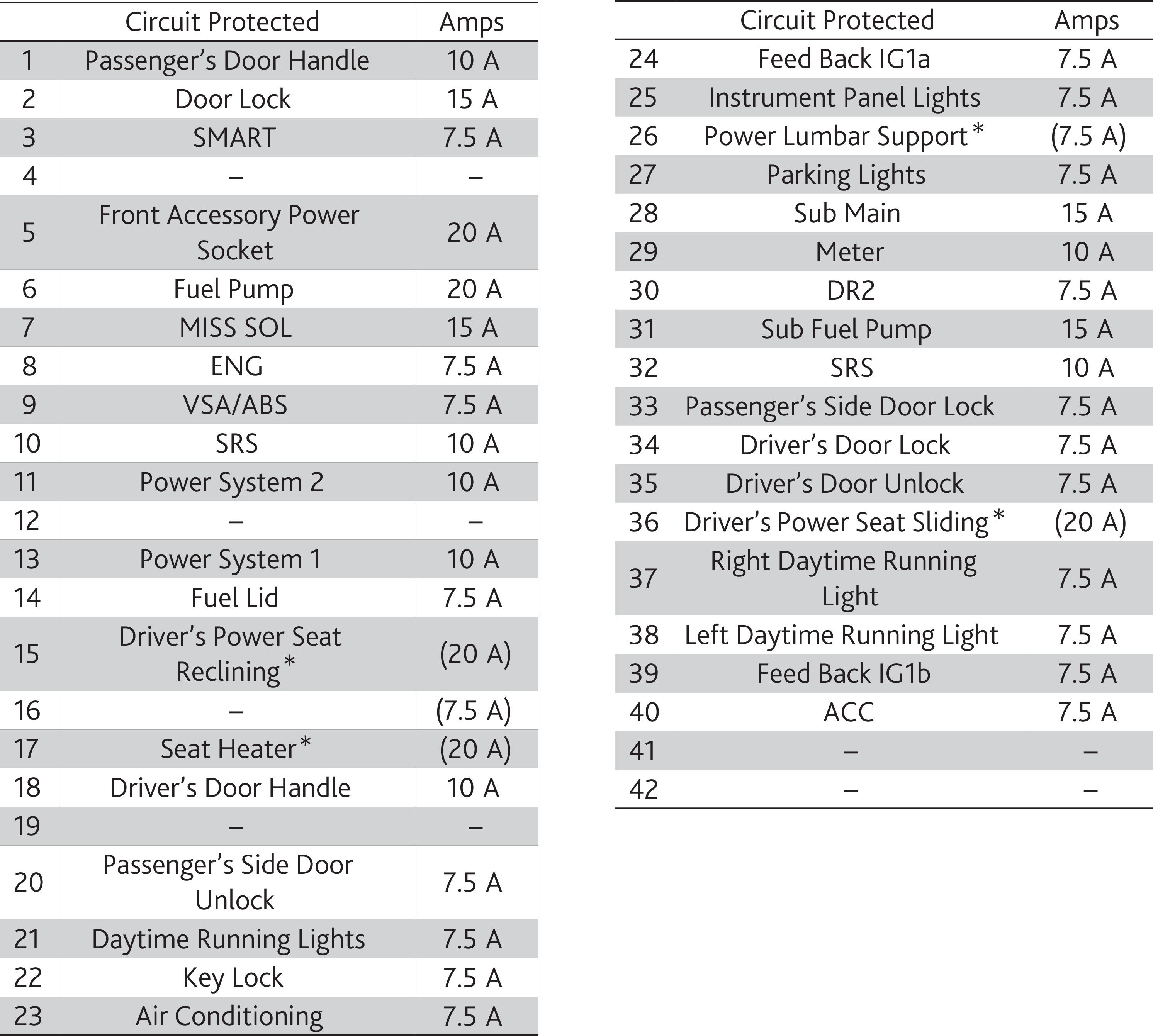

Driver's Side Fuse Box

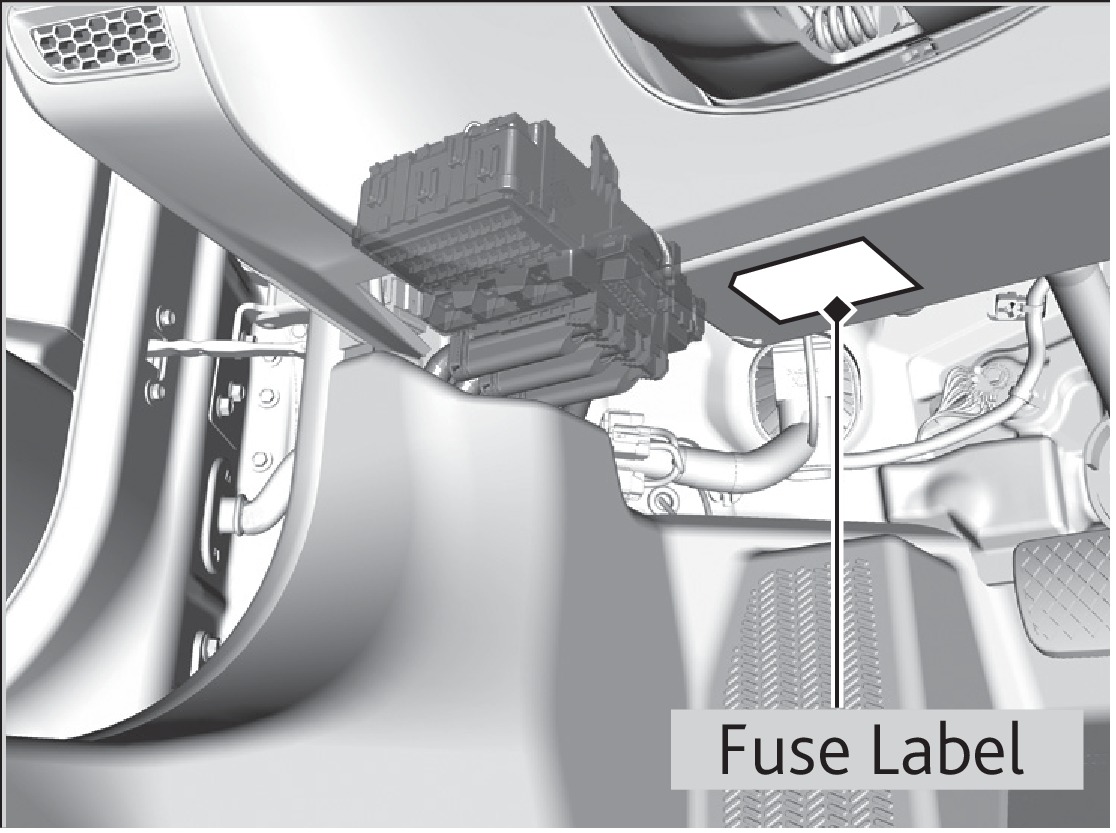

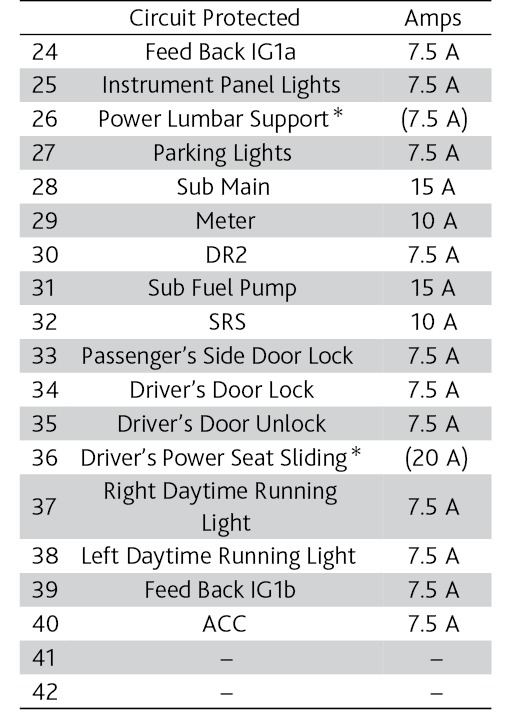

Located under the dashboard.
*if equipped
Passenger's Side Fuse Box

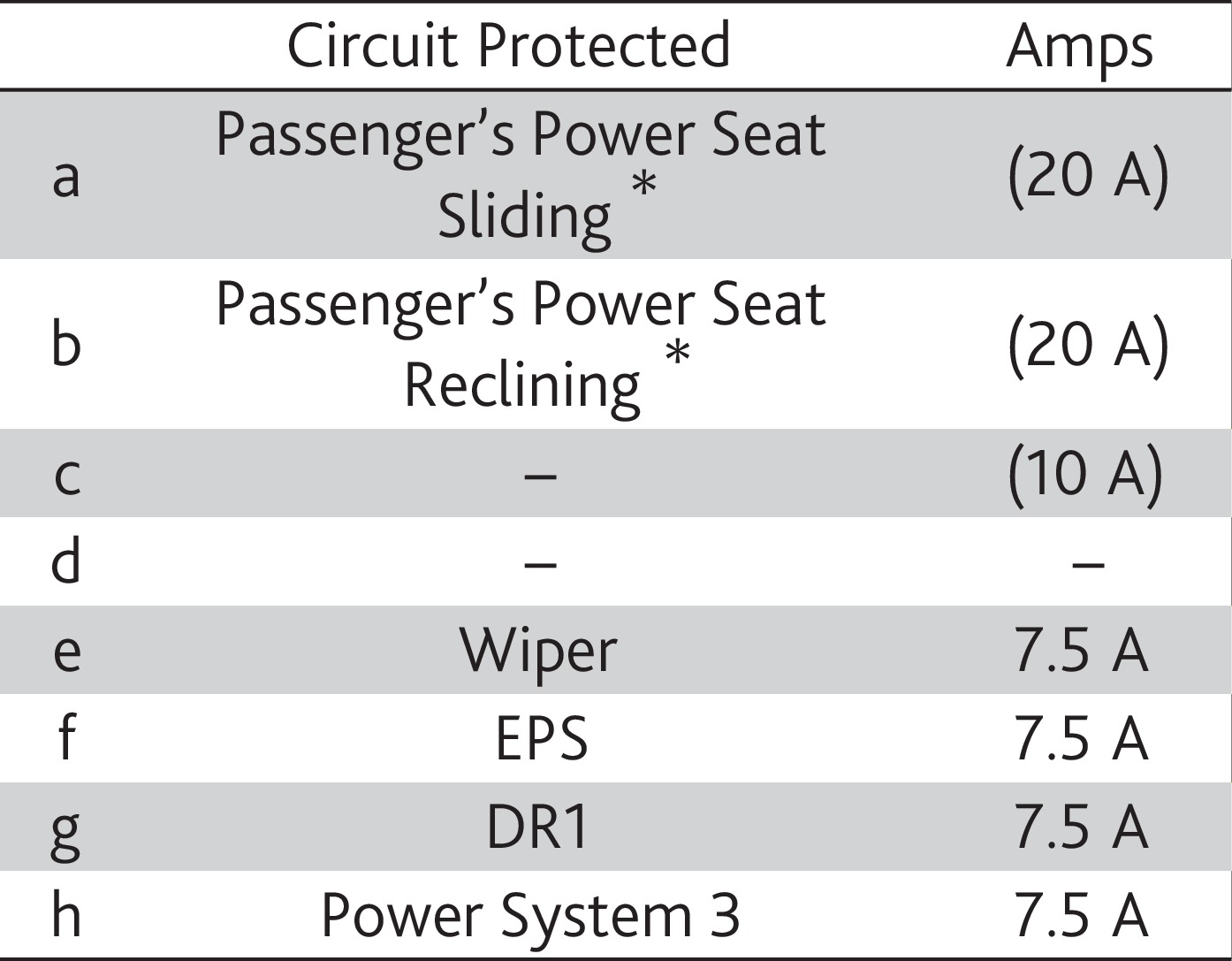

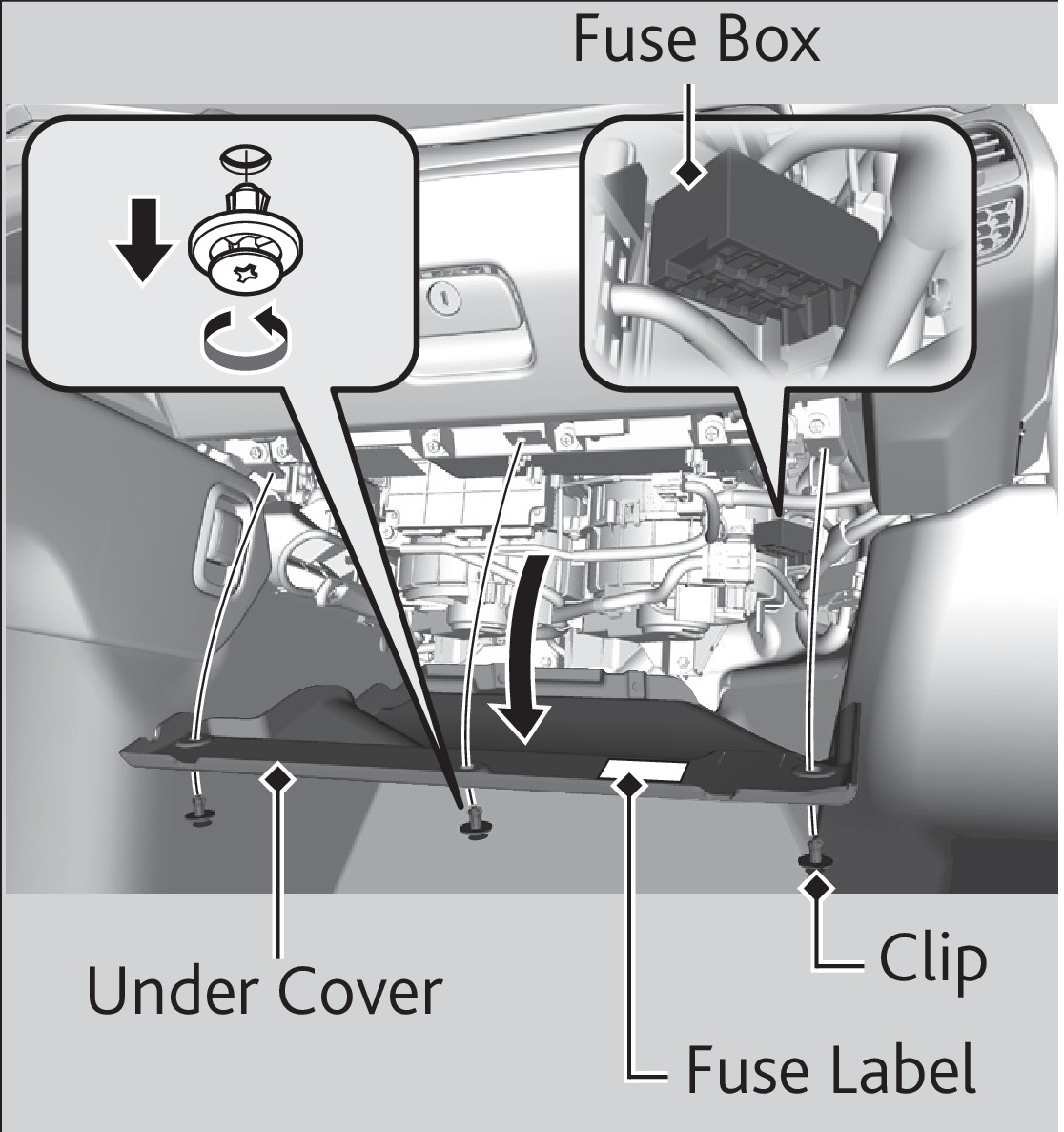

Located below the glove box. Use a Phillips-head screwdriver to remove the clips, then open the cover panel.
*if equipped

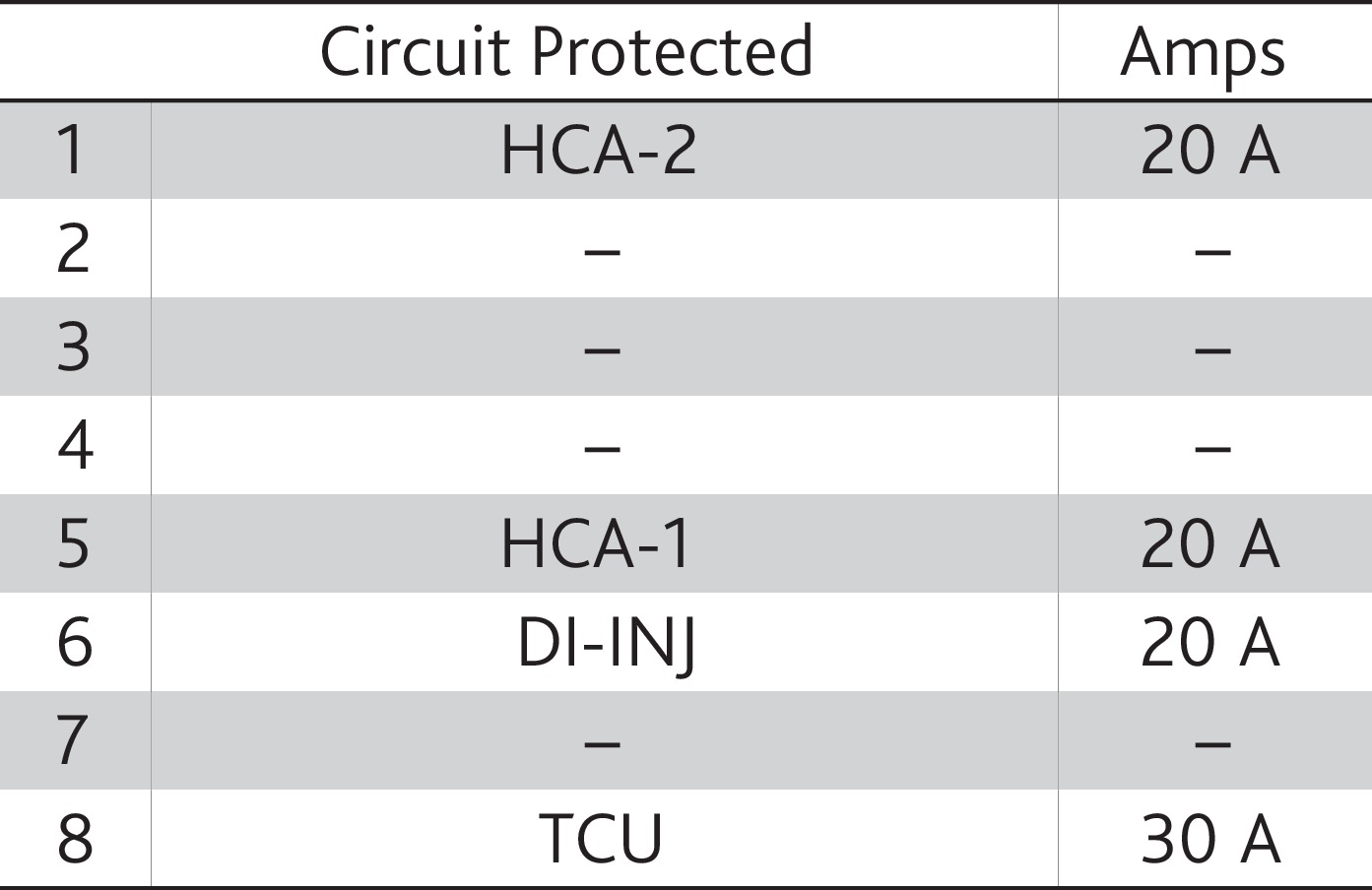

Interior Rear Fuse Box

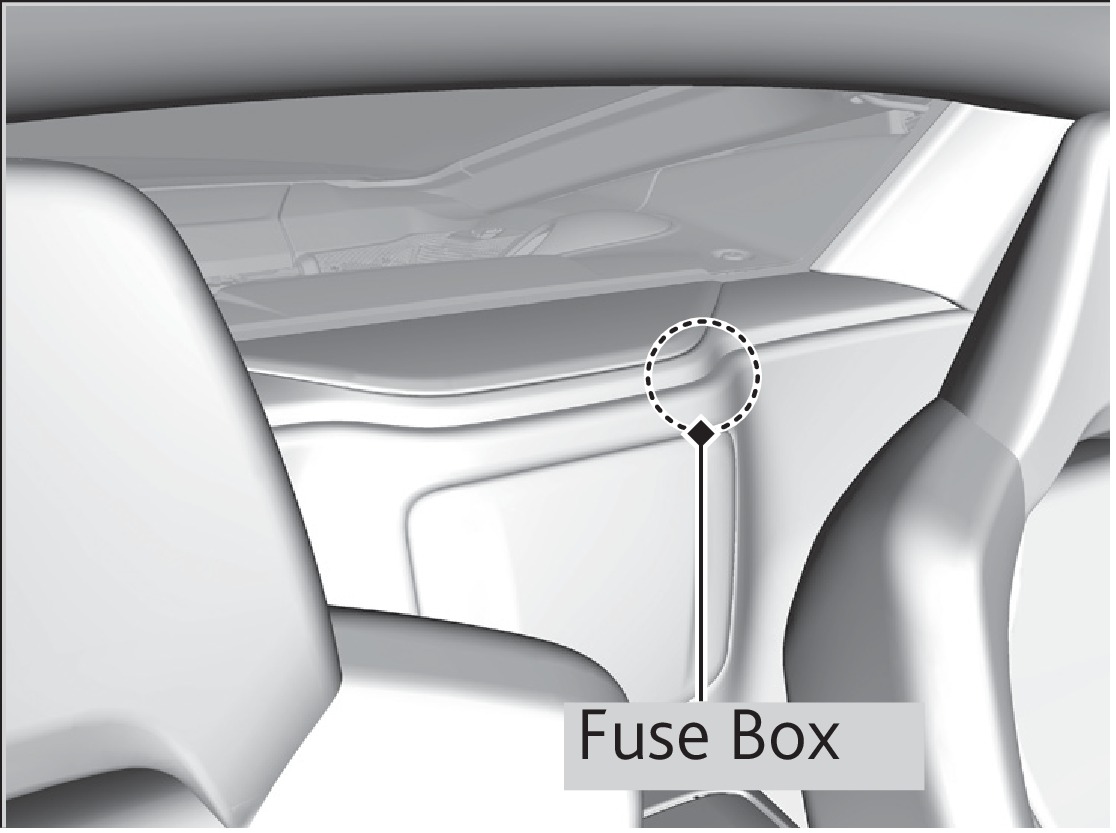

Located near the rear-center speaker. The fuse label is the hood fuse box "A".
Inspecting and Changing Fuses
- Set the power mode to VEHICLE OFF. Turn off the headlights and all accessories.
- Remove the fuse box cover.

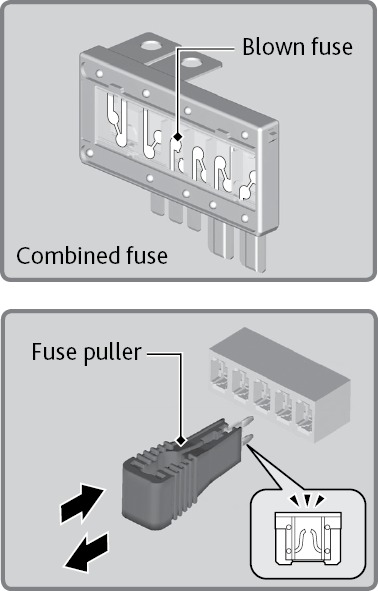

- Check the large fuse in the hood. If the fuse is blown, use a Phillips-head screwdriver to remove the screws and replace the fuse with a new one. Reinstall the screws.
- Inspect the small fuses in the hood and the vehicle interior. If there is a blown fuse, remove it with the fuse puller and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
