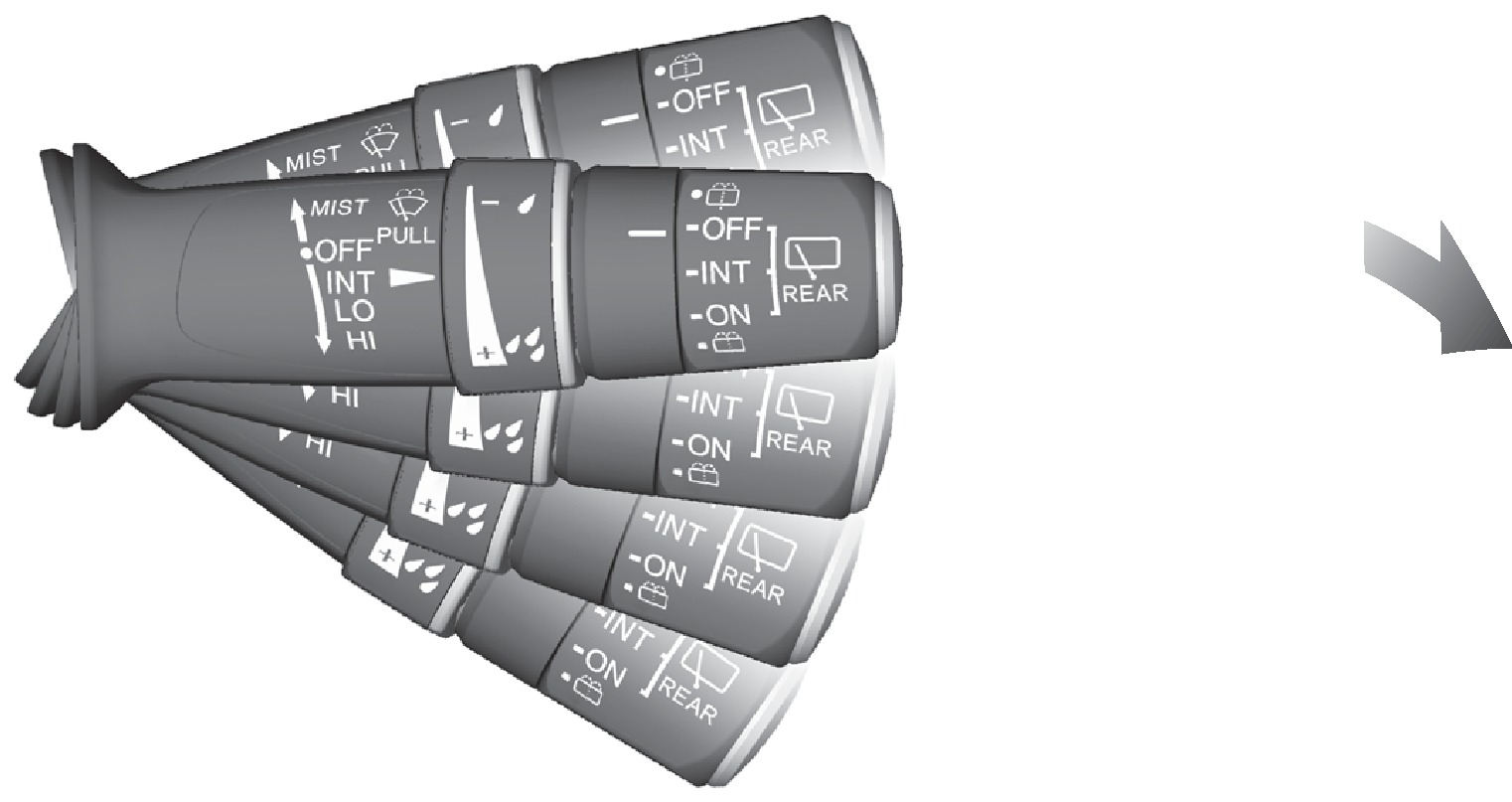

Wiper Operation
The windshield wipers and washers can be used when the vehicle is on. Move the wiper lever up or down to the desired position.
Mist
OFF
INT (intermittent)*1/ AUTO (automatic)*2
Pull toward you for washer.
LO: low speed
HI: high speed
Headlight-Wiper Integration
When the headlights are in the AUTO position, they automatically turn on when the front wipers operate several times within a certain interval. The headlights turn off shortly after the wipers are turned off, or if there is enough ambient light.

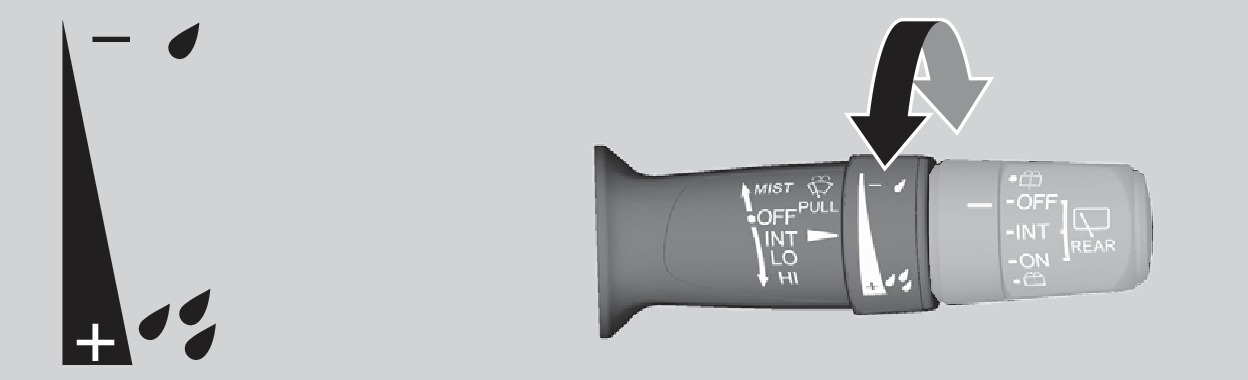

Intermittent Wipers*
When you move the lever to the INT position, the wipers operate based on the delay adjustment.
Rotate the adjustment ring to adjust the wiper delay.
Long delay
Short delay
INT position
Rotate the adjustment ring.
* if equipped
*1: models without automatic intermittent wipers; *2: models with automatic intermittent wipers

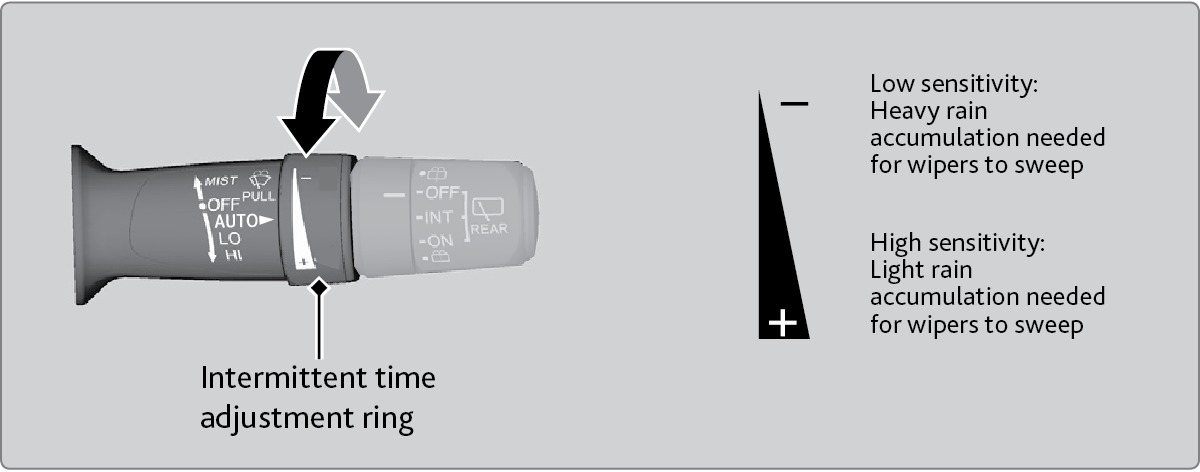

Automatic Intermittent Wipers*
When you move the lever to the AUTO position while driving in rainy weather, the wipers operate based on the amount of detected rainfall.
Put the lever in the AUTO position only when driving in rainy weather. Return the lever to the OFF position when rain stops.
Rotate the adjustment ring to adjust the rainfall sensor sensitivity. Return the lever to the OFF position when rain stops.
Always ensure the wiper lever is in the OFF position before cleaning the windshield or entering a car wash to prevent damage to the wiper system.
Rear Wiper
Rotate the end of the wiper lever to operate the rear wiper.
When you change the gear to Reverse (R) and the front wipers are activated, the rear wiper activates even if the switch is off.
Do not use the wipers when the windshield is dry. The windshield will get scratched, or the rubber blades will get damaged.
In cold weather, the blades may freeze to the windshield, becoming stuck. Operating the wipers in this condition may damage the wipers. Use the defroster to warm the windshield, or manually clear the windshield of ice and snow before turning on the wipers.
